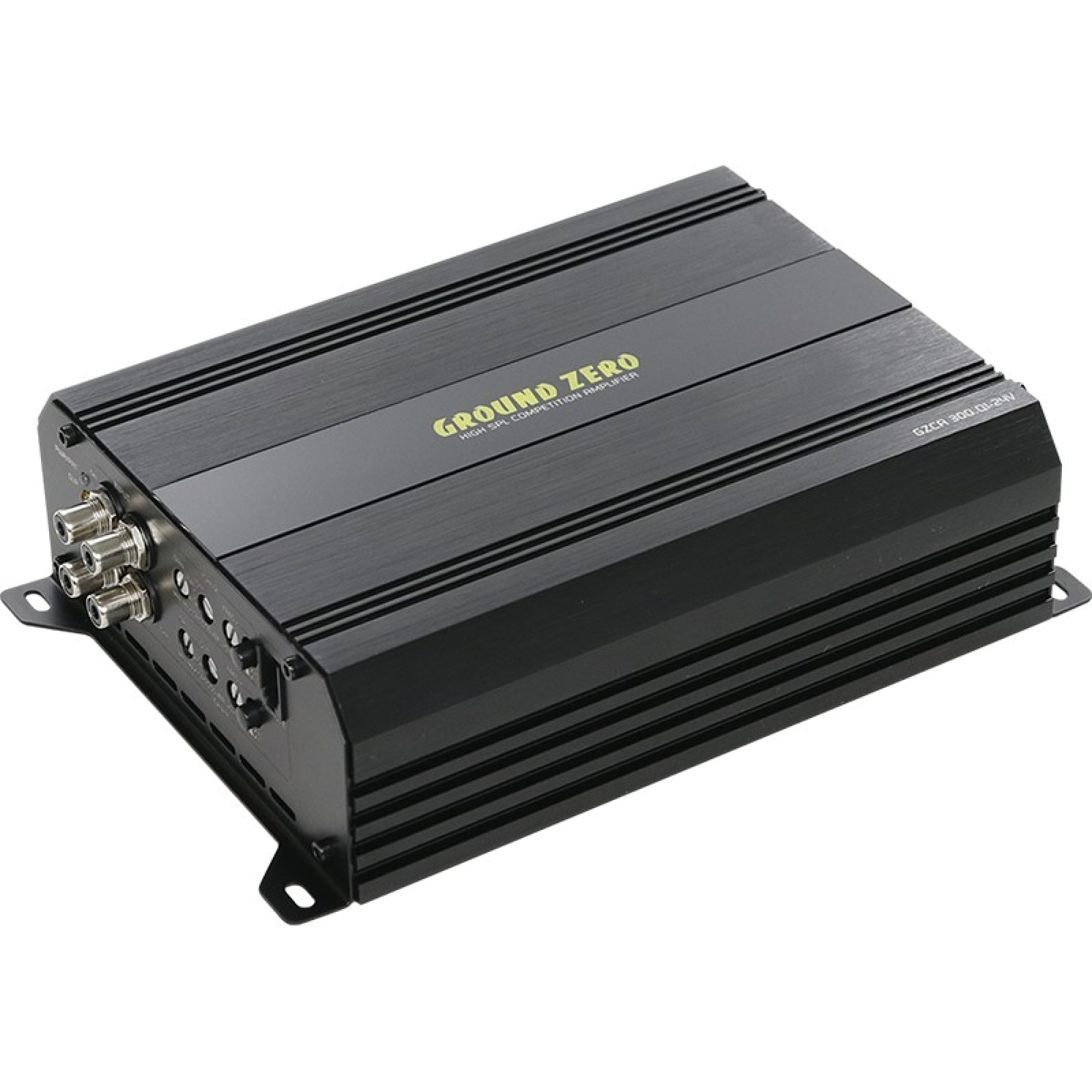

GROUND ZERO GZCA 300.Q1-24V

4-channel 1-ohm stable full range SPL high power amplifier with class D circuit and integrated active crossover.

24 v operating voltage
SPL high power amplifier
Class D technology
Variable active crossover
full range frequency responde
Stabilized high voltage power supply
Large terminals
Solid heatsink with Ground Zero lettering
Particularly qualified for SPL and SQL applications

Type Competition SPL amplifier
Channels 4
Output Power (@ 4Ω) 105 Watts RMS
Output Power (@ 2Ω) 195 Watts RMS
Output Power (@ 1Ω) 345 Watts RMS
max. Output Power (CEA-2006A / 10%THD+N) 1650 Watts
Ouput power (@ 2Ω) bridged 2x 690 Watts RMS
Frequency Response 5 Hz – 22 kHz
HPF / LPF / BPF ● / ● / ○
Bass Boost / Phase Shift ○ / ○
High-Level Input / Auto-on ○ / ○
Remote Control optionally
BIAS Setting ○
Linkmode ○
Dimensions (w x h x l) 220 x 150 x 58 mm / 8.66 x 5.91 x 2.28″
