HELIX S 42C

Sound quality meets elegance – with the new S-series loudspeakers every ride becomes a special sound experience. The sophisticated design and the use of the latest technologies guarantee excellent sound characteristics with rich bass, accurate mids and crystal-clear highs. Nevertheless, these component systems are not only a highlight in terms of sound quality. Our engineers focused on a novel, timeless elegant design as well as on an easy integration into the vehicle. Low installation depths, a removeable aluminum tweeter housing as well as the innovative, two-part ″Flex-Crossover″ offer much more freedom in terms of connectivity and installation – especially if the tweeters and woofers are separately installed in the door and A-pillar. Make every ride a special sound experience!

TECHNICAL DATA

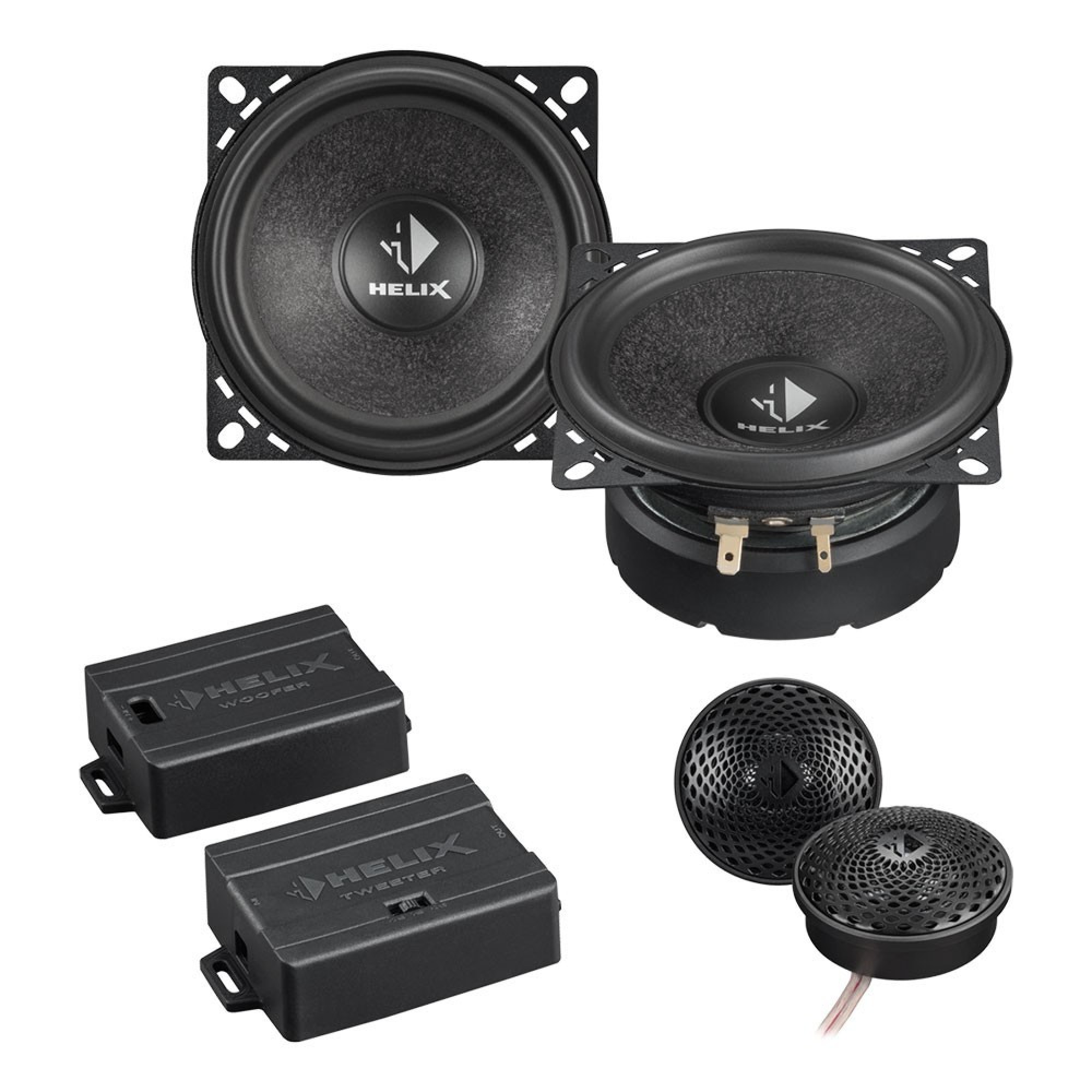

– 4″ 2-way separate system

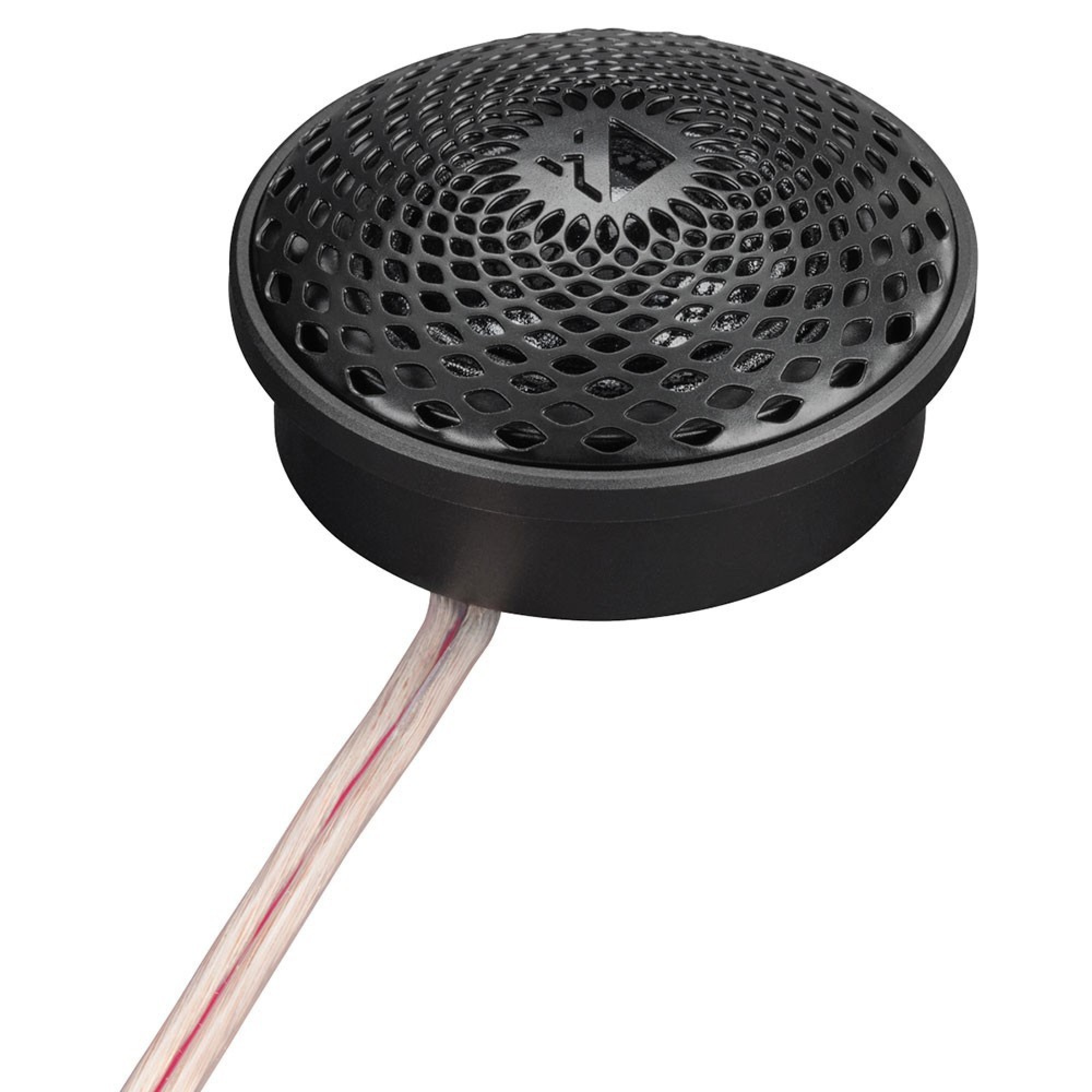

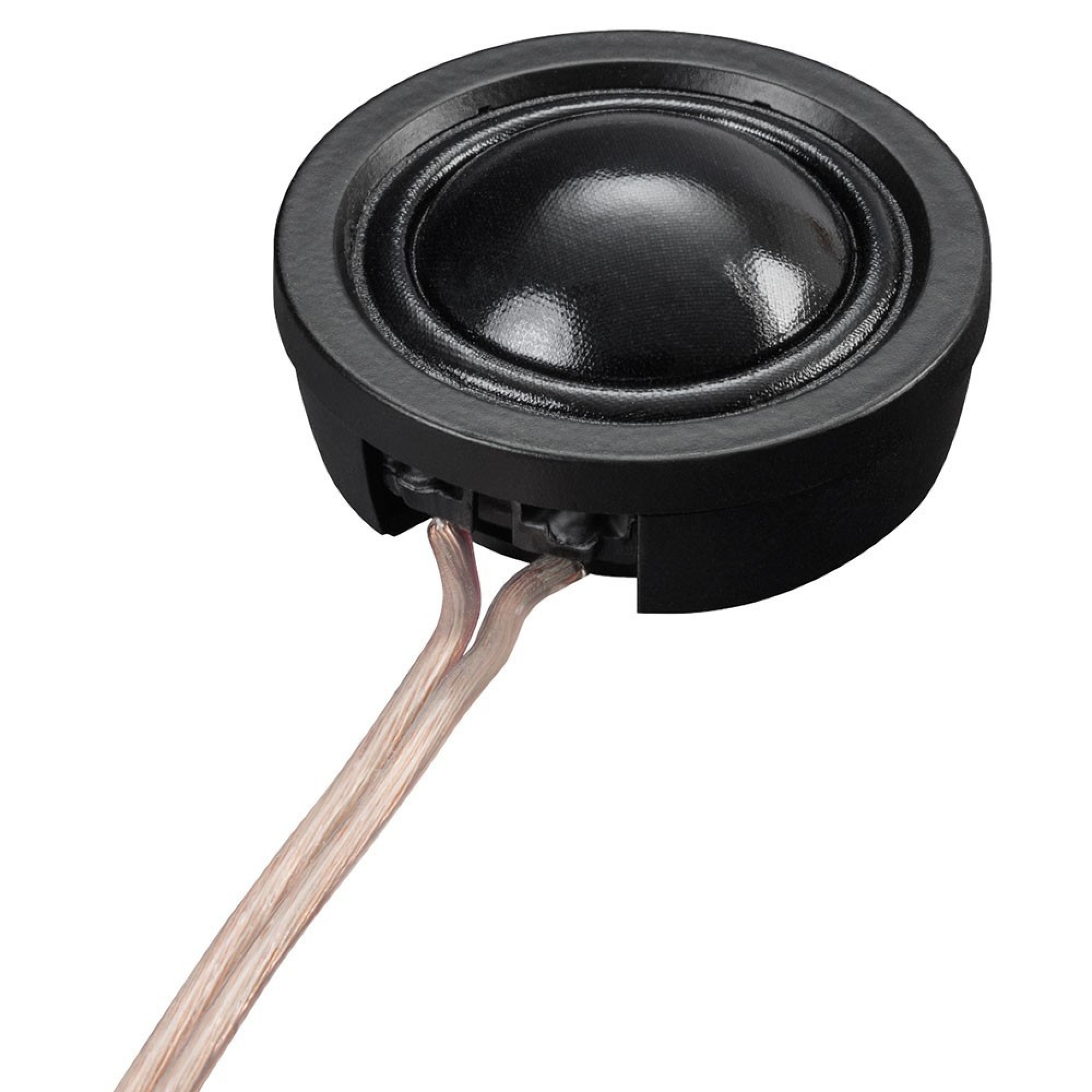

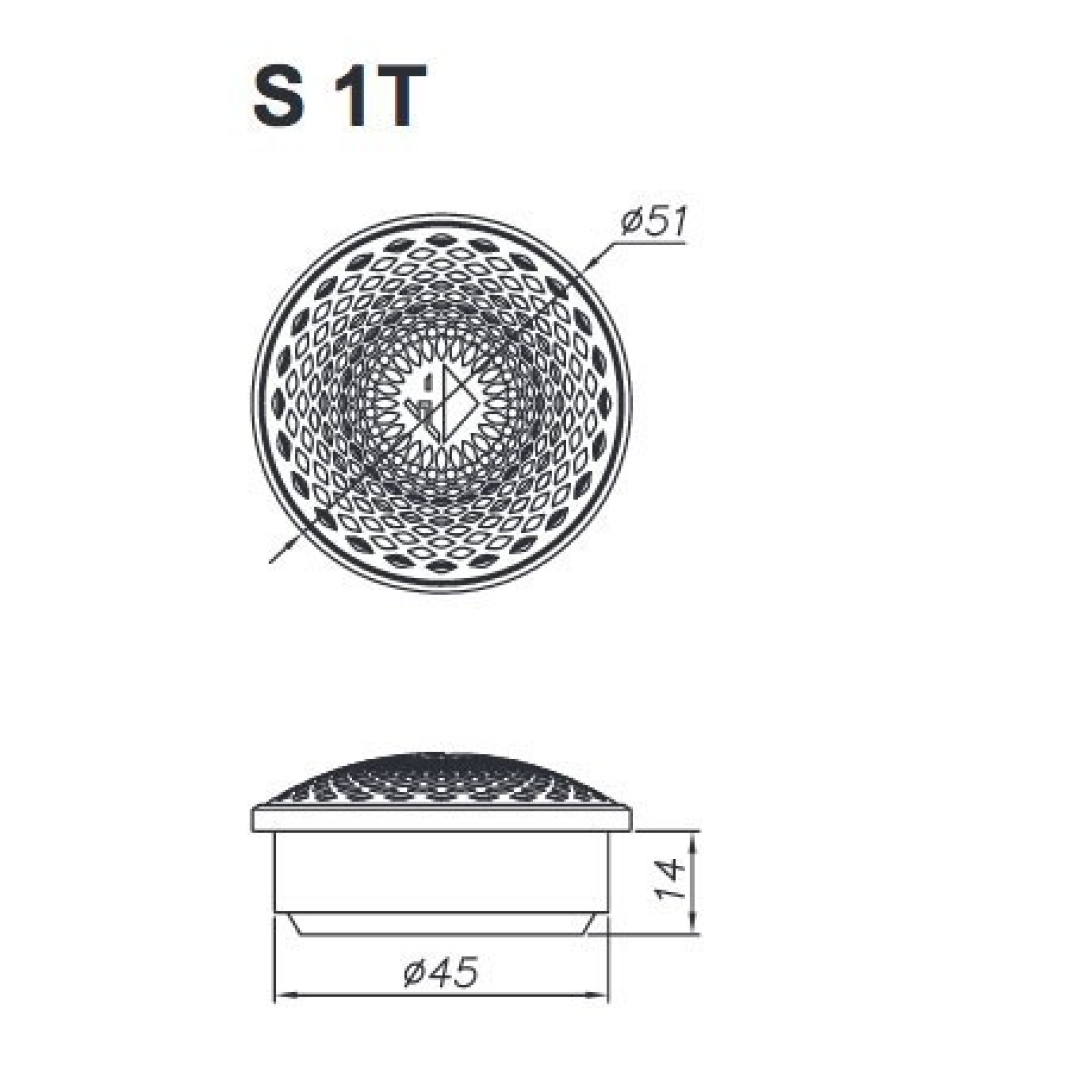

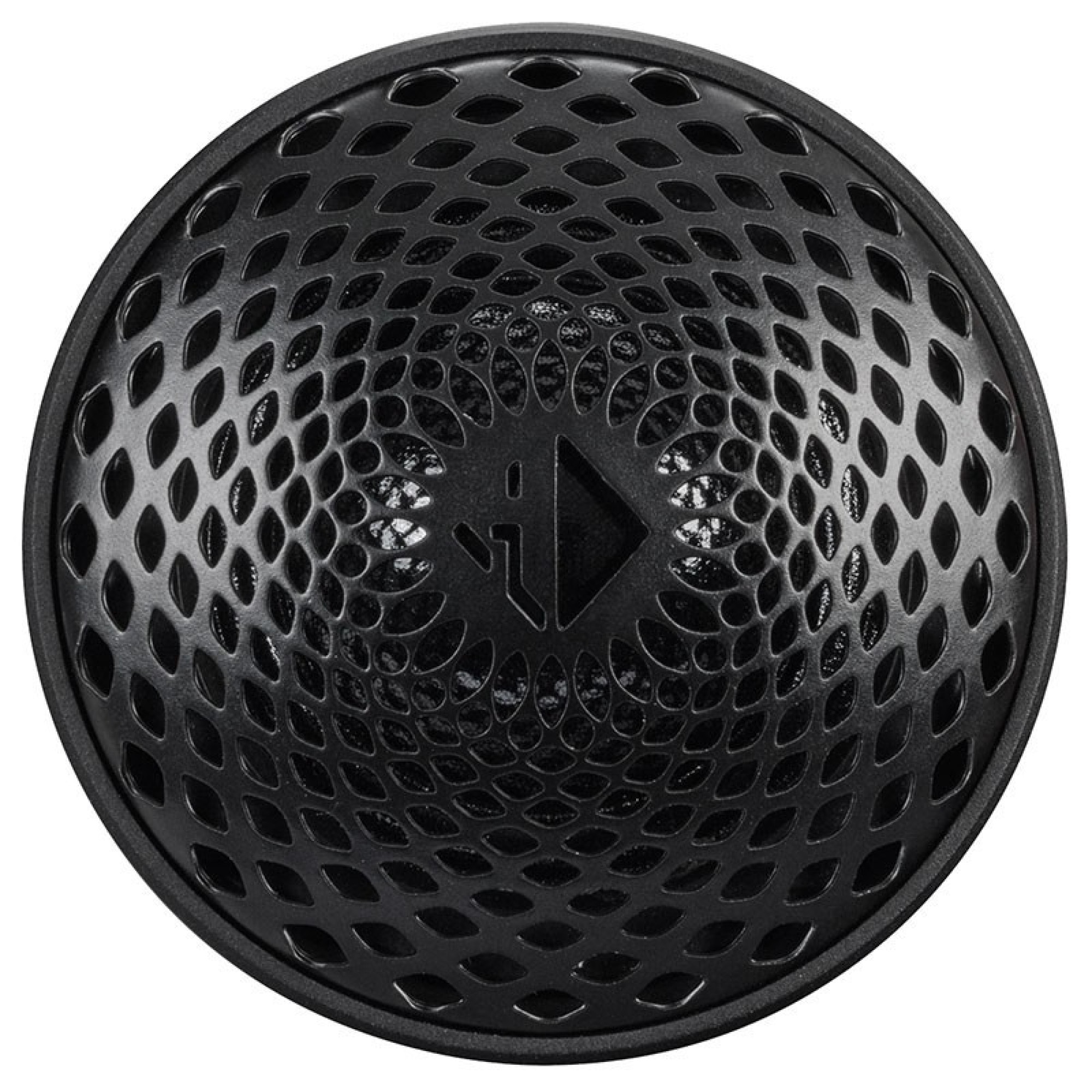

– 1″ ( 25 mm ) silk dome tweeter

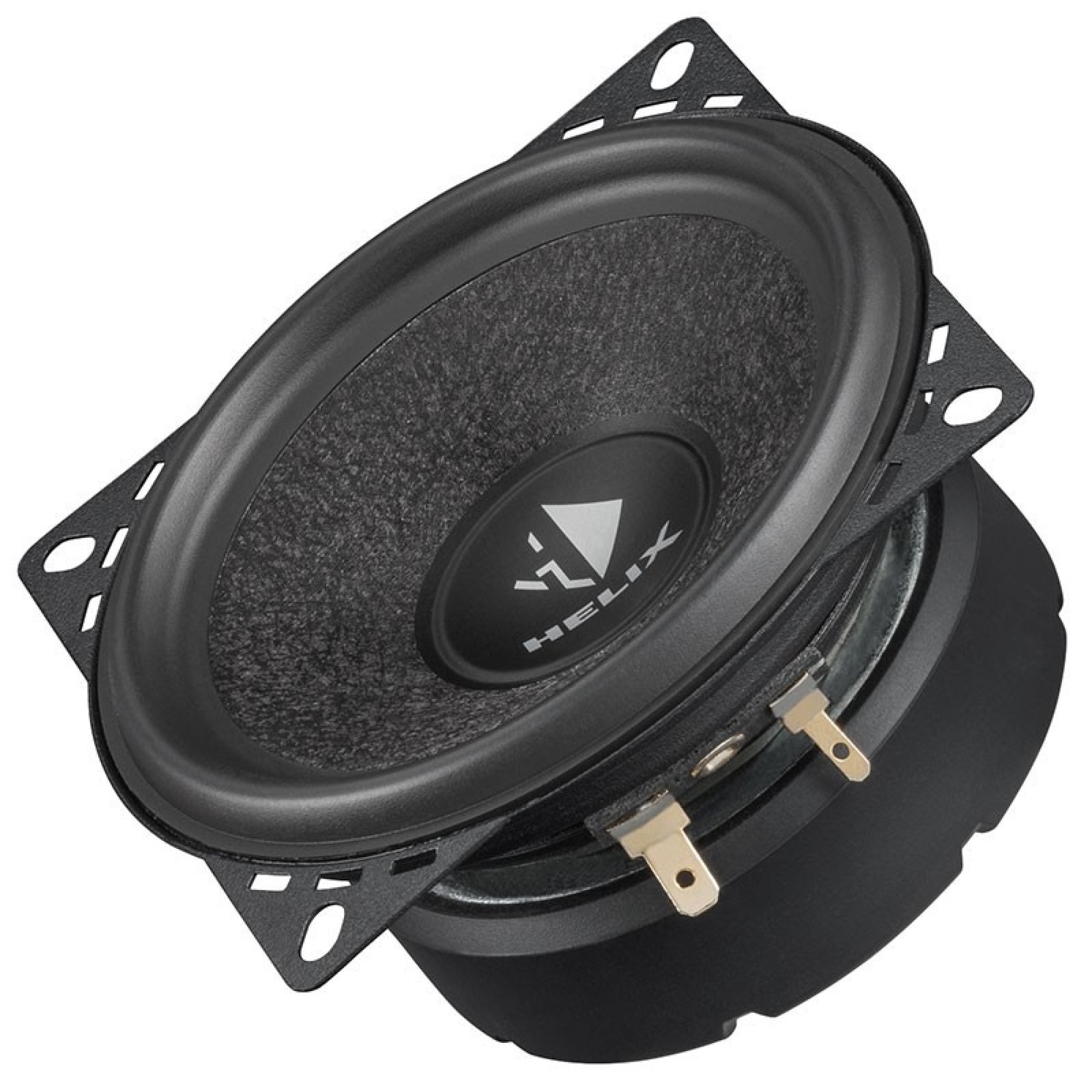

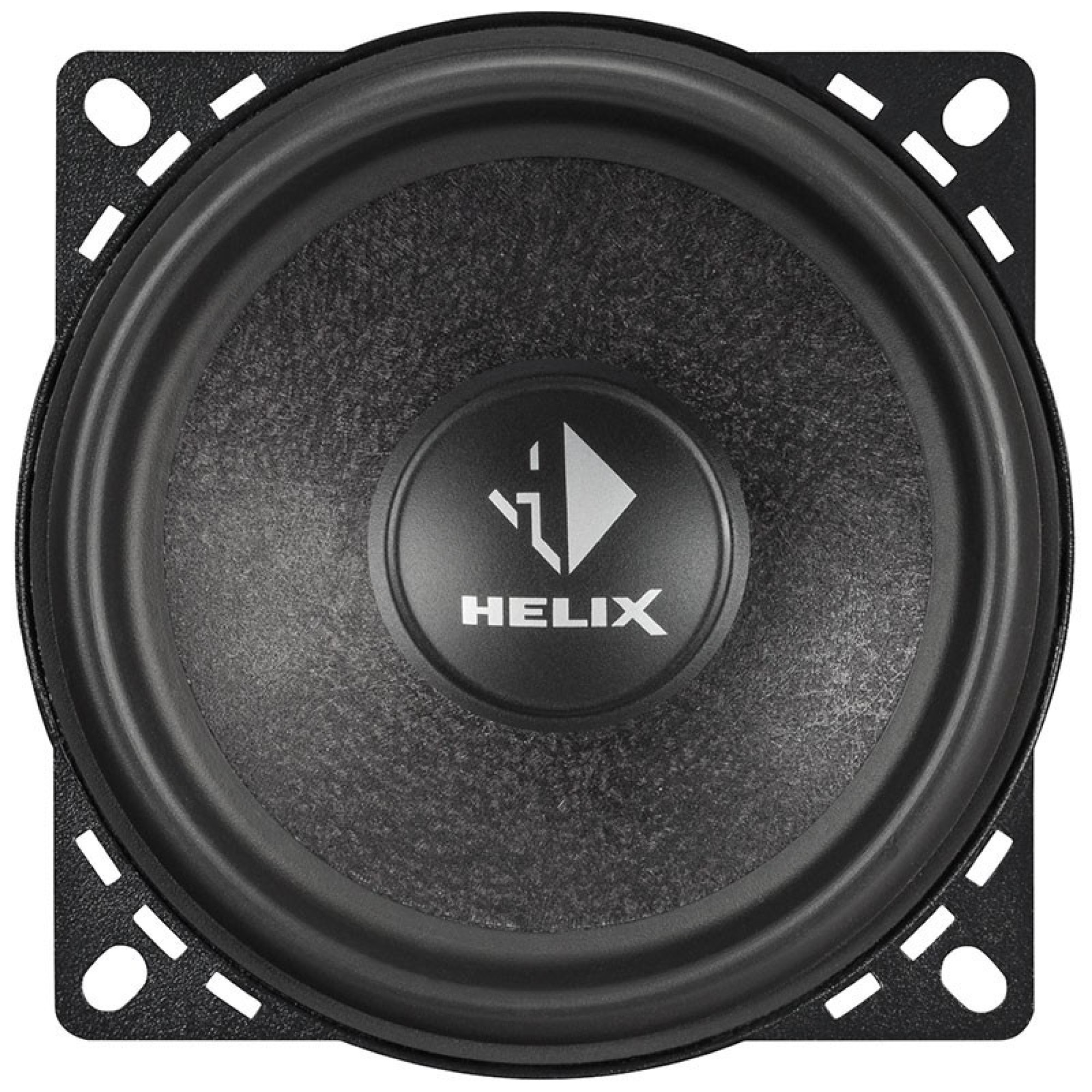

– woofer cone basalt-fiber-paper compound
– impedance: 4 ohm
– power handling: 70 W RMS, 140 W Peak
– frequency range: 75 – 25 000 Hz
– sensitivity: 89 dB / 1W / 1m

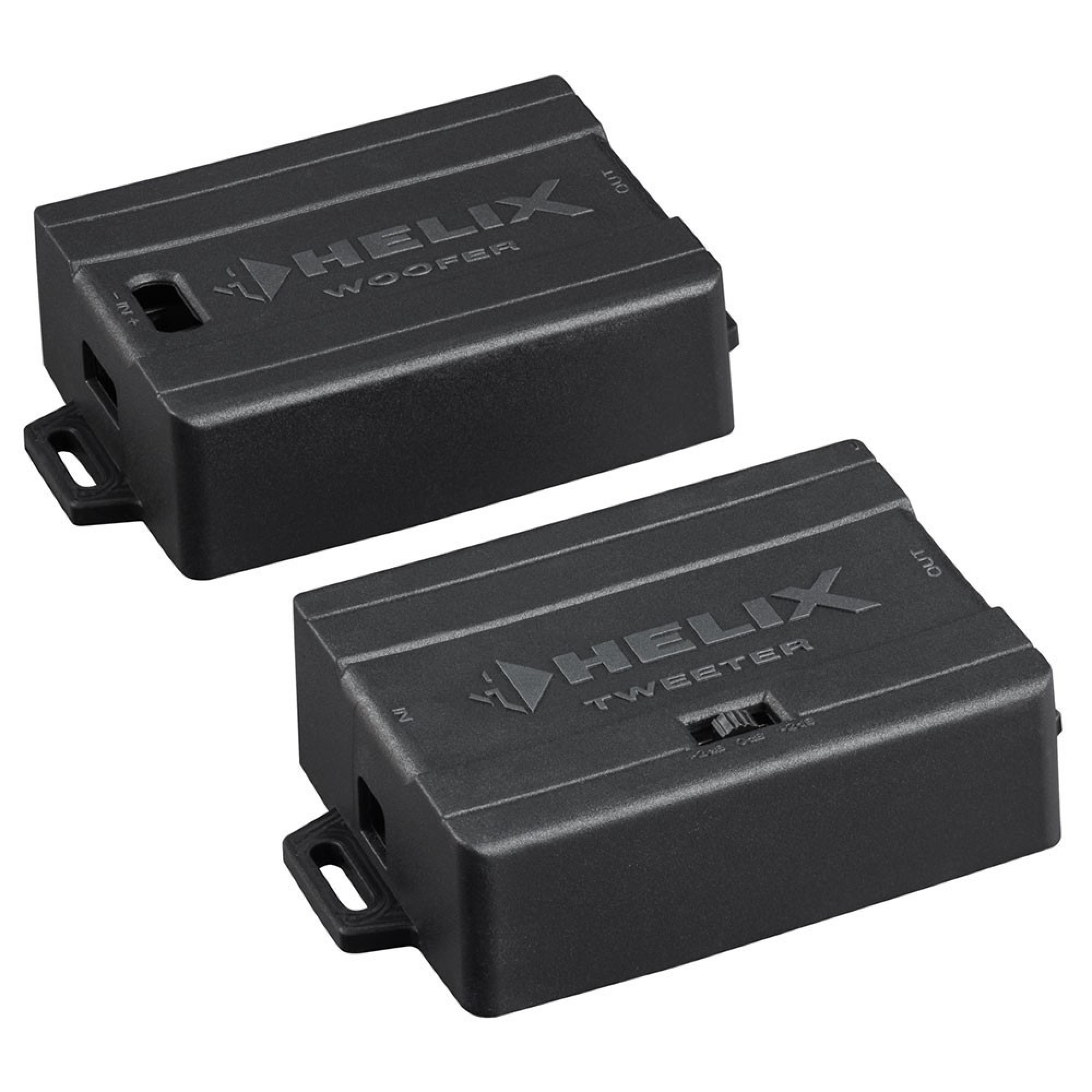

– Flex-crossovers

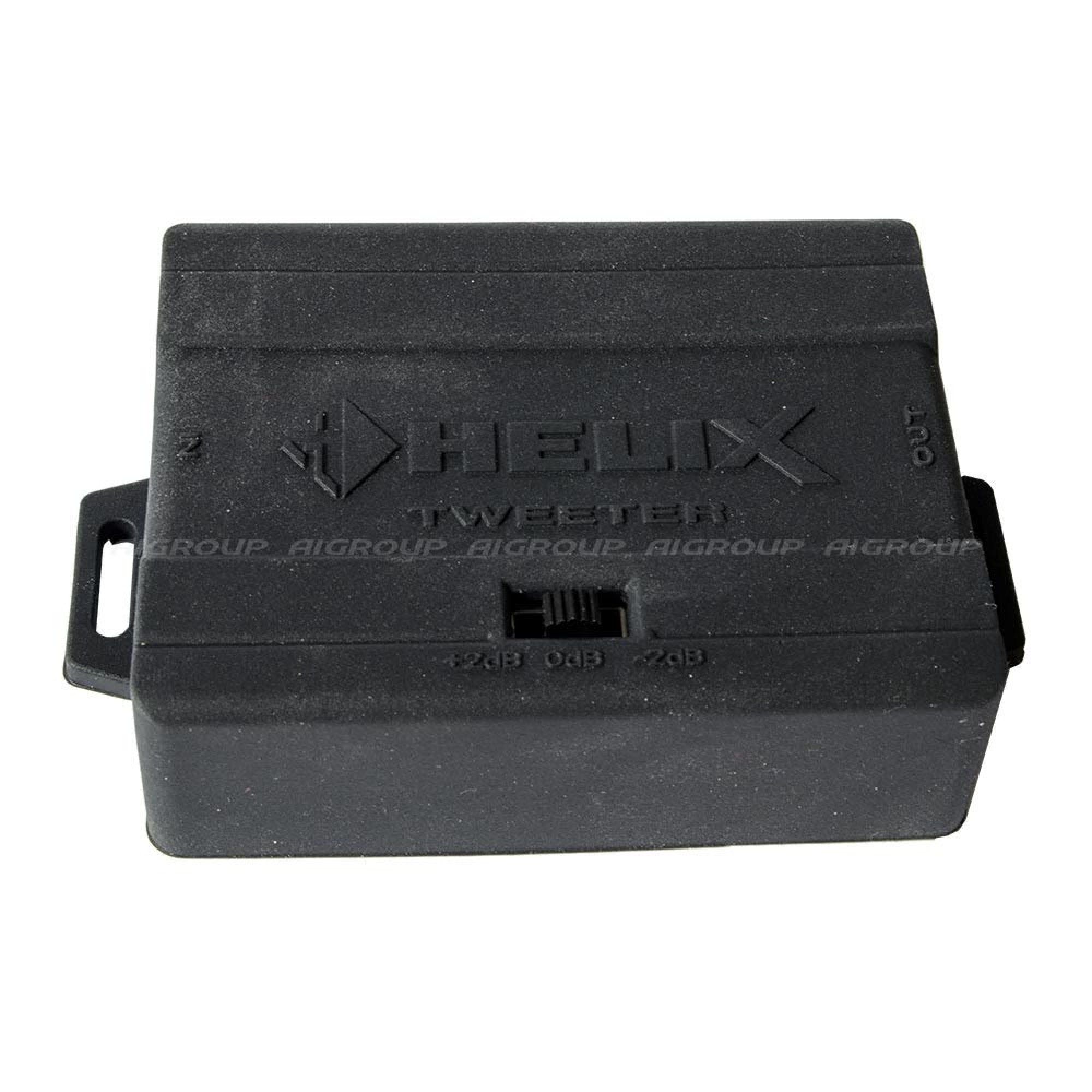

– tweeter level adjustment
– tweeter overload protection circuit

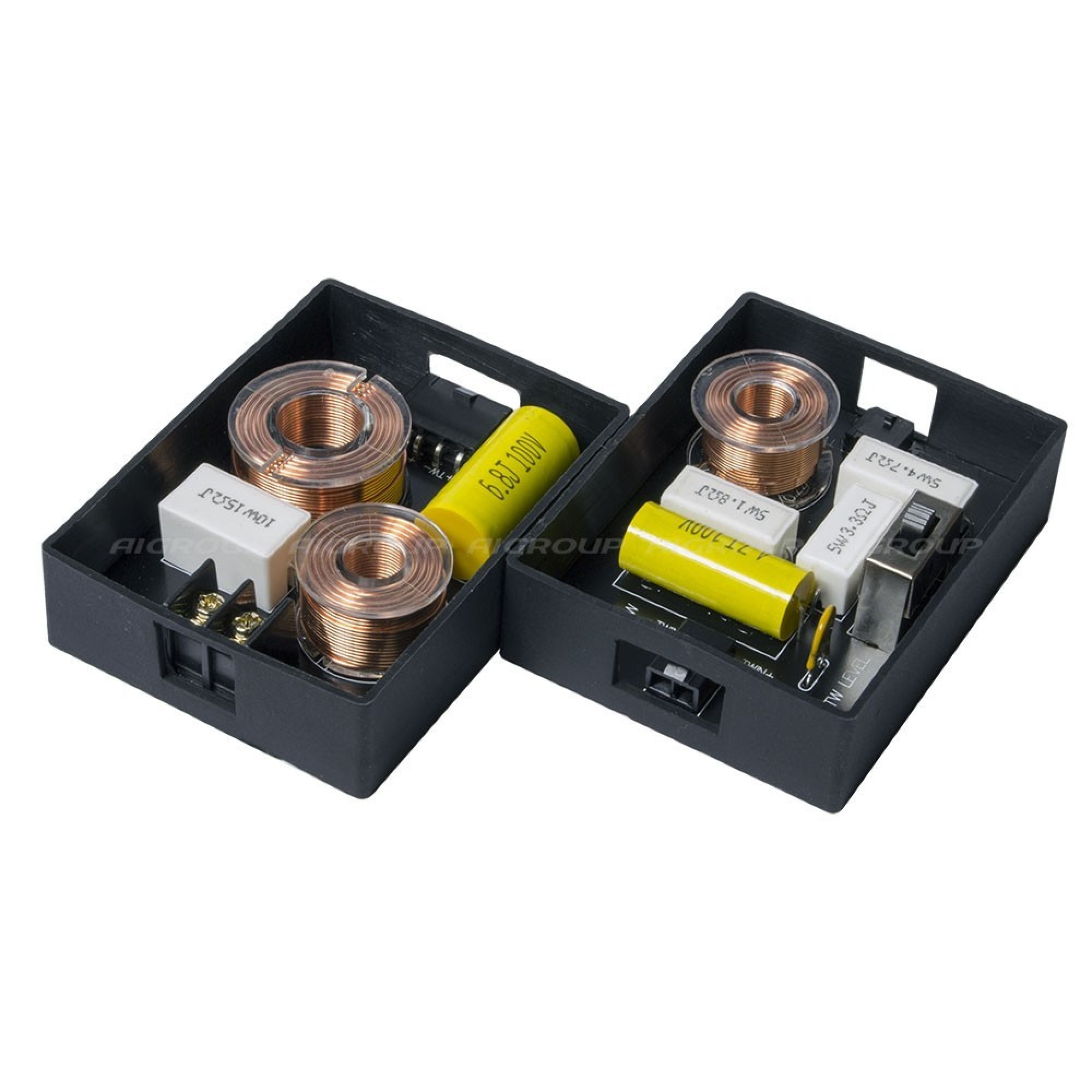

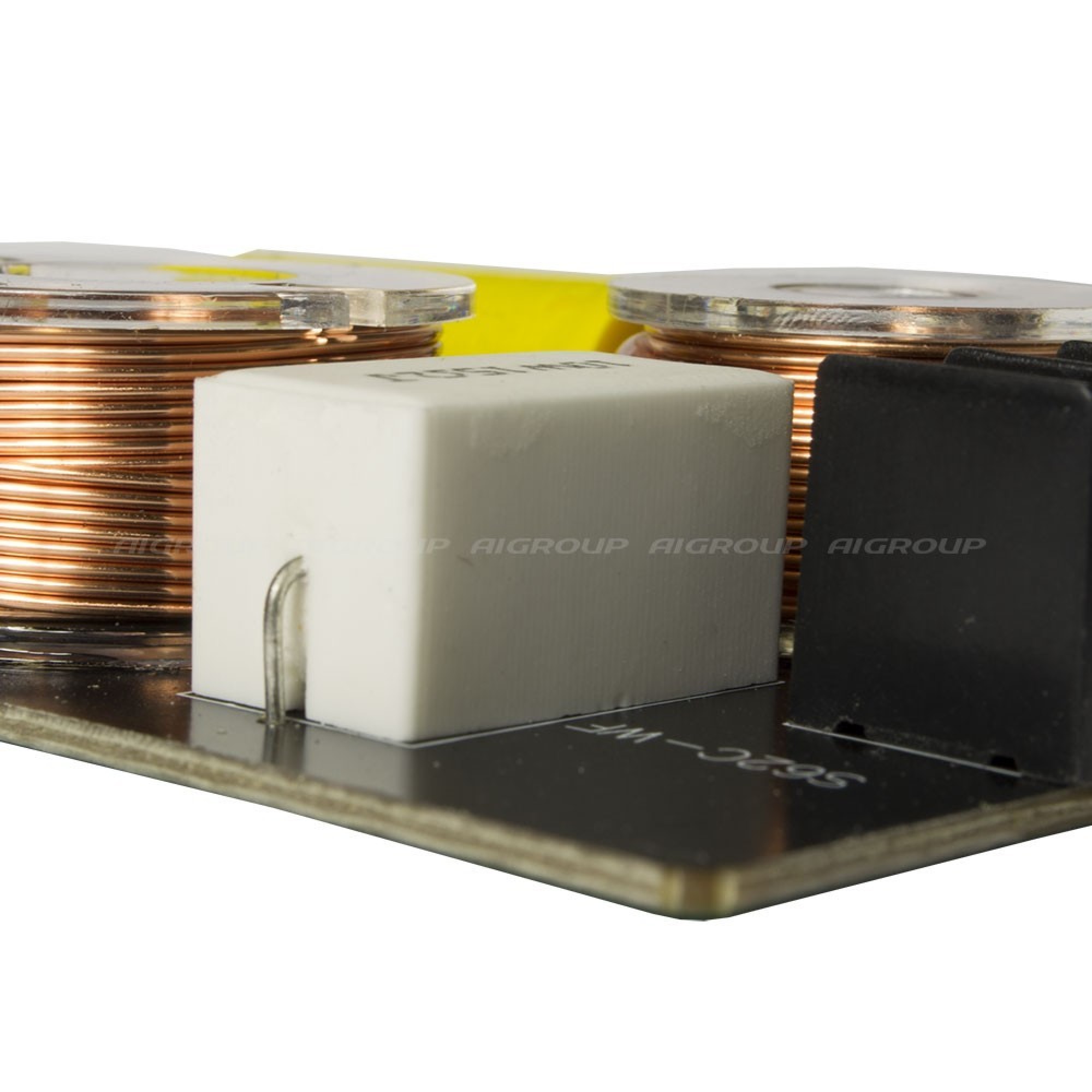

– air coils and foil capacitors

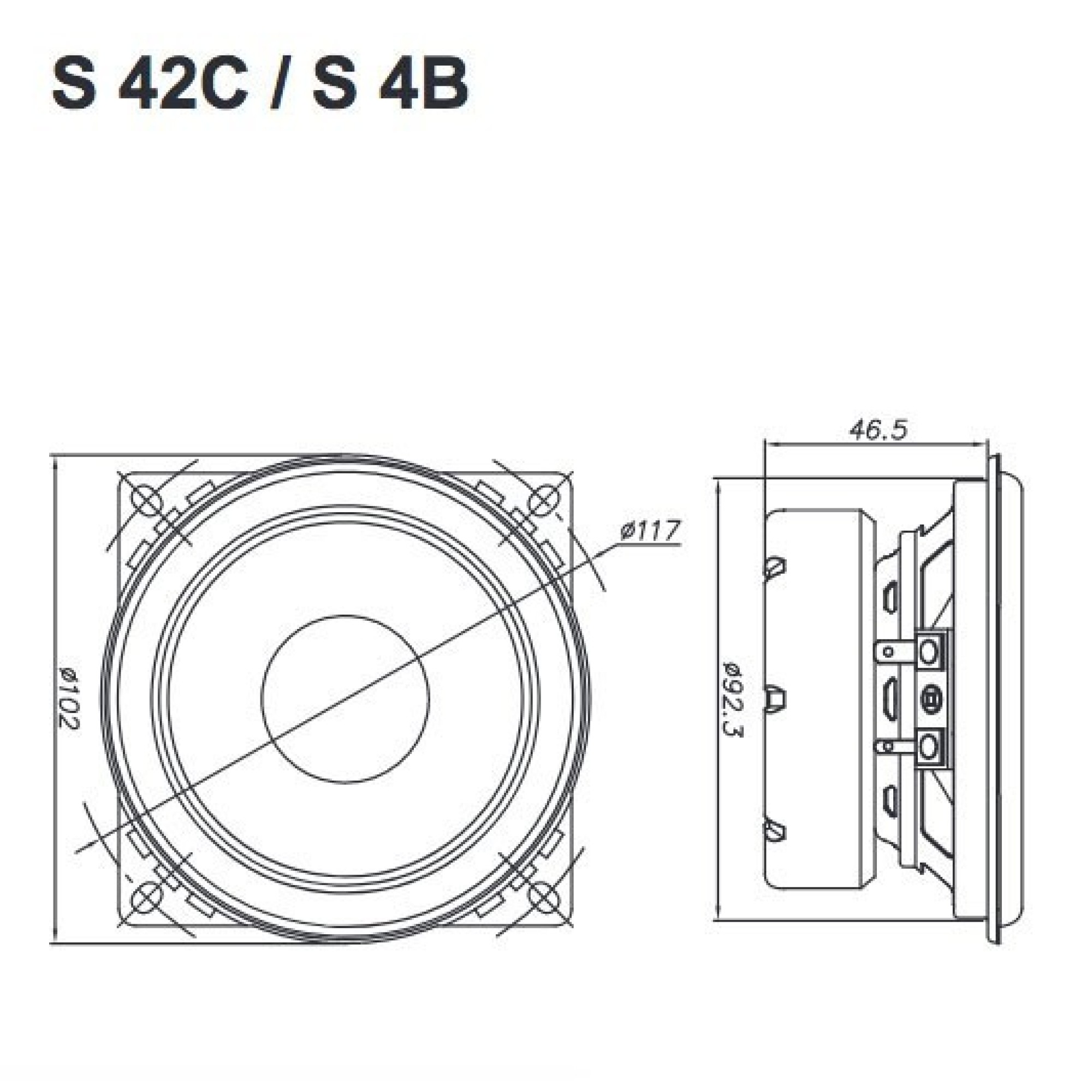

– woofer mounting depth: 47 mm
– Grilles are NOT included.
