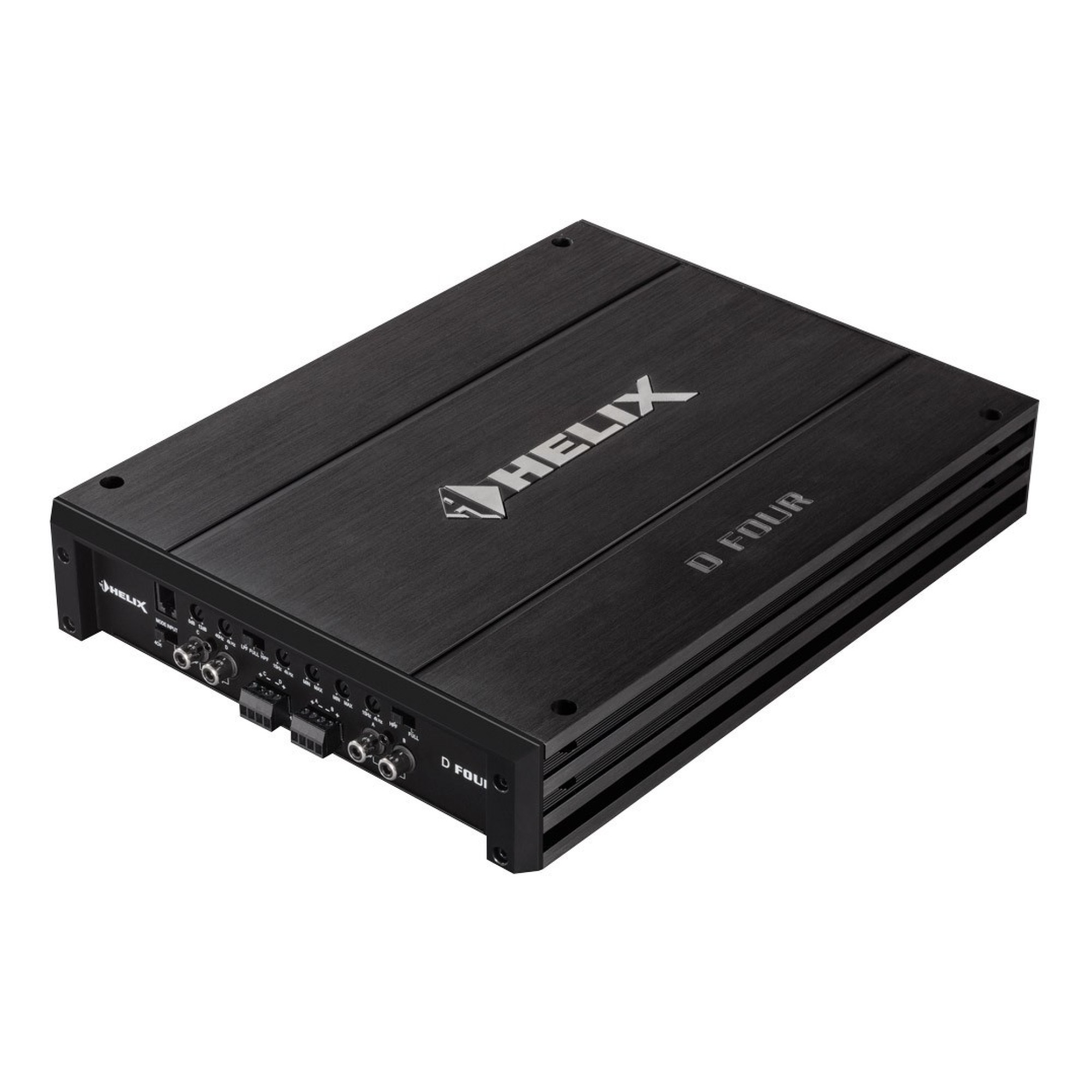

HELIX D FOUR

The new entry into the HELIX world! The amplifiers of the Helix D-series are solely modest with respect to pricing. Everything else is thoroughly pure HELIX quality without any compromises. Loads of power, excellent measurement data and a whole bunch of features ensure a pristine and crispy sound experience!

Absolutely nothing has been missed for powerful sound reproduction – the active crossover with highpass filter, lowpass filter, bandpass and bass boost are equally as self-evident as the intelligent highlevel input that incorporates Audiotec Fischer′s proprietary ADEP circuit. It is even possible to add an optional volume remote control for the amp channels C and D which is very useful if those outputs are firing a subwoofer.

The elegant design not only states right from the beginning the amp′s heritage but also allows an easy integration into your car thanks to its compact dimensions. That is sound-tuning at its best!

TECHNICAL DATA

4-channel amplifier with integrated active crossover (Class AB)

4 x 65 / 130 Watts @ 4 Ohms
4 x 90 / 180 Watts @ 2 Ohms
2 x 180 / 360 Watts @ 4 Ohms bridged
Inputs: 4 x RCA, 4 x Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function, Remote control input
Fully active crossover with highpass, lowpass, bandpass and bass boost
Dimension: 53 x 320 x 230 mm / 2.09 x 12.60 x 9.06”.
