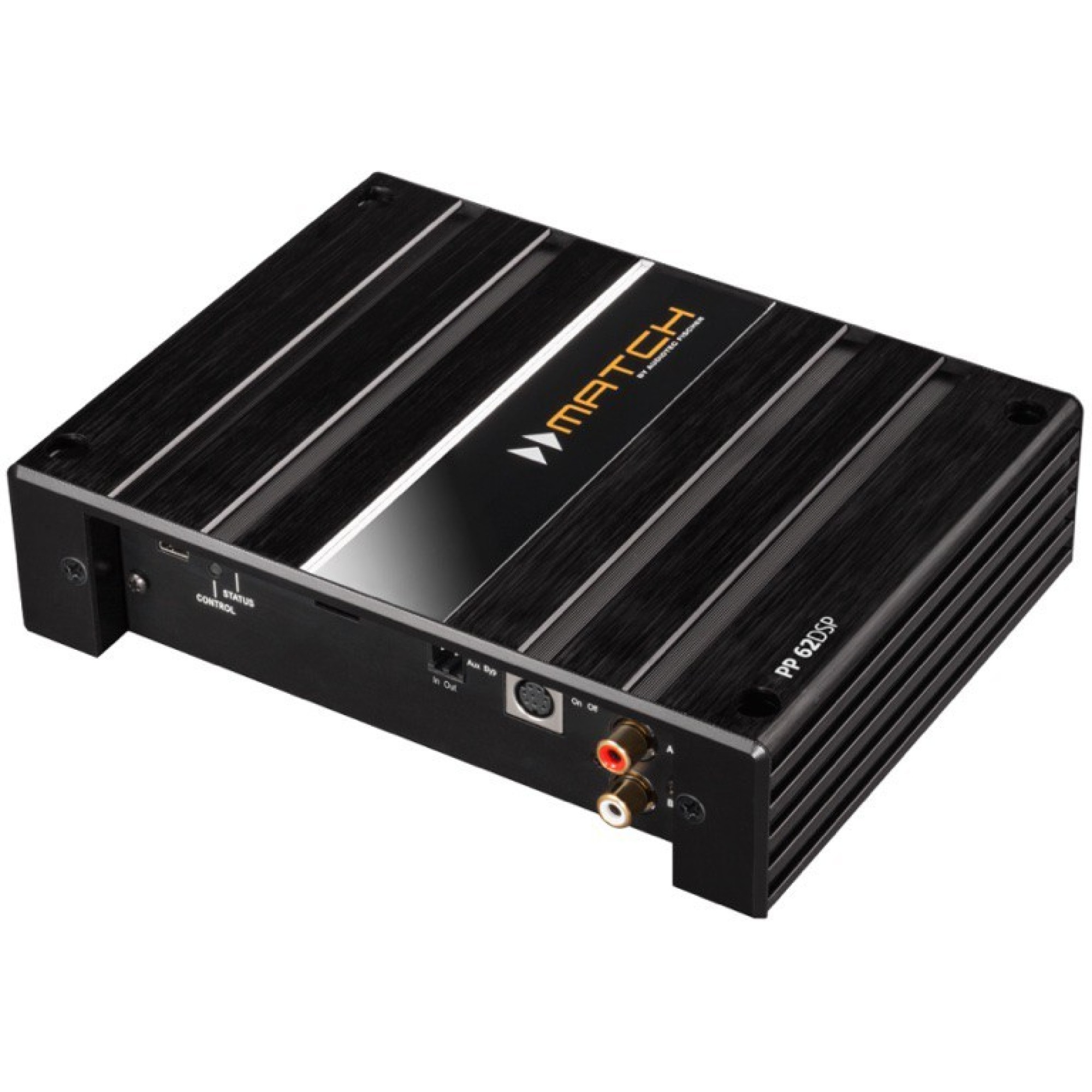

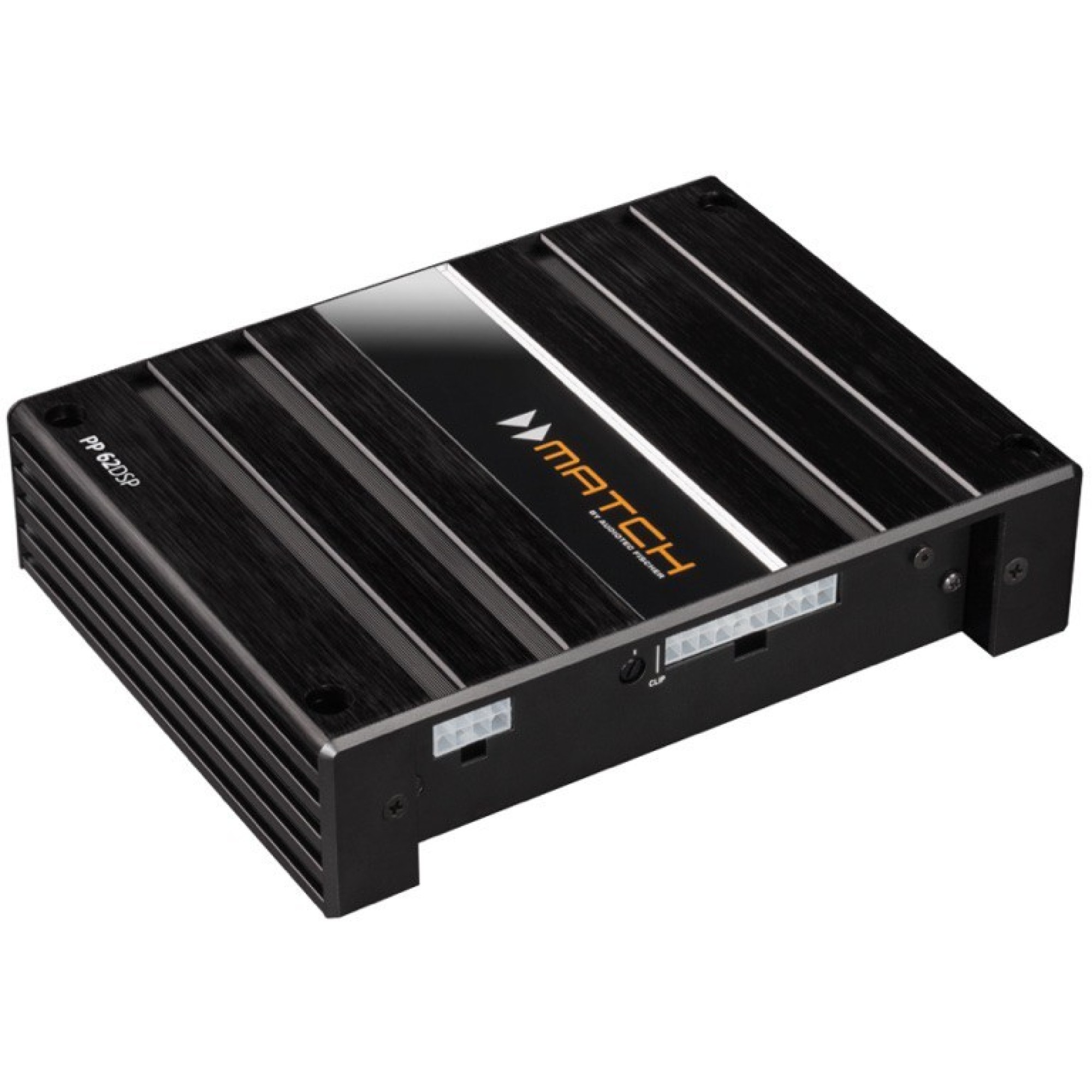

MATCH PP62DSP

The PP 62DSP provides everything an up-to-date Plug & Play amplifier needs: easy installation and maximum flexibility.

Its installation effortlessly takes place via Plug & Play cable harness which is included in delivery – no cable has to be cut or modified. At www.audiotec-fischer.com the huge online sound setup database provides the appropriate setup.

The MATCH Extension Card (MEC) slot makes it possible to expand the PP 62DSP’s functionality by inserting an optional MEC module – for example a Bluetooth® Audio Streaming module, an optical digital input or a High Resolution Audio USB soundcard. In addition the PP 62DSP offers the option of hooking up additional amplifiers using the two channel pre-amp output.

Sound enthusiasts get their money′s worth as well – thanks to the professional and user-friendly Audiotec Fischer DSP PC-Tool software it becomes amazingly easy to create individual sound setups. Furthermore the PP 62DSP is optionally configurable as a 6-channel amplifier with a total of 8 DSP channels. Due to the numerous adjustment options it leaves nothing to be desired.

TECHNICAL DATA

Output power RMS / max.
– @ 4 Ohms 4 x 35 / 70 Watts (Font/Rear channels)
– @ 2 Ohms 4 x 50 / 100 Watts (Font/Rear channels)
– @ 1 Ohm –
– bridged @ 4 Ohms –
– bridged @ 2 Ohms –
– Subwoofer output @ 4 Ohms –
– Subwoofer output @ 2 Ohms 1 x 160 / 320 Watts (4 channels each 40 / 80 Watts)
Amplifier technology Class AB
Inputs 4 x Highlevel speaker input
1x MEC
1 x Remote In
Input sensitivity Highlevel 5 – 11 Volts
Input impedance RCA / Cinch –
Input impedance highlevel 13 Ohms
Outputs 8 x Speaker output
2 x RCA / Cinch
1 x Remote Out
Output voltage RCA / Cinch 3 Volts RMS
Frequency response 20 Hz – 22,000 Hz
DSP resolution 56 Bit
DSP power 172 MHz
Sampling rate 48 kHz
DSP type Audio signal processor
Signal converters A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input –
Signal-to-noise ratio analog input 103 dB (A-weighted)
Distortion (THD) 0.01 %
Damping factor 100
Operating voltage 10.5 Volts (max. 5 sec.down to 6 Volts)
Current draw 670 mA
Max. remote output current 500 mA
Fuse 1 x 20 A Maxi-fuse (APX)
Additional features Variable input sensitivity, fully stabilized internal power supply with start-/stop capability, 56 Bit digital signal processing, internal memory for two different sound setups, USB input, MATCH Extension Card slot, input for optional remote control, stereo line outputs with balanced output transformers (floating ground)
Dimensions (H x W x D) 44 x 185 x 139 mm /
1.73 x 7.28 x 5.47“.
