All innovations of the Mosconi Pro Line are the result of our striving for the highest sound quality. The Mosconi Pro Line are absolute high-end amplifiers, surpassed only by our ultimate Mosconi Zero amplifiers.
The goal of the development for the Mosconi Pro Line was musicality and listening pleasure. Features that make high-end music listening in the car possible in the first place.
Flexible power distribution, such as with the Mosconi Pro 5|30, make the Mosconi Pro Line amplifiers optimal playing partners for active system configurations.

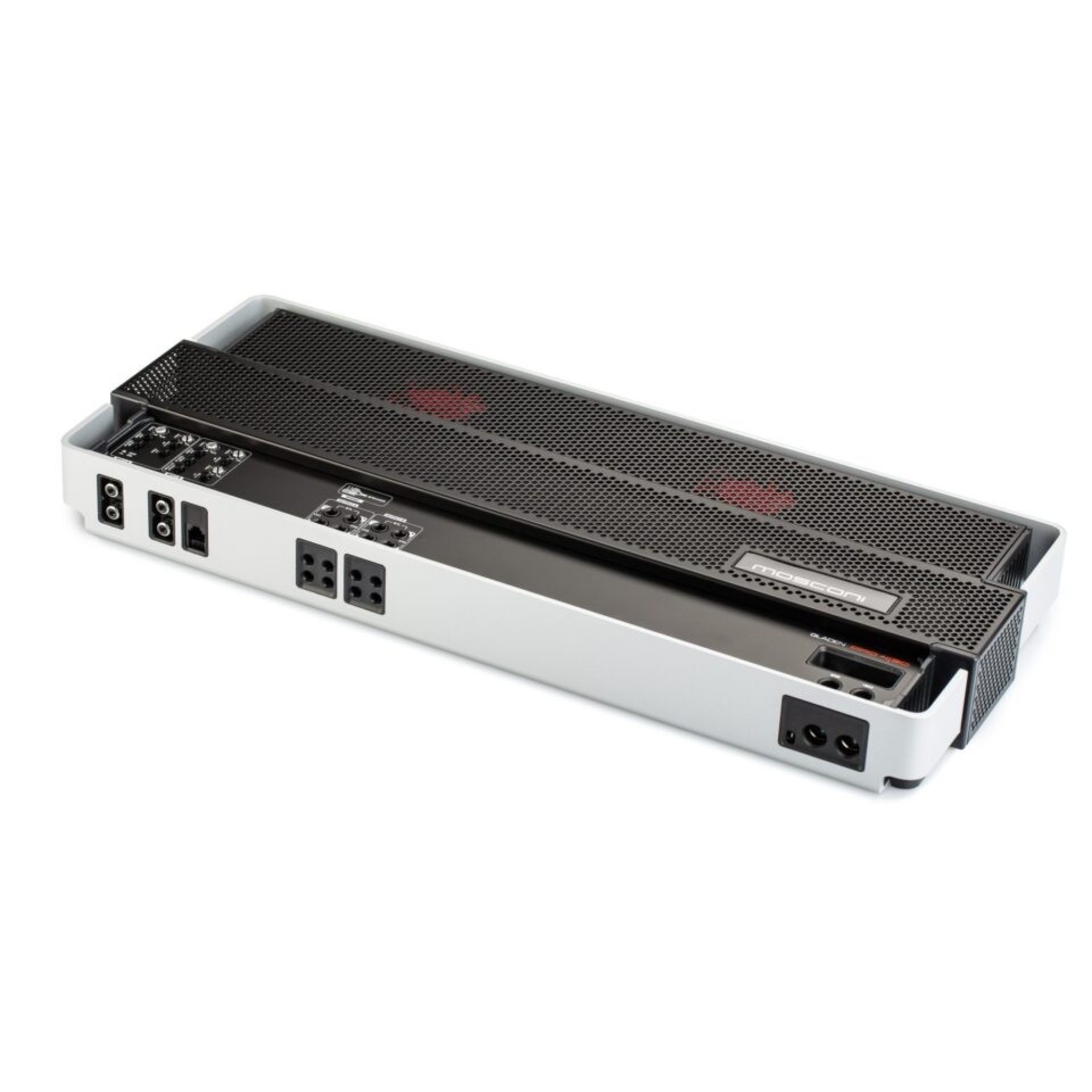

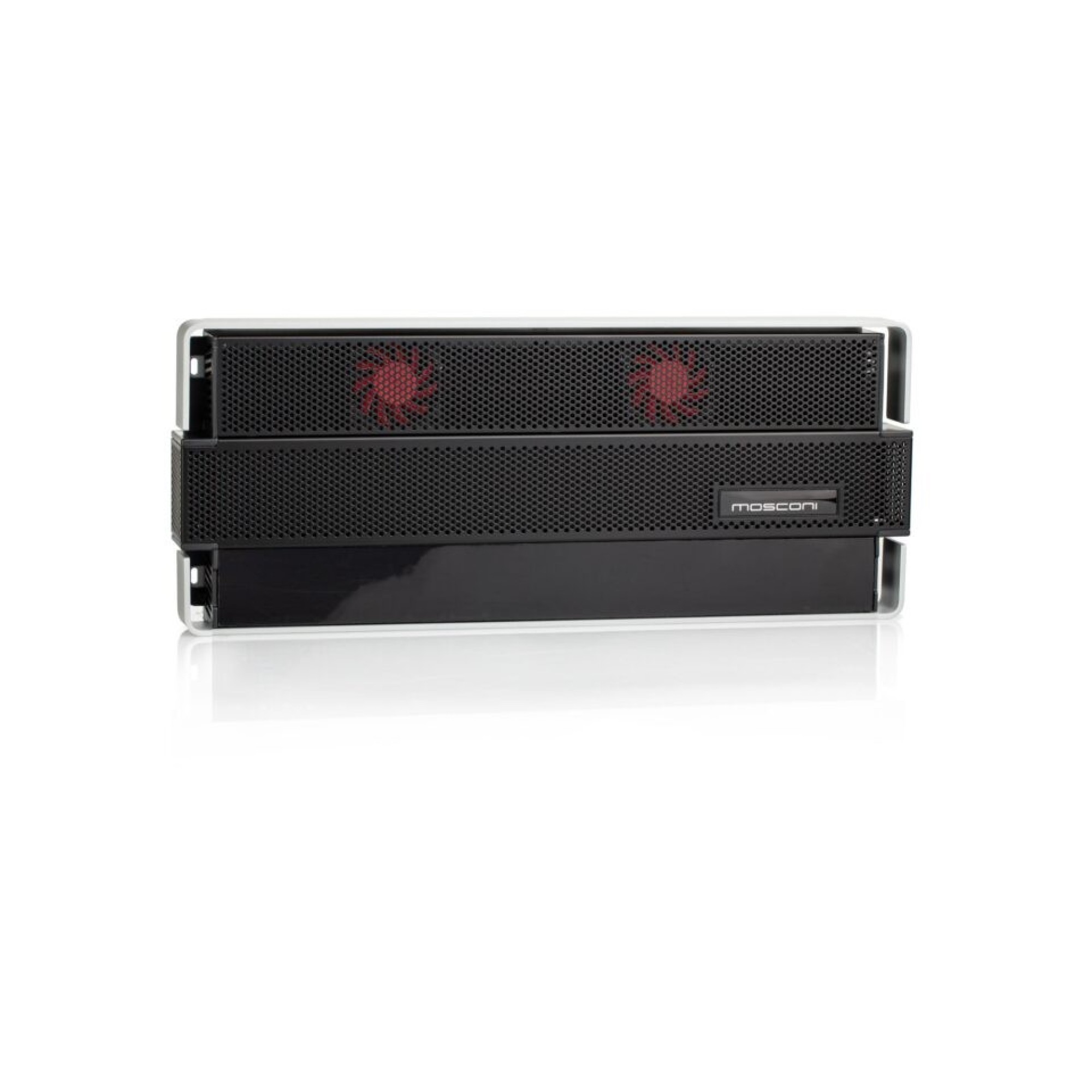

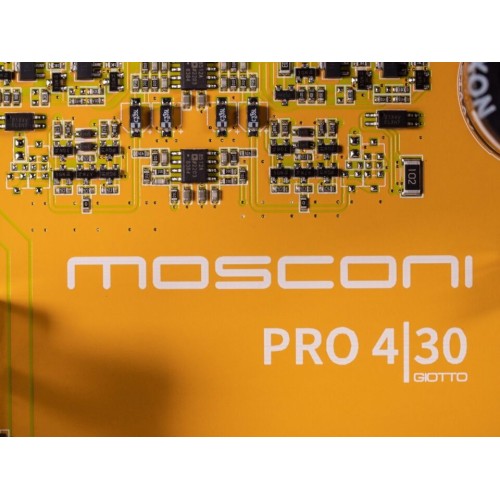

OVERVIEW MOSCONI PRO 4|30
Filippo Kania’s masterpiece. (chief developer Mosconi)

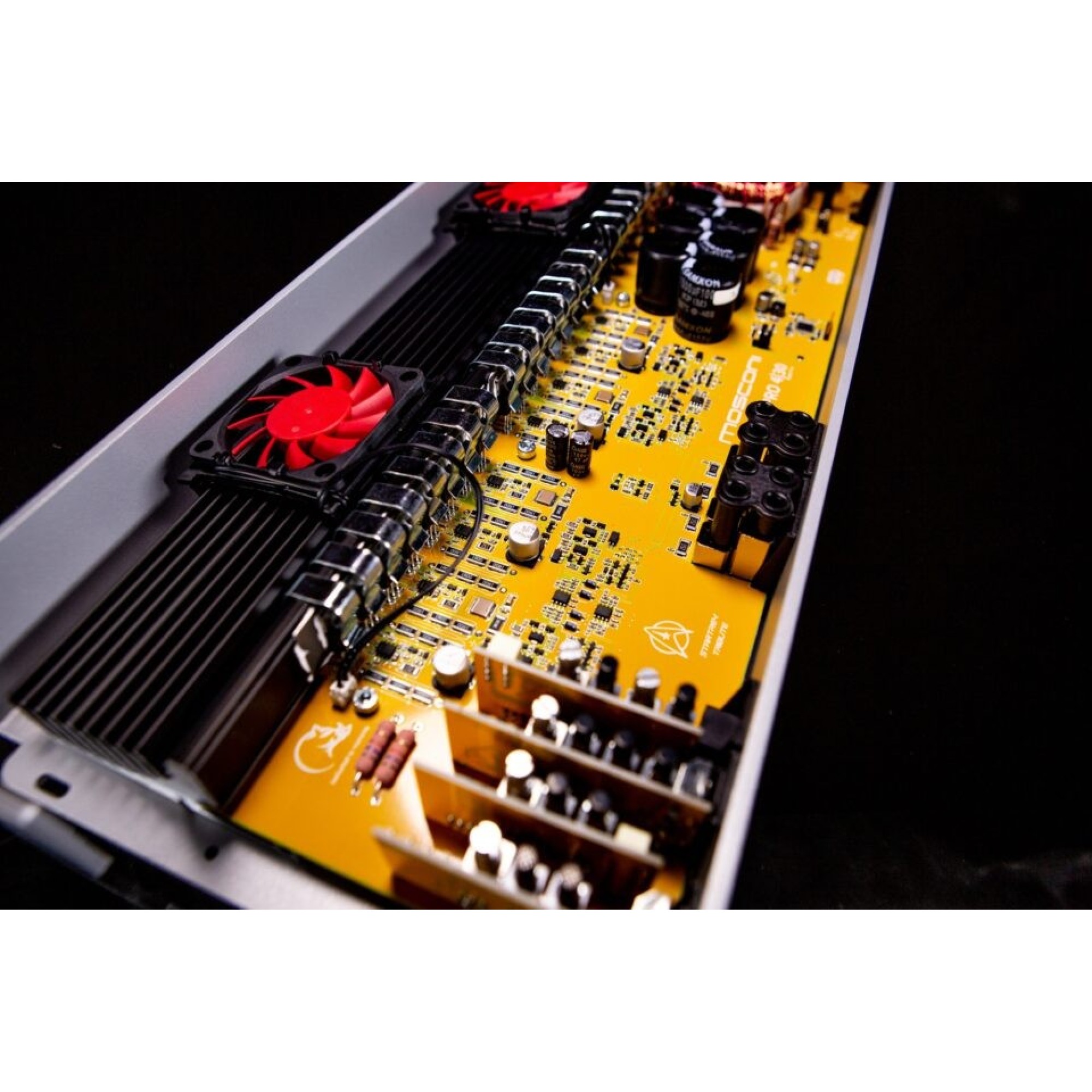

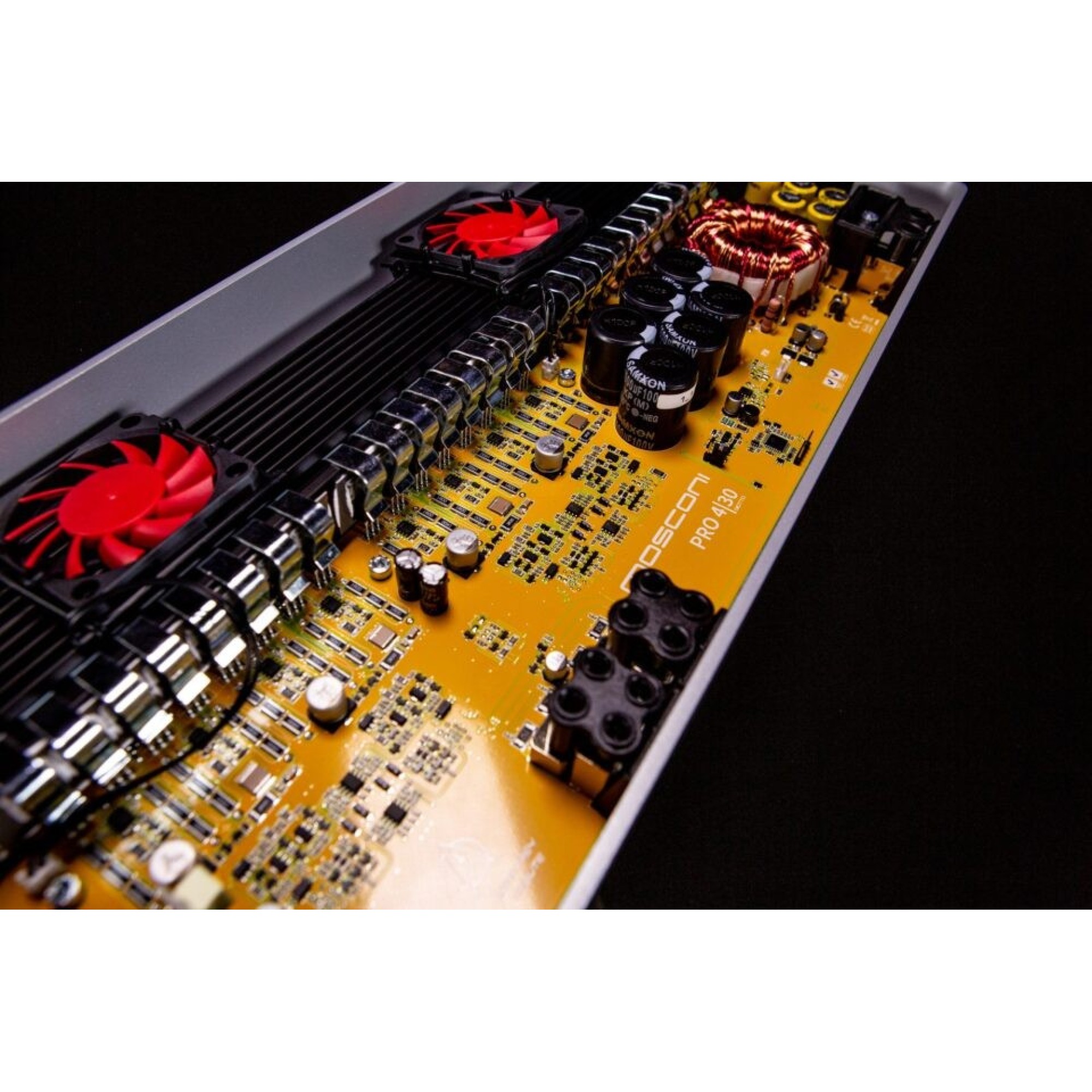

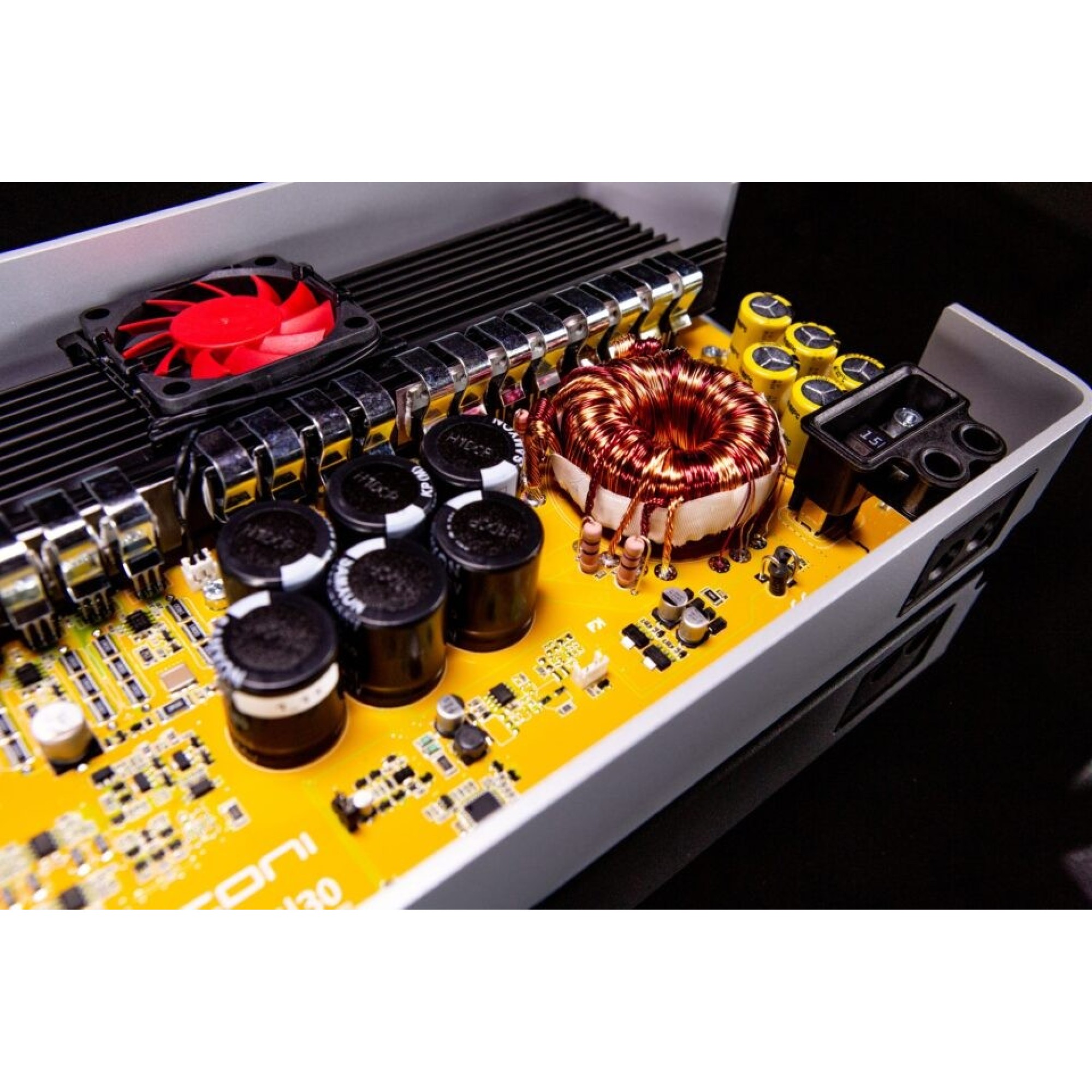

The MOSCONI PRO 4|30 is a high-end 4-channel amplifier with a new Advanced AA/B amplifier technology. With this revolutionary AA/B circuit, the PRO 4|30 runs up to 30 Watts RMS in pure Class A mode and spoils the listener with everything that makes a Class A amplifier: airy, fine, rich in detail with an incredible amount of space.
With the combination of an extremely open, finely drawn sound image and its unique naturalness, the PRO 4|30 inspires music from the very first beat.
When performance and headroom are required, it packs a punch with 170 Watts RMS (at 4 Ohm) per channel (450 W bridged).
TECHNICAL DATA MOSCONI PRO 4|30
OUTPUT POWER:
-
Output power @ 4Ω: 4 x 170 Watts
-
Output power @ 2Ω: 4 x 225 Watts
-
Bridged Output power @ 4Ω: 2 x 450 Watts
SPECIFICATIONS:
-

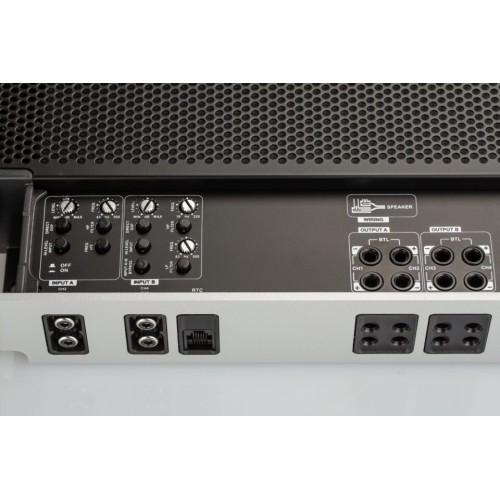

Input sensitivity: 0.35 V ÷ 12 V (5.3 V in DDSP mode) [CH 1/2/3/4]
-
Dimensions: 500 x 205 x 55 mm
-
-

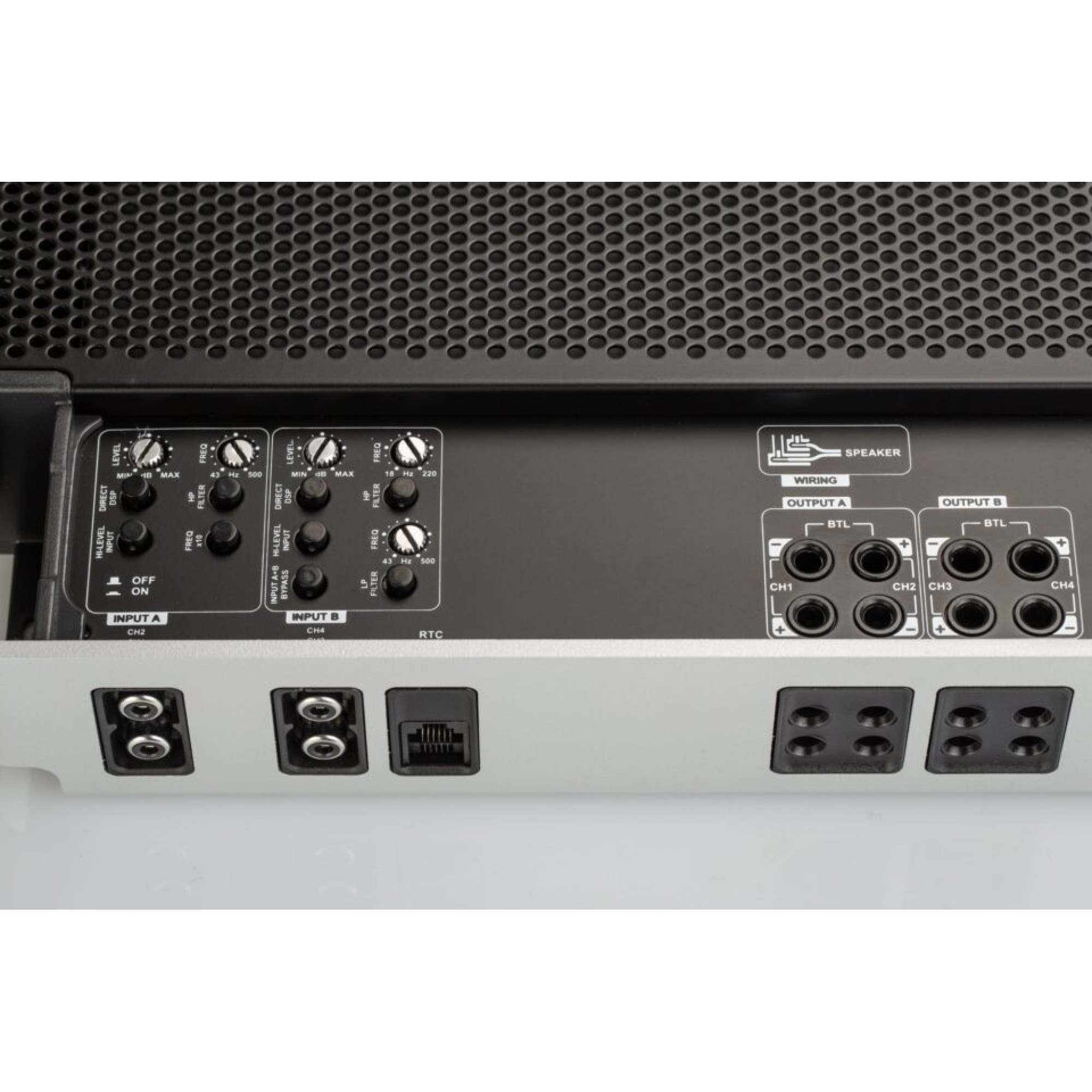

- CH 1/2 = HP: 43 ÷ 500 Hz (x 1) or 430 ÷ 5000 Hz (x 10)
- CH 3/4 = HP: 18 ÷ 220 Hz & LP: 43 ÷ 500 Hz
-
Signal to Noise Ratio: > 83 dBA (ref: 1 Watt into 4 Ohm)
