Automobilinis AB klasės 4-ių kanalų garso stiprintuvas
All innovations of the Mosconi Pro Line are the result of our striving for the highest sound quality. The Mosconi Pro Line are absolute high-end amplifiers, surpassed only by our ultimate Mosconi Zero amplifiers.
The goal of the development for the Mosconi Pro Line was musicality and listening pleasure. Features that make high-end music listening in the car possible in the first place.
Flexible power distribution, such as with the Mosconi Pro 5|30, make the Mosconi Pro Line amplifiers optimal playing partners for active system configurations.

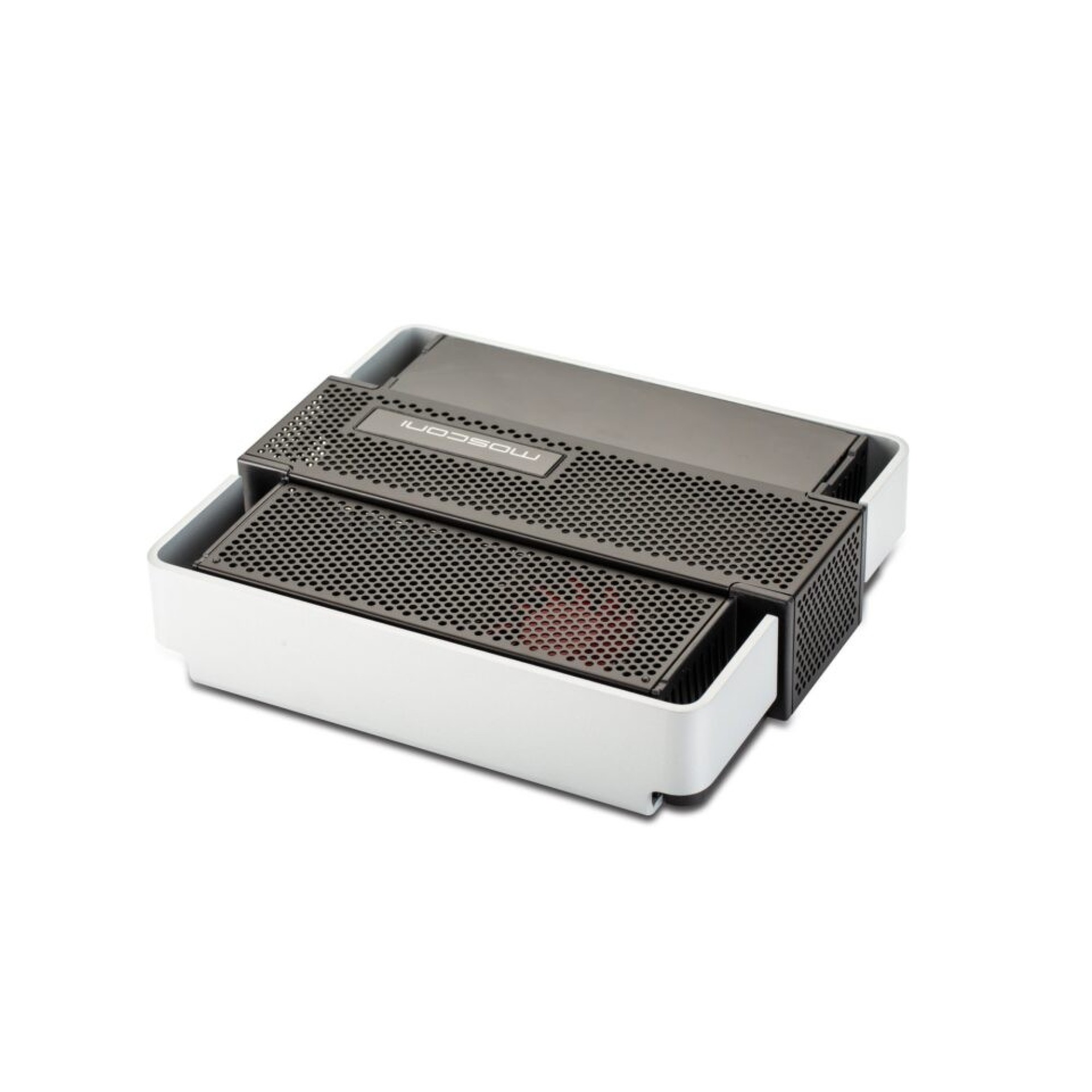

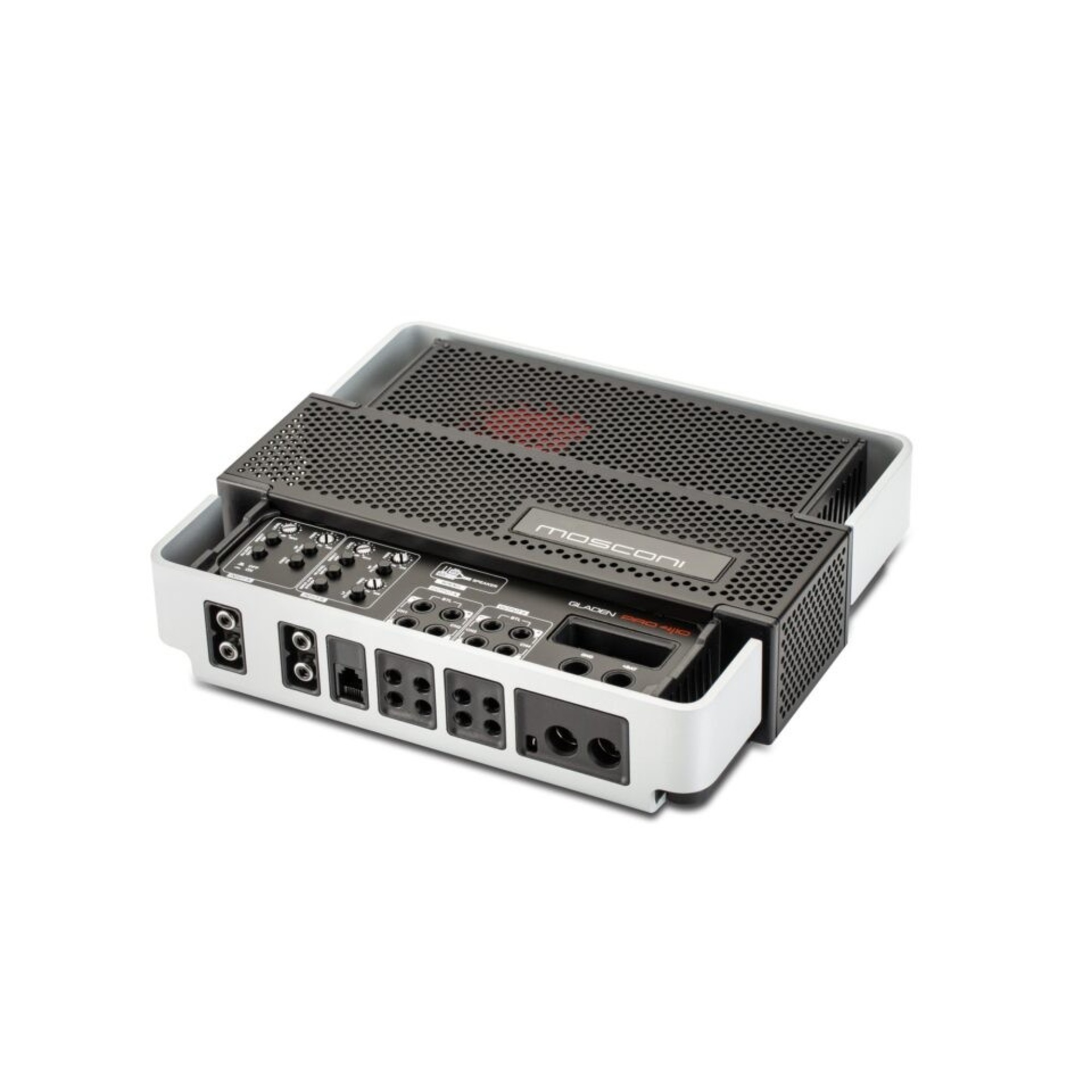

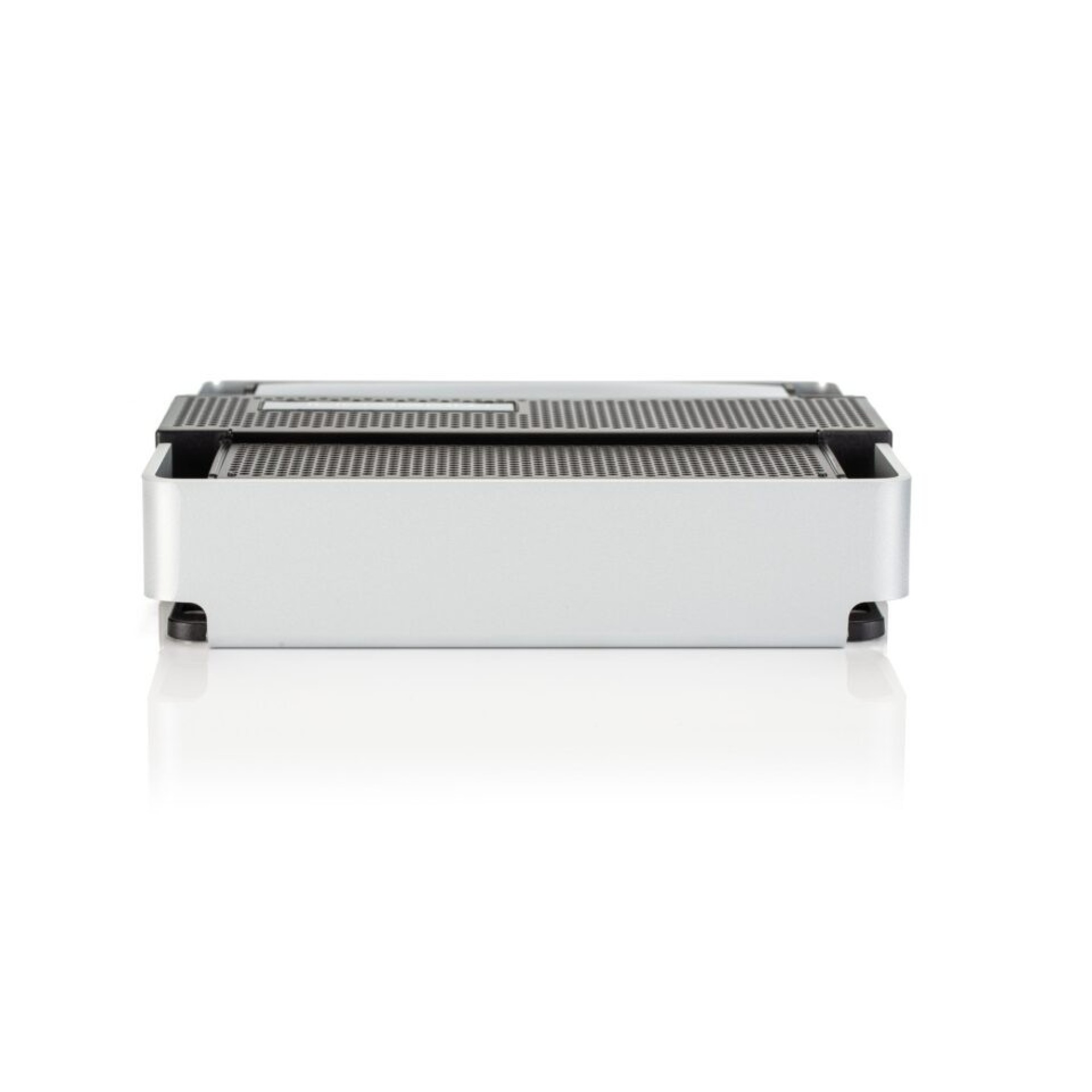

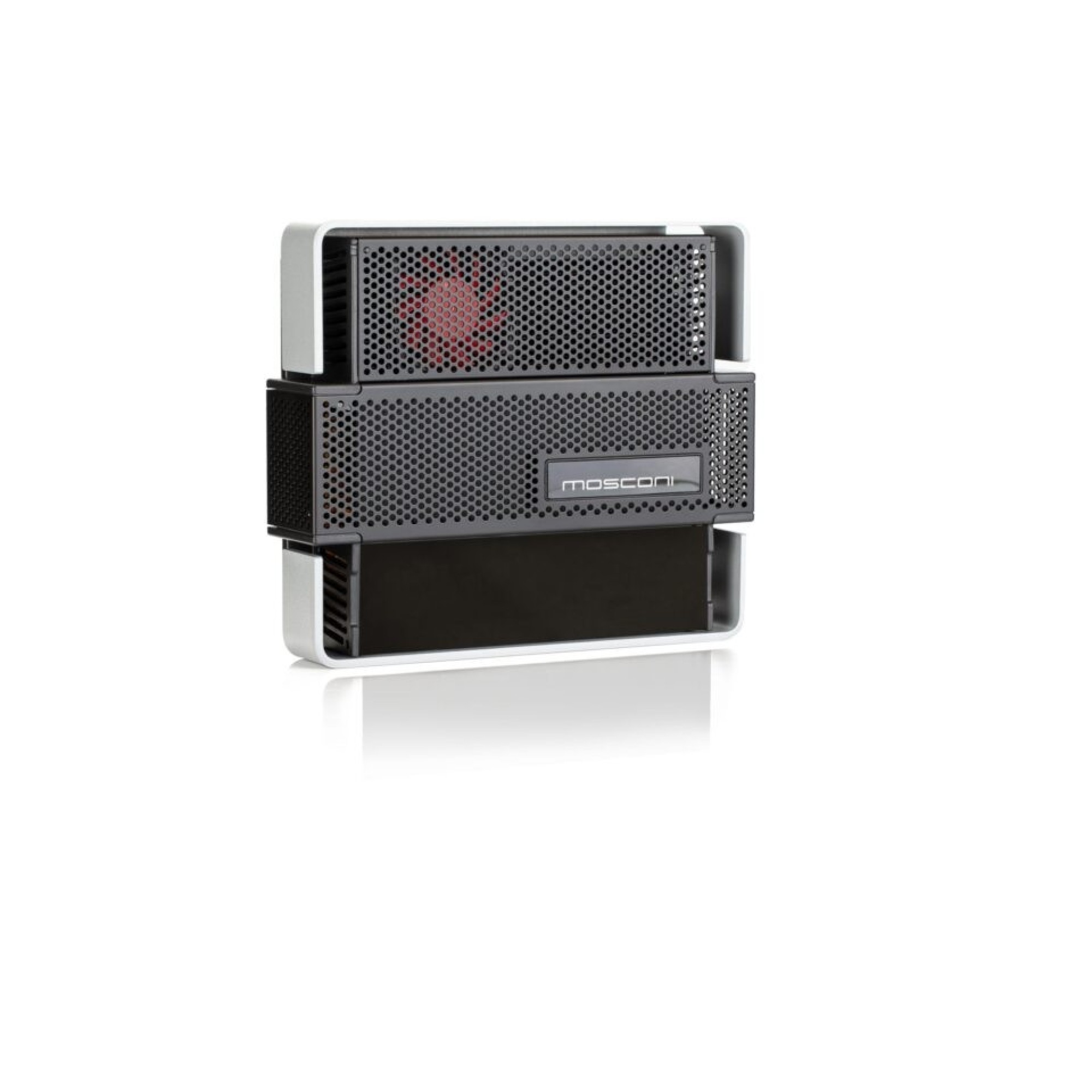

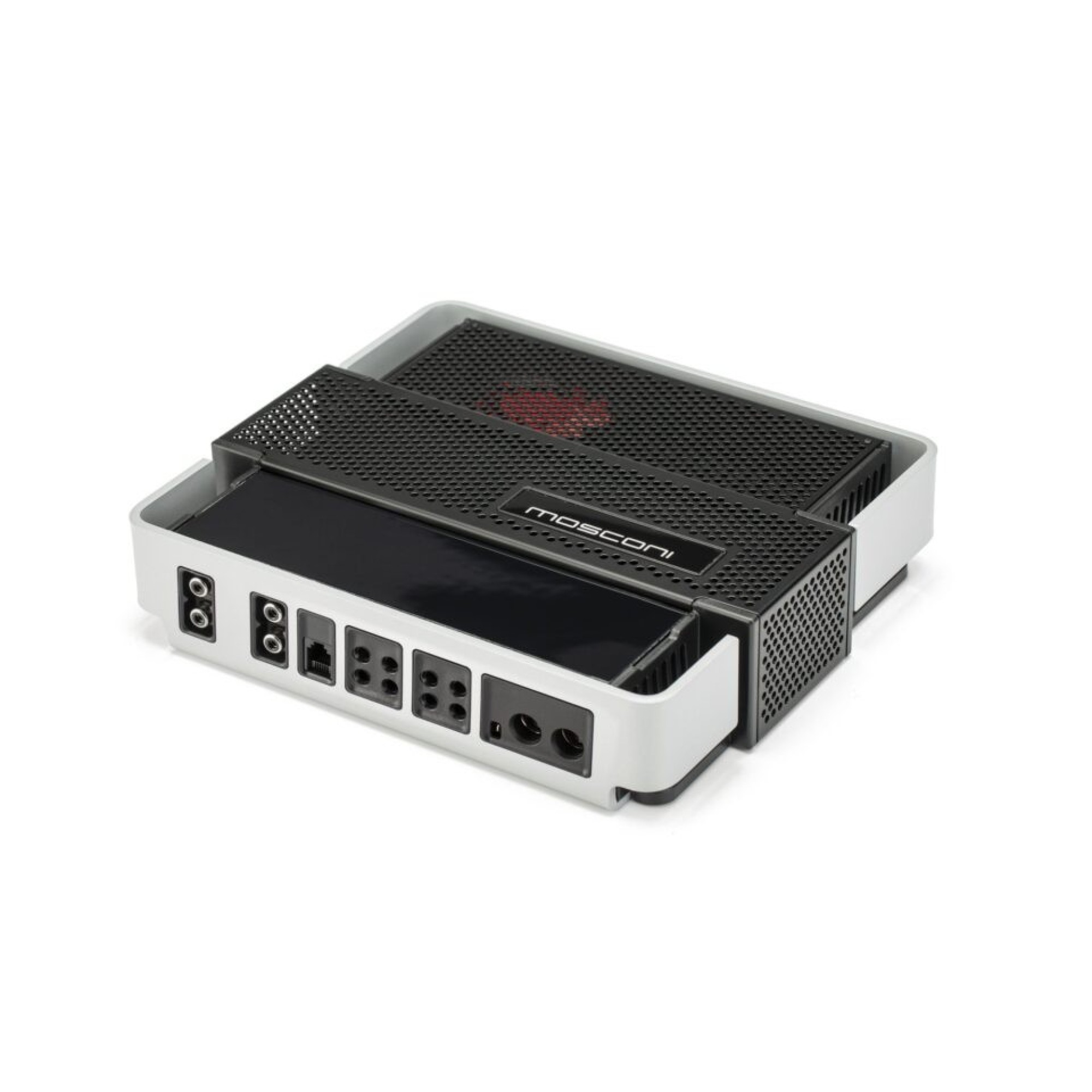

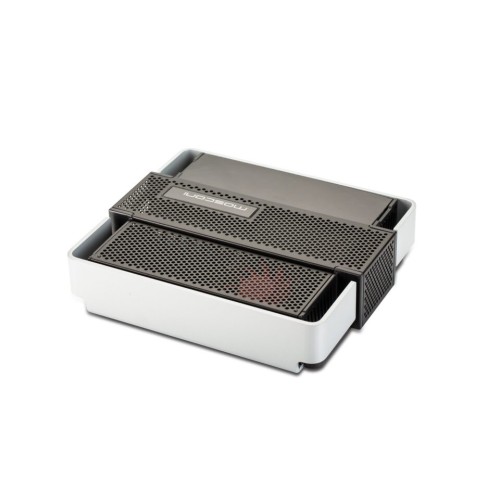

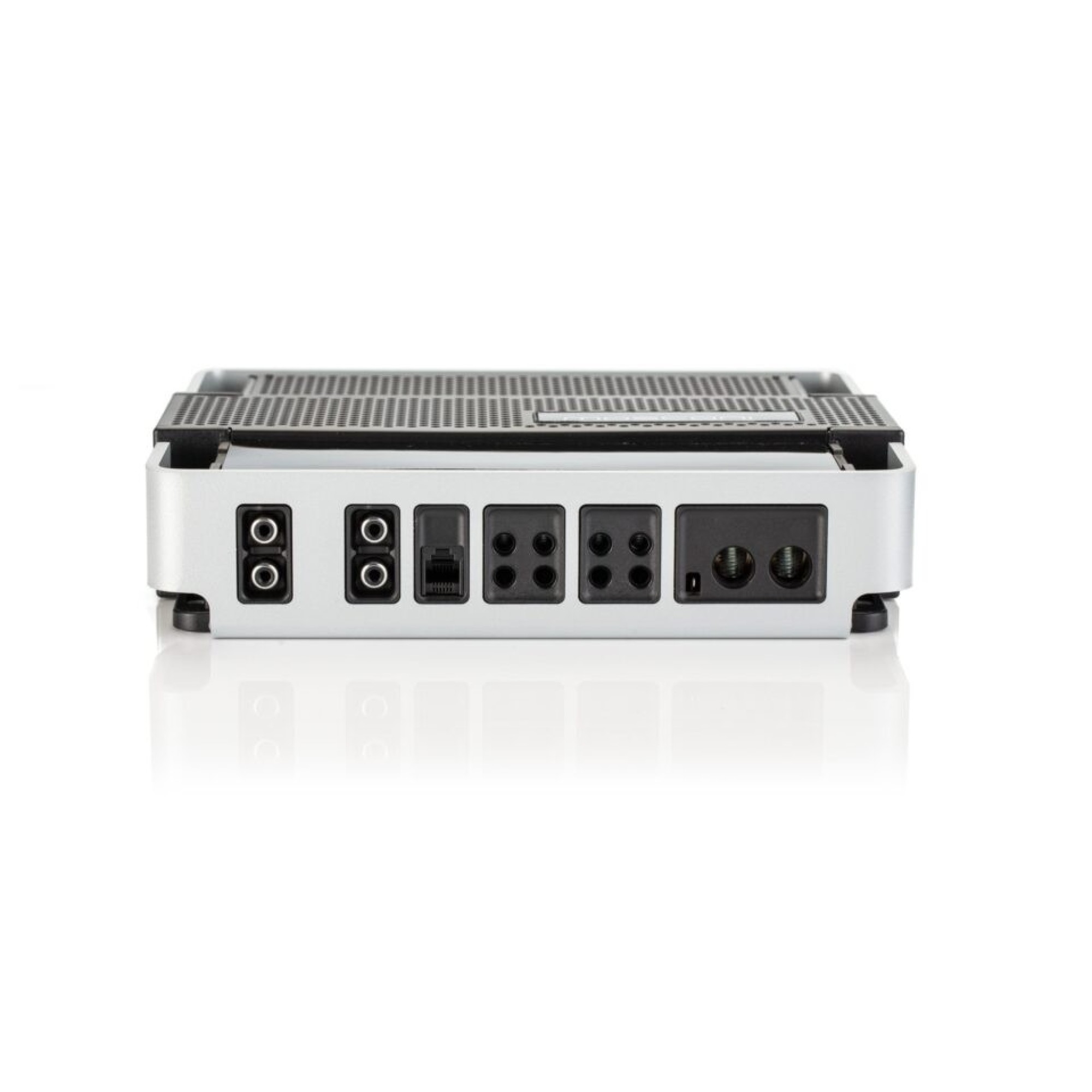

OVERVIEW MOSCONI PRO 4|10
The Mosconi Pro 4|10 amplifier is a classic 4 channel Class AB amplifier. Equipped with active crossovers, autosense function as well as a remote level control input, it is very versatile in the vehicle.

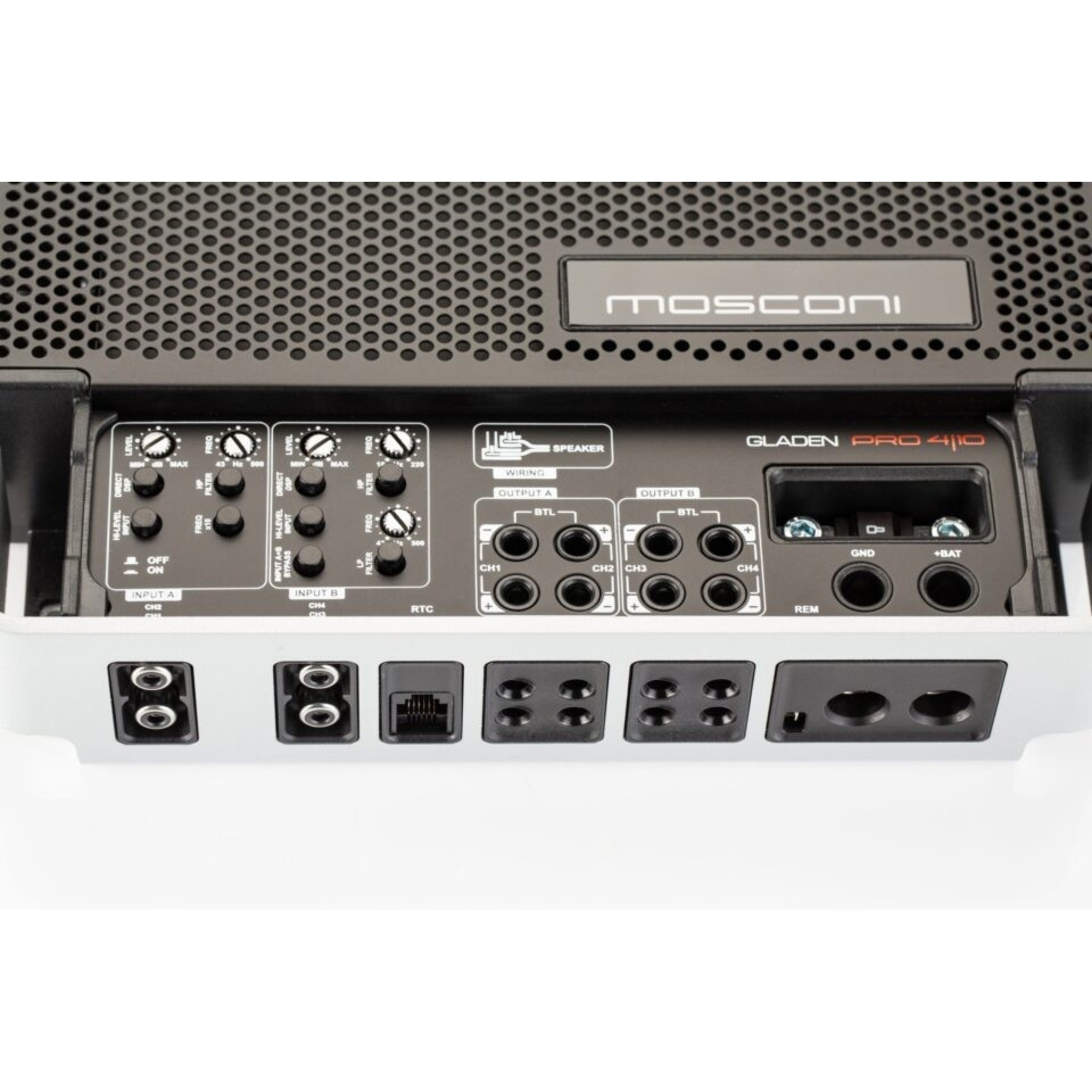

- DDSP – Direct DSP (bypassing all preamplifier circuits)
- High level / low level selectable input
- Autosense (only in BTL mode)
- RTC – Allows volume regulation by remote control (optional)
- Power supply and temperature management controlled by microprocessor
TECHNICAL DATA MOSCONI PRO 4|10
OUTPUT POWER:
-
Output power @ 4Ω: 4 x 120 Watts
-
Output power @ 2Ω: 4 x 160 Watts
-
Bridged Output power @ 4Ω: 2 x 320 Watts
SPECIFICATIONS:
-
Input sensitivity: 0.35 V ÷ 12 V (6.2 V in DDSP mode)
-
- CH 1/2= HP: 43 ÷ 500 Hz (x 1) or 430 ÷ 5000 Hz (x 10)
- CH 3/4= HP: 50 ÷ 200 Hz & LP: (430 ÷ 5000 Hz)
-
Dimensions: 235 x 205 x 55 mm
-
-
Housing: Available in black/silver finish
