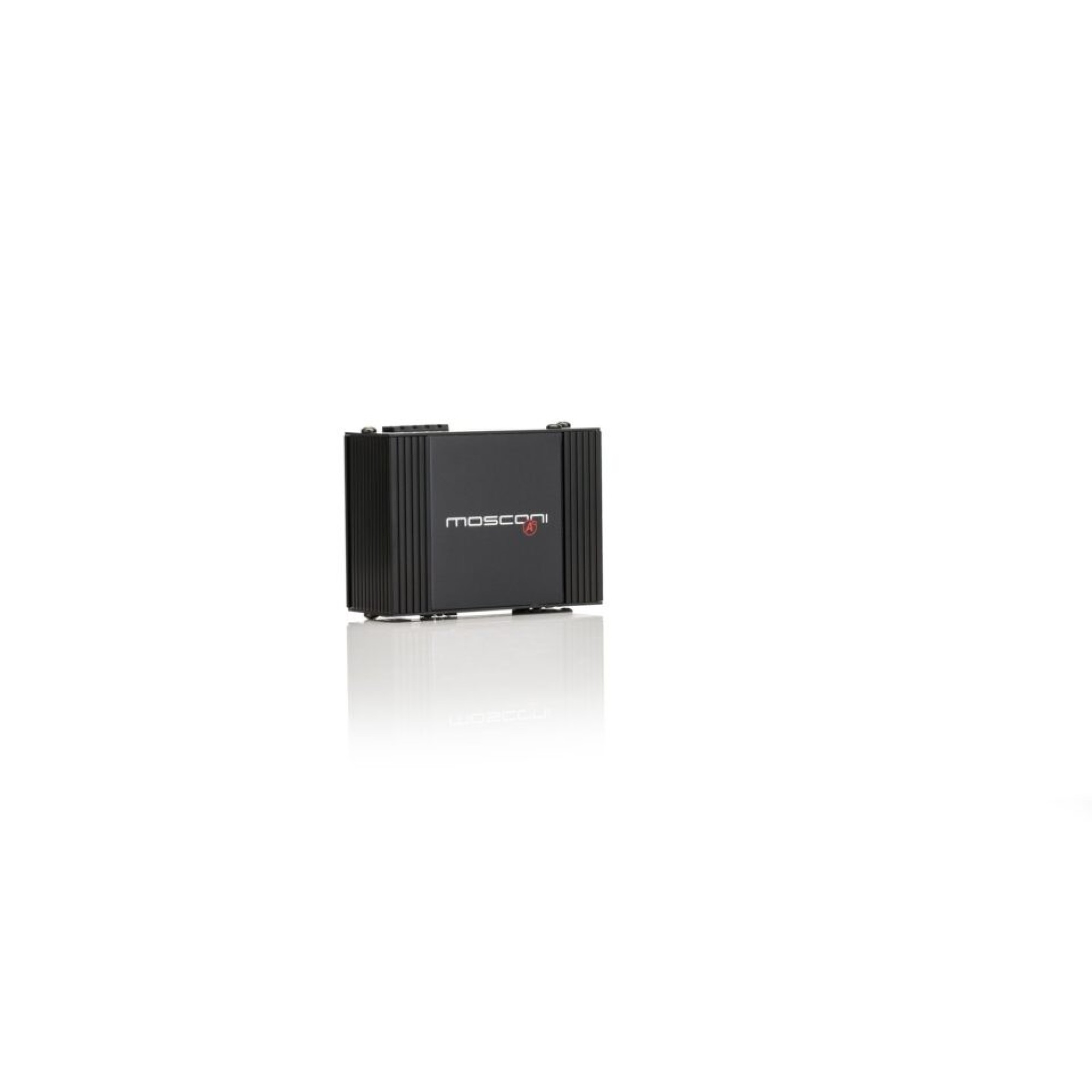

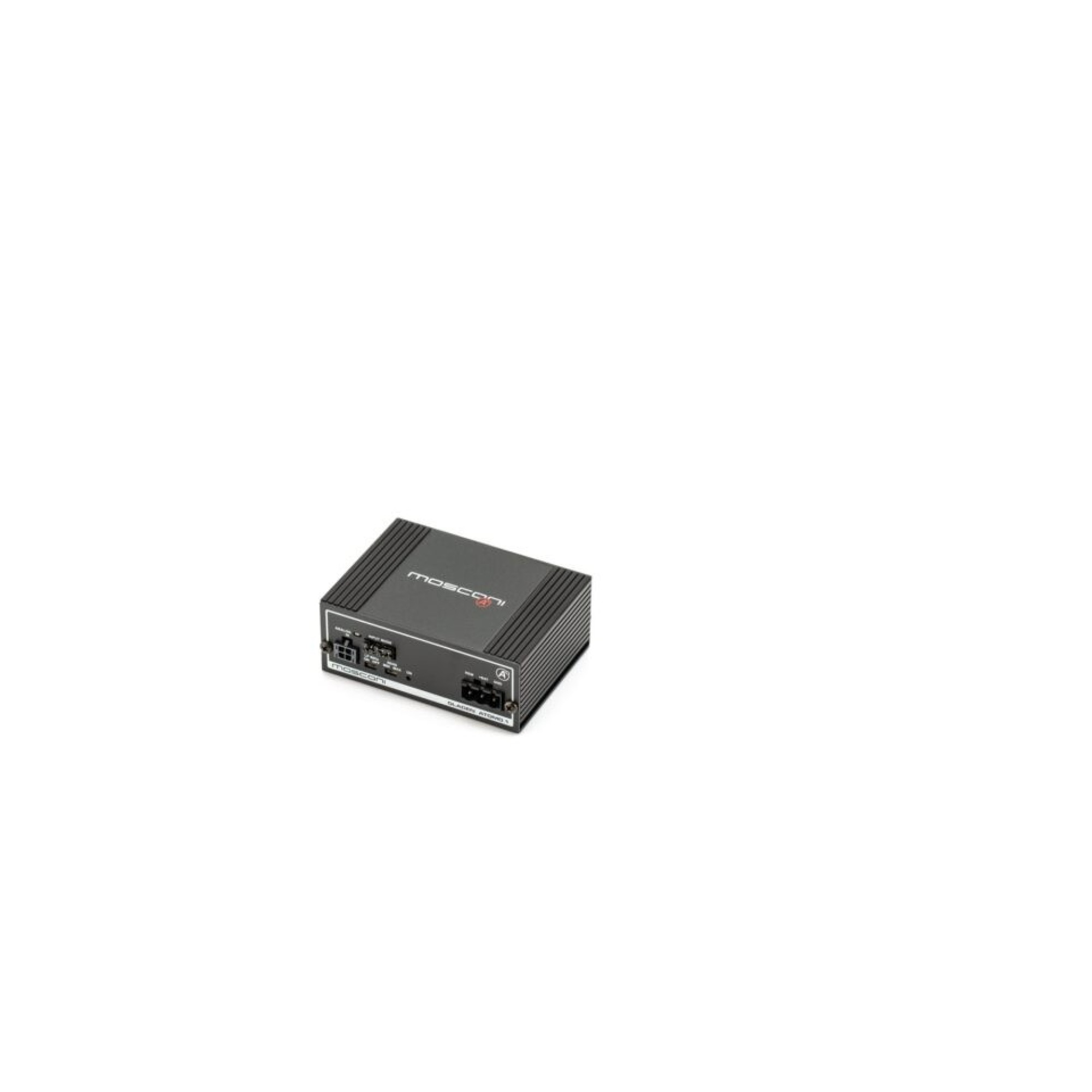

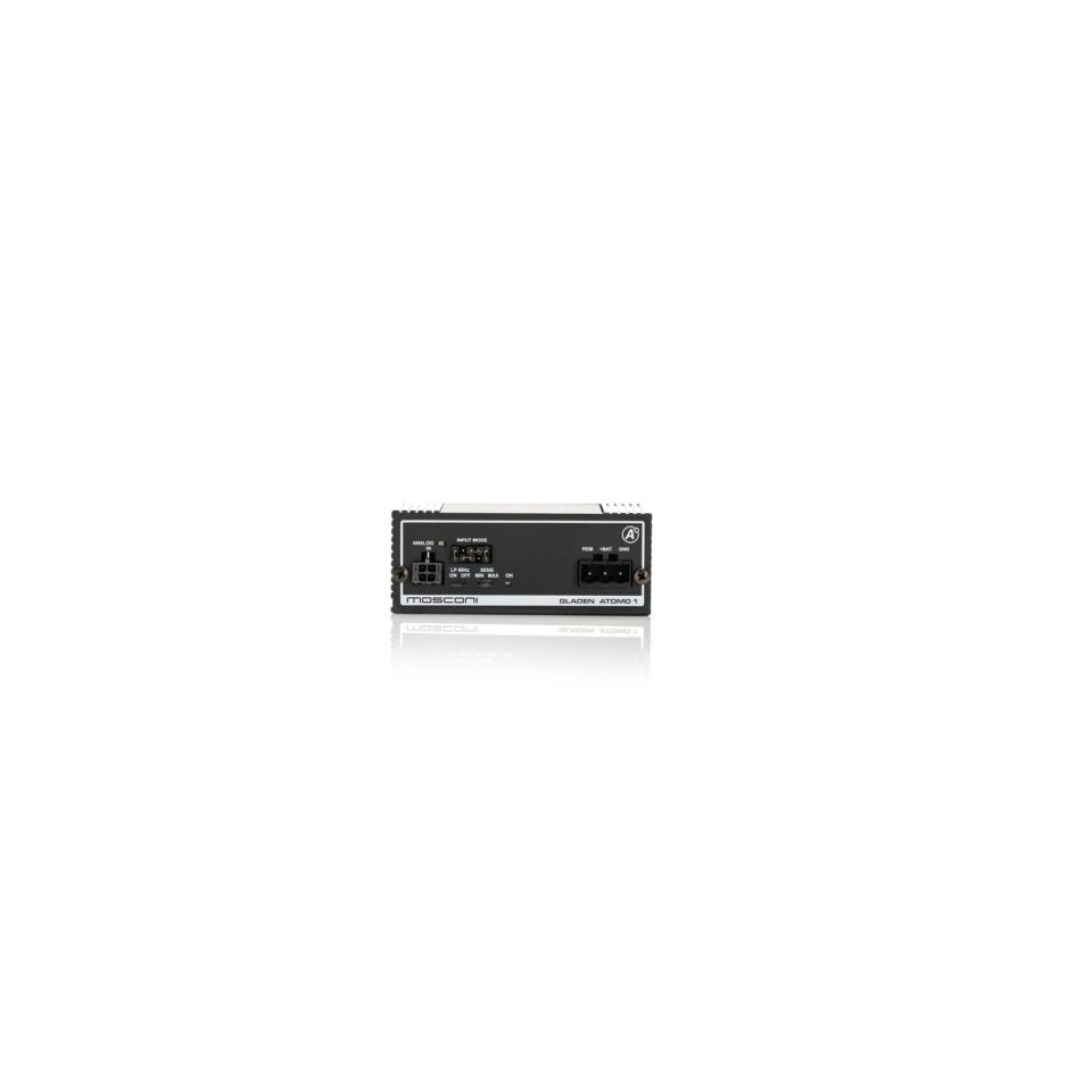

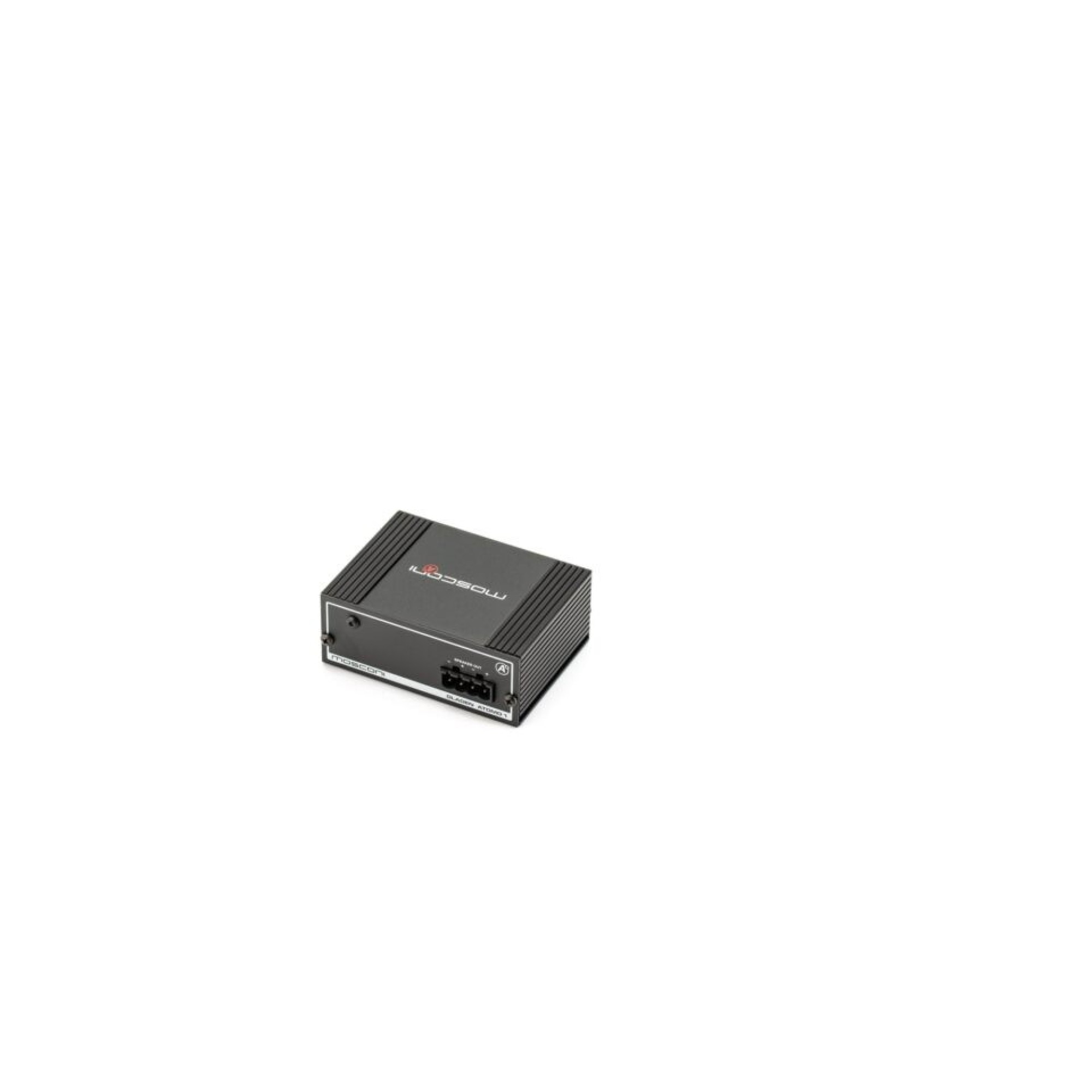

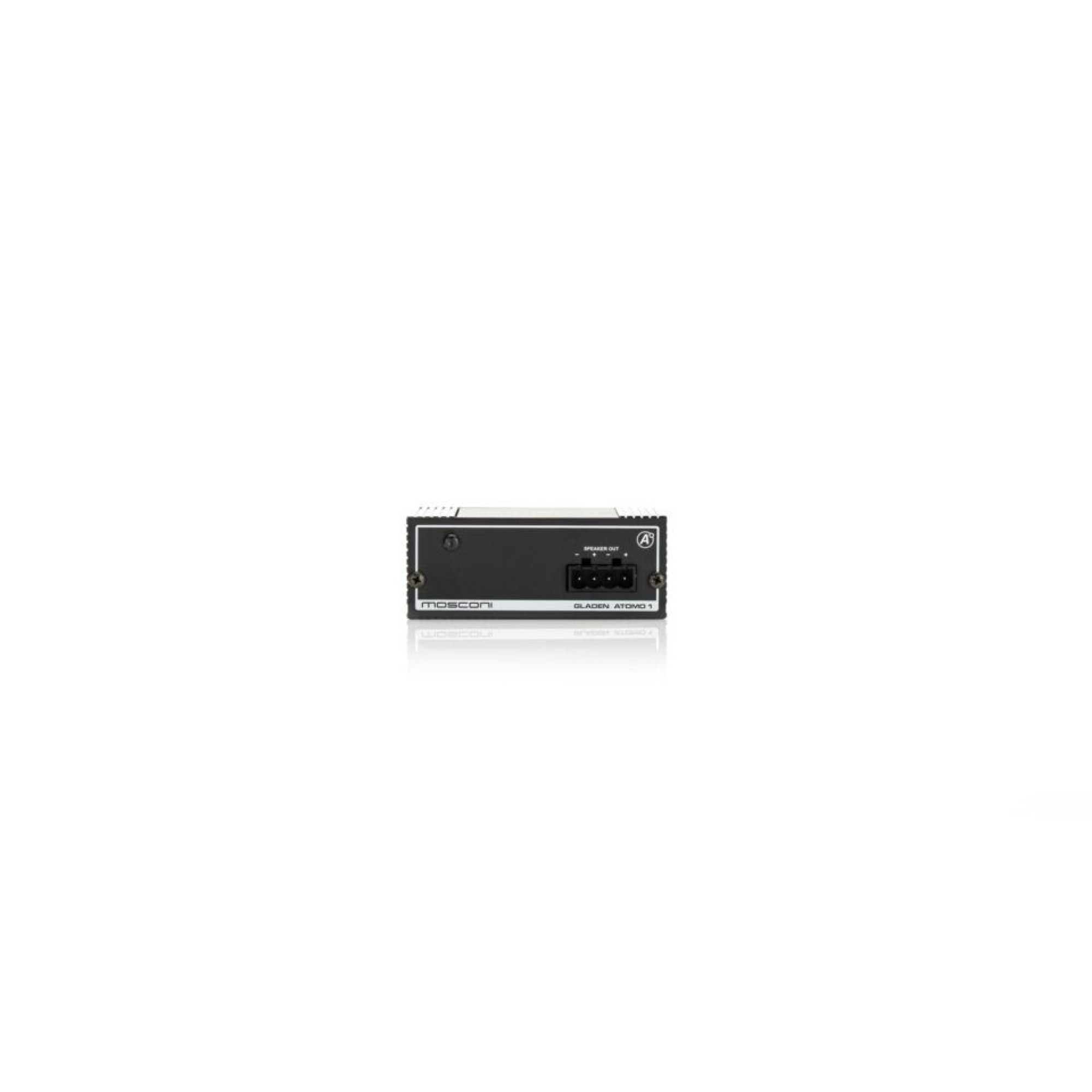

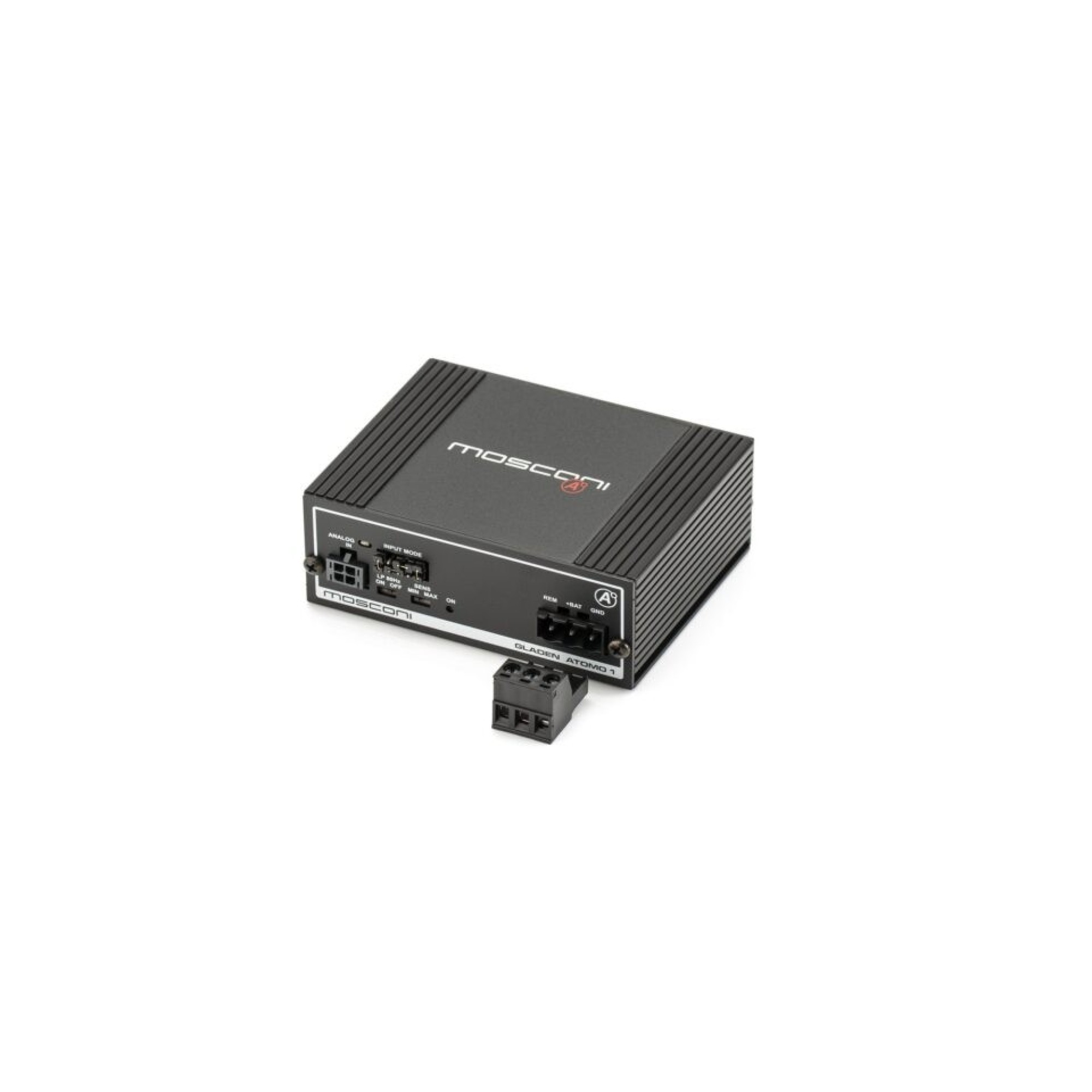

MOSCONI GLADEN ATOMO 1 24V
MOSCONI GLADEN ATOMO 1 24V  MOSCONI GLADEN ATOMO 1 24V  MOSCONI GLADEN ATOMO 1 24V  MOSCONI GLADEN ATOMO 1 24V  MOSCONI GLADEN ATOMO 1 24V  MOSCONI GLADEN ATOMO 1 24V  MOSCONI GLADEN ATOMO 1 24V

MOSCONI GLADEN ATOMO 1 24V

  • 279.00€

  • Kaina be PVM: 230.58€
Kiekis

Innovative. Efficient. Musical.

Innovations based on the Mosconi Pico line with its efficient digital technology lead to an excellent performance of the Mosconi ATOMO line.

The efficient amplifiers in mini format are ideal for the configuration of small hifi systems or as afterburners for factory radios.

An absolute marvel is the Mosconi ATOMO 6|8 DSP. This small 6 channel sound processor offers you the possibility in the simplest way to achieve an optimal sound tuning in your vehicle.



OVERVIEW MOSCONI ATOMO 1 24V



ATOMO 1 – Maximum performance in the smallest of spaces

  • Extremely compact, powerful 1-channel amplifier
  • Wide input voltage range 0.4 Vrms – 5 Vrms (low level) / 1.6 Vrms – 20 Vrms (high level)
  • Inputs flexibly configurable (floating / fixed ground, switchable load resistors)
  • Remote detection (BTL)
  • High pass / low pass filter. Inputs designed in Molex industry standard (Micro-Fit)
  • 12 V and 24 V versions

TECHNICAL DATA MOSCONI ATOMO 1

POWER SUPPLY:

  • Power supply voltage: 10 – 16 V
  • DC-DC converter typology: Unregulated – Push Pull
  • External fuse: 1 x 20 A
  • Power-on/Power-off voltage threshold: 9 V / 6 V
  • Mute delay time: 3 secs
  • Autosense power-on (HL only): BTL source only
  • Overall efficiency: > 75 %
  • Standby current: < 0.1 mA (typical)
  • Idle current: 0.45 A @ 14.4 V
  • Thermal cutoff threshold: 93 °C (± 5 %)

OUTPUT POWER RMS @ 14.4V (1% THD)

  • Output power RMS @ 4Ω: 1 x 205 W (250 W @ 16 V)
  • Output power RMS @ 2Ω: 1 x 350 W
  • T.H.D. @ 4Ohm: < 0.08 % (1 kHz / 90 Power rating ref)
  • T.H.D. @ 2Ohm: < 0.1 % (1 kHz / 90 Power rating ref)
  • Minimum load: 2 Ohm with musical signal

SIGNAL INPUT

  • Low level input sensitivity range: 0.26 ÷ 0.7 Vrms
  • High level input sensitivity range: 1.3 ÷ 3.5 Vrms
  • Bandwidth (- 3 dB ÷ 10 W): 5 Hz ÷ 35 kHz
  • Low level Input impedance: > 15 kOhm
  • High level input impedance: 21 Ohm (dummy load with jumper)
  • Ground reference (LL only): OPEN – 21 Ohm
  • S/N (AP filter 10 Hz – 22 kHz):

FEATURES

  • Onboard filter configuration: OFF – LP
  • Onboard filter slope: 12 dB/Oct
  • Onboard filter frequency: 80 Hz
  • Autosense power-on (HL only): BTL source only
  • Start&Stop compliance: YES

CONNECTIONS

  • Low/High level input : Micro-Fit
  • Speaker out: Mini-Fit
  • Power supply: Mini-Fit

APPEARANCE

  • Dimensions: 86 x 65 x 34 mm
  • Weight: 280 g
  • Finishing: Black anodized
