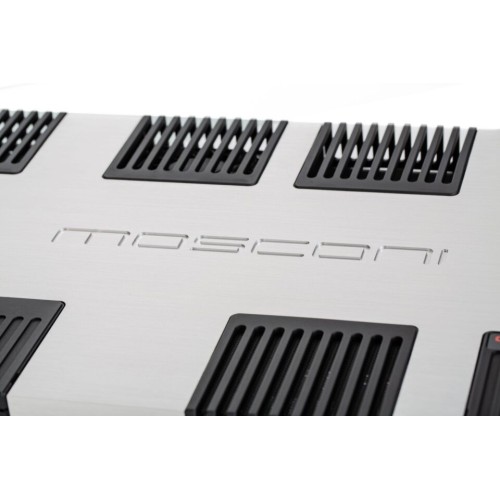

MOSCONI ZERO 4

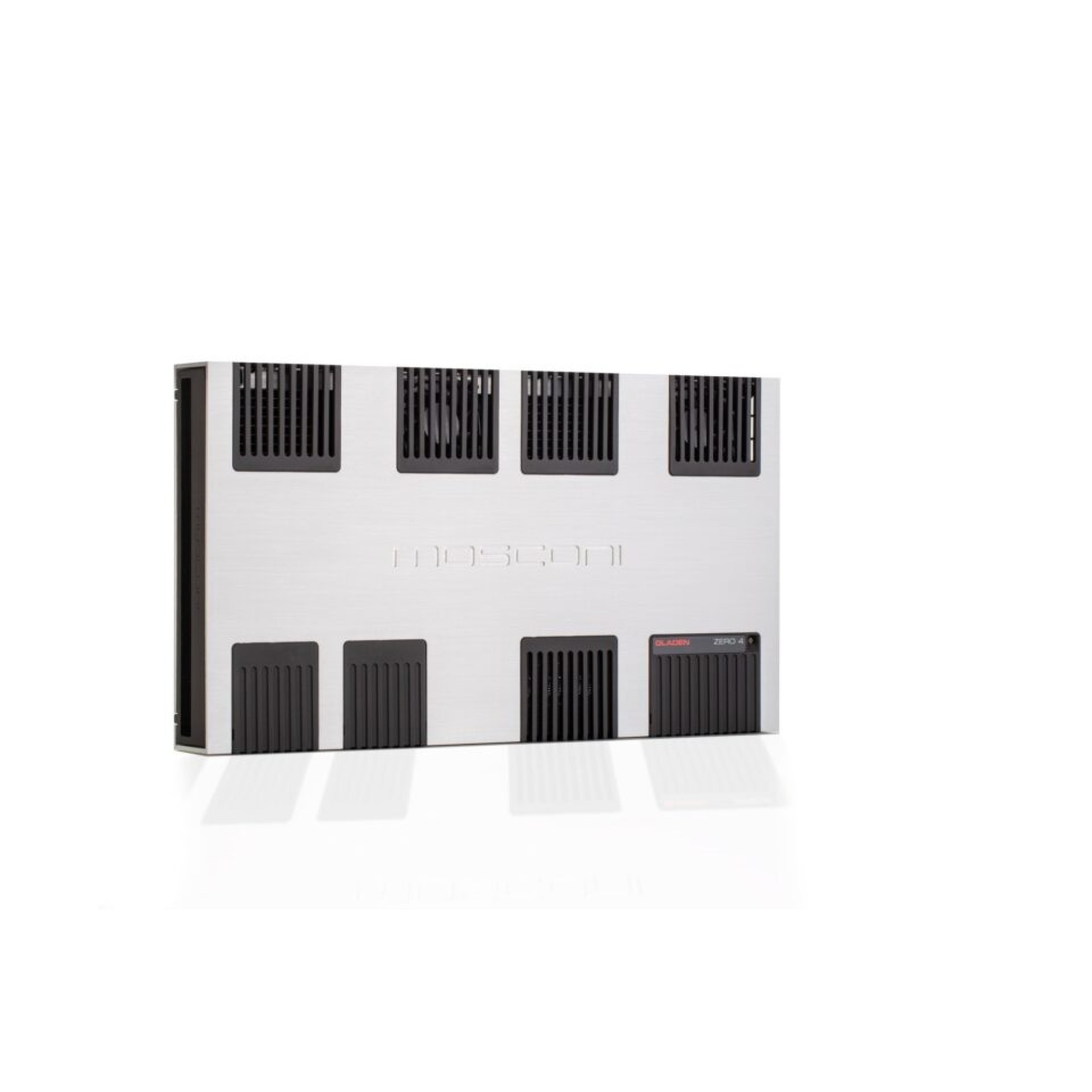

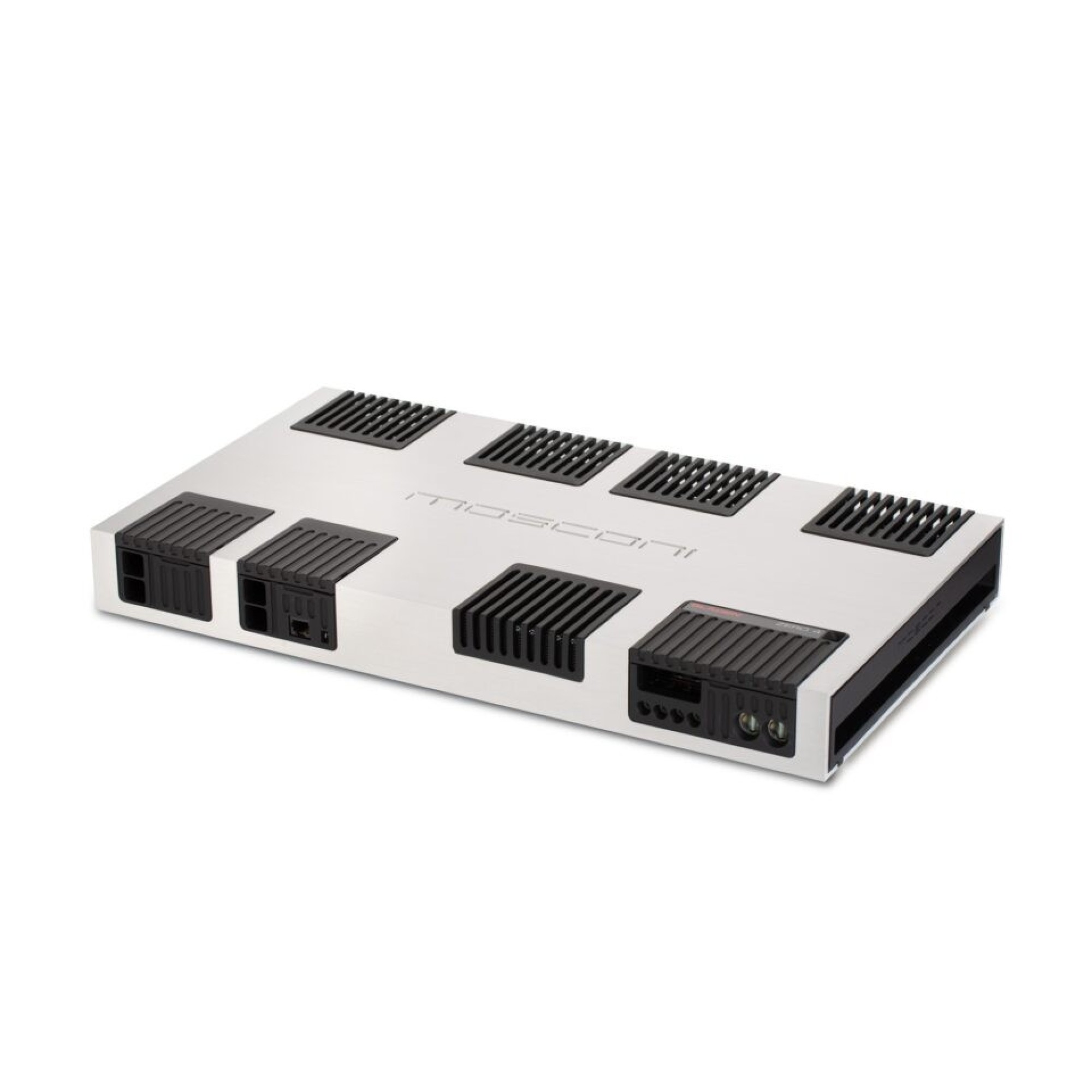

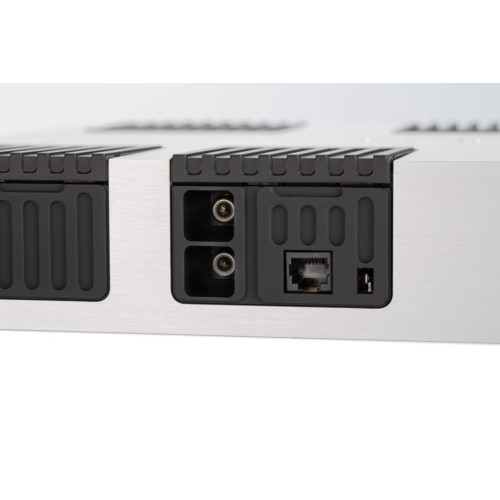

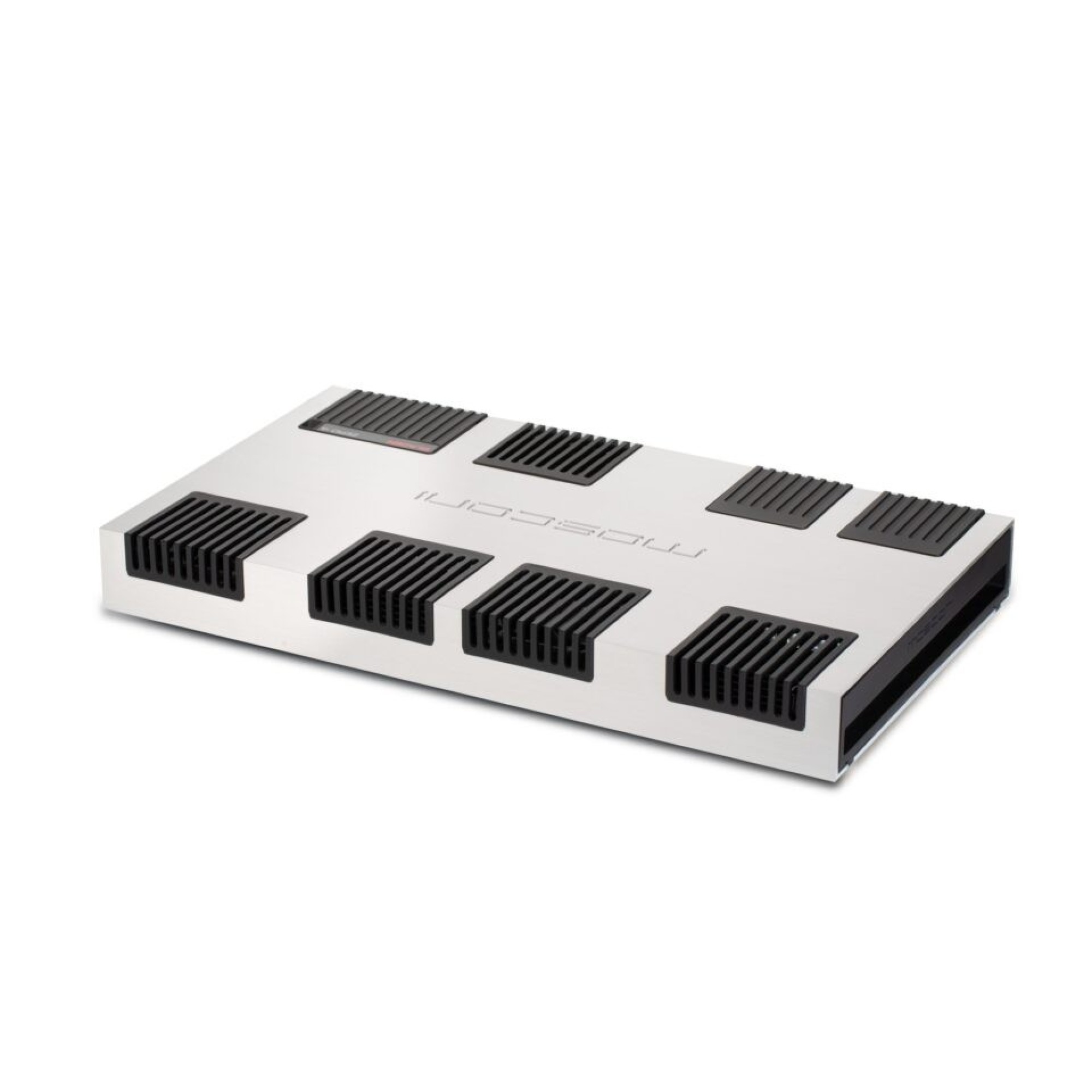

MOSCONI ZERO 4 4 channel amplifier available in Silver-Satin Finish

Power Rating: 2 CH x 100 Watt + 2 CH x 200 Watt @ 4 Ohm < 1% THD+N Sn Ratio: > xx dBA (ref: 1 Watt into 4 Ohm)

AB class, full MOSFET

1 Ohm stable.

Dumping Factor exceeds xxxx

101dB S/N ratio (A weighted)

Very low THD and IMD

Regulated power supply

High/Low level selector

Auto REMOTE function

Cross Over with separate High Pass and Low Pass filter, Band Pass allowed

Slot for G_cards (G_HOC, G_HP, G_LP, G_FSA)

Remote Volume Control RTC_MOS (optional)

Side panels in soft touch finishing with red LED lighting

Dedicated to 150th Anniversary of the unification of Italy

Target powers (CH1/2 + CH3/4):

2 x 100 + 2 x 200 Watt per channel @ 4 Ohm

2 x 190 + 2 x 380 Watt per channel @ 2 Ohm

2 x 380 + 2 x 760 Watt BTL mode @ 4 Ohm

1 x 1350 Watt BTL mode @ 2 Ohm* (only CH3/4)

Input sensitivity: (Power rating ref)

0.4 V ÷ 9.5 V / 1.2 ÷ 27 V (HL)

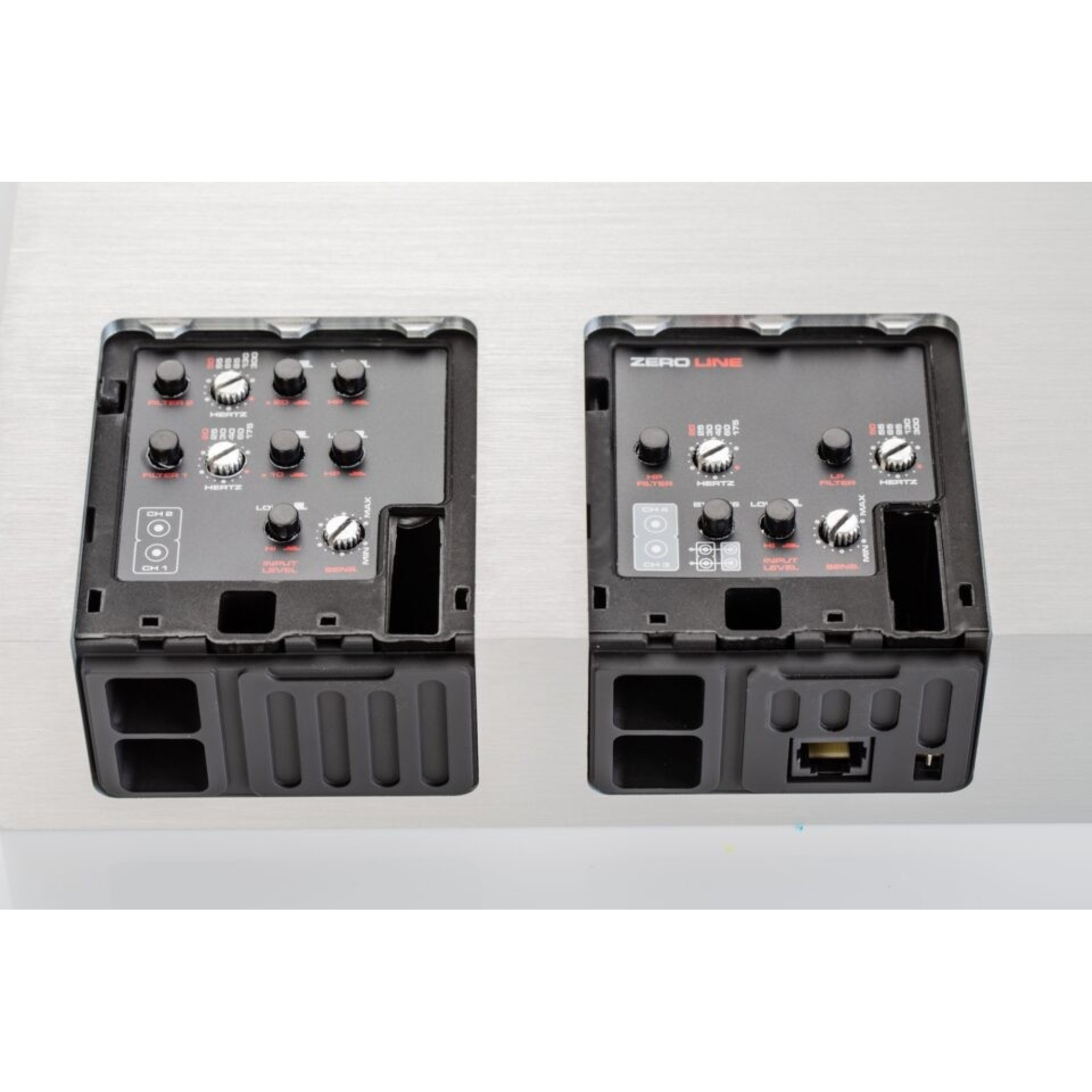

Xover functions (BAND Pass allowed):

CH1/2 FILTER1: 20 ÷ 175 Hz (HP or LP x1/ x10 )

CH1/2 FILTER2: 50 ÷ 300 Hz (HP or LP x1/x20 )

CH3/4 FILTER: HP (20 ÷ 175 Hz ) & LP (50 ÷ 300Hz)

FILTER1 + FILTER2 ( CH1/2) Band Pass Allowed

FILTER (CH3/4) Band Pass Allowed

12 dB/oct – 0.7 (Stereo & Mono)

Size: 450x250x50 mm
