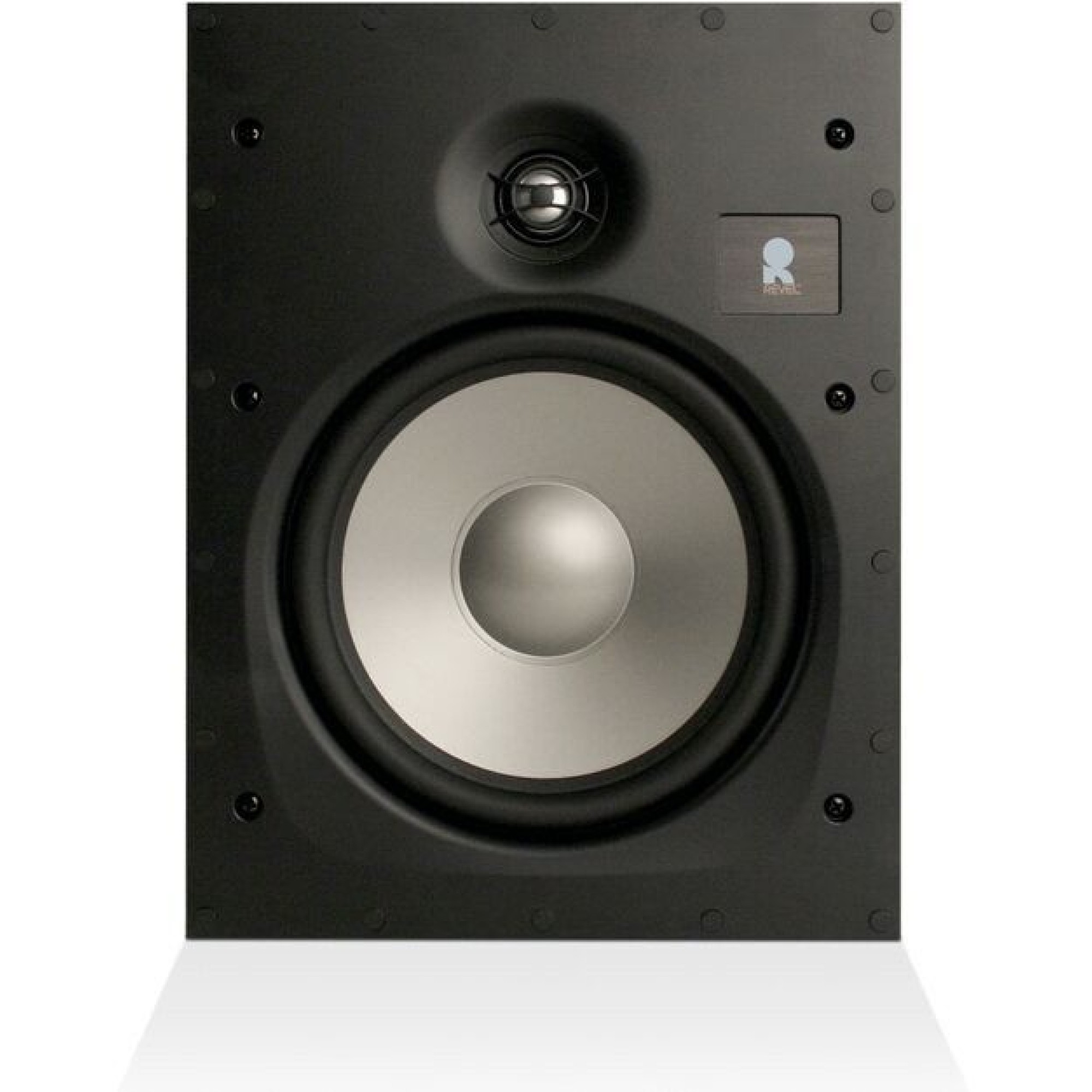

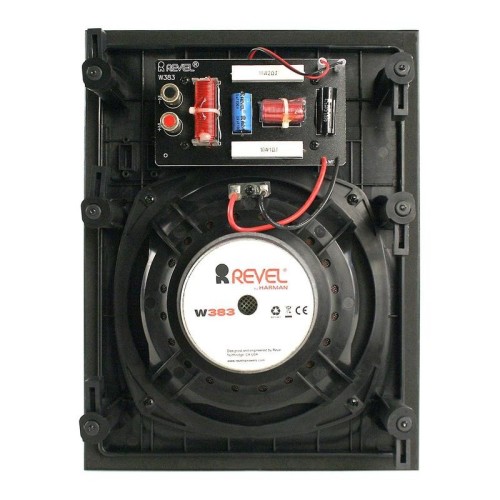

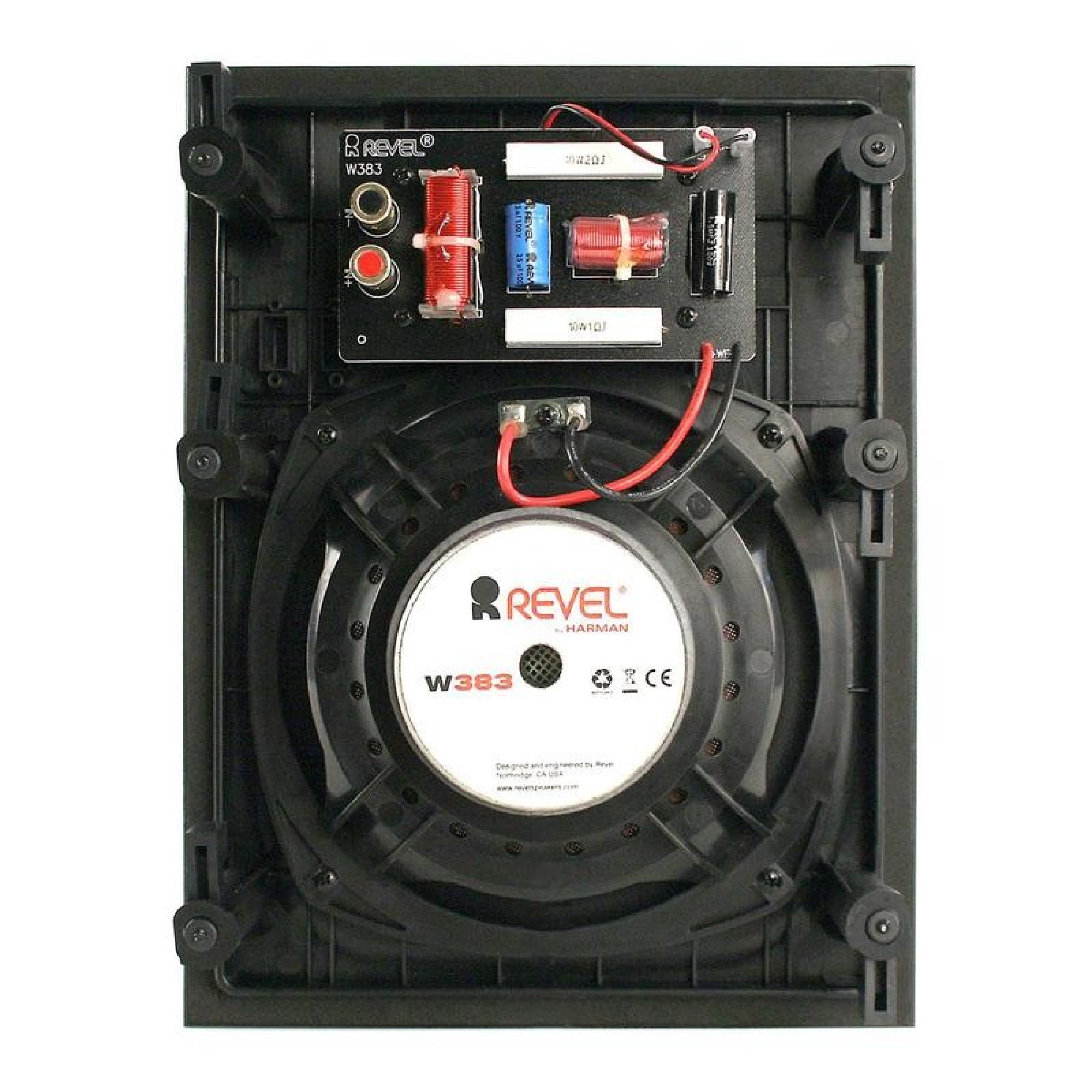

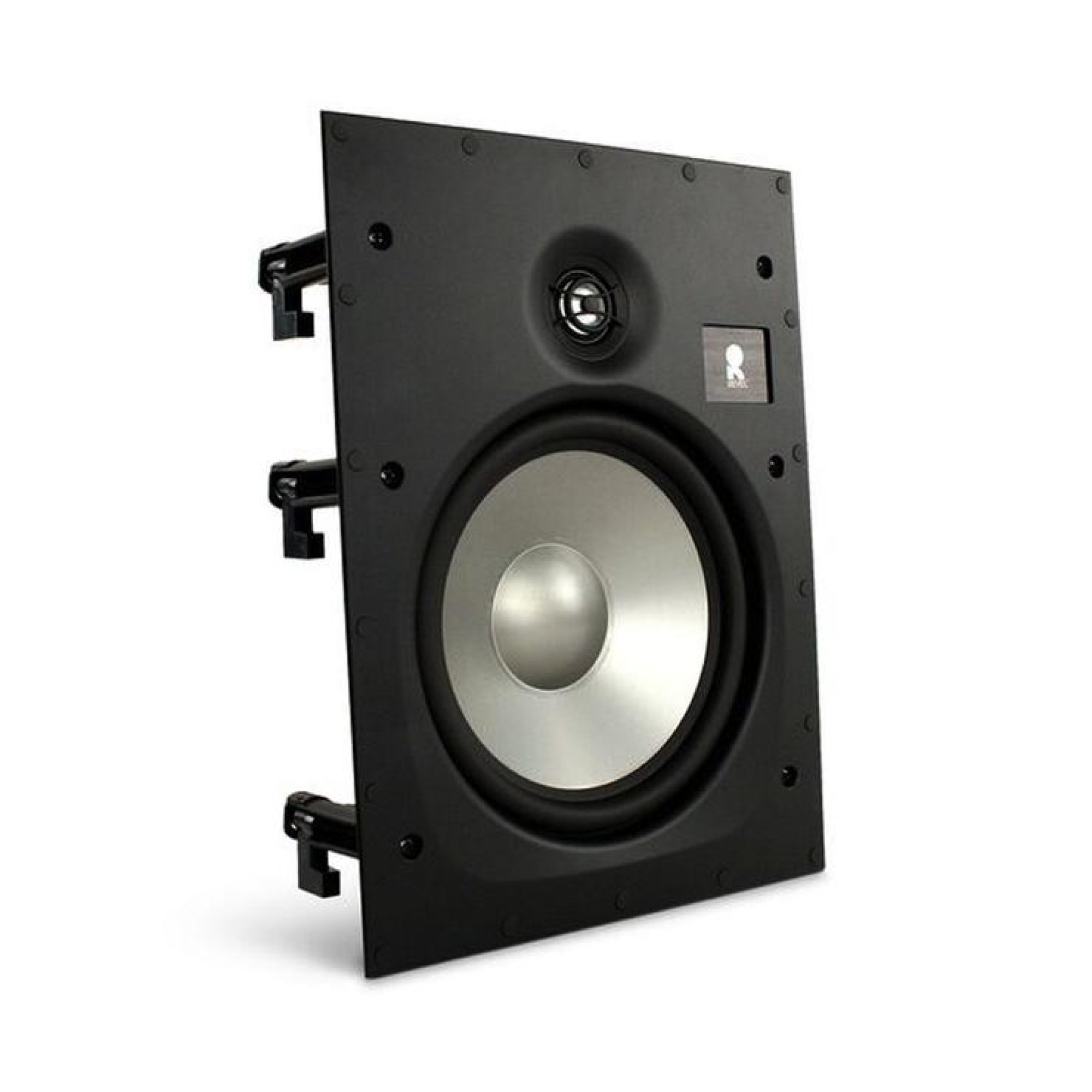

REVEL W383

This entirely new range of in-wall loudspeakers combines Revel’s best-in-class acoustics with a patented tool-less installation mechanism and a sleek look that integrates easily into any décor.

Specifikacija:

8” Micro-Ceramic Composite (MCC) Cone, Cast- Polymer Frame
Woofer
• 1” aluminum dome swiveling tweeter with waveguide
• Mounting depth: 3.7” (9.4 cm)
• Weight: 4.9 lb (2.2 kg) / Packaged weight: 6 lb (2.9 kg)
• Packaged dimensions (H x W x D): 6.9’’ x 12.6’’ x 15.6’’ (175 x 320 x 395mm)
• Cutout dimensions (H x W): 11.9” x 8.9” (30.3 cm x 22.7 cm)

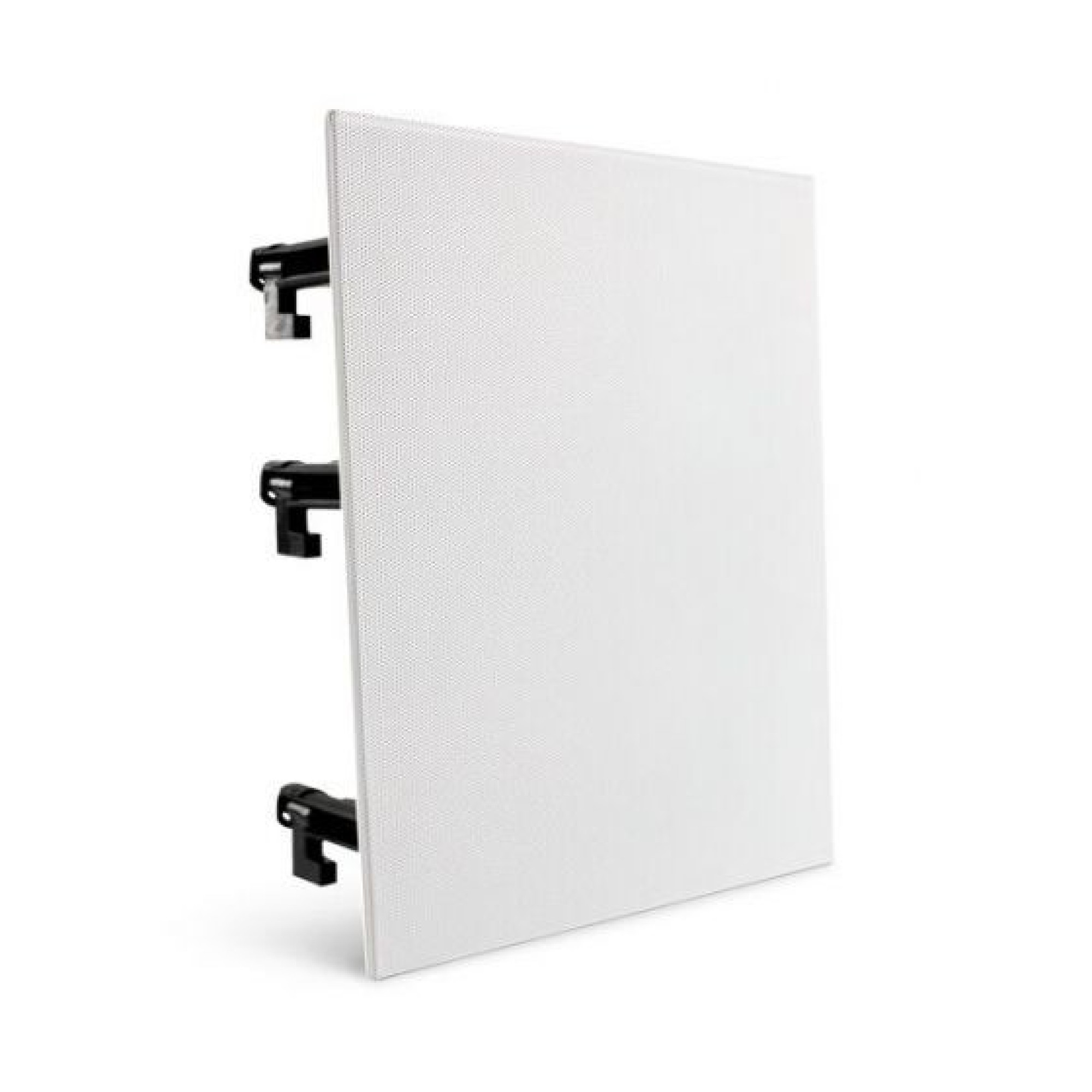

• Includes zero-bezel magnetic grille
• Grille finished dimension (H x W): 12.9” x 9.9” (32.8 cm x 25.2
cm)
• Nominal impedance: 8 ohms
• Recommended amplifier power range: 10- 125 watts
• Sensitivity (2.83V/1m): 89 dB
• Frequency Range -3 dB from 45Hz-22kHz; -10dB from 35-30 kHz
