ROTEL A12 SILVER
ROTEL A12 SILVER

ROTEL A12 SILVER

  • 979.00€

  • Kaina be PVM: 809.09€
Kiekis

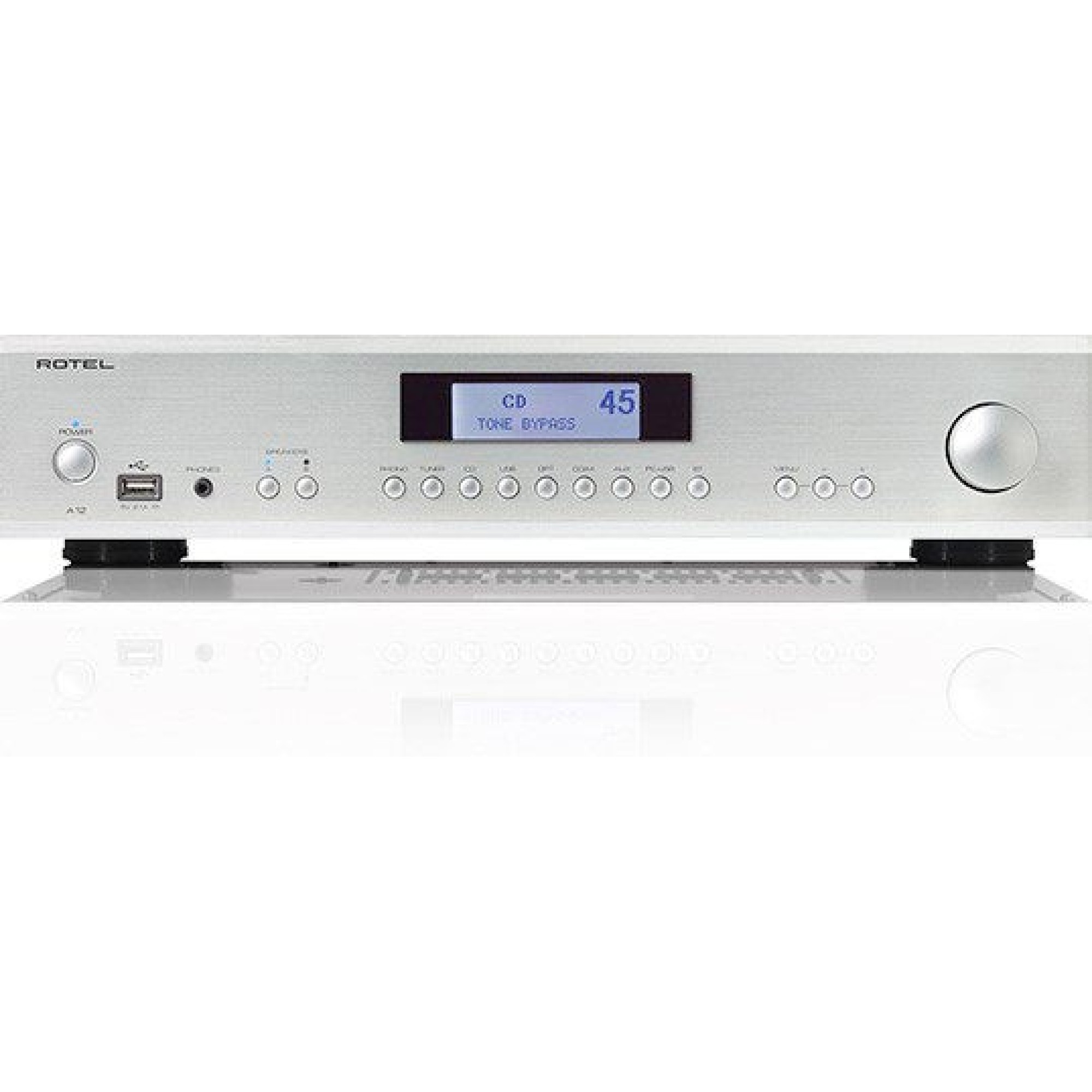

The A12 integrated amplifier displays the same clean lines and intuitive operation as the A14 with output power rated at 60 watts per channel RMS into 8 ohms. Rotel engineers begin their quest for uncompromising audio performance at the power supply. This is the heart of an amplifier and an area where considerable time and investment is spent. Rotel manufactures its own toroidal transformers in-house to high tolerances using raw materials selected from proven, trusted suppliers. The result is a rugged power supply that won’t easily distort the music under dynamic conditions or with difficult speaker loads.



Specifikacija

DIMENSIONS (W × H × D)
430 × 93 × 345mm
17″ × 3.6″ × 13.5″
FRONT PANEL HEIGHT
80mm (3.15″)
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
230W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
8kg (17.6lbs.)
BTU RATING (4Ω, 1/8th power)
517 BTU/h
CONTINUOUS POWER OUTPUT
60W/Ch (All channels driven, 8Ω)
TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) <0.03%
FREQUENCY RESPONSE
Line Level Inputs: 10Hz – 100kHz ±0.5dB
Digital Inputs: 10Hz – 80kHz ±3dB
Phono Input: 20Hz – 15kHz ±0.5dB
S/N RATIO (IHF “A” Weighted)
Line Level Inputs: 100dB
Digital Inputs: 103dB
Phono Input: 90dB
NTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%
DAMPING FACTOR
220
SPEAKER IMPEDANCE
4Ω minimum
INPUT SENSITIVITY
Line Level Inputs: 200mV
Digital Inputs: 0dBfs
Phono Input (MM): 3mV
INPUT IMPEDANCE
Line Level Inputs: 24kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
INPUT OVERLOAD
Line Level Inputs: 4V
Phono Input: 50mV
PREOUT LEVEL
1V
OUTPUT IMPEDANCE
470Ω
TONE CONTROLS
±10dB at 100Hz / 10kHz
COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 1 (up to 24/96)
USB Audio Class 2 (up to 24/192)
