SUPRA CLASSIC 2X1.6 BLUE 20M

SUPRA CLASSIC 2X1.6 BLUE 20M

Kaina už 1 vnt.

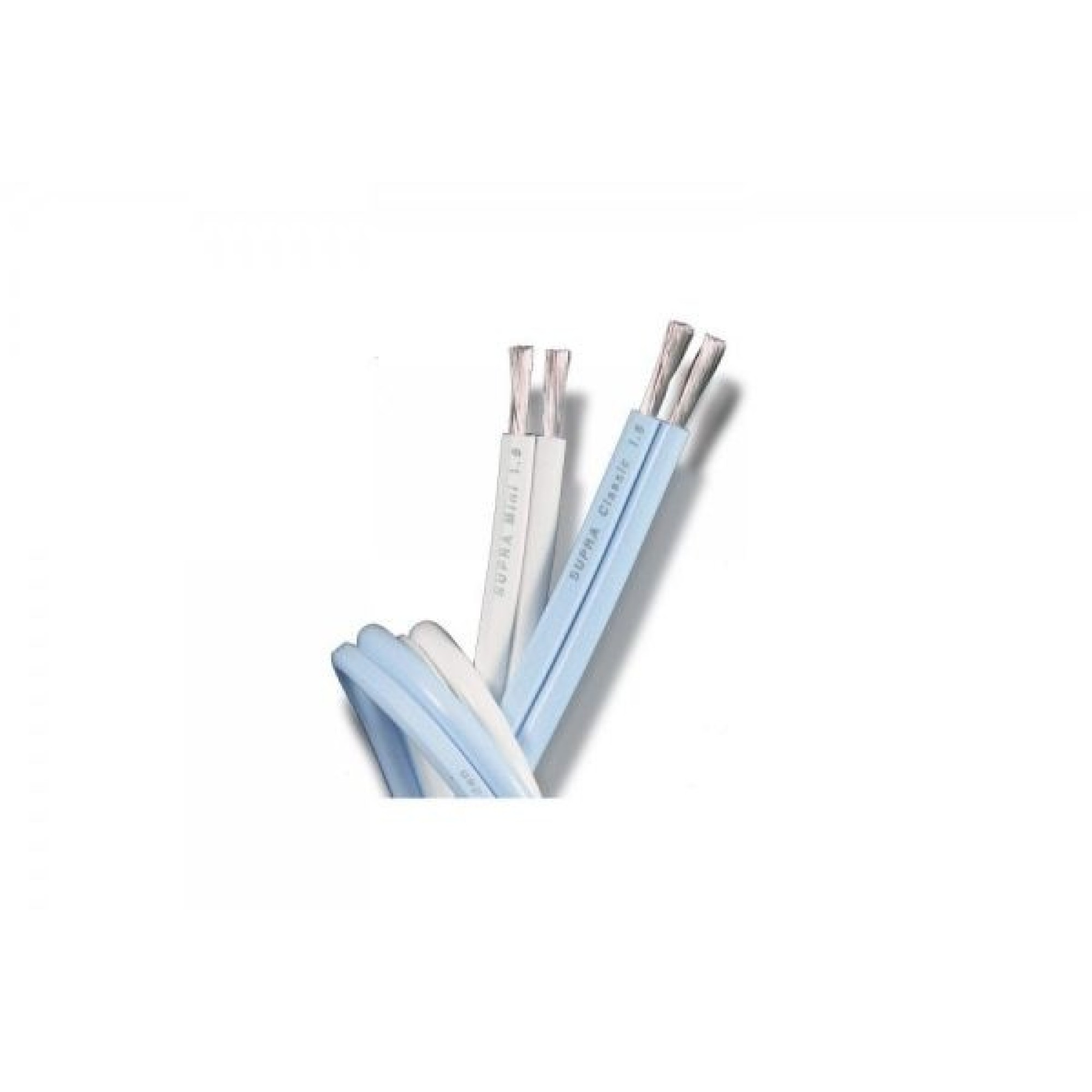

Supra Classic 2 x 1.6 mm2
Typical applications: low powered, short length mid-powered or treble wiring in a bi-wired or bi-amplified Hi-Fi system.

Classic Series – The Original!
The Classic series encompasses flexible tin plated, multi-strand, oxygen-free 5N purity Copper! In addition to the corrosion resistance, the tin plating contributes also to a much wanted skin-effect reduction and prevents the electrons (i.e. the current) from disruptive ”jumps” between the strand surfaces, hence adding unwanted timing errors to the music signal. The insulation of a select grade chemically stable PVC further improving the sonically benign tin surface over time. The Classic cables are available also in a flame retardant and halogen free version; Classic/H FRHF.

The Classic series is according to todays measures good entry level cables and are available in dimensions suitable for a wide range of power transmission demands. Compared to any low cost hifi-kits included speaker cables, Supra Classic will give a clearly audible improvement.

Mechanical Specifications

Crossection area

1.6 / 15

mm2 / AWG

Number of conductors

2

pieces

Number of strands per conductor

204

pieces

Strand diameter

0.10

mm

Conduktor material

Tin plated oxygen free Copper

Jacket

Heat and age resistant PVC

External size

3.1 x 6.2

mm

Weight

44

g/m

Halogen free and flame retardant:

No, refer to Classic FRHF

Electrical performance

Resistance

10.8

Ohm/km

Inductance

0.40

µH/m
