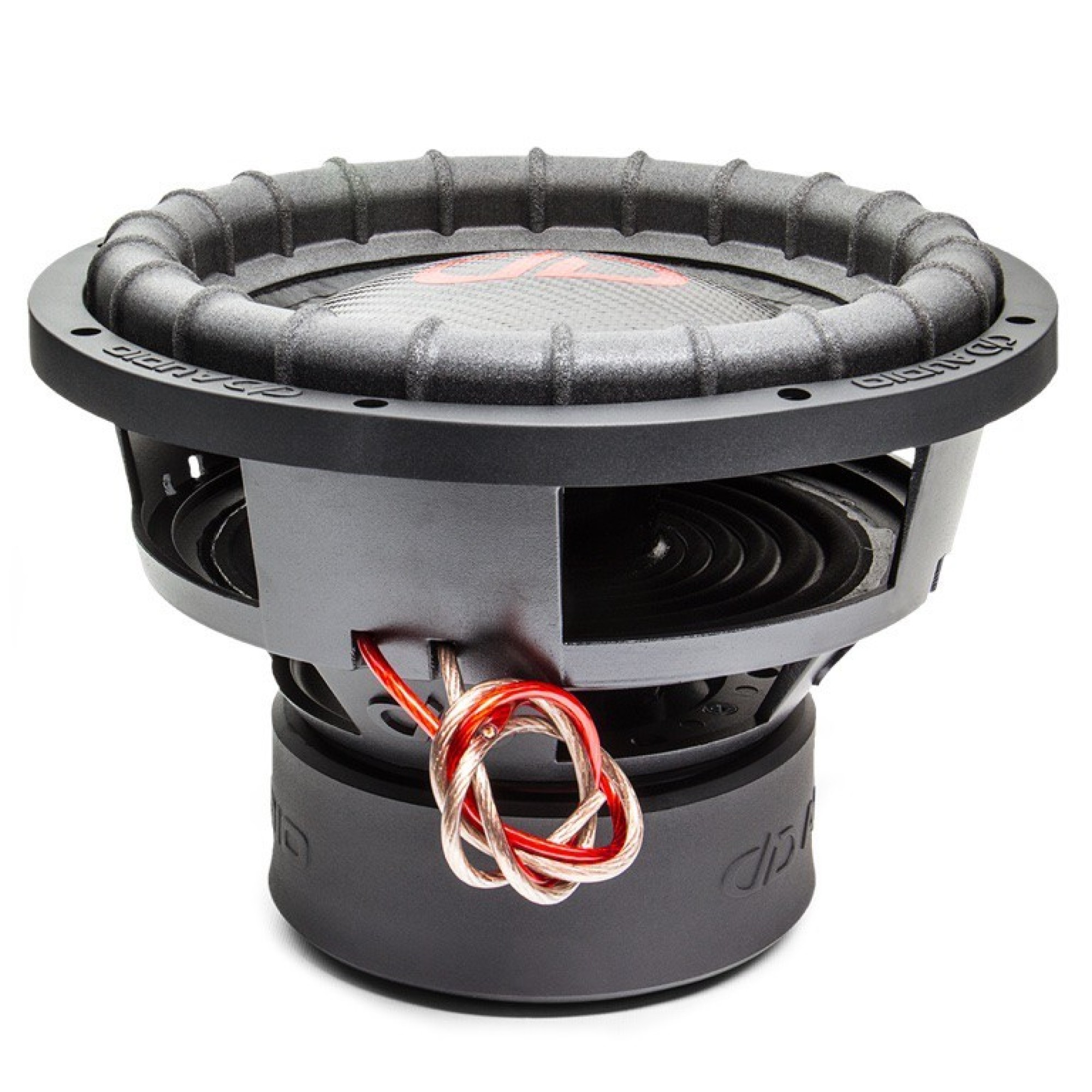

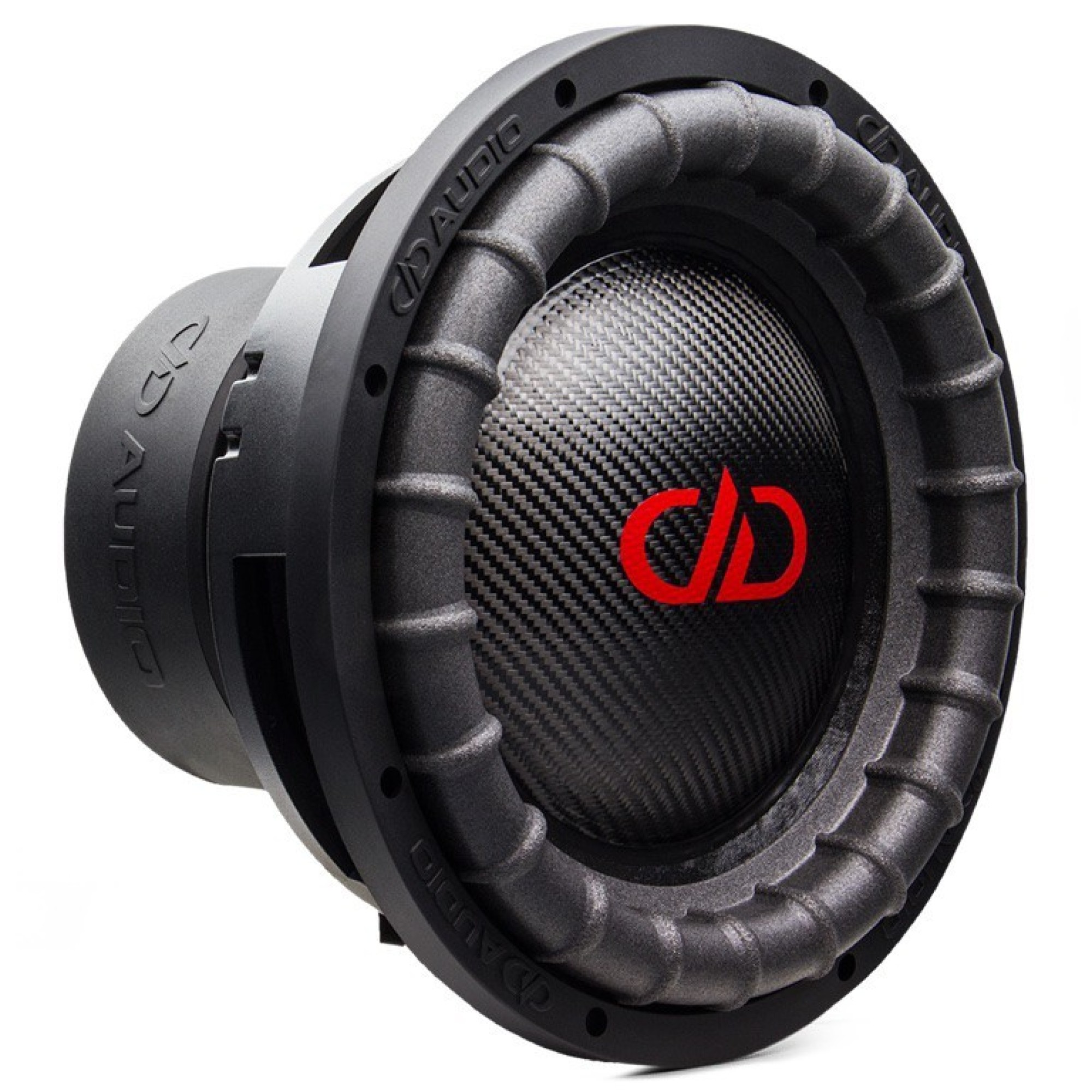

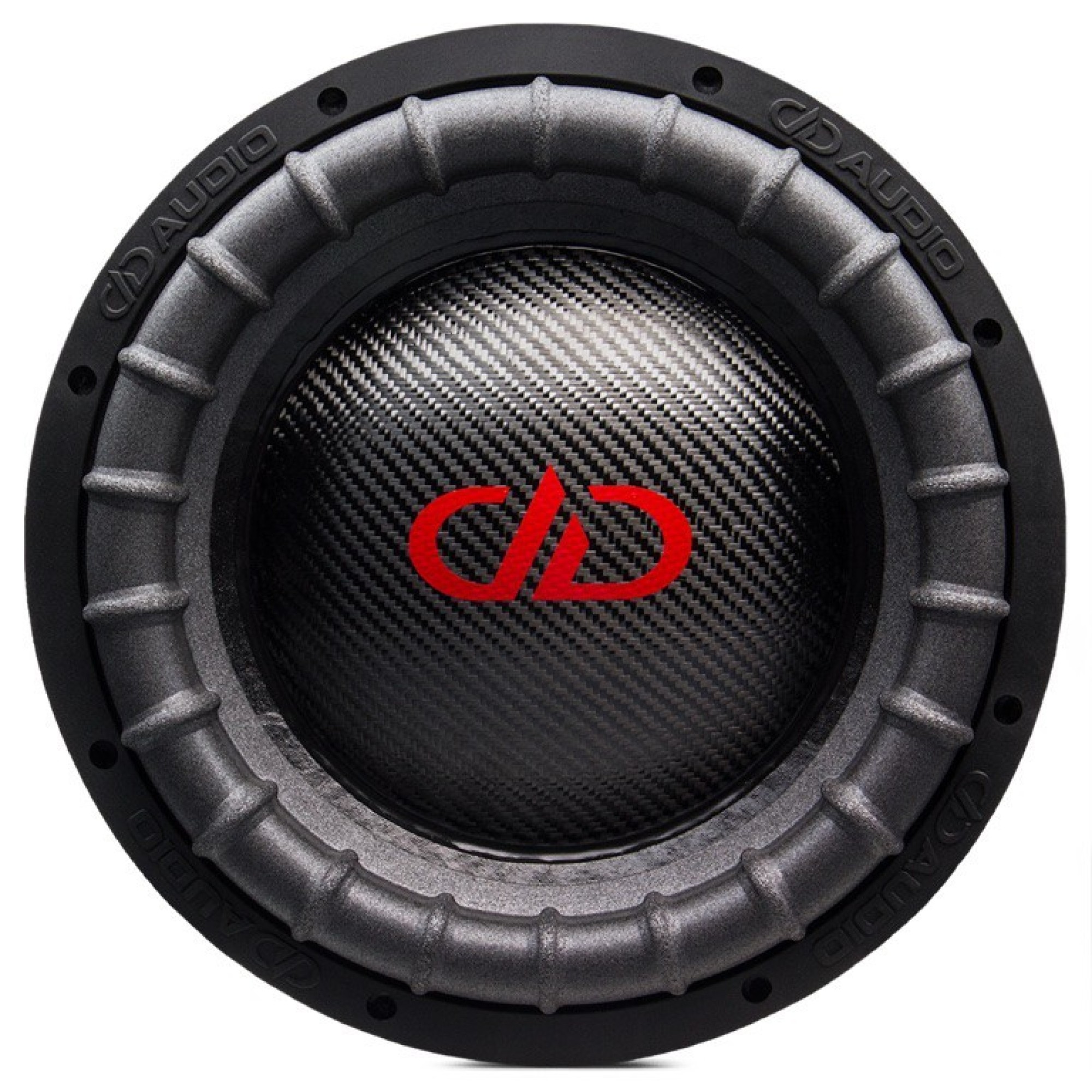

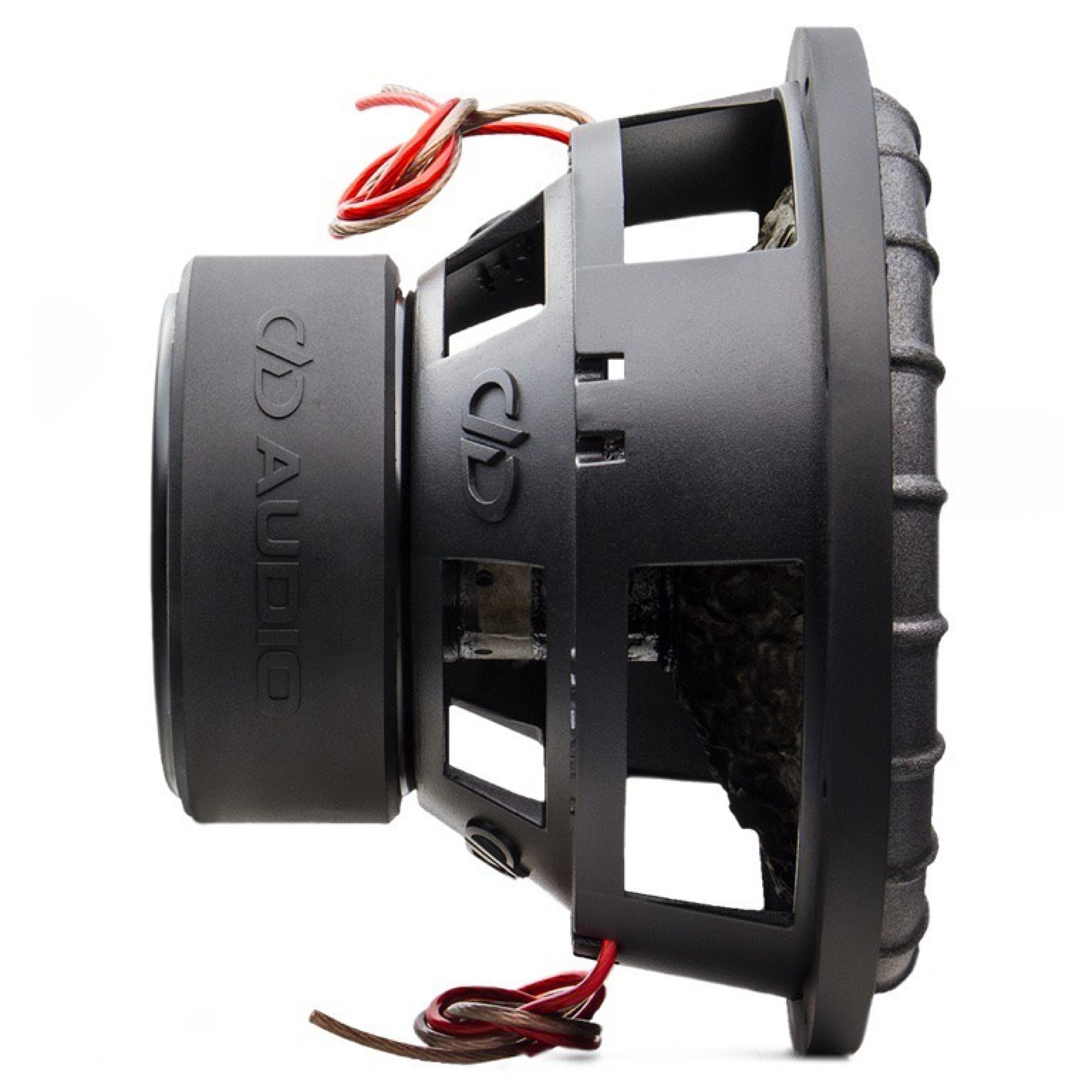

DD AUDIO 3510H D4 ESP

The 3500s are some of our most sonically accurate sub-drivers. This accuracy comes from a low moving mass, ultra high energy design that uses a crazy strong motor with a highly focused voice coil gap. 3500 Series subs come with EROM or V-ROM surrounds, multi-layer spiders, 800-degree thermoset voice coils, and cast aluminum frames. All of these features combine to make the 3500 Series a brutally musical addition to our USA built lineup.

The 3500 Series features our Evolution Subwoofer Package (ESP). ESP equipped drivers sport a deeper frame than standard subs and an exclusive surround and cone designs. ESP subs are truly built to maximize performance in their designated size class.

The 3500 Series comes standard with an oversized dry finish black composite dust cap, red logo, and treated pulp cone, but it can be optioned out with alternative composite dust caps, composite cones, powder coated frames, supercharging, and a multitude of logo options to give your sub a personalized look and/or added performance for a specific application.

TECHNICAL DATA

-10″ subwoofer
– cast frame
– 2 x 4 ohm voicecoil
– 3″ voice coil diameter
– driver displacement: 3.4 liter
– recommended ported enclosure 35-50 liters ( NET )
– power handling 1200 W RMS
– peak power handling 4800 watts
– x-max: +- 17 mm
– xmech: 60 mm
– qts: 0,492
– Fs: 41,72 Hz
– Vas: 15,121 liters
– mounting depth 191 mm
– cutout diameter 259 mm.
