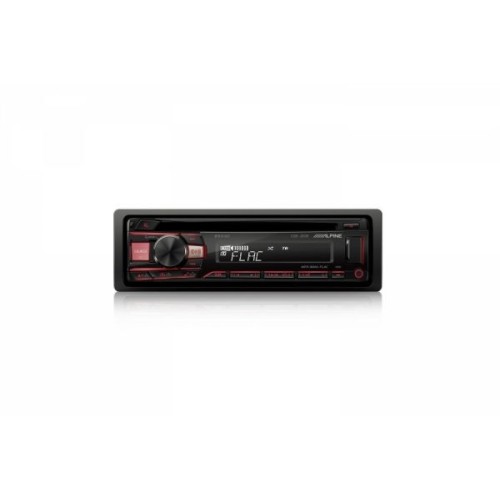

ALPINE CDE-201R

CD/USB RECEIVER – CDE-201R

The CDE-201R is an affordable single-DIN solution that steps up your sound to Alpine quality and offers many connectivity features to keep you entertained on the road.



Connect your Android phone to enjoy all your stored audio content, stream Spotify or internet radio, or simply connect a USB stick – there are many connectivity solutions possible with this Alpine head unit.



Wireless remote controls are available as accessory.



Built-in amplifier: 4 x 50 Watts



2 PreOuts (2 Volts)





Product information



Connect Your Android Phone

If you have an Android based phone or tablet, you can connect it via USB (cable not included) to your Alpine head unit to enjoy the audio content through your car speakers. You can select songs on your phone/ tablet or using the rotary encoder of your head unit. This feature is available for all Alpine head units with Android Open Accessory 2.0 (including CDE-201R).



Connect USB Sticks

The front USB port of the CDE-201R is ready for USB sticks. Bring your music along on your USB stick and enjoy MP3, WMA and FLAC files with convenient search functions.



Playback FLAC Files

FLAC high quality audio compression is becoming more and more popular, as it provides a much better sound quality compared to regular MP3 files. This Alpine product can playback FLAC files stored on USB media devices.



Tune Your Sound

Adjust the sound of your Alpine head unit to your personal preference, using Bass Engine SQ to get awesome bass output, as well as the EQ functions (10 Pre-Sets or 3 band Parametric EQ. Connect external amplifiers to the 2 PreOuts (2 Volts) or simply enjoy a direct speaker connection with the built-in 4 x 50 Watts high quality amplifier.



Set Your Colour Scheme

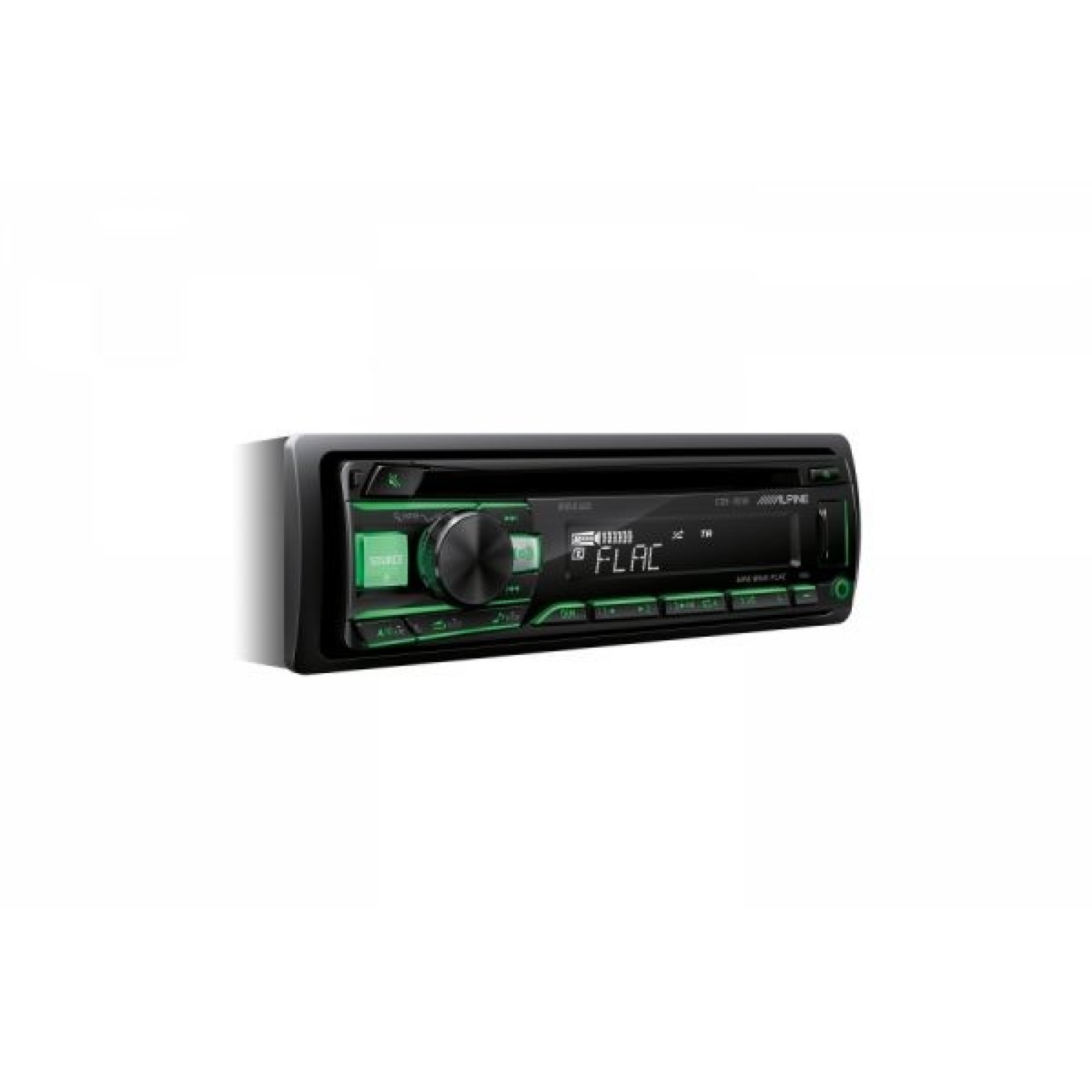

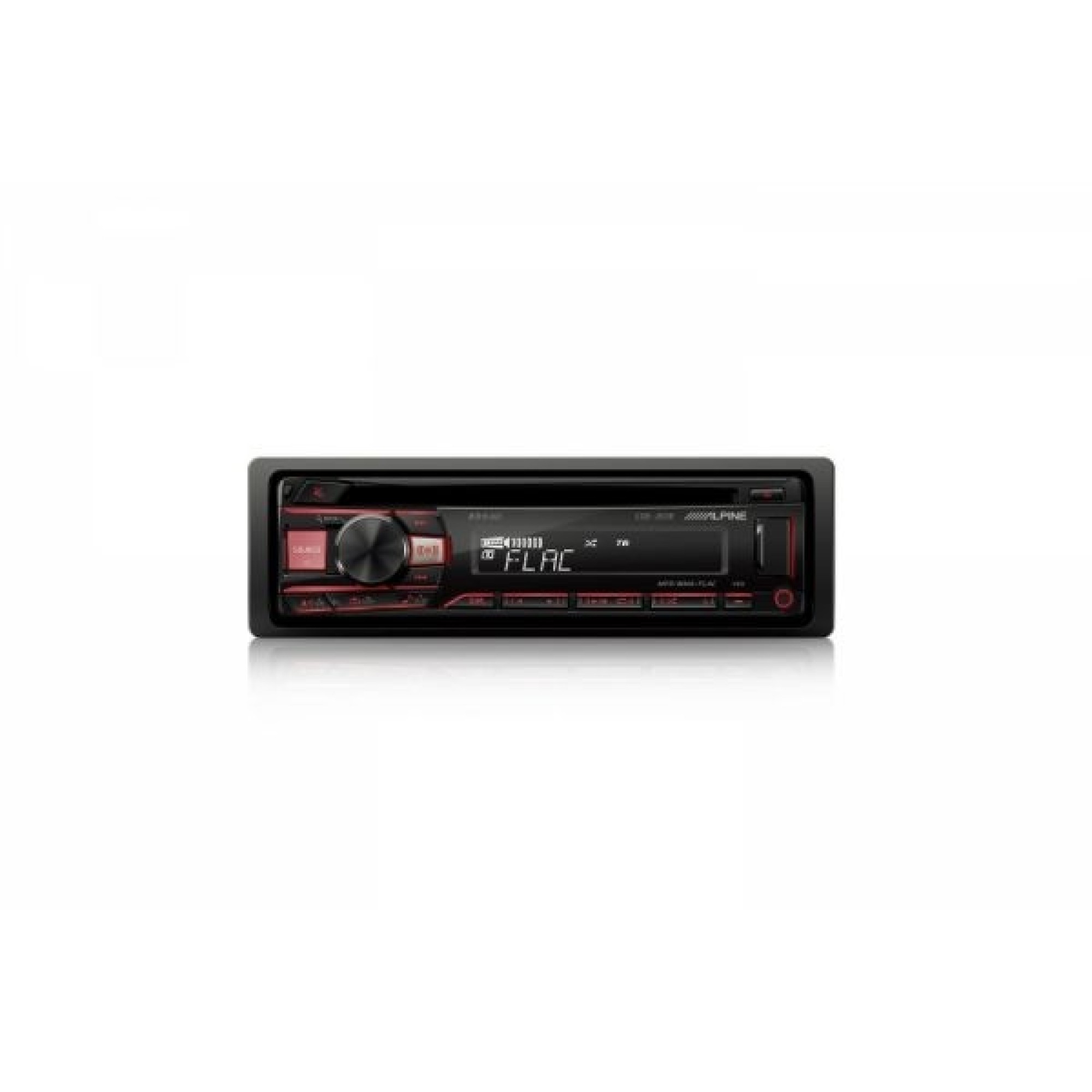

You can switch the button illumination between green and red at the touch of a button.



Optional Remote Control

The new Alpine Head Units work seamlessly with the optional Alpine wireless remote control RUE-4202.



Features





Tuner



Memory Presets: Preset Stations (FM:18, MW:6, LW:6)

Memory: Auto Memory

RDS



RDS Functions: AF, TA, TP, PTY, EON

PTY (Programme Type) Display

Disc Player



Disc Type: CD Player

Disc Playback Type: CD, CD-R/RW

Music Playback: CDDA, MP3, WMA Playback

M.I.X. Random Play

Repeat: Track, All

Playback Control: Play/Pause/Forward/Backward

CD Text Display

CD Text Name Search

24-bit DAC

Zero data Mute

USB Media Connection



Front USB Connection

MP3, WMA, FLAC Playback

Folder Up/Down

M.I.X. Random Play

Repeat: Track, Album, All

USB AOA (Android Open Accessory) 2.0

Sound Tuning



Subwoofer Level Adjustment

BASS ENGINE SQ: Level Control 0-6

Subwoofer Phase Select: 0°/180°

Subwoofer System Select

High Pass Filter

Low Pass Filter

2V Voltage 2PreOuts

10 Equalizer PreSets: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical

3-band Parametric Equalizer

General



Power Output: 4 x 50 W High Power Amplifier

Display LCD: 14 Segments White LCD Display 1Line

Control Type: Rotary Encoder Knob

Green/Red Selectable Illumination Buttons

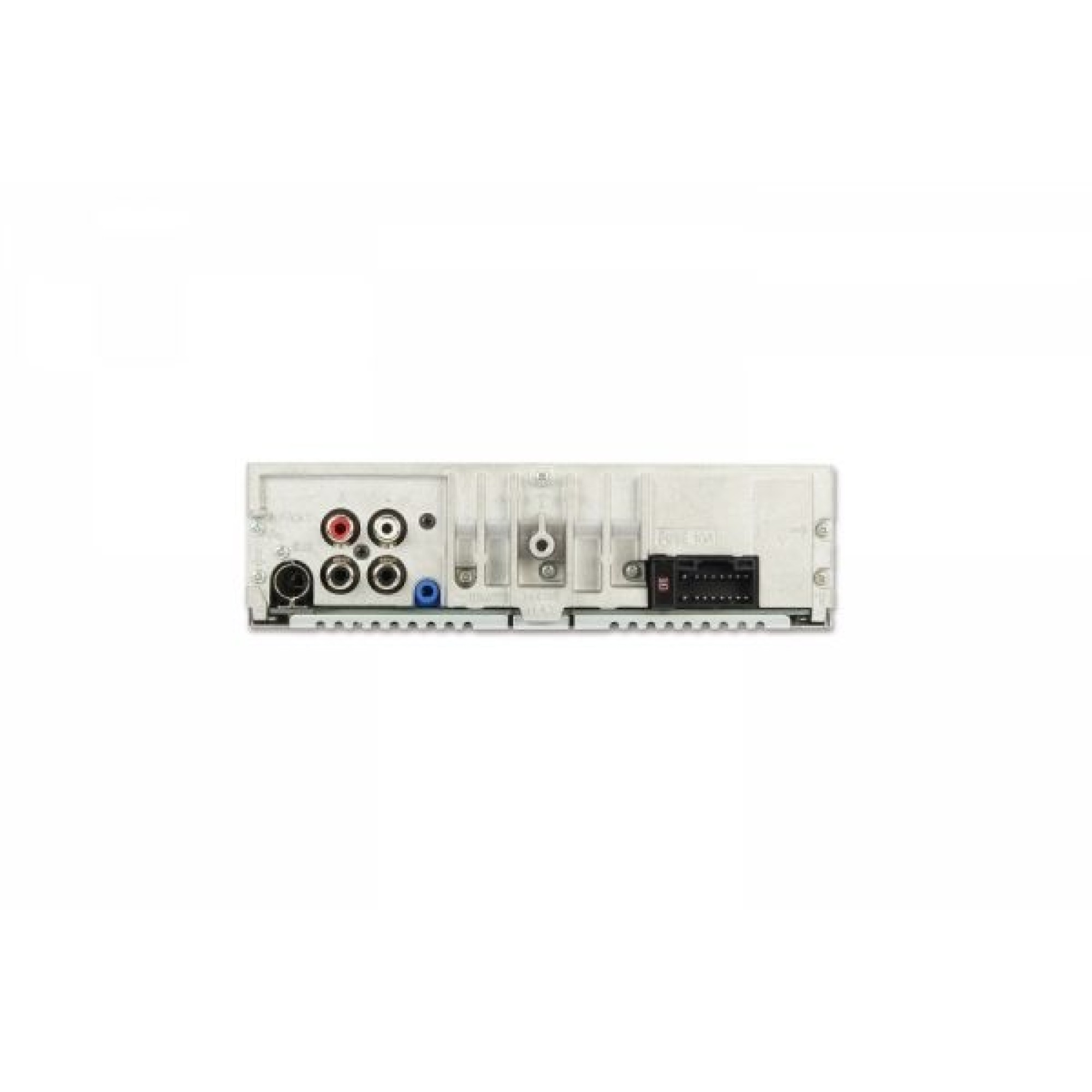

2 PreOuts (2V, Front + Rear/Subwoofer)

24-bit DAC

Front AUX Input (3.5mm mini jack)

Steering Wheel Remote Control Ready

-20dB Mute

Remote Control Ready

Clock

Detachable DIN Trim Plate

Detachable Face Plate

Dimmer

Power Antenna Lead

Remote Turn-On



Specifications



Max Power Output Ratings



Max Power Output: 4 x 50W

FM Tuner



Tuning Range: 87.5 – 108.0 MHz

MW Tuner



Tuning Range: 531 – 1,602 kHz

LW Tuner



Tuning Range: 153 – 279 kHz

USB



USB Requirements: USB 1.1/2.0

Max. Power Consumption: 500 mA

File System: FAT 16/32

Sound Tuning



Subwoofer Level Adjustment: 0 to 15 dB

Subwoofer Phase Setting: 0° or 180°

High Pass Filter: Off, 80/100/120 Hz

Low Pass Filter: Off, 80/100/120 Hz

Bass Level Control Range: ±7 dB at 100Hz

Bass Center Frequency: 60/80/100/120 Hz

Bass Band Width Adjustment (Q): 4 choices (0.5=wide, 1.0=medium, 1.5=medium, 2=narrow)

Treble Level Control Range: ±7 dB at 10 kHz

Treble Center Frequency: 7.5k/10k/12.5k/15k Hz

Treble Band Width Adjustment (Q): 2 choices (0.75=wide, 1.25=narrow)

Mid Level Control Range: ±7 dB

Mid Center Frequency: 500/1k/1.5k/2.5k Hz

Mid Band Width Adjustment (Q): 4 choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)

General



Power Requirement: 12V.DC

Pre Output Voltage (Before Clipping): 2V / 10k ohms

Aux In: 1.4V / 10k ohms

Maximum Mounting Angle: 30°

Weight: 1.2 kg

Dimensions



Din Size: 1 DIN

Chassis Size (W x H x D) mm: 178 x 50 x 177 mm
