ALPINE S-S40

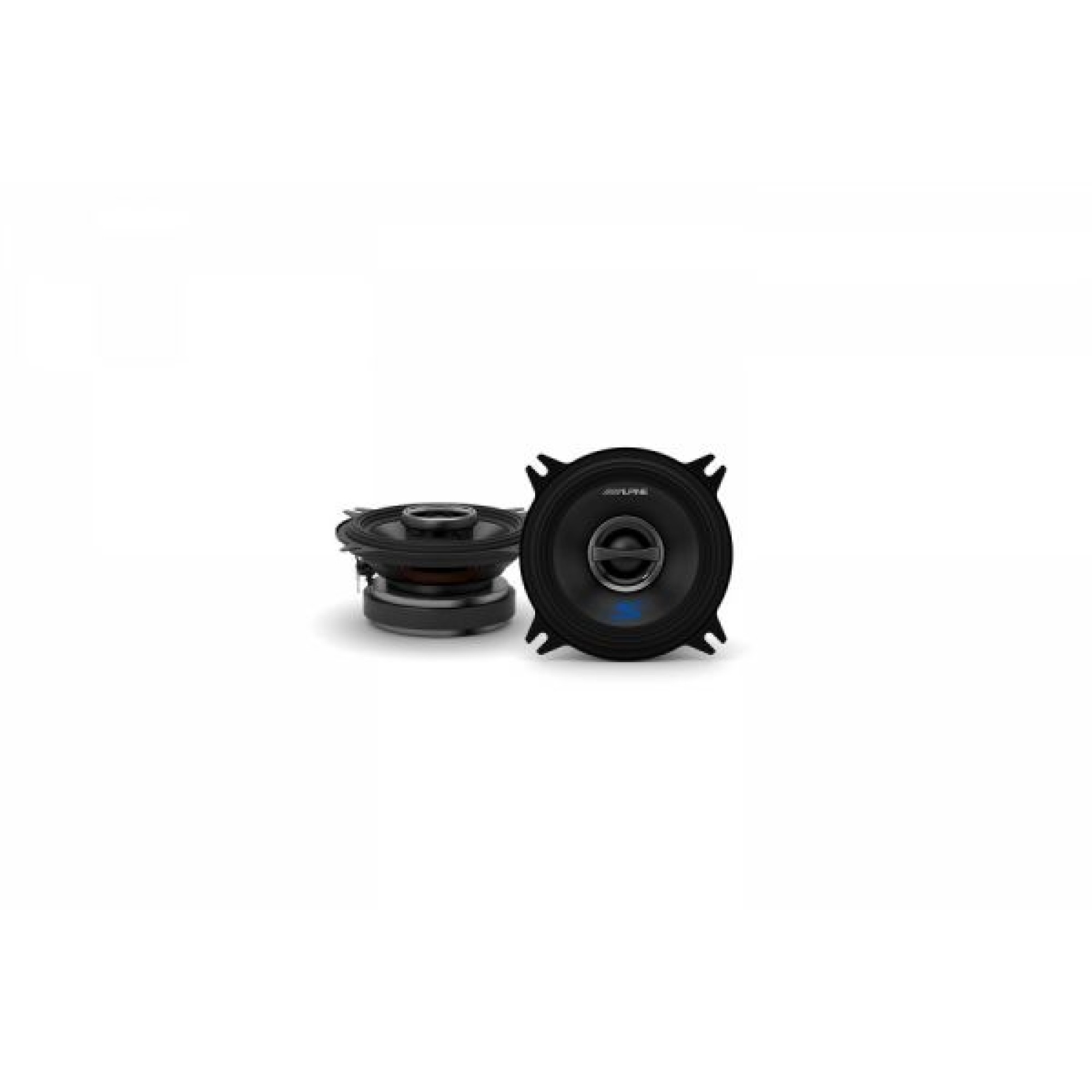

4″ (10 cm) Coaxial 2-Way S-Series Speakers – S-S40

The S-Series delivers amazingly high performance for this class of speaker. They boast the world’s first use of a CFRP diaphragm (Carbon Fiber Reinforced Plastic), which has the ideal balance of hardness and light-weight, for extremely clean and accurate sound. They also feature a larger voice coil than previous types for higher driving power, and the same HAMR surround as used on the X-Series.

Peak Power: 140 Watts

RMS Power: 45 Watts

Frequency Response: 97 Hz – 22 kHz

Product information

Introducing the S-Series speaker line

The all-new Alpine S-Series speakers offer an amazing price vs. performance ratio and come in many configurations. They are perfect for OEM upgrades with many sizes to choose from to suit a wide variety of vehicles.

HAMR Surround

Alpine’s patented H.A.M.R. (High Amplitude Multi-Roll) surround is now found on the S-Series speakers. This proven technology increases excursion while maintaining accuracy and linearity. The multi-roll design allows an even unfolding of the surround, which creates incredible linearity and colorization rejection.

CFRP Cone

The S-Series speakers are the first in the industry to use a material called CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. On a standard, off-the-shelf oval cone, the edges are naturally weaker than the center due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the cone that are normally weak. The result is rigidity throughout the cone that delivers accurate and efficient performance.

FEATURES

Woofer

CFRP (Carbon Fiber Reinforced Plastic) cone with spezialised rubber surround

HAMR (High Amplitude Multi-Roll) Surround

25 mm Voice Coil

Magnet Material: Ferrite

Tweeter

Tweeter Type: 1″ Wide-Range Silk Dome

Magnet Material: Neodymium

Crossover Network

Grade: 2nd order Network Design

SPECIFICATIONS

Power Handling

Peak Power: 140 Watts

RMS Power: 45 Watts (CTA-2031 Compliant)

Dimensions Woofer

Frame 102 mm

Mounting Depth: 43 mm

Mounting Height: 13.3 mm

Magnet: 75.0 mm

General

Frequency Range: 97 Hz – 22 kHz

Impedance: 4 Ohms

Sensitivity: 86 dB/W
