DD AUDIO VO-W10 COAX 25 BUNDLE

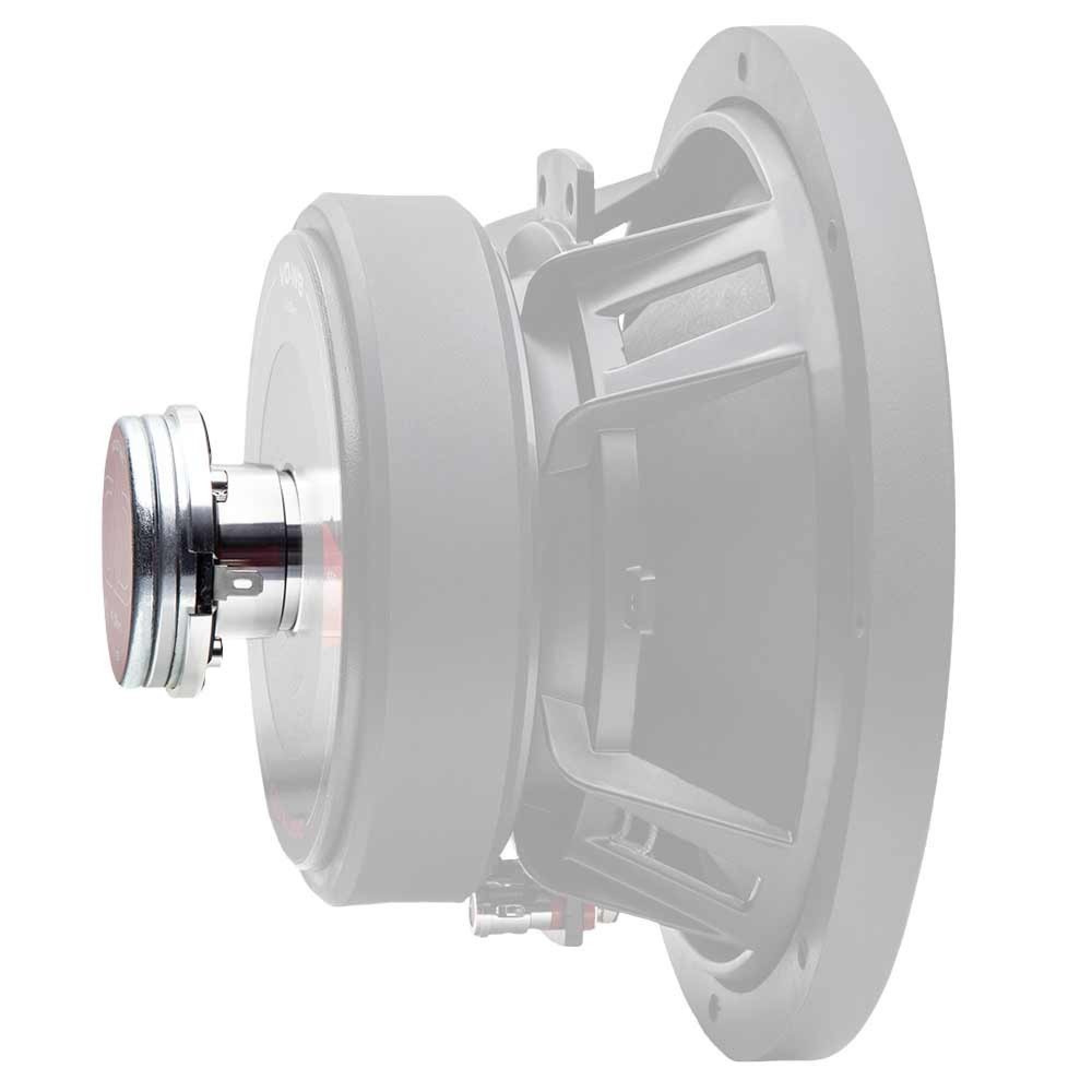

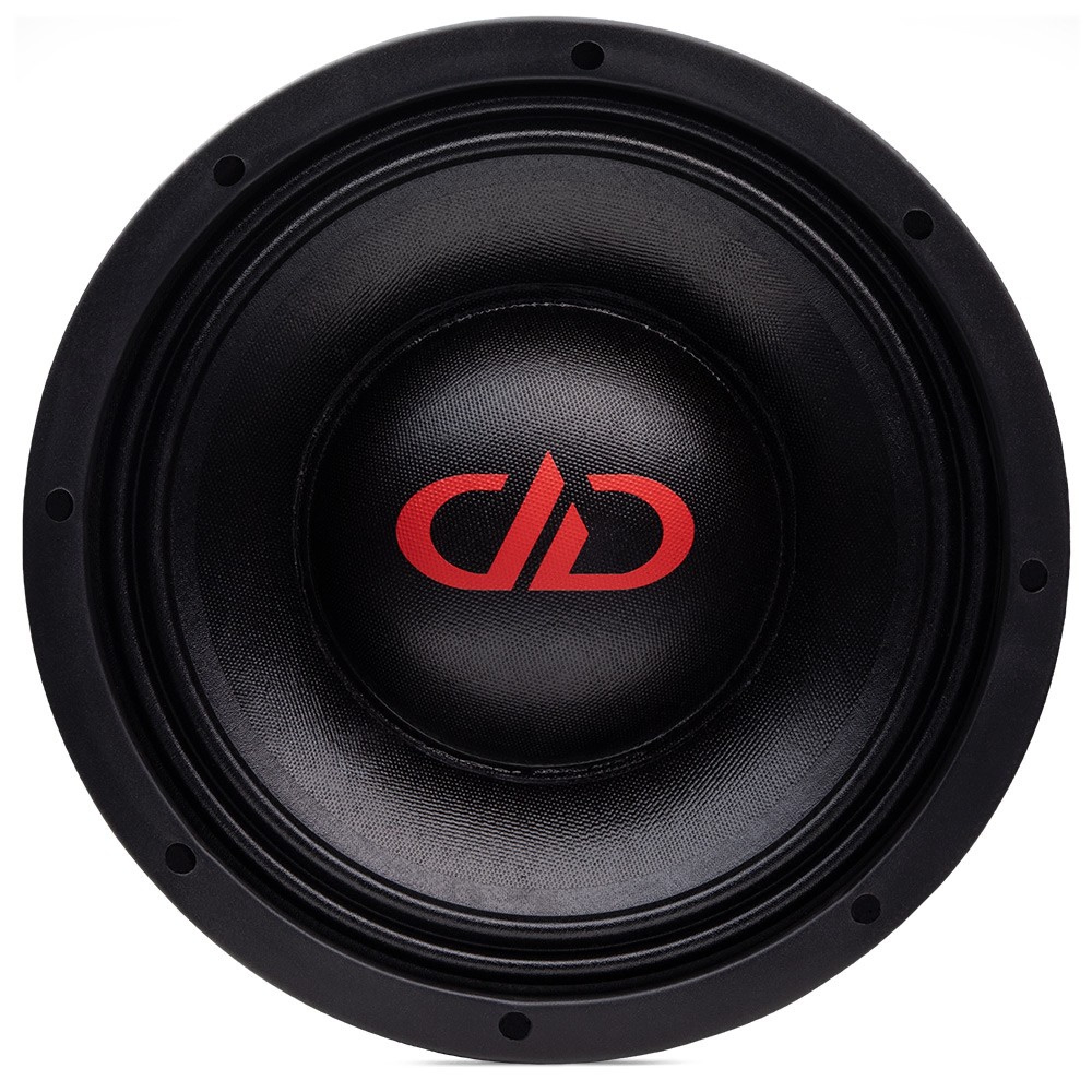

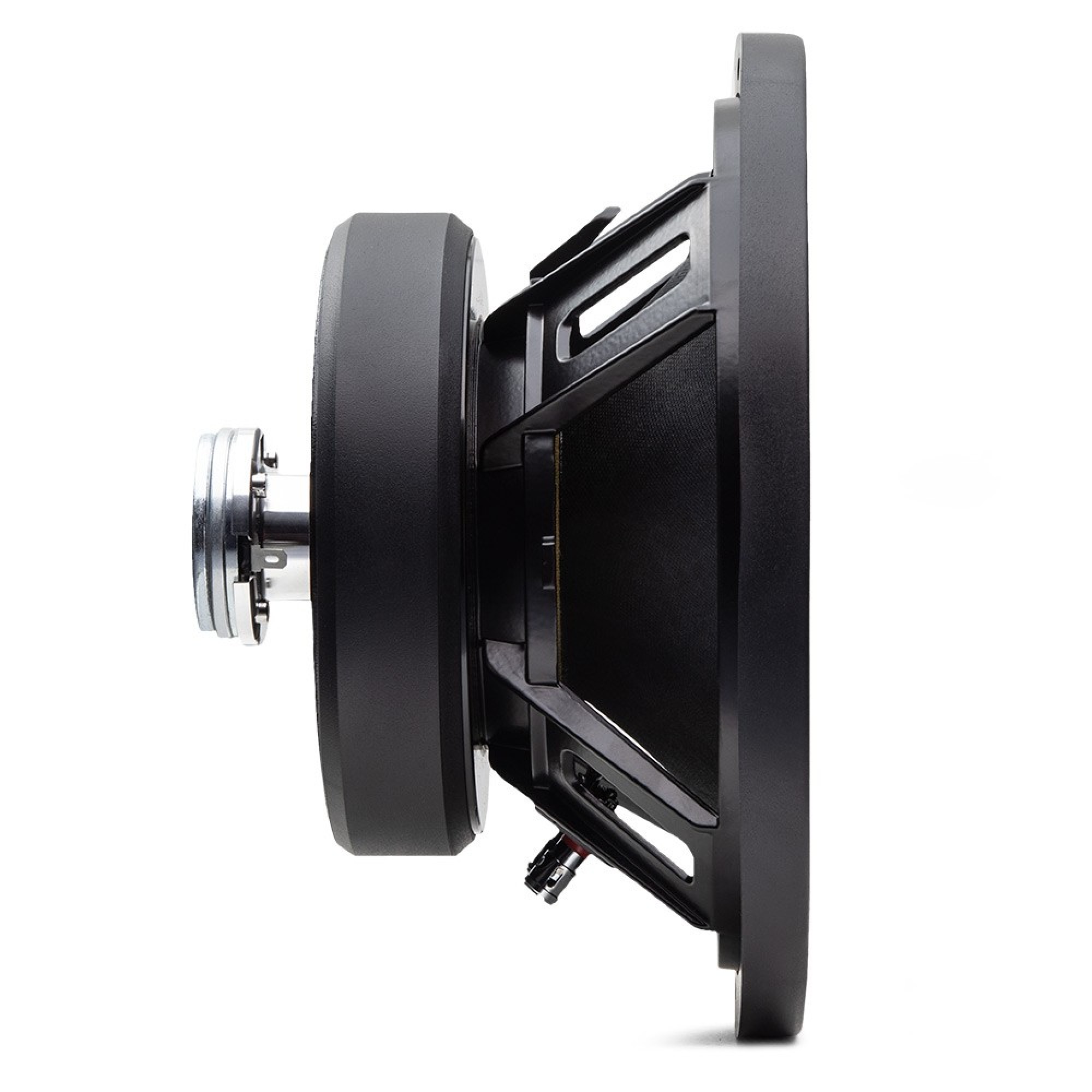

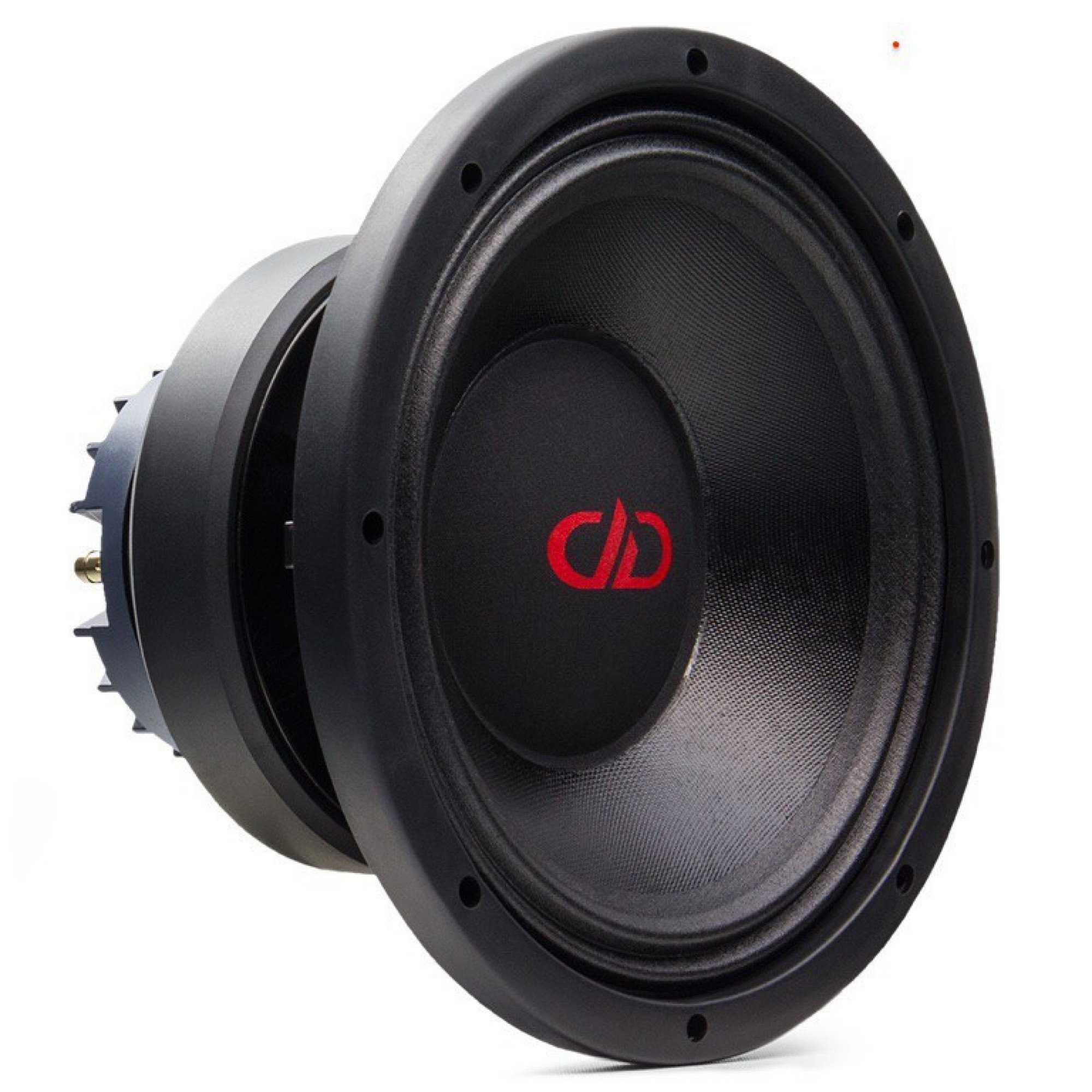

The VO-W10 is a high output, extended range woofer designed for enthusiasts who want sound quality and high output. The VO woofers feature high tech refinements like low distortion HybridZ/SuperCharged motor with internal shorting rings, long fiber cones stock and curvilinear cone bodies for smooth extended frequency range. The low moving mass design coupled to SuperCharged motors produces ultra fast transients and high output to keep up with any subwoofer system. The VO-CT compression tweeters are designed to thread into our VO-W woofers for coaxial applications or to be used with a standard PA style compression horn. These drivers cover the frequency range from where our VO mid-range and woofers leave off to the frequencies that send dogs running for cover. The motor uses CnC machined parts resulting in a close tolerance, high magnetic strength motor design. The diaphragm is a highly rigid, pressed titanium alloy connected to a high-temperature voice coil. The VO-CT compression tweeters come with an in-line 12dB/oct crossover attached to the direct connect lead wires. Plug and play high output has never been so good and so easy.

Bundle includes the following products:
2 x VO-W10
2 x VOCT-HORN-10
2 x VO-CT25

TECHNICAL DATA

VO-W10 With Dust Cap ( glued )

Driver Size – in10
Power Band – Watts300-900
VCD – in3
ImpedanceS4
Frequency Response – Hz60Hz-6,000Hz
Fs – Hz60
Qms4.819
Qes0.375
Qts0.348
Vas – liters54.802
dBSPL97
Cutout Diameter – in9.25
Mounting Depth – in4.375.

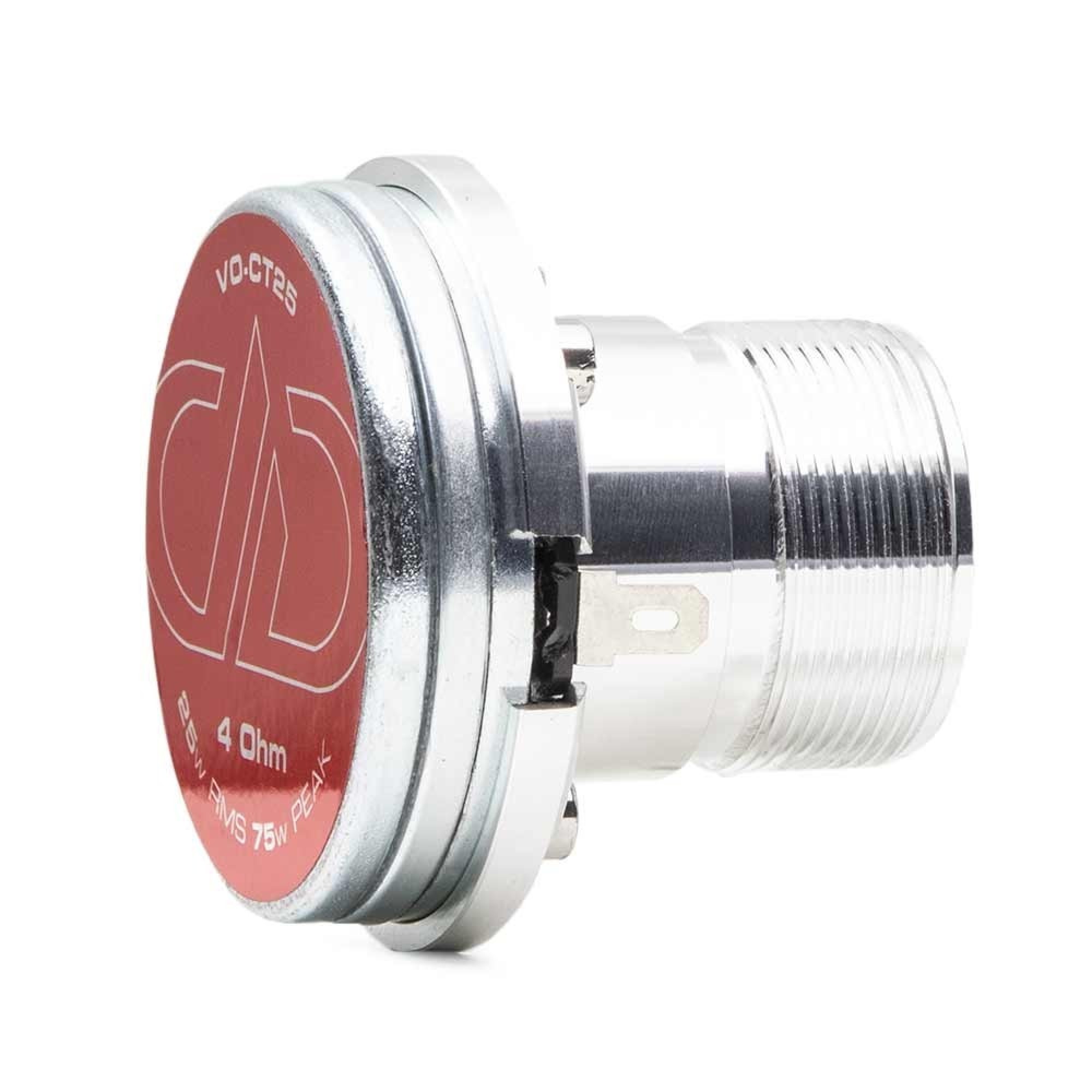

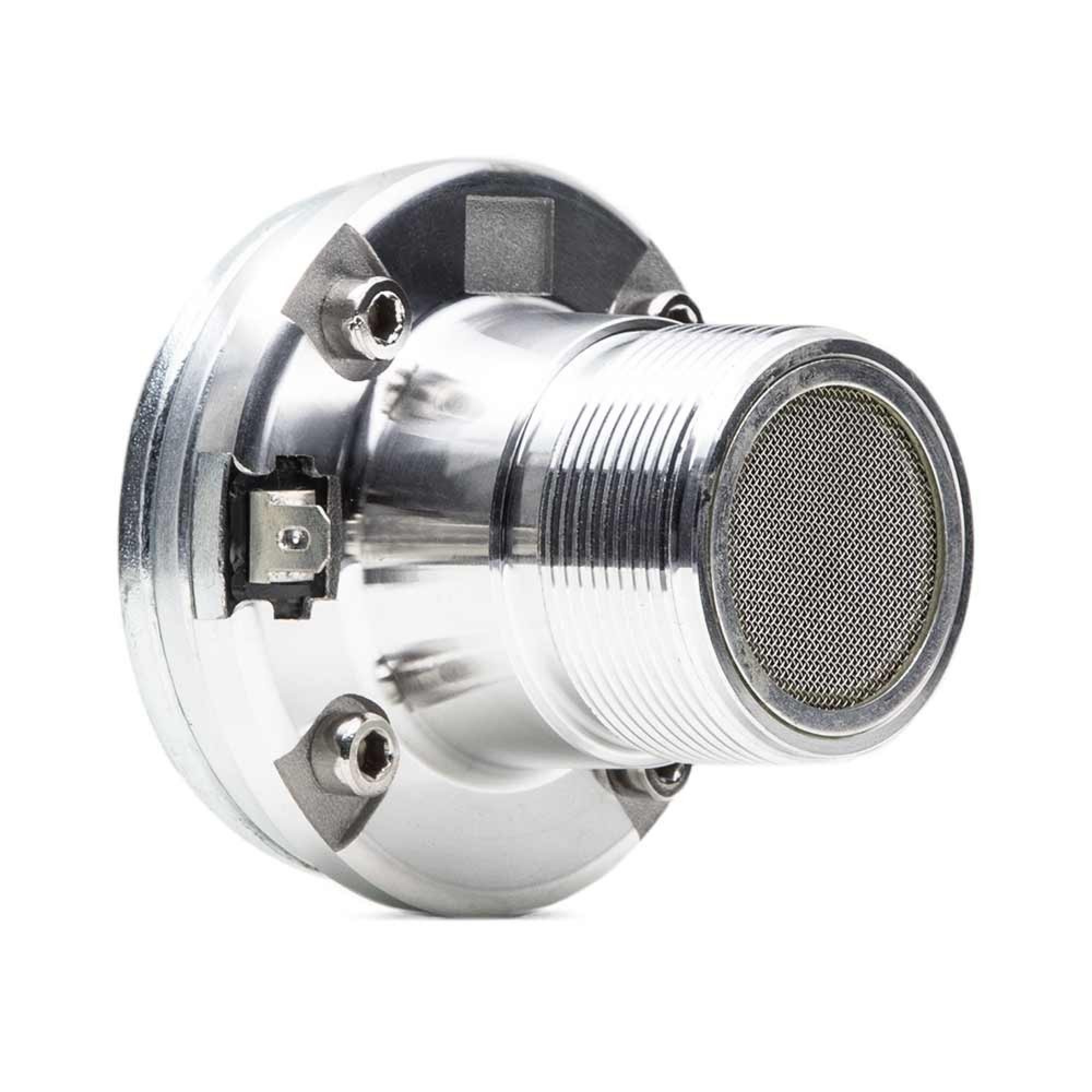

VO-CT25

Driver Size 25mm
25-75Watts RMS
Frequency Response 2.5k – 20k
107dBSPL
Mounting Depth 35mm
Impedance 40hm.
