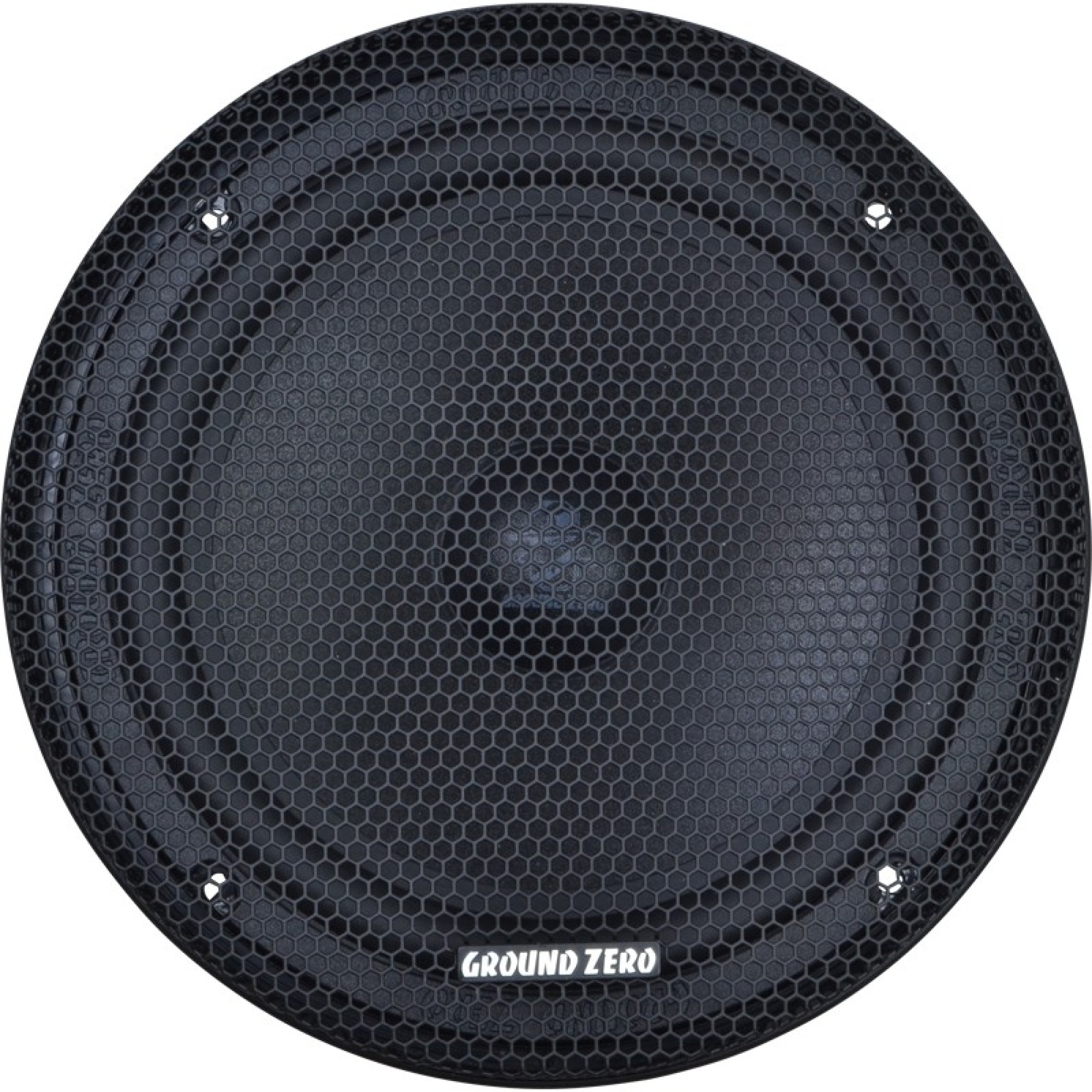

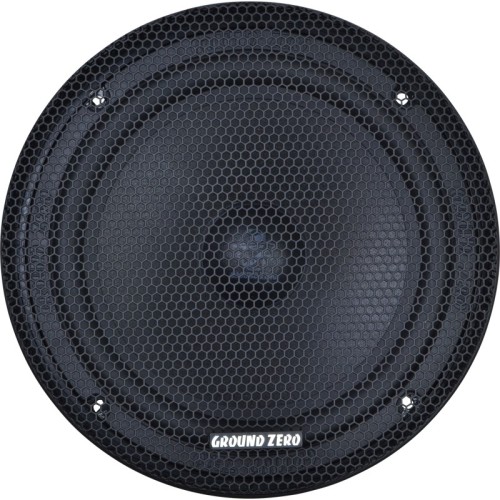

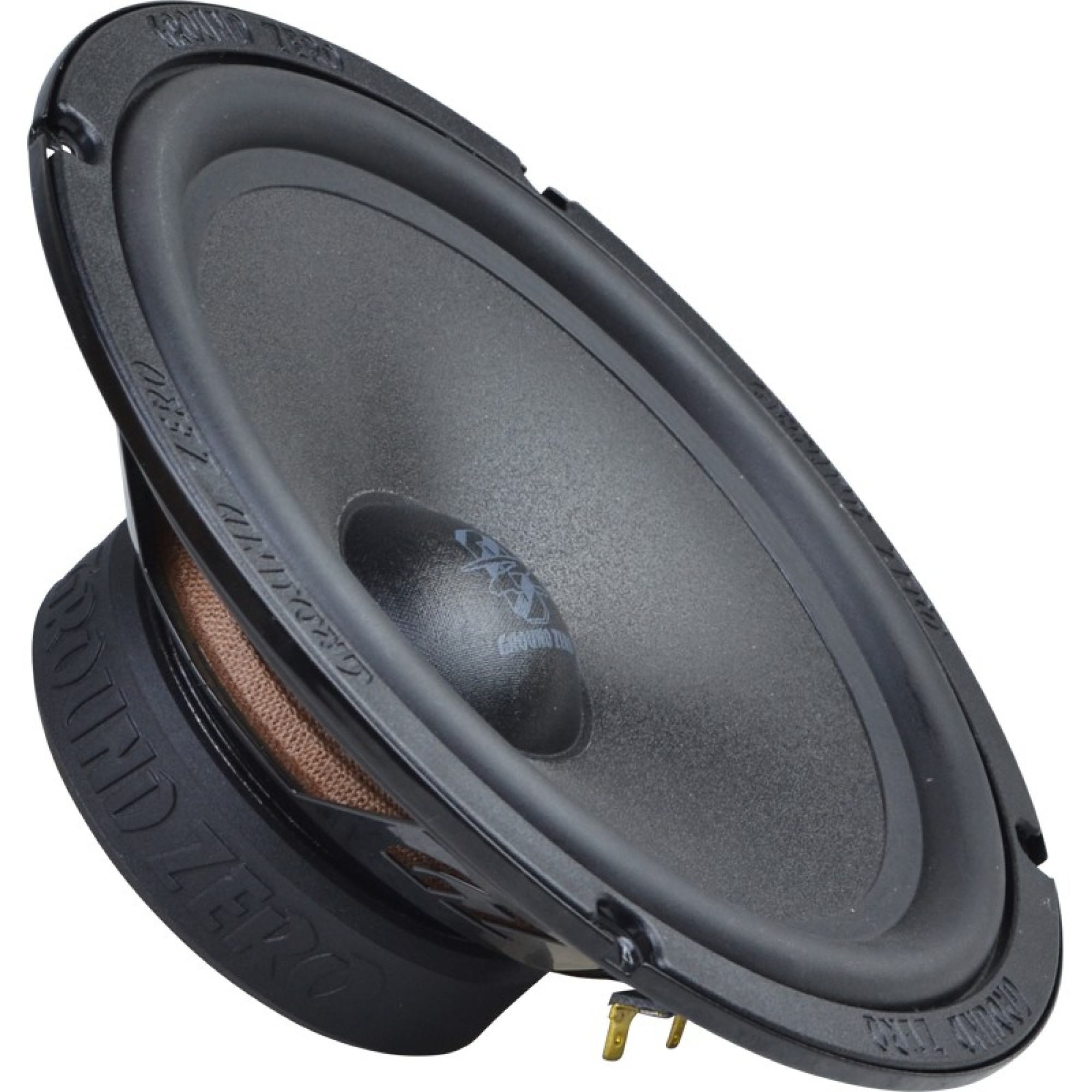

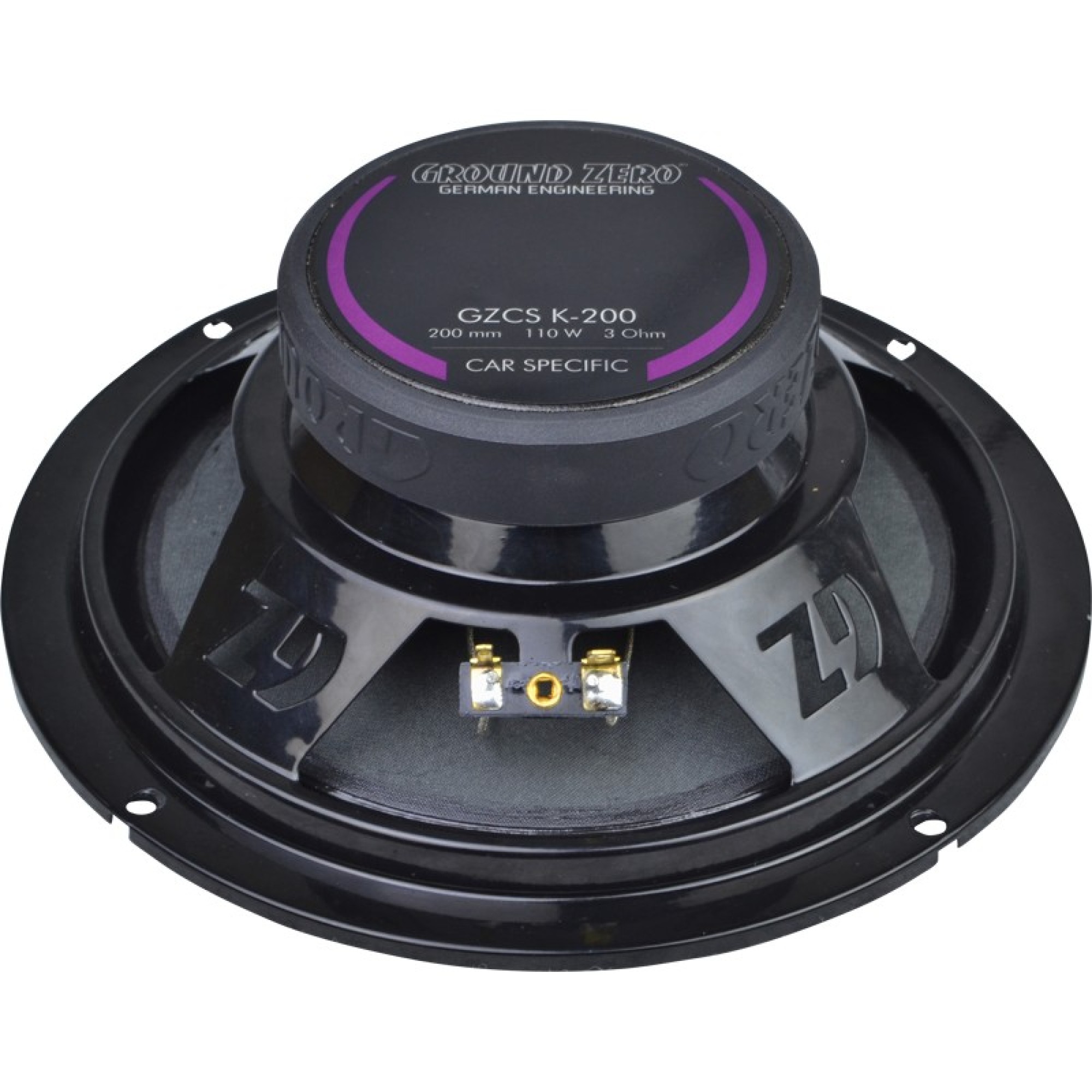

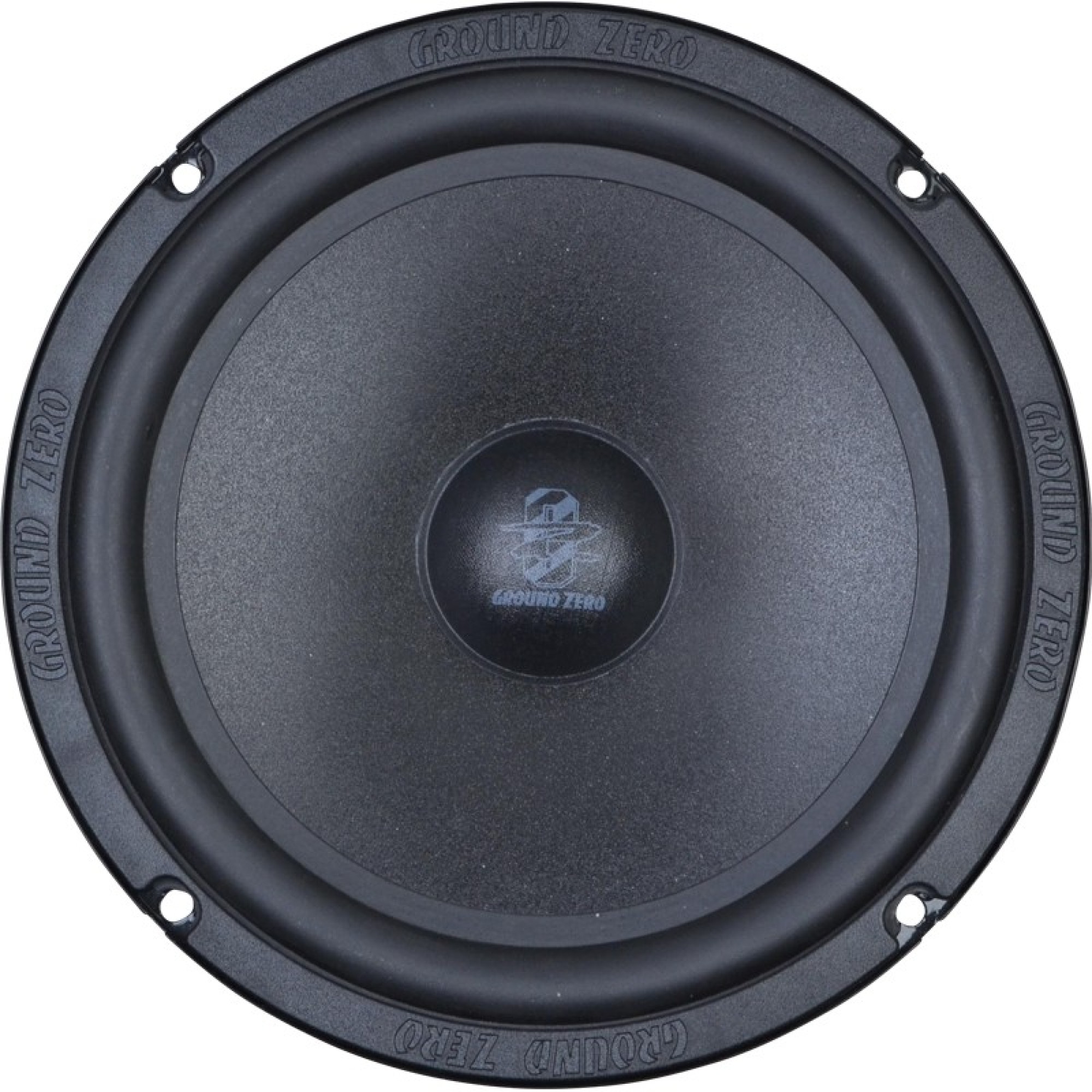

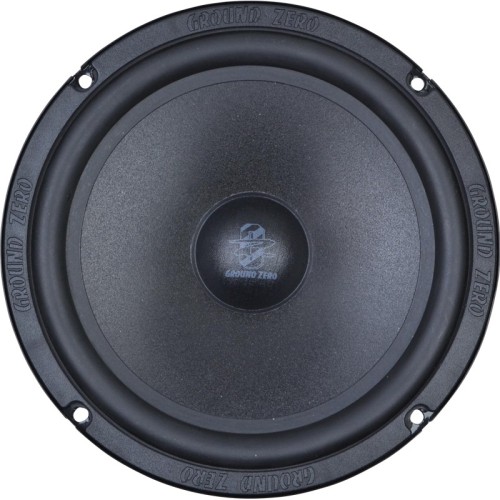

GROUND ZERO GZCS K-200VW

Plug´n´play installation
Car specific 200 mm / 8″ midrange speaker for VW and identical brands

compatible with VW and identical brands
Retrofit or replacement for factory loudspeakers
Coated paper cone
Powerful ferrite motor
Resonance free steel basket

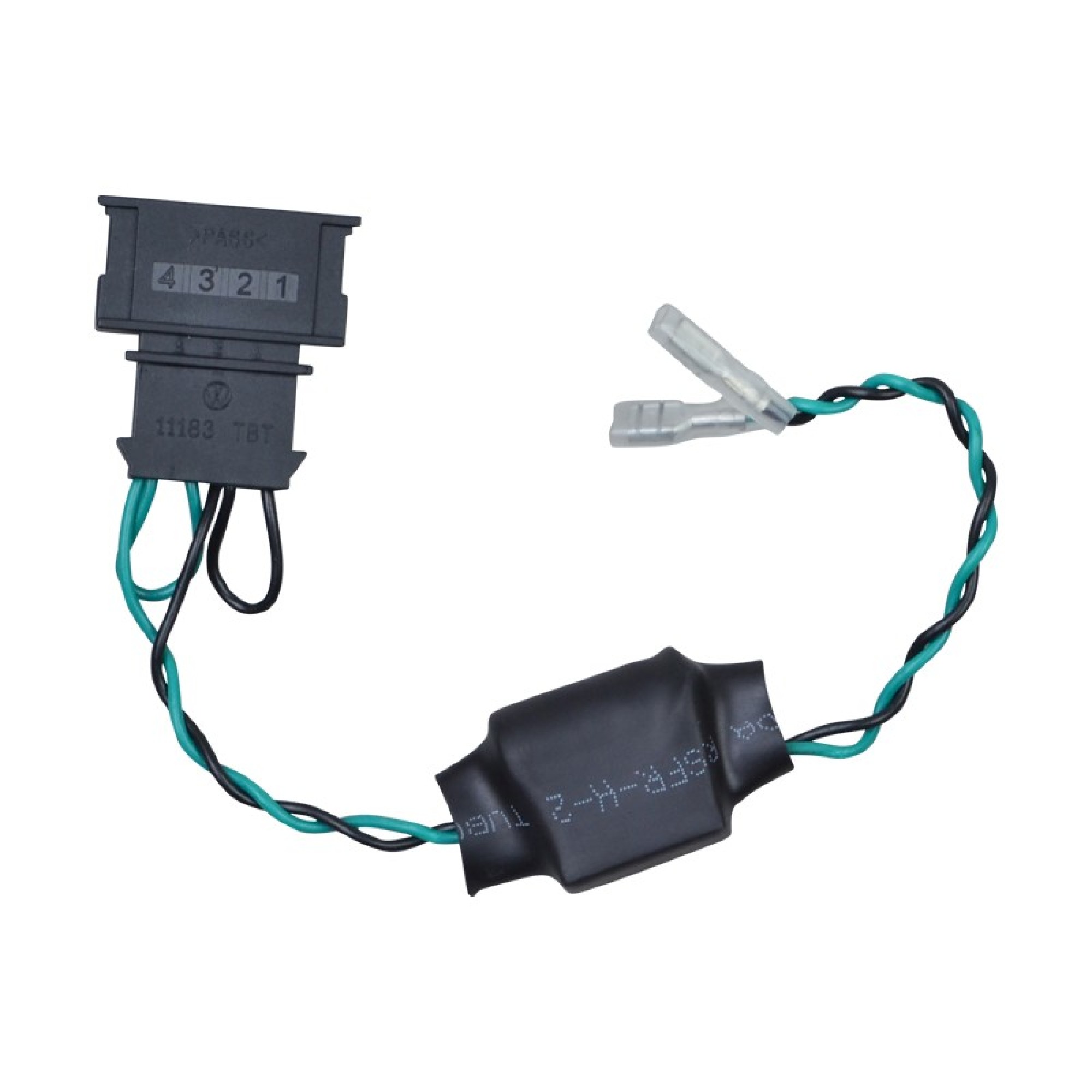

6 dB/oct in-line low pass filter
Car specific connection
1 pair / package

TECHNICAL DATA

Model Car specific midrange speaker
Diameter 200 mm / 8″
Power handling (RMS/max.) 80 / 120 Watts
Impedance 3 Ohms
Efficiency 89 dB
Frequency Response 40 Hz – 4.5 kHz
Voice coil 38 mm / 1.5″ copper
Cone Reinforced paper
Mounting Ø 180 mm / 7.10″
Mounting depth 70 mm / 2.76″
Resonance frequency (Fs) 48 Hz
Damping ratio (Qts) 0.61
Equiv. air volume (Vas) 30.3 L / 1.01 ft³
