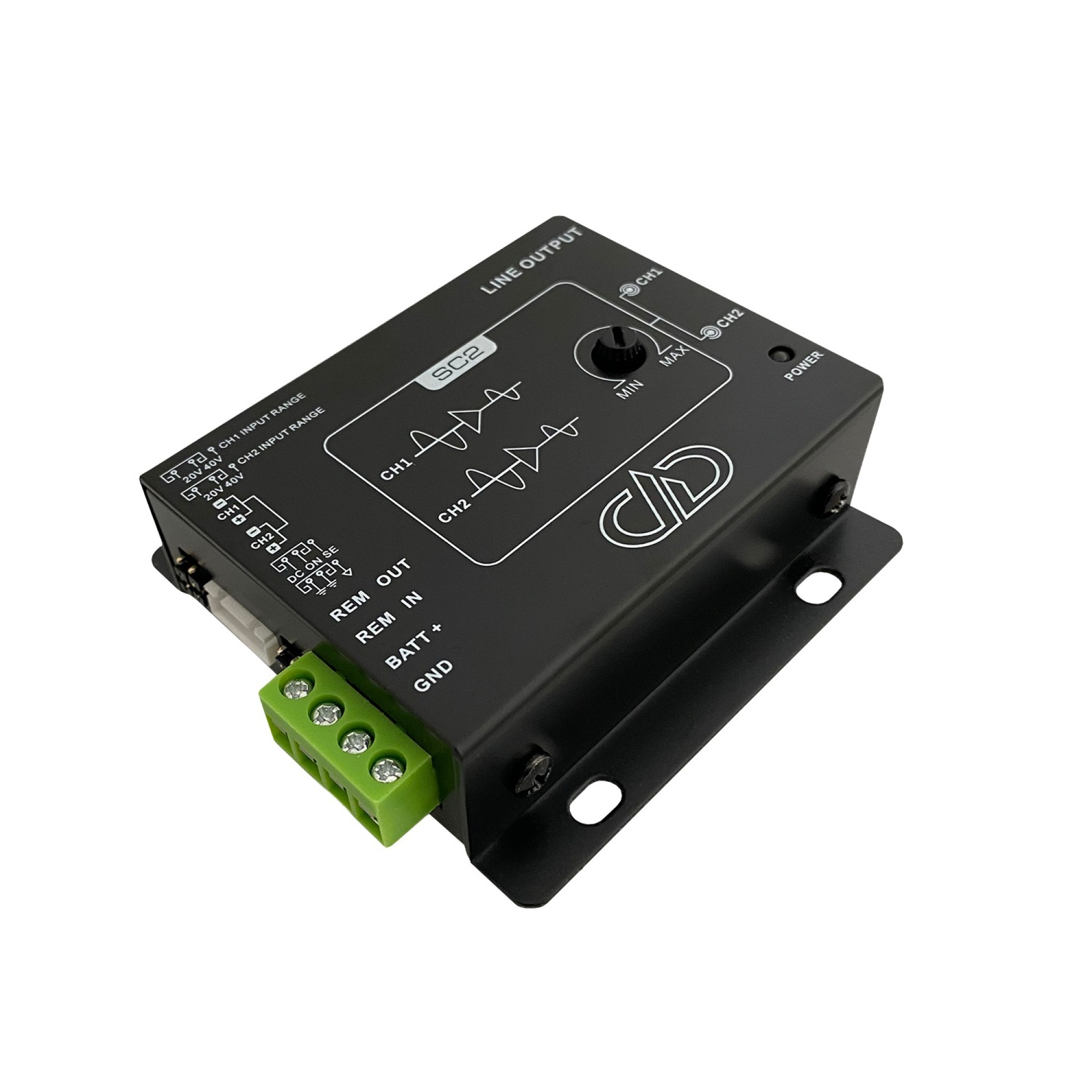

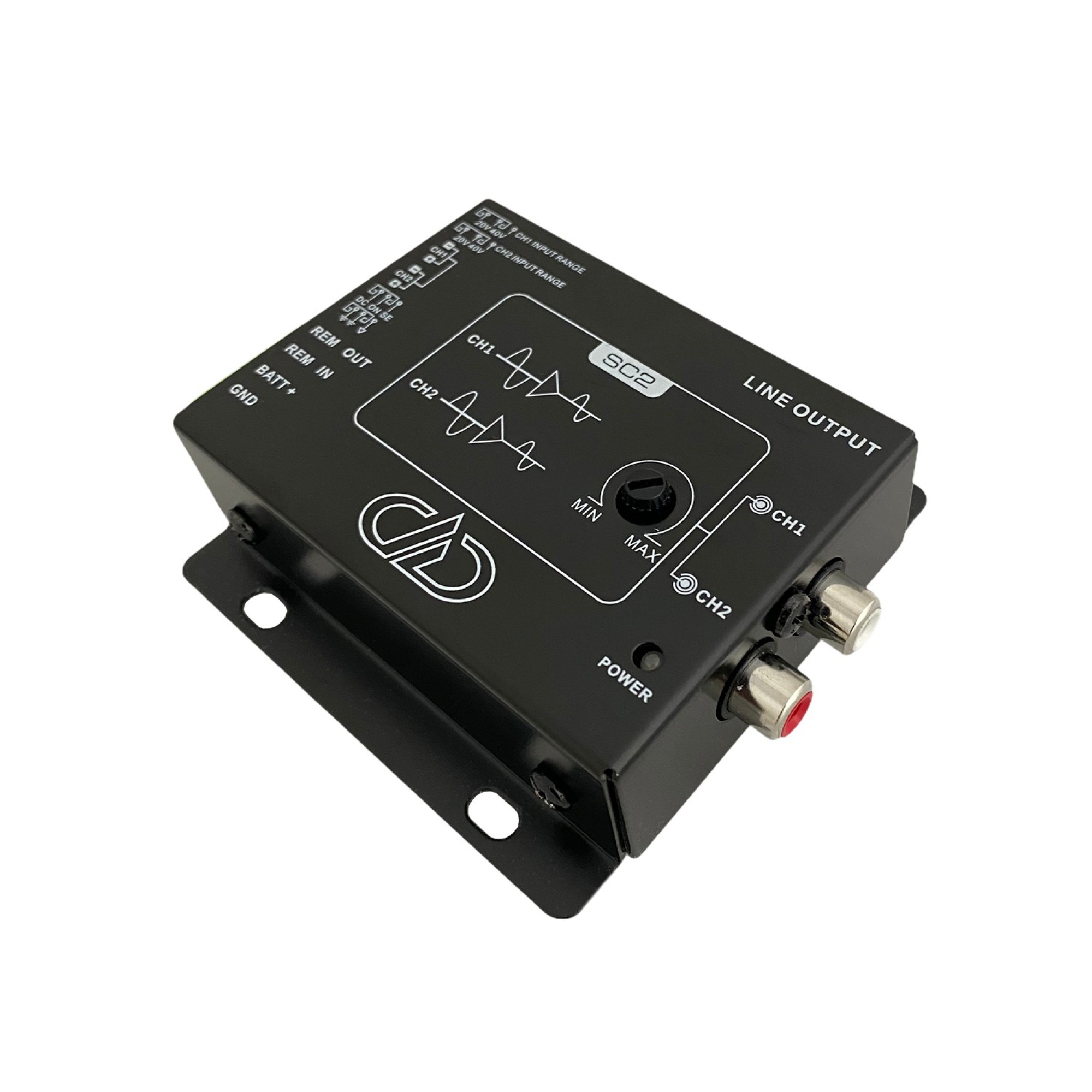

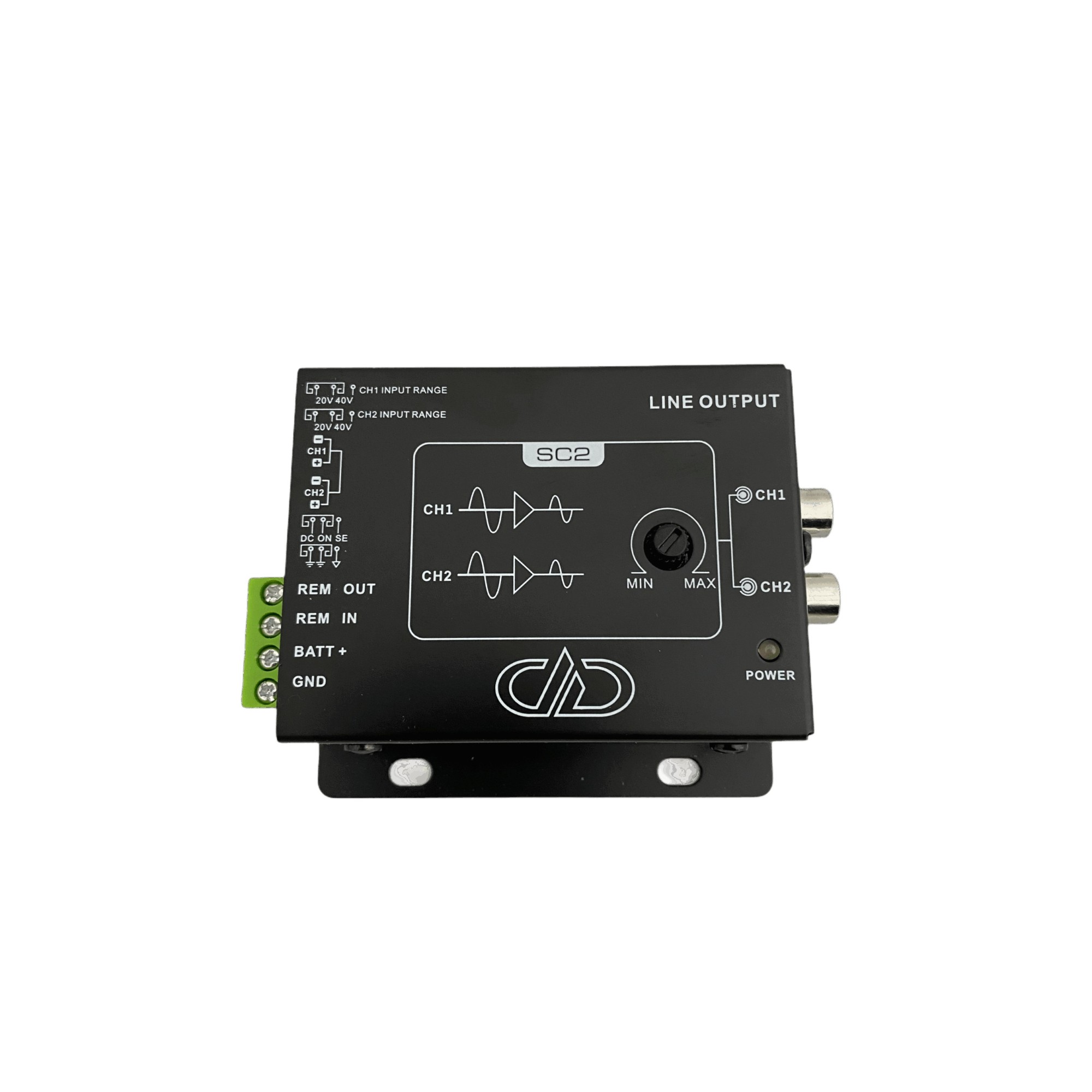

DD AUDIO SC-2

2-channel active line converter

- Differential Balanced inputs
- Independent Variable Gains
- OEM Load Detect Compatible
- Selectable Ground Isolation
- Selectable Signal Sense, DC Offset or 12v+ Turn On

TECHNICAL DATA

Channels in/out 2ch
Operating Voltage 10-16V
Current Draw, no signal 100mA
Max output voltage 10V
Channel Separation 65dB
Output THD 0.01%
Signal noise 95dB
REM OUT current 12V 500mA
Frequency Response 10Hz-50KHz
Input voltage 2-20V / 4-40V
Dimensions mm 78 x 78 x 25
Dimensions in 3 x 3 x 1.
