DD AUDIO DDUE-12.2

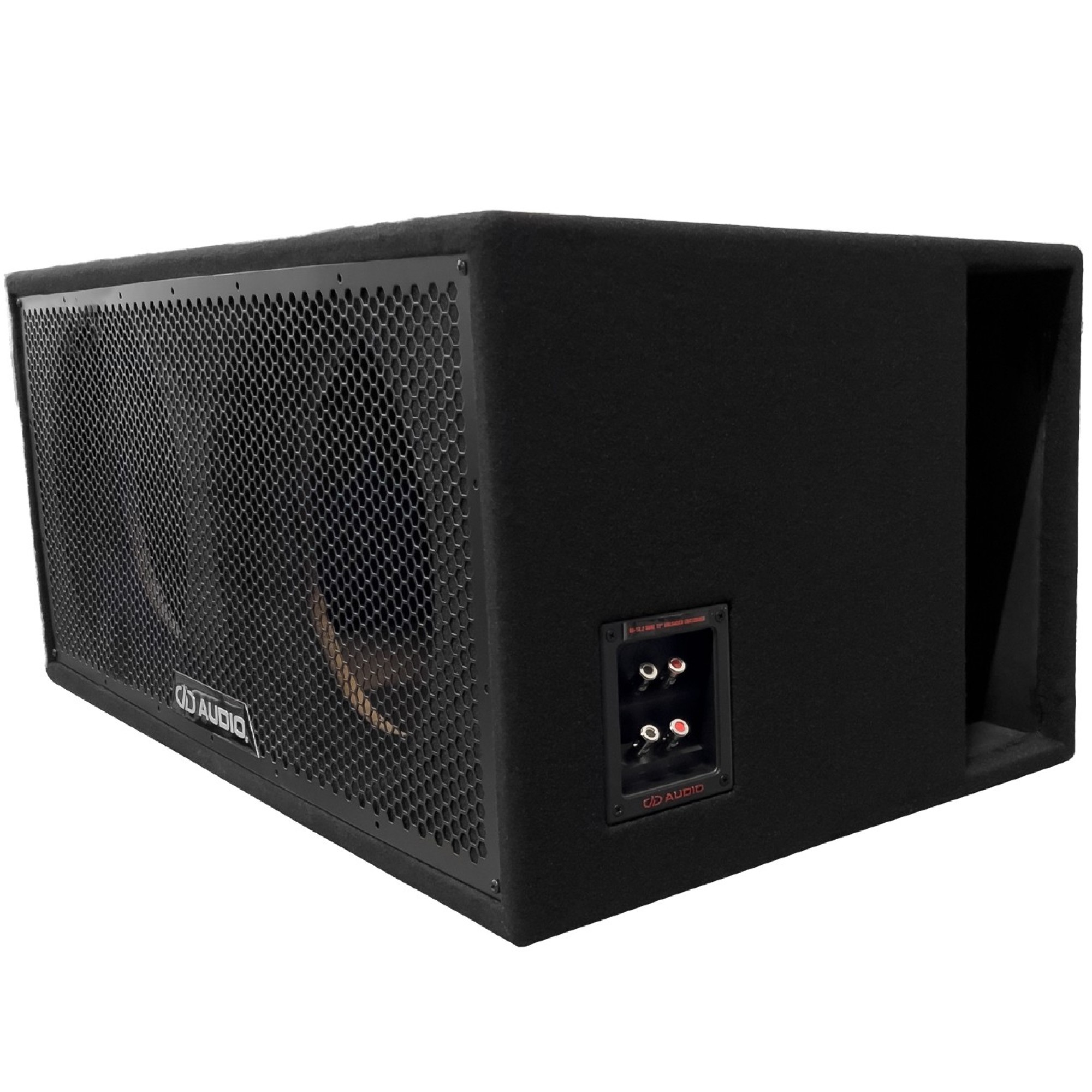

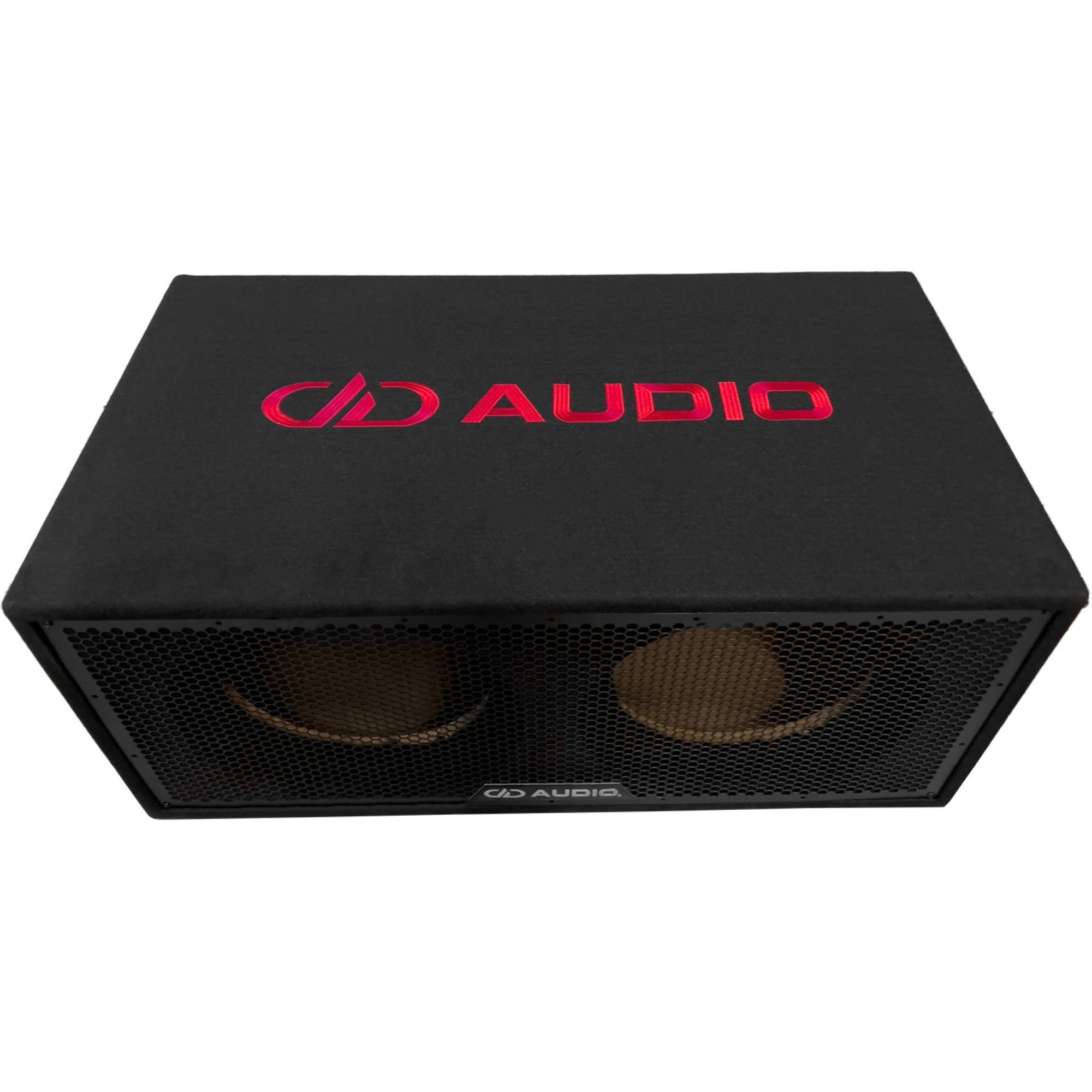

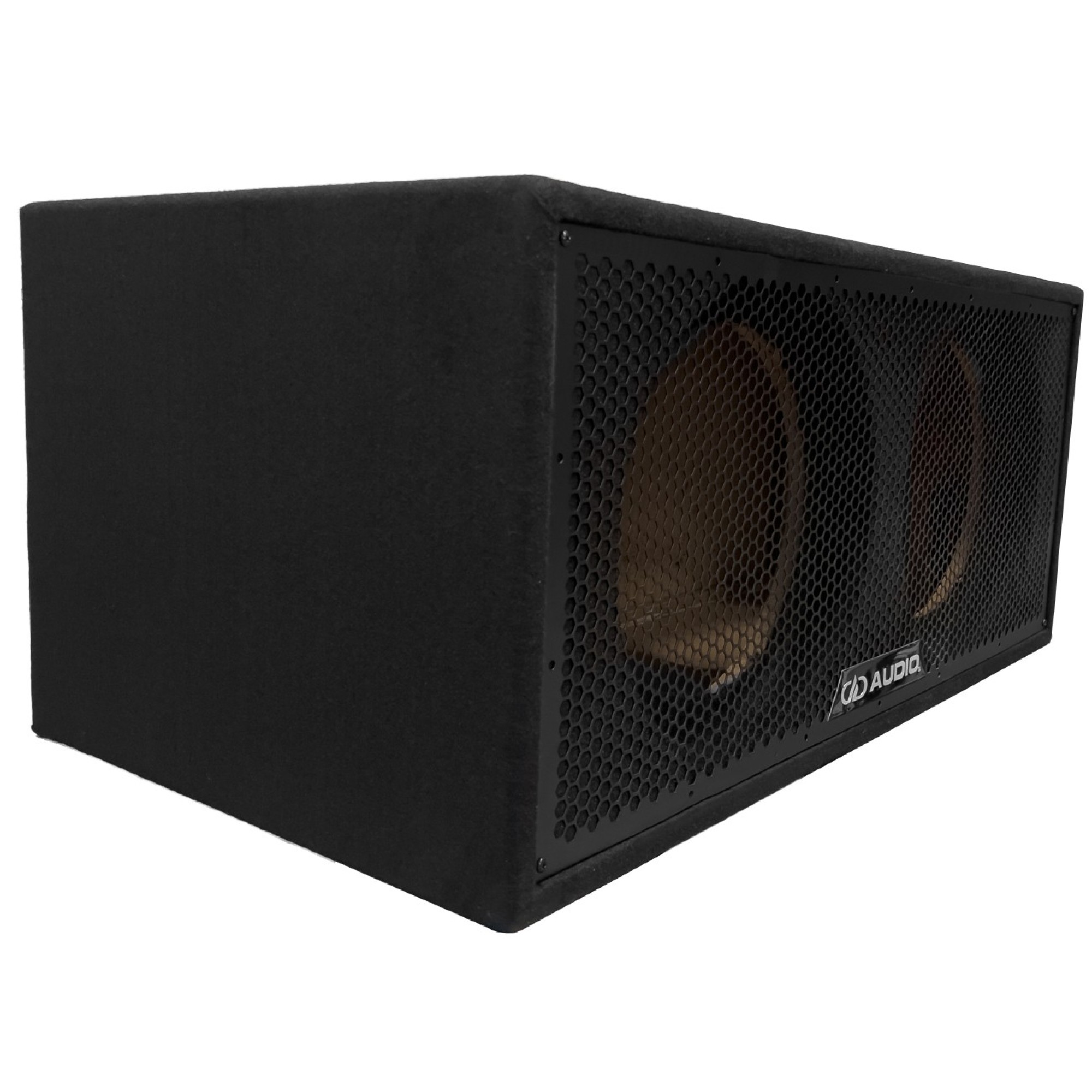

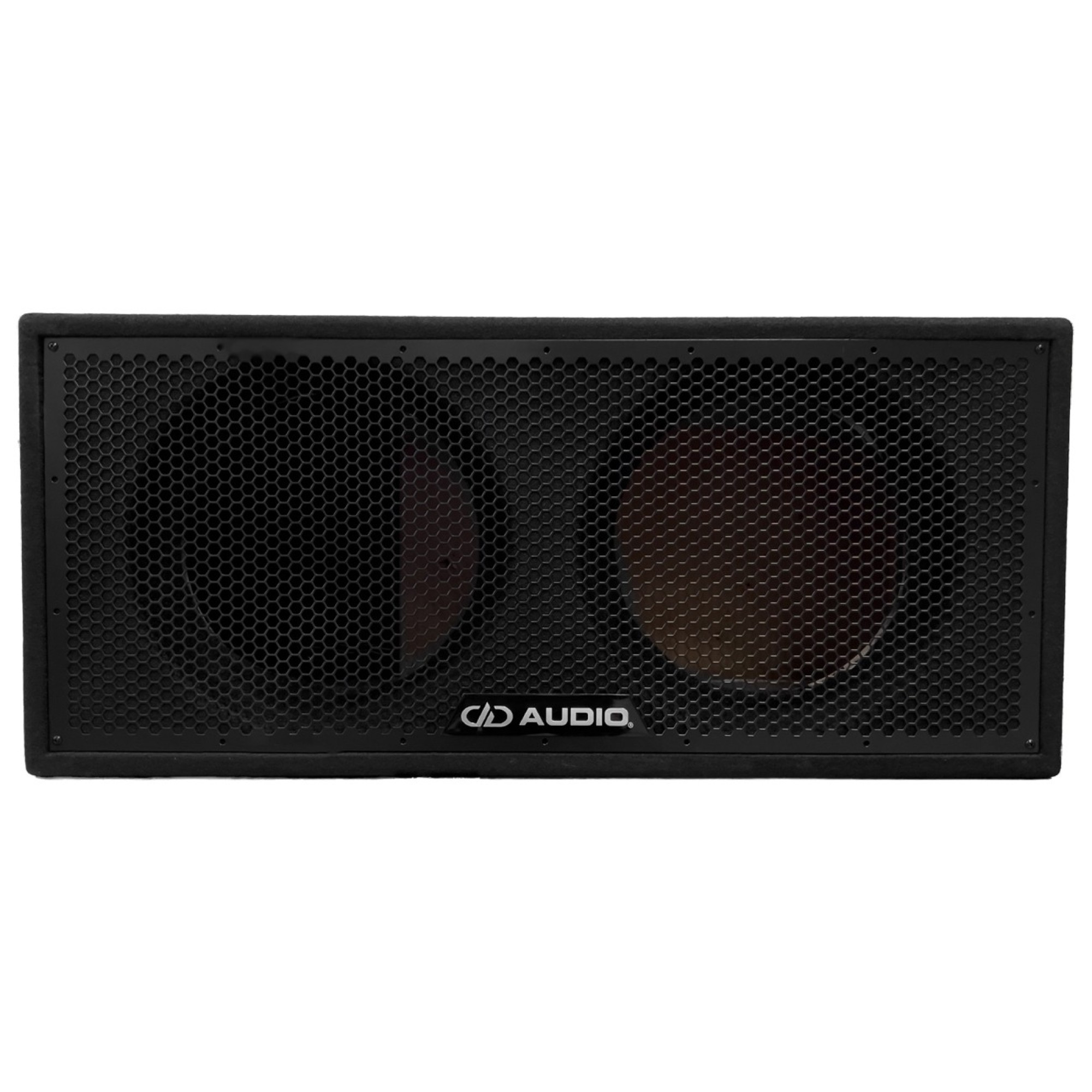

The new DD Audio 2×12″ Unloaded Enclosure.

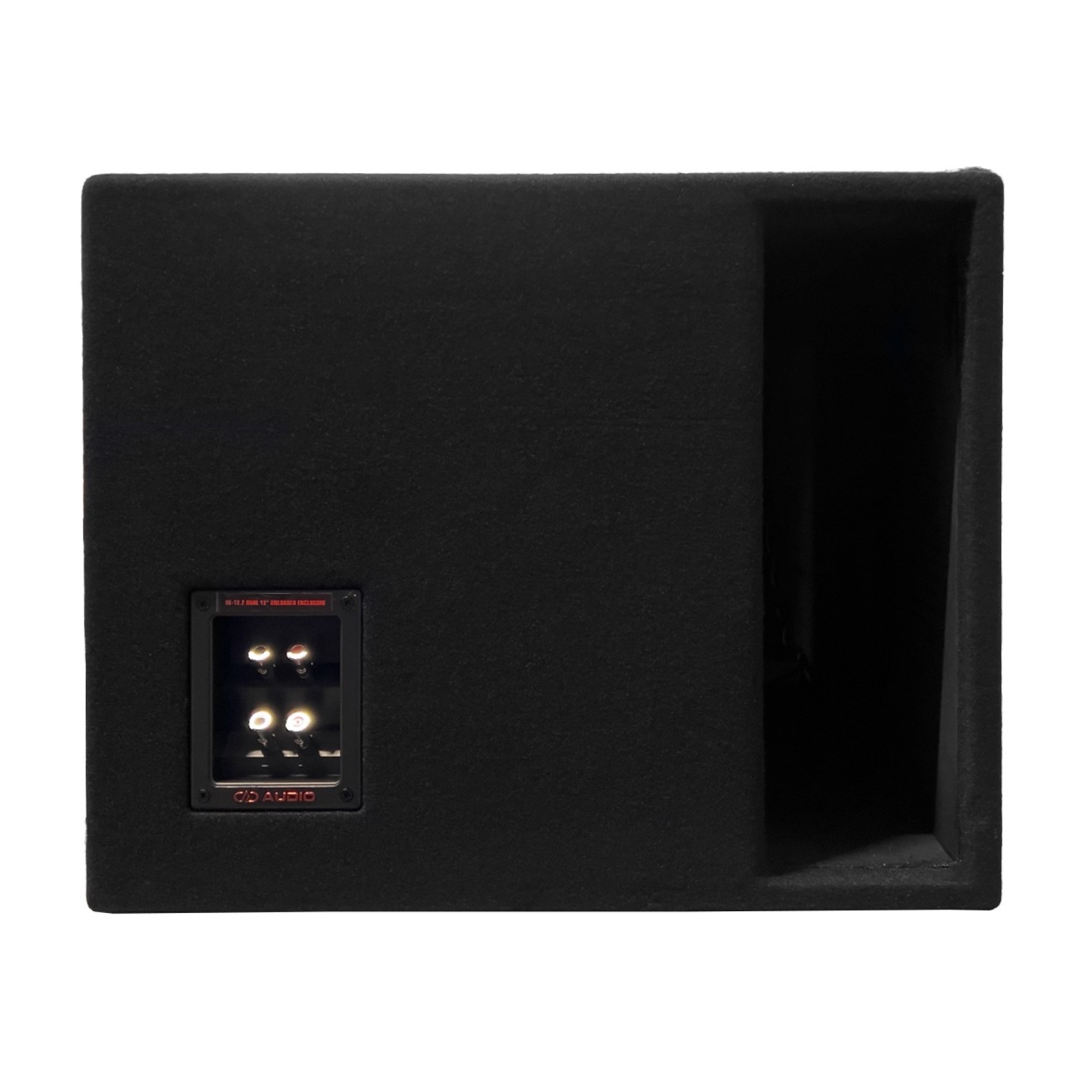

The large DD tuned rectangular port is side fired to provide optimal acoustic loading throughout the entire power band.

- ¾” MDF Construction
- High Flow 35Hz Port Tuning
- Chrome Plated Push Terminals
- Full Hex Cut Custom Metal Grills
- Enclosure volume 108L

Note! The enclosure is designed for subwoofers with a sheet metal frame, and the mounting hole for the element is therefore 280mm.
DD Audio′s cast-frame subwoofers are not suitable for this enclosure.

TECHNICAL DATA

Ported enclosure for 2×12″ subwoofer
Net volume: 108 liters.
Tuning frequency: 35 Hz
Diameter of speaker hole: 280mm
Measurements cm: ( W x H x D ): 927 x 406 x 508.

Note! The enclosure is designed for subwoofers with a sheet metal frame, and the mounting hole for the element is therefore 280mm.
DD Audio′s cast-frame subwoofers are not suitable for this enclosure.

Note! The enclosure comes with only 4 pre-installed protective grille screws. (required amount 14 pcs)
