DD AUDIO DM500A

1The D Series Monoblock sub amps are designed to be mini amps with immense power. They’re feature packed and ready to become the soul of your sub stage.

These amps feature angle lock set screw terminals, 24dB/Oct bandpass filters, double sided-conformal coated PCBs, and remote gain control with a clipping indicator. All these features combined with an awesome price make these some of the most usable and value-packed everyday sub amps on the market.

TECHNICAL DATA

mono amplifier

Test Voltage14.4
RMS power @ 1ohm500 x 1
RMS power @ 2ohm380 x 1
RMS power @ 4ohm210 x 1

Subsonic filter 10-50 Hz
Low pass filter 20-200 Hz

Max Current Draw 80 A
S/N Ratio80dB
THD0.45%
Input Voltage Sensitivity0.1-4V
Pass-Through OutputYes

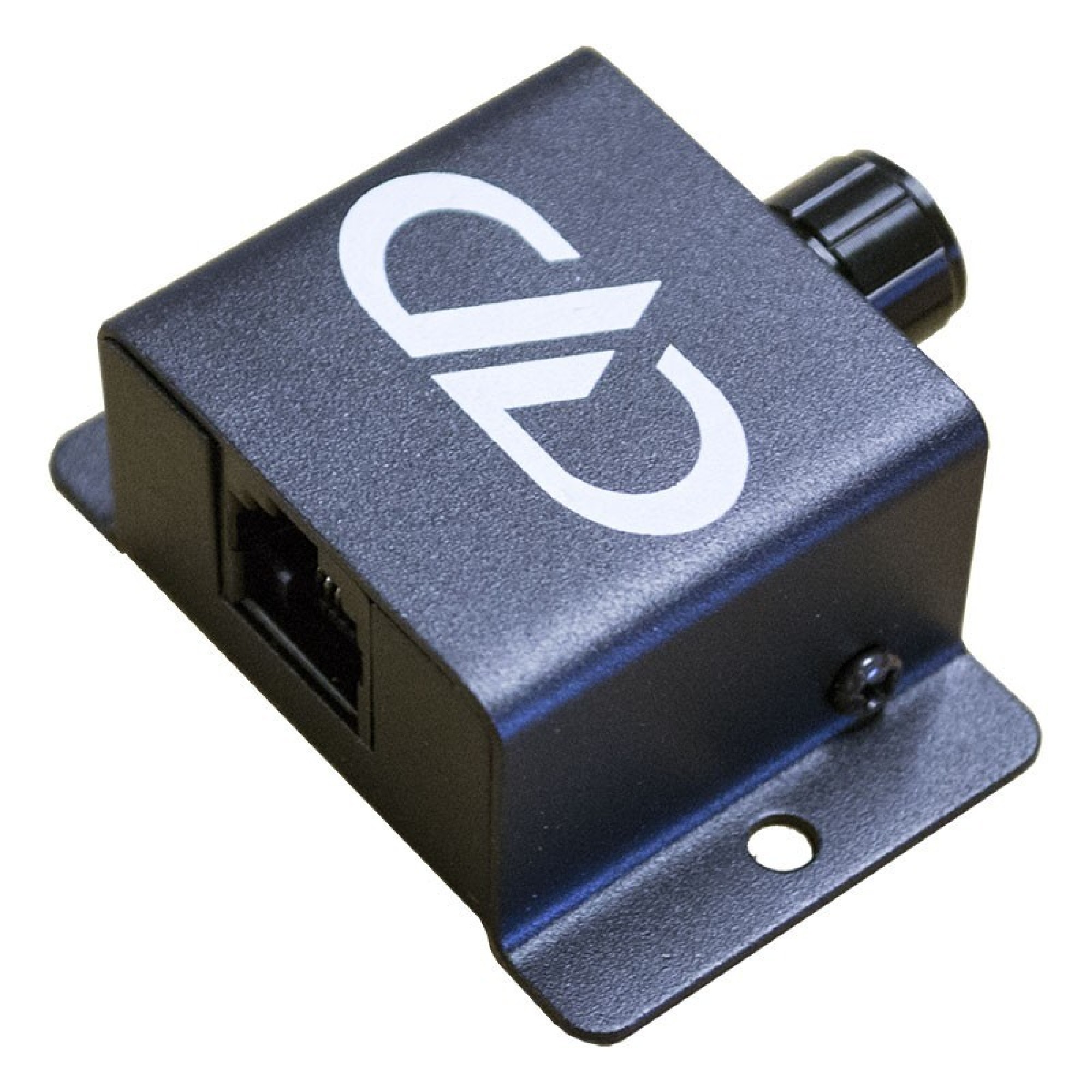

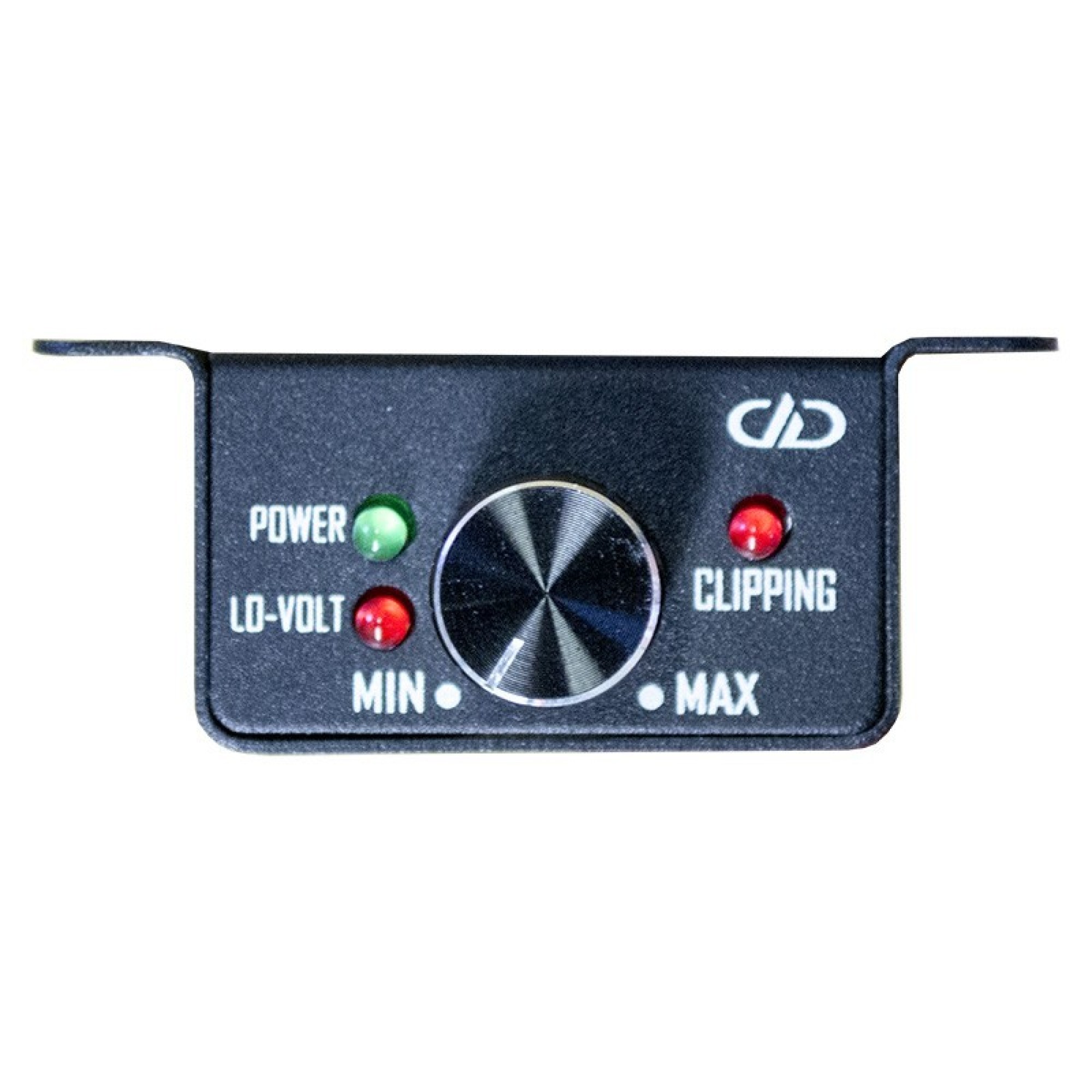

Remote Control with low voltage and clipping indicator

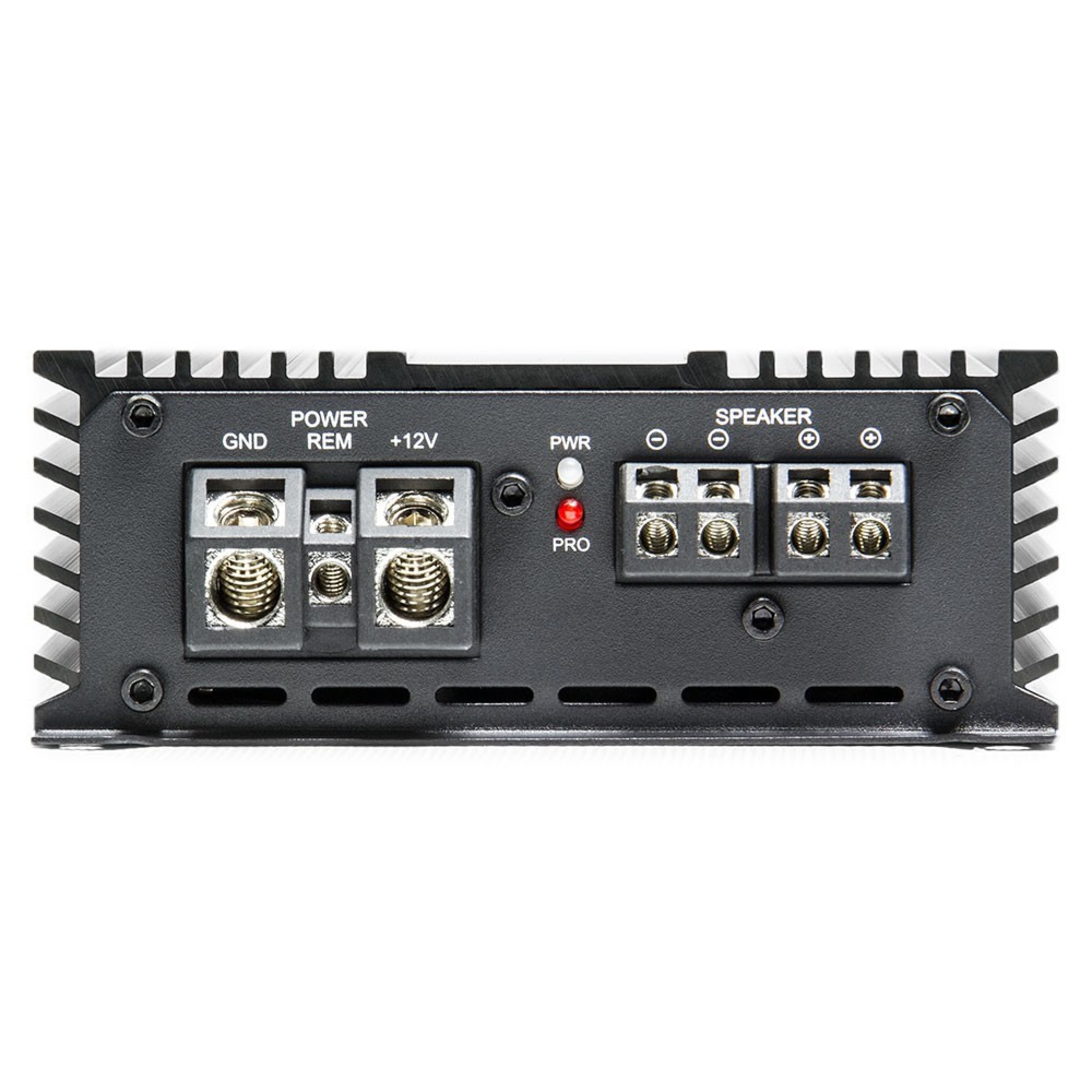

Power Wire terminal size 25 mmq
Speaker Wire terminal size 6 mmq
Dimensions: 200 x 125 x 47 mm.
