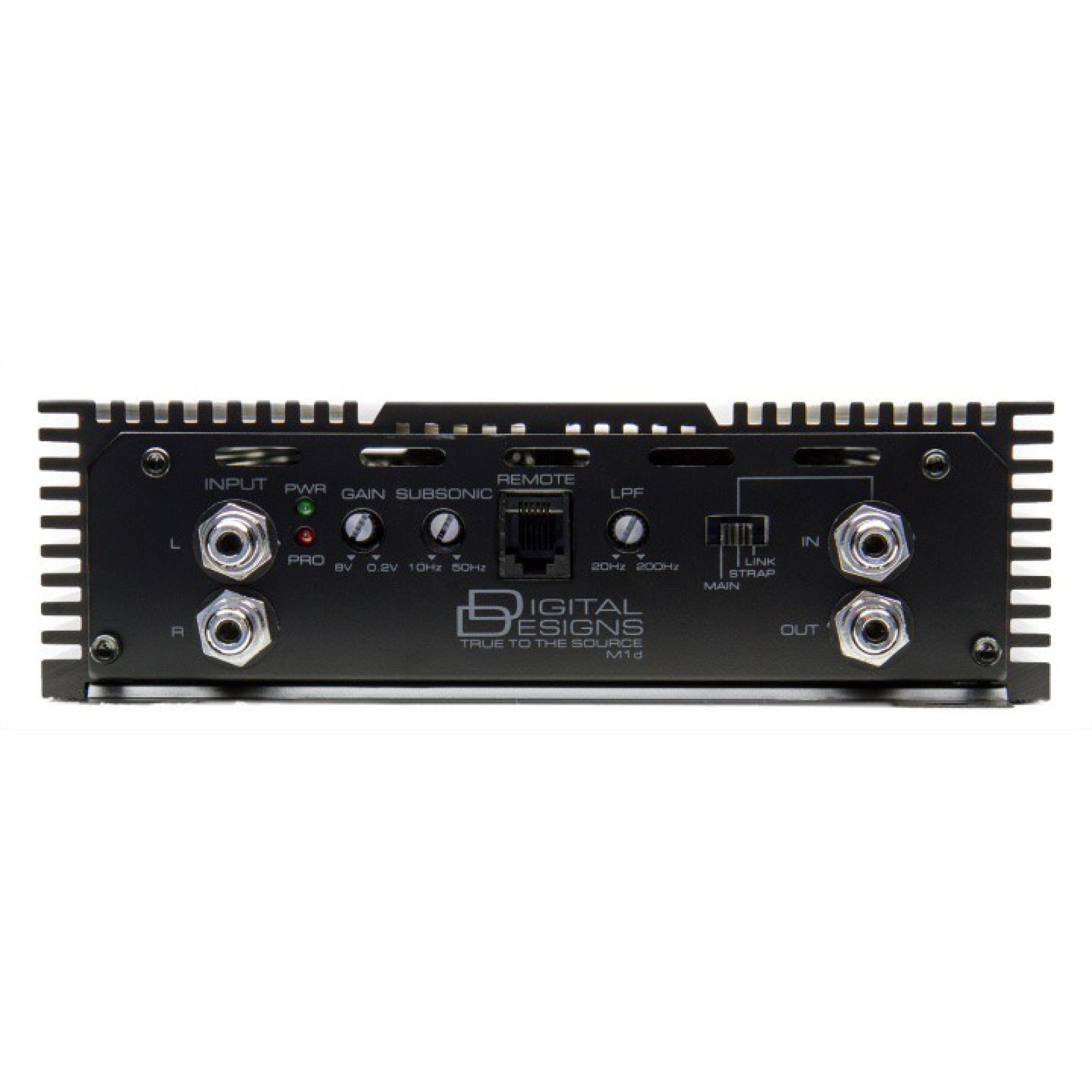

DD AUDIO M1D

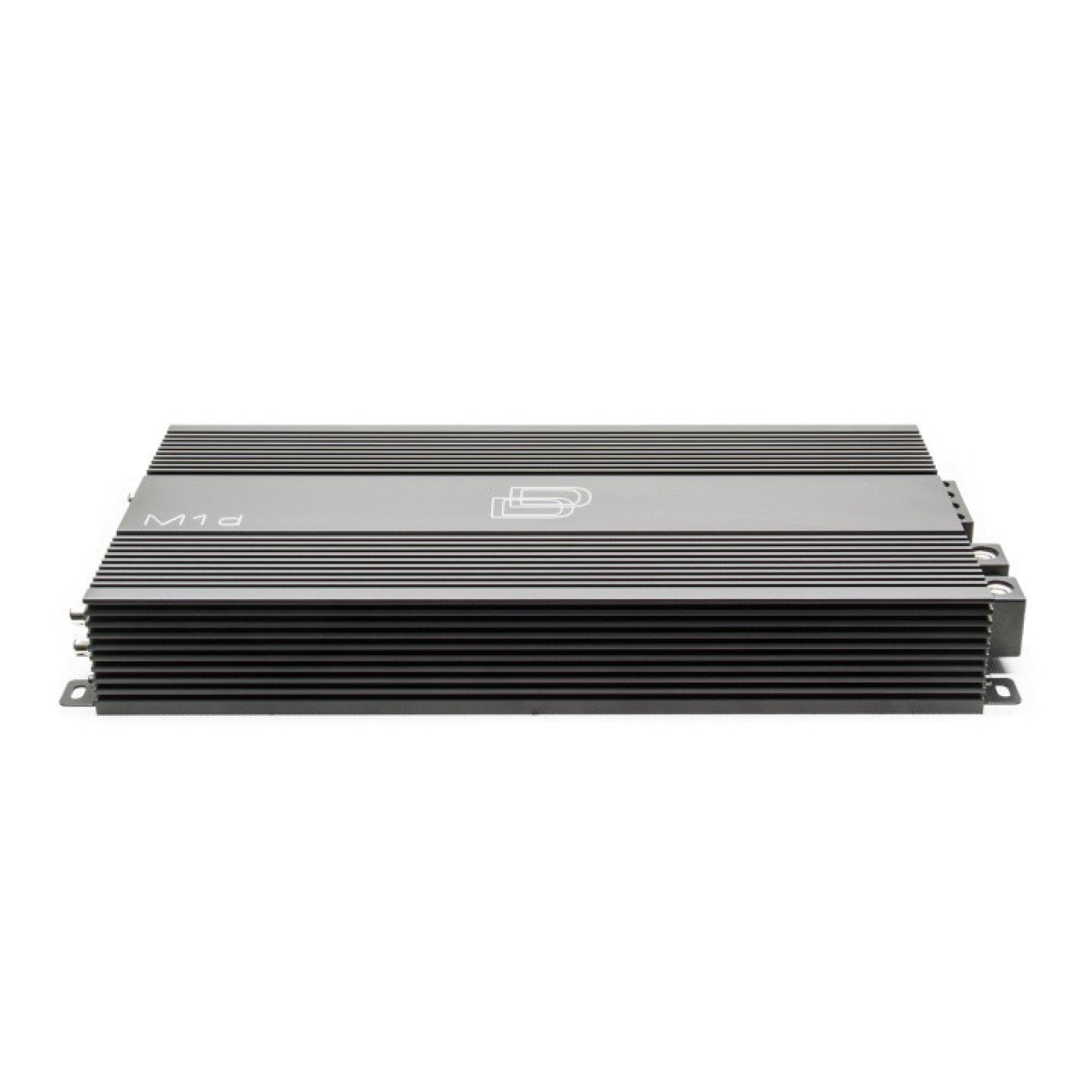

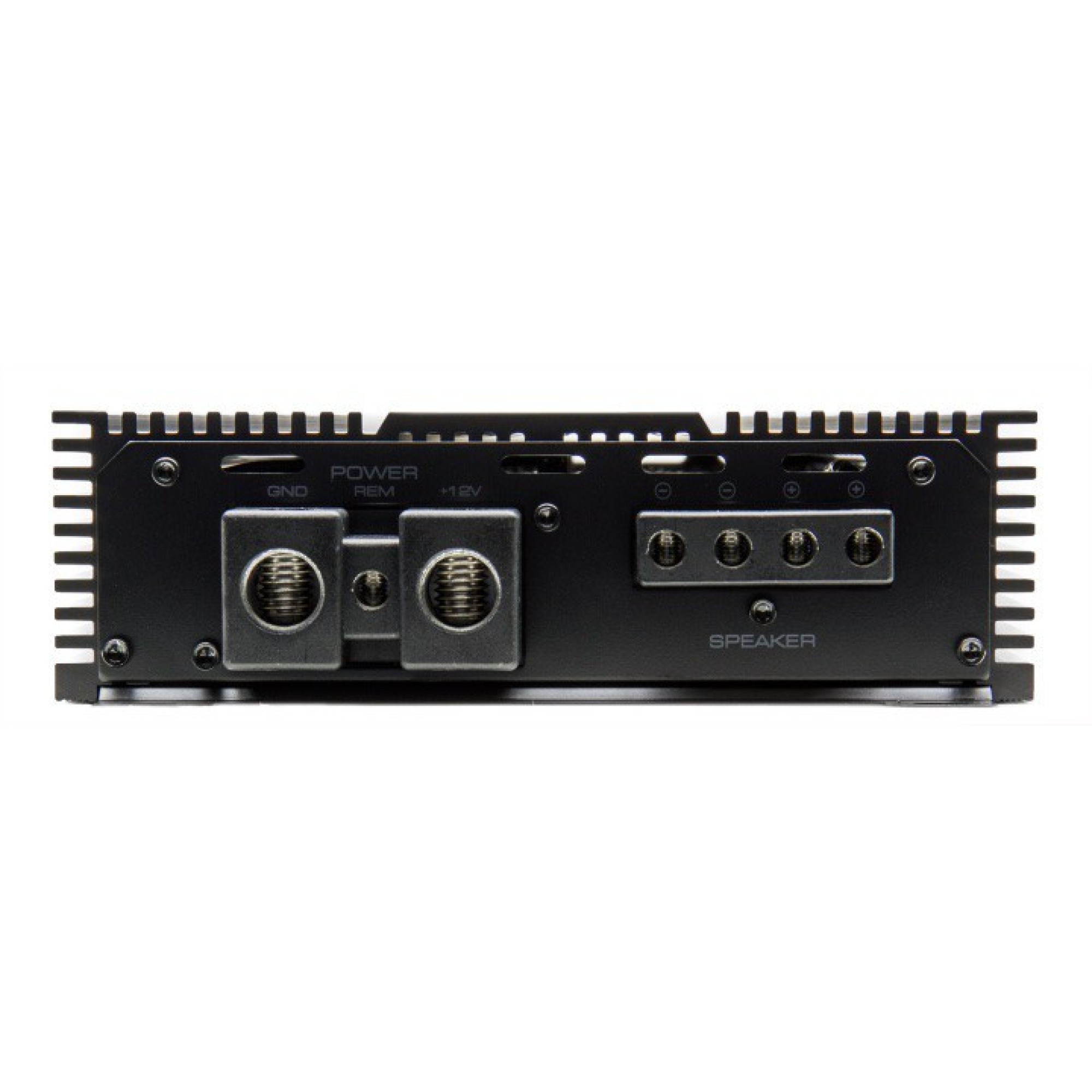

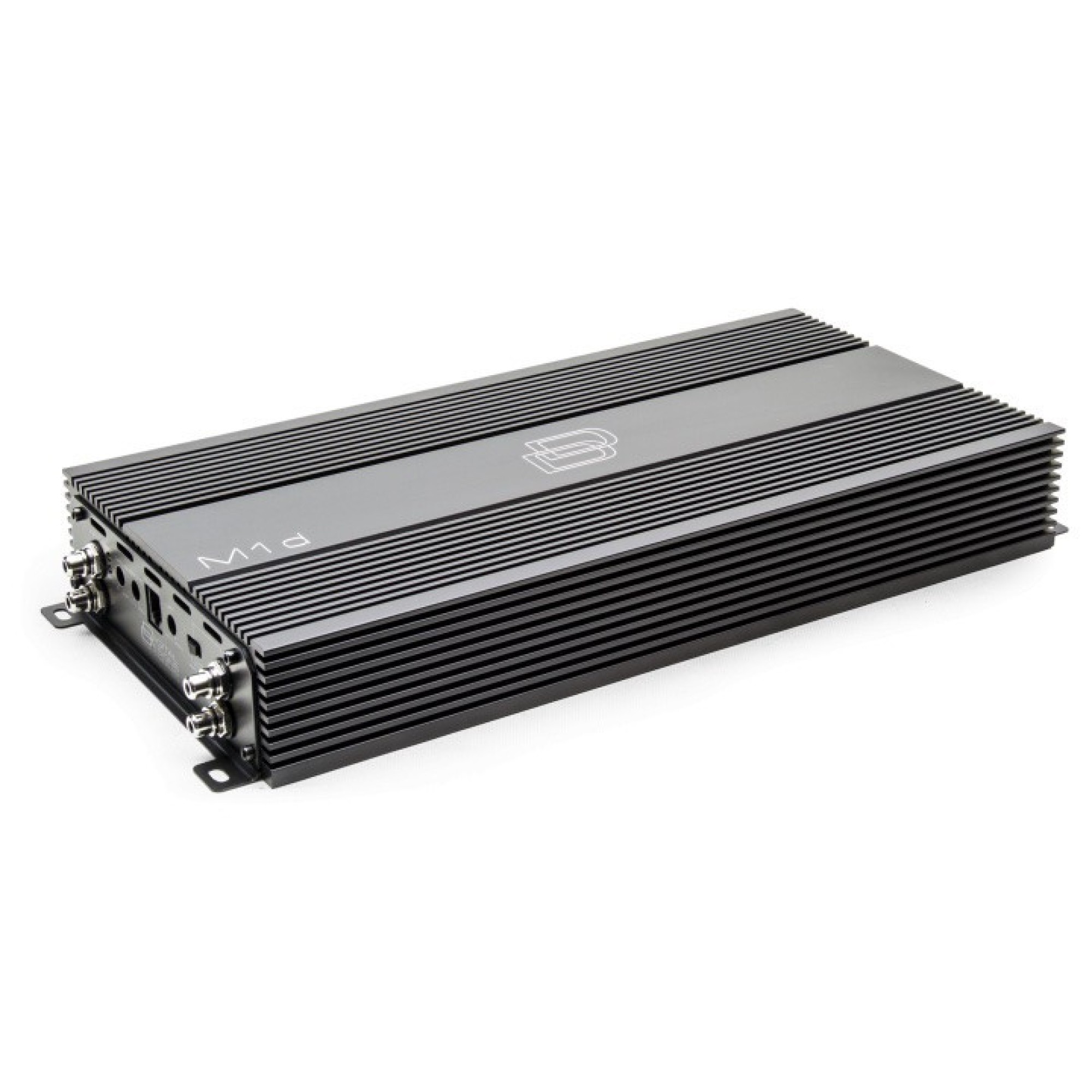

The M1 is one of our most popular amps of all time, and it is now entering its 5th generation. The M1d is the perfect amp for a myriad of applications, delivering over 1200 Watts of true RMS power at 12 Volts, 1700 Watts continuous at 14.4 Volts, and over 2500 Watts dynamic power. The compact layout uses our LV type twin power supply, which keeps the chassis small and the power big while allowing for a plethora of mounting options. 0 Gauge power connections and through bolted RCAs provided high-end features at an affordable price.

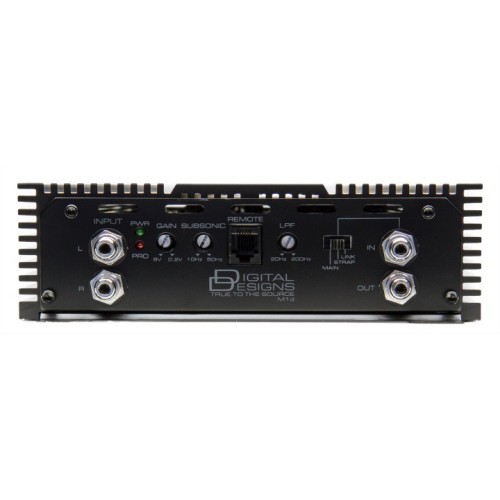

For installation ease, and upgradeability the M1d features Strap and Link mode. When using one of these modes you’re able to use multiple M1d in an install and control the Strapped or Linked amplifiers level settings from the main. You’ll also be able to use a single remote gain to control all strapped and linked amps.

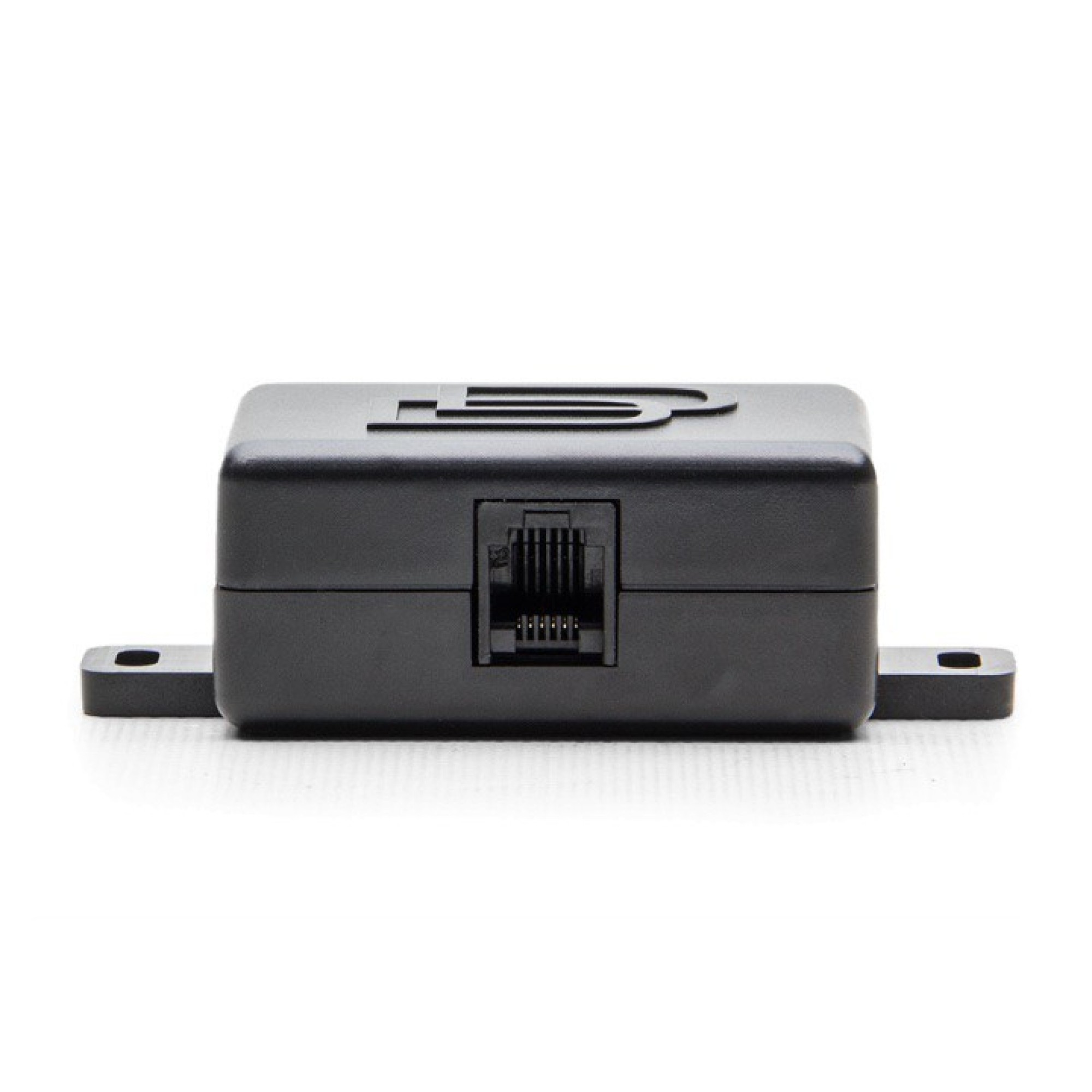

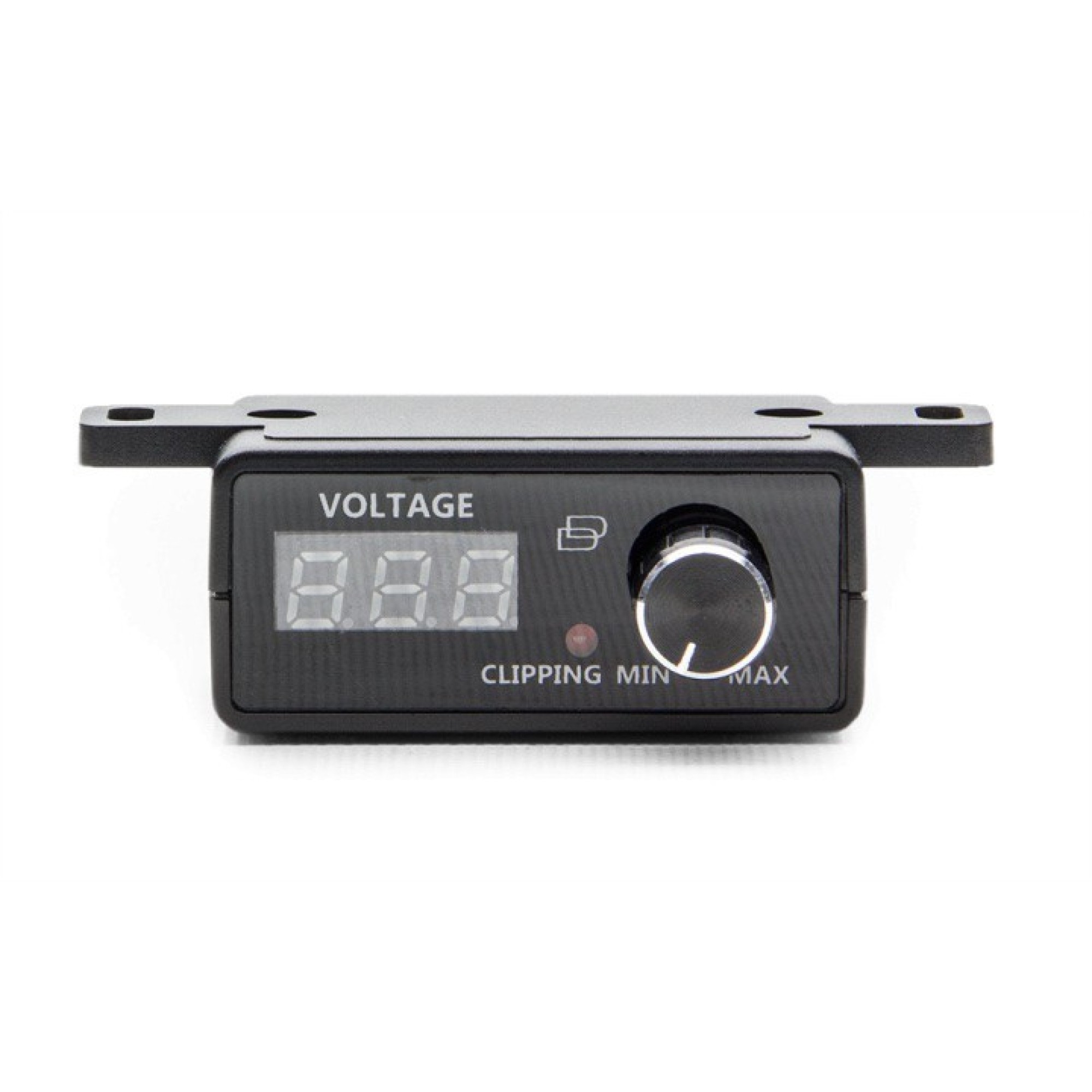

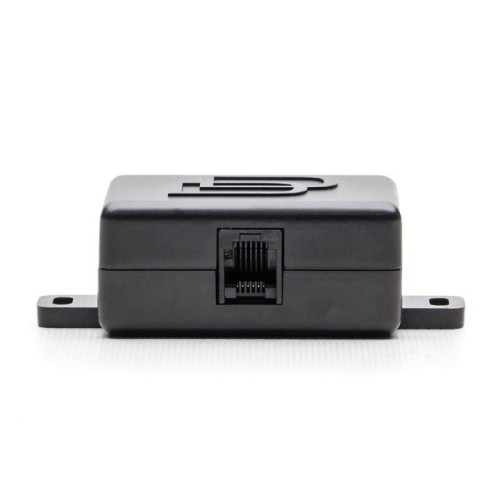

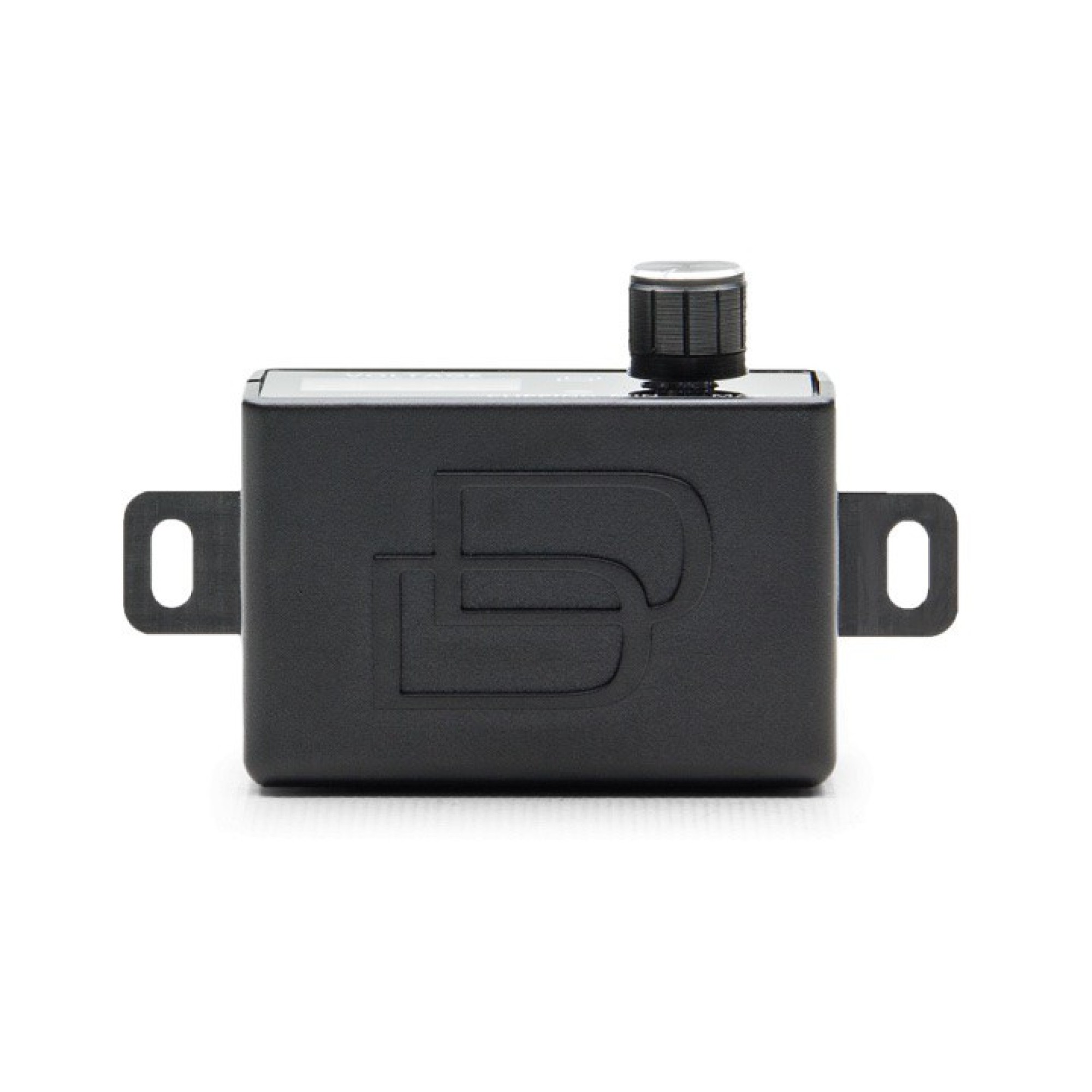

The M1d also comes with the VM-RMT remote control. The VM-RMT is a mini amplifier diagnostic center that’s able to mount within arms reach for real-time performance monitoring and adjustments. From this remote, you have fine gain control, amplifier input voltage monitoring, and output clipping monitoring.

TECHNICAL DATA

Test Voltage12 / 14.4
Channels1
Cont Wattage @ 4ohmN/A
Cont Wattage @ 2ohmN/A
Cont Wattage @ 1ohm1,200×1@12V / 1,700×1@14.4V
Dynamic Wattage2,500×1
Max Current Draw – Amperage170
S/N Ratio100dB
THD0.2%
Input Voltage Sensitivity8 – 0.2
Pass-Through OutputYes
Remote Subwoofer ControlYes
Power Wire Guage In1 x 0
Speaker Wire Gauge Out10
Dimensions: in13.77 x 6.88 x 2.14
Dimensions: mm350 x 175 x 54.5
Shipping Weight – lbs11.
