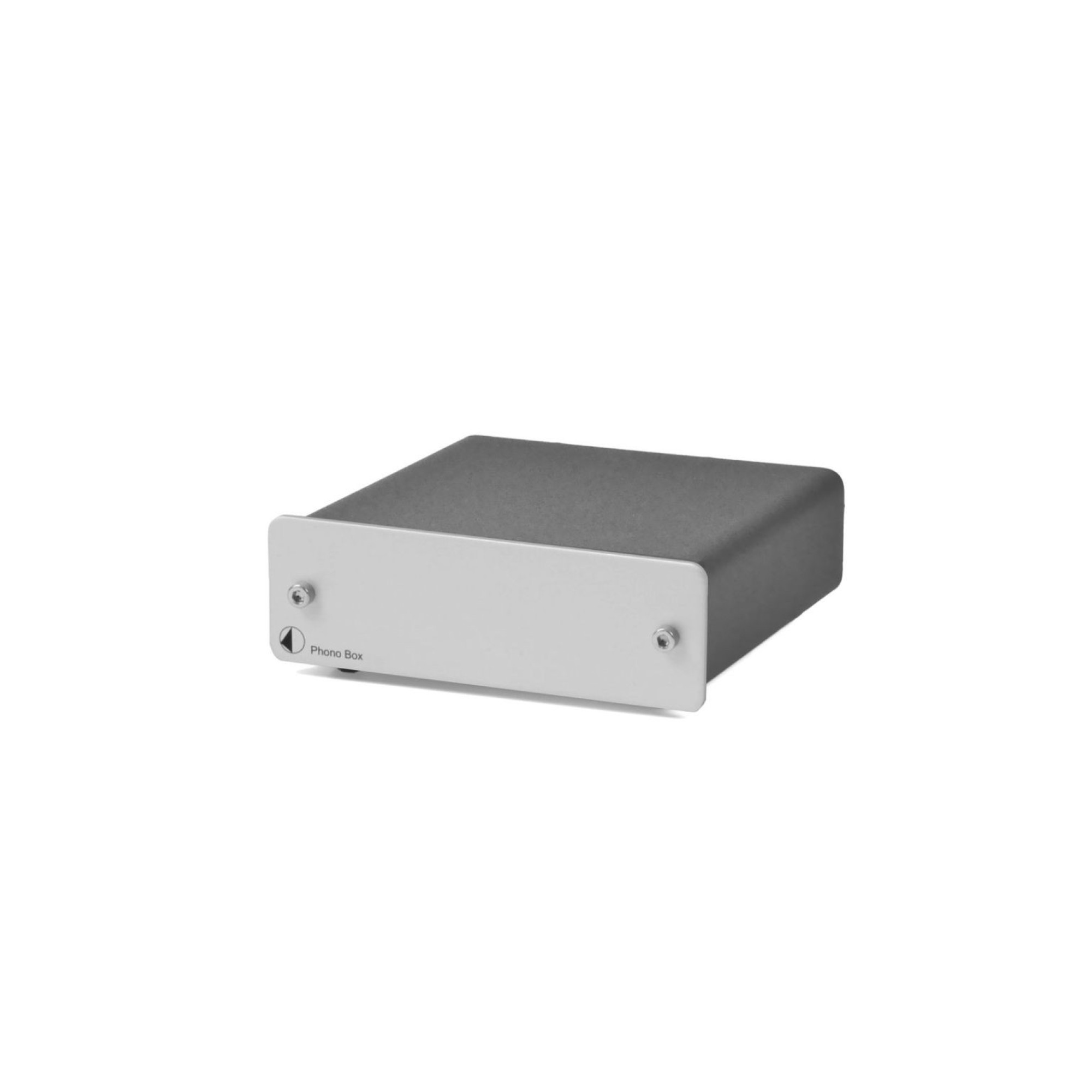

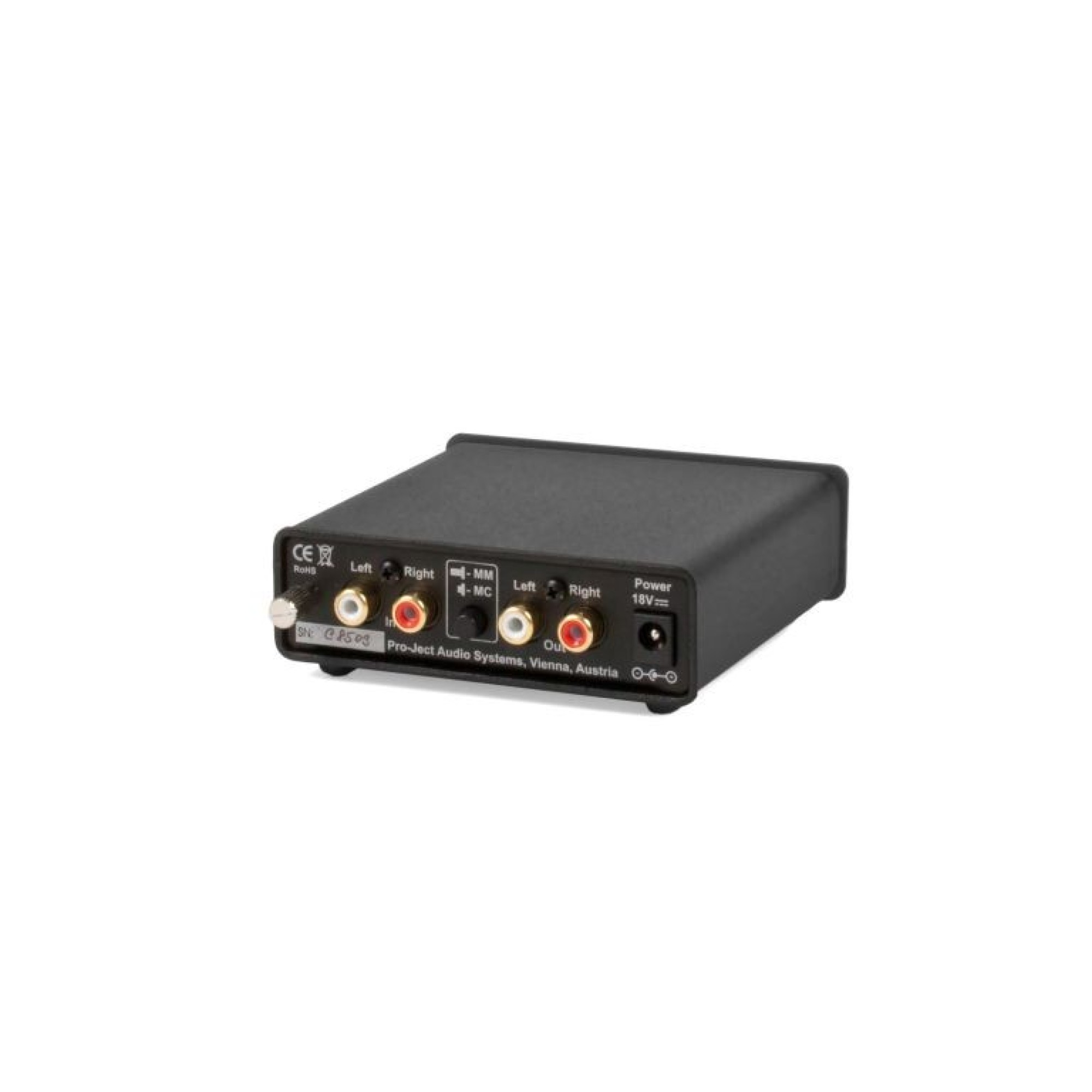

PROJECT PHONO BOX SILVER/BLACK
- Gamintojas: PRO-JECT
- Kategorijos: KOREKCINIAI STIPRINTUVAI PATEFONAI IR PRIEDAI NAMŲ TECHNIKA
699.00€
- Kaina be PVM: 577.69€
MM/MC Phono preamp with line output
Phono Box: Best buy classic for pure vinyl listening pleasure!
Today, many amplifiers do not have a specific phono cartridge input. Phono Box is an ideal phono preamplifier for these hifi system and accepts both MM and MC cartridges. The analogue output of Phono Box can easily be connected to a line-input (AUX,…) of your amplifier.
Technical Specifications
| Input impedance, MM | 47 kohms/120 pF |
| Input impedance, MC | 100 ohms / 120 pF |
| Gain, MM | 40 dB |
| Output voltage typically | 300 mV/1 kHz at 3 mV/1 kHz (MM input) |
| Gain, MC | 60 dB |
| Output voltage typically | 300 mV / 1 kHz at 0,3mV/1 kHz (MC input) |
| Max. output | 9.5V (1kHz) |
| Noise floor, MM | 94 dBA |
| Noise floor, MC | 75 dBA |
| THD, MM | 0,01% |
| THD, MC | 0,05% |
| RIAA-equalisation curve accuracy | 20 Hz – 20 kHz / max. 0,5 dB |
| Outboard power supply | 18V / 200 mA DC, suitable for your country’s mains supply |
| Standby power consumption | < 1 watts |
| Dimensions W x H x D | 103 x 36 x 104 (115 mm with sockets) |
| Weight | 570 g |
