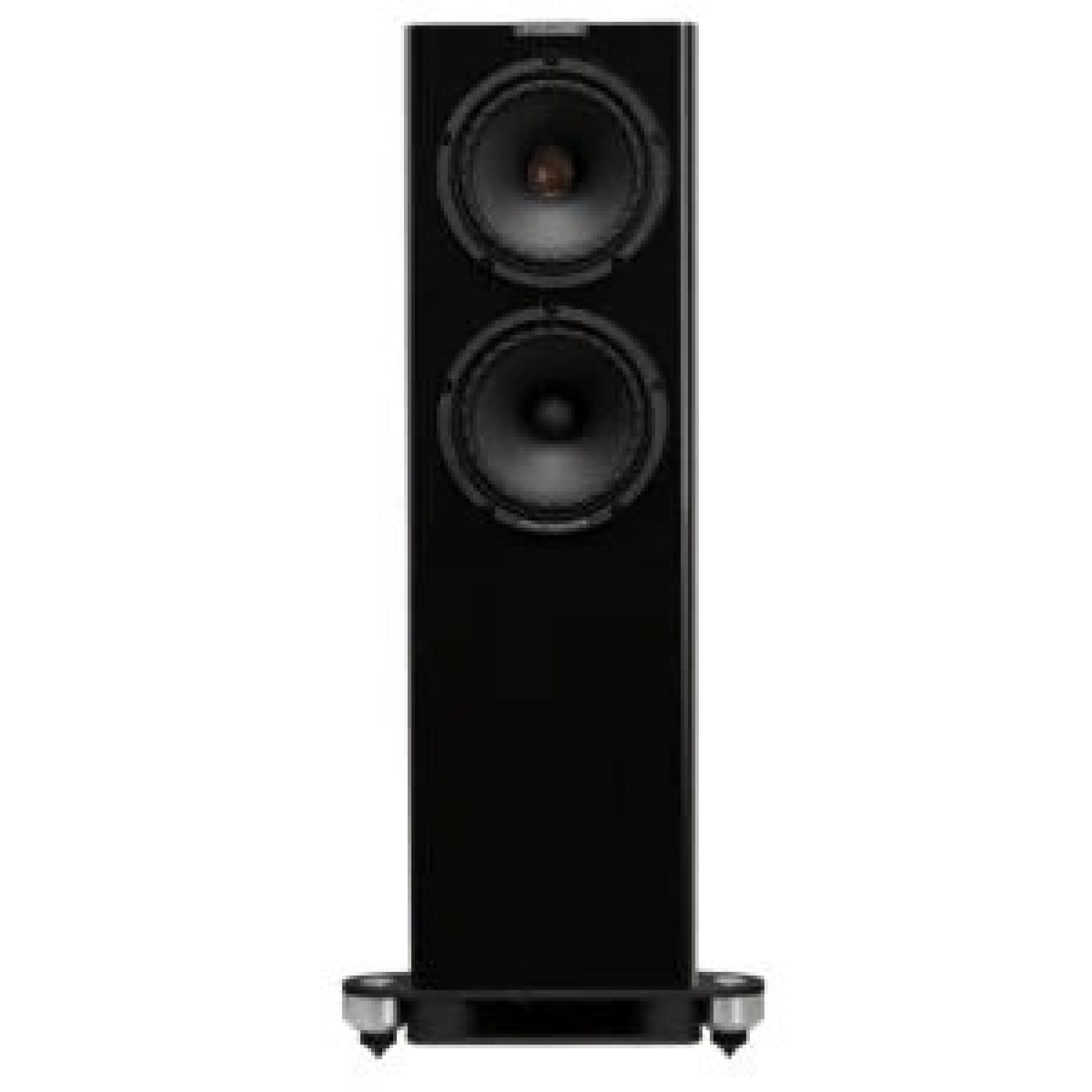

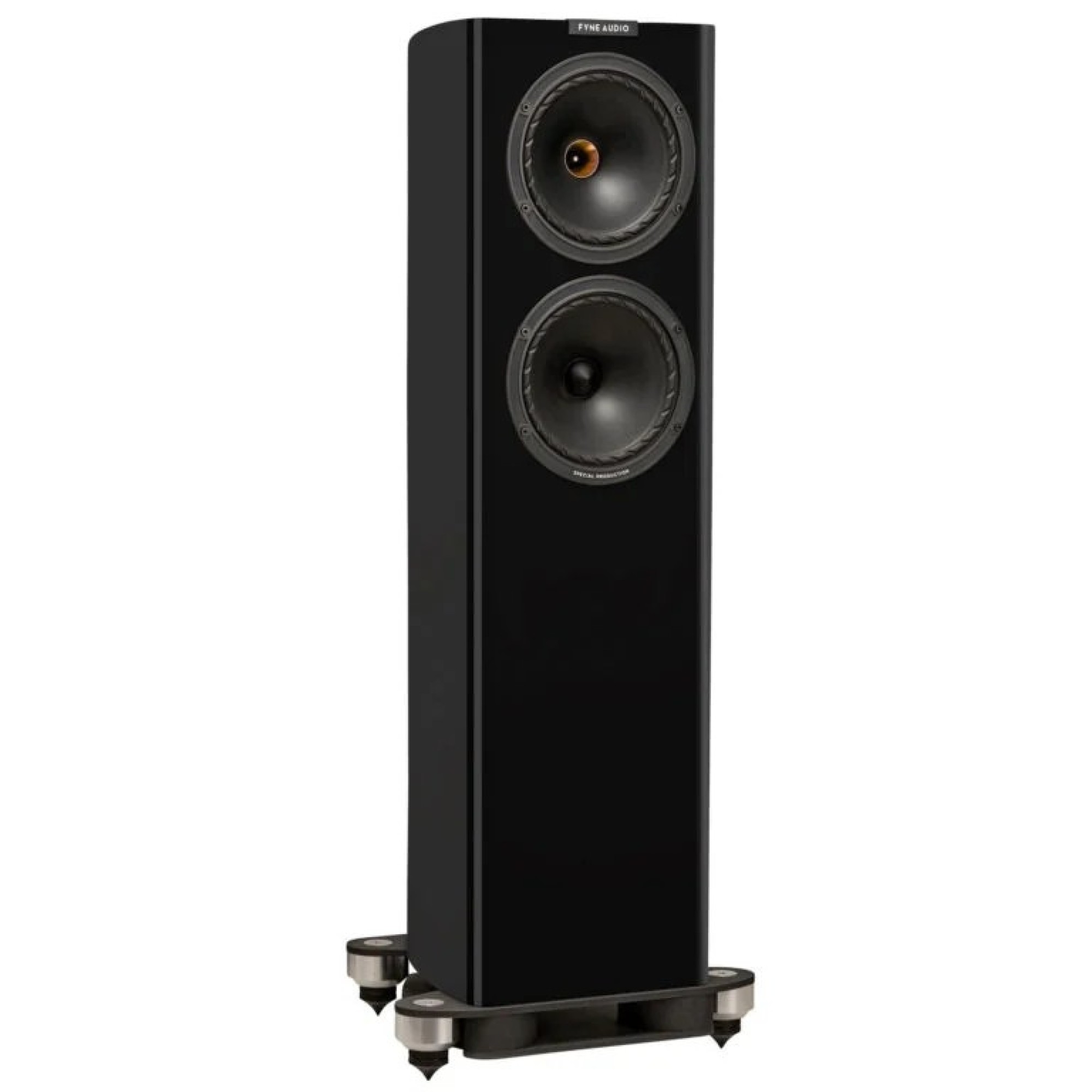

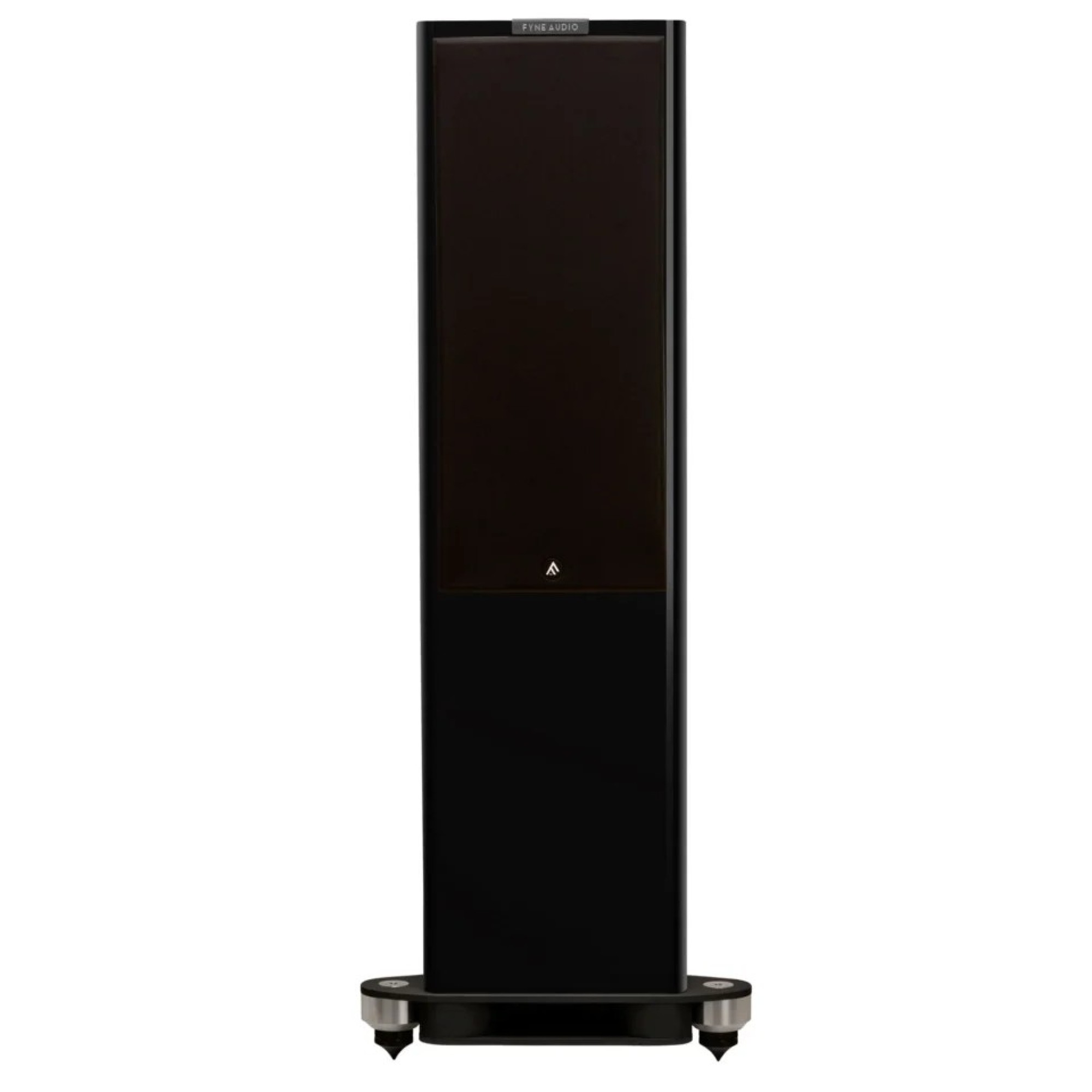

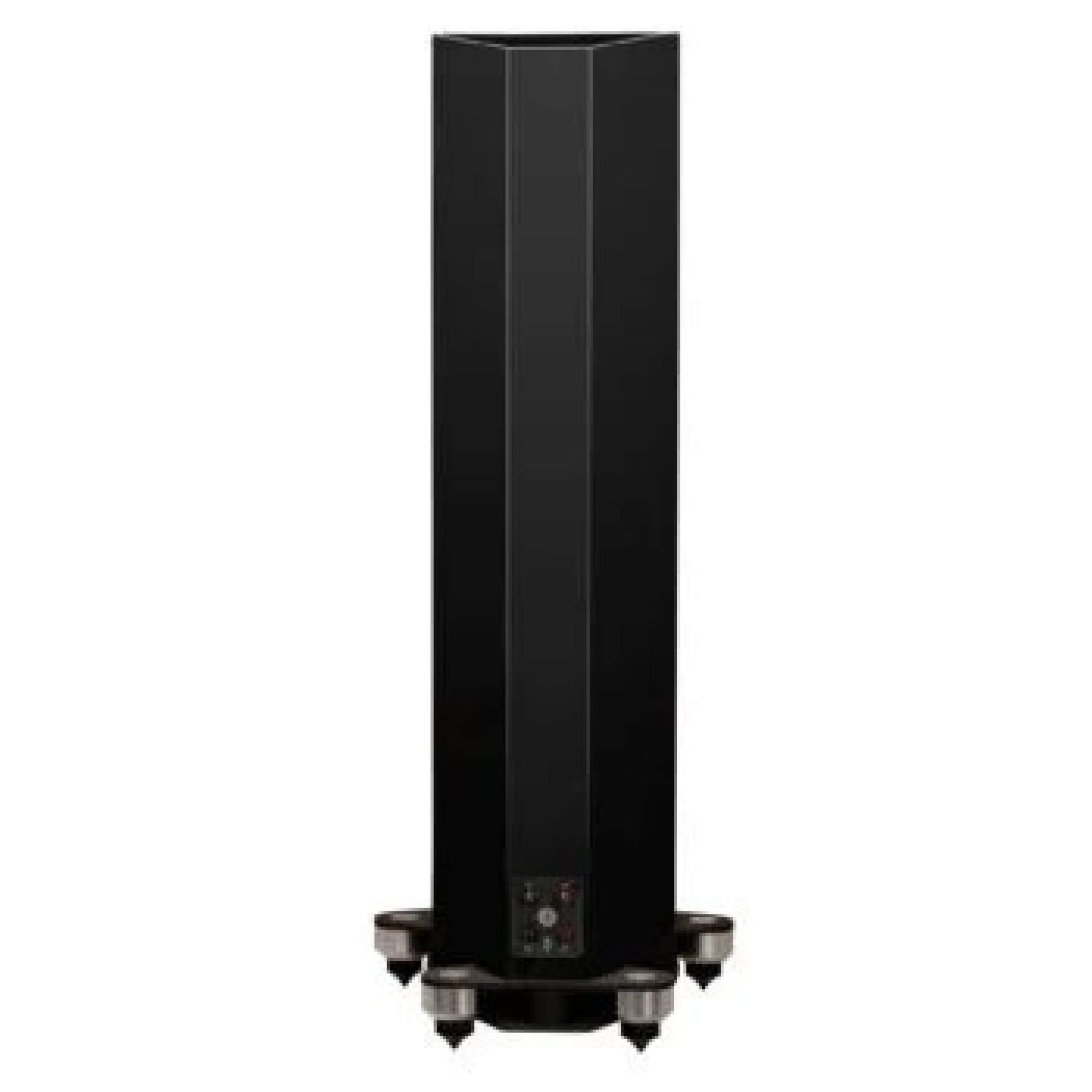

FYNE AUDIO F702SP BLACK
- Gamintojas: FYNE AUDIO
- Kategorijos: GRINDINĖS KOLONĖLĖS GARSO KOLONĖLĖS NAMŲ TECHNIKA
13,999.00€
- Kaina be PVM: 11,569.42€
The F702SP is a testament to Fyne Audio’s continuous innovation, encapsulating the latest acoustic engineering in a stylish floorstanding speaker. Hand built in the UK, it incorporates a 200mm IsoFlare driver from the F1-8, with a refined HF waveguide for smoother frequency response, housed in the award-winning F702 twin cavity tuned cabinet featuring the BassTrax LF diffuser. The speaker’s crossover circuitry has been overhauled, optimised through computational modelling and extensive listening tests, and features high grade Claritycap capacitors and Neotech PC-OCC wiring for crystal-clear signal transfer. Gold-plated WBT Nextgen 0703 terminals and a proprietary cryogenic treatment process ensure the integrity of every nuance. The F702SP stands on a heavyweight aluminium platform with M12 threaded support cones for unmatched stability, delivering articulate, powerful sound perfect for mid to large-sized rooms.
| System Type | 2 ½ way, downwards firing port, with BassTrax™ Tractrix diffuser*, twin cavity loading system |
| Recommended amplifier power (Watt RMS) | 30 – 200 |
| Peak power handling (Watt) | 400 |
| Continuous power handling (Watt RMS) | 100 |
| Sensitivity (2.83 Volt @ 1m) | 92dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 28Hz – 34kHz |
| Drive unit complement | 1 x 200mm IsoFlare™ point source driver, multi-fibre bass / midrange cone, FyneFlute™ surround with 25mm magnesium dome compression tweeter, ferrite magnet system . 1 x 200mm multi-fibre bass / midrange cone, FyneFlute™ surround. |
| Crossover frequency | 250Hz & 1.8kHz |
| Crossover type | Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryogenically treated |
| Dimensions – HxWxD | 1126 x 439 x 443mm (44.3 x 17.3 x 17.4″) |
| Weight – Each | 37.5kg (82.7lbs) |
| Finishes | Natural Walnut / Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White |
| Cabinet Construction | Pressed high density birch ply with extensive internal bracing |
CABINET
Maintaining the contemporary F700 Series cabinet design, the F700SP Series will continue to deliver unparalleled visual and sonic refinement. The curved panels, specifically designed to enhance audio clarity by dispersing standing waves, are meticulously crafted from high-density birch plywood for reduced resonance. The cabinets boast a complex twin cavity tuning system for precise acoustics. Built to rigorous standards, the F700SP cabinets come with a luxurious high gloss piano lacquer finish in black, white, or the original walnut veneer, and now feature a new Natural Walnut finish, a nod to the classic aesthetics of the Vintage series, enriching the series’ legacy with a touch of tradition.
CROSSOVER
Fyne Audio has elevated the F700SP Series with advanced crossover refinements, combining fastidious component sourcing with expert network design. The reimagined crossover circuitry has been optimised through computational analysis and critical listening, ensuring acoustic neutrality. This Special Production features high grade Claritycap capacitors and Neotech PC-OCC internal wiring for pristine signal clarity with upgraded gold-plated WBT Nextgen 0703 speaker terminals for enhanced signal integrity. Additionally, an in-house cryogenic treatment process meticulously relaxes material stresses, improving signal transparency and our specialised grounding terminal also mitigates radio frequency interference, safeguarding the audio’s fine detail. These cumulative enhancements guarantee a pure, detailed, and transparent audio experience, embodying Fyne Audio’s commitment to sonic excellence.
BASSTRAX PORT SYSTEM
All F700SP models feature the innovative BassTrax Tractrix diffuser for bass porting. This system employs a substantial downfiring port paired with a tractrix profile conical diffuser engineered to produce a comprehensive 360-degree low-frequency (LF) wavefront. Such design ensures a seamless bass response throughout any space, mimicking the expansive sound typically associated with large, ported cabinet speakers but without bass distortions resulting from port-room interactions. This intelligent design significantly reduces the F700 Series’ dependency on speaker placement, making them adaptable to various room positions for both visual appeal and functional setup.
DRIVER TECHNOLOGY
The F700SP series harnesses the acclaimed IsoFlare technology from Fyne Audio’s premier F1 Series, delivering an unrivalled auditory experience. The F703SP model features a driver identical to the F1-10’s, boasting a substantial Neodymium HF magnet system paired with a 3” titanium dome. This configuration minimizes distortion and provides a smoother frequency response, enhancing the high-frequency performance. Similarly, the F702SP integrates the driver from the F1-8, utilizing an advanced HF waveguide paired with a 1” magnesium dome and ferrite magnet system for a refined frequency response.
Both units benefit from the IsoFlare design, which ensures true point source isotropic radiation for unmatched imaging and consistent frequency response. The design includes a magnesium diaphragm compression tweeter coaxially mounted into a potent MF/LF driver with a rigid multi-fibre cone and FyneFlute roll surround. The result is a speaker that delivers detailed midranges, quick transient attacks, and eliminates unwanted resonances. The massive motor assemblies increase LF sensitivity and enable the drivers to reproduce the dynamics of high-energy instruments with ease.
Fyne Audio’s F700SP Series stands out for its high power handling and efficiency, promising to reproduce the live music dynamics and real-world sound pressure levels for a truly immersive listening experience.
