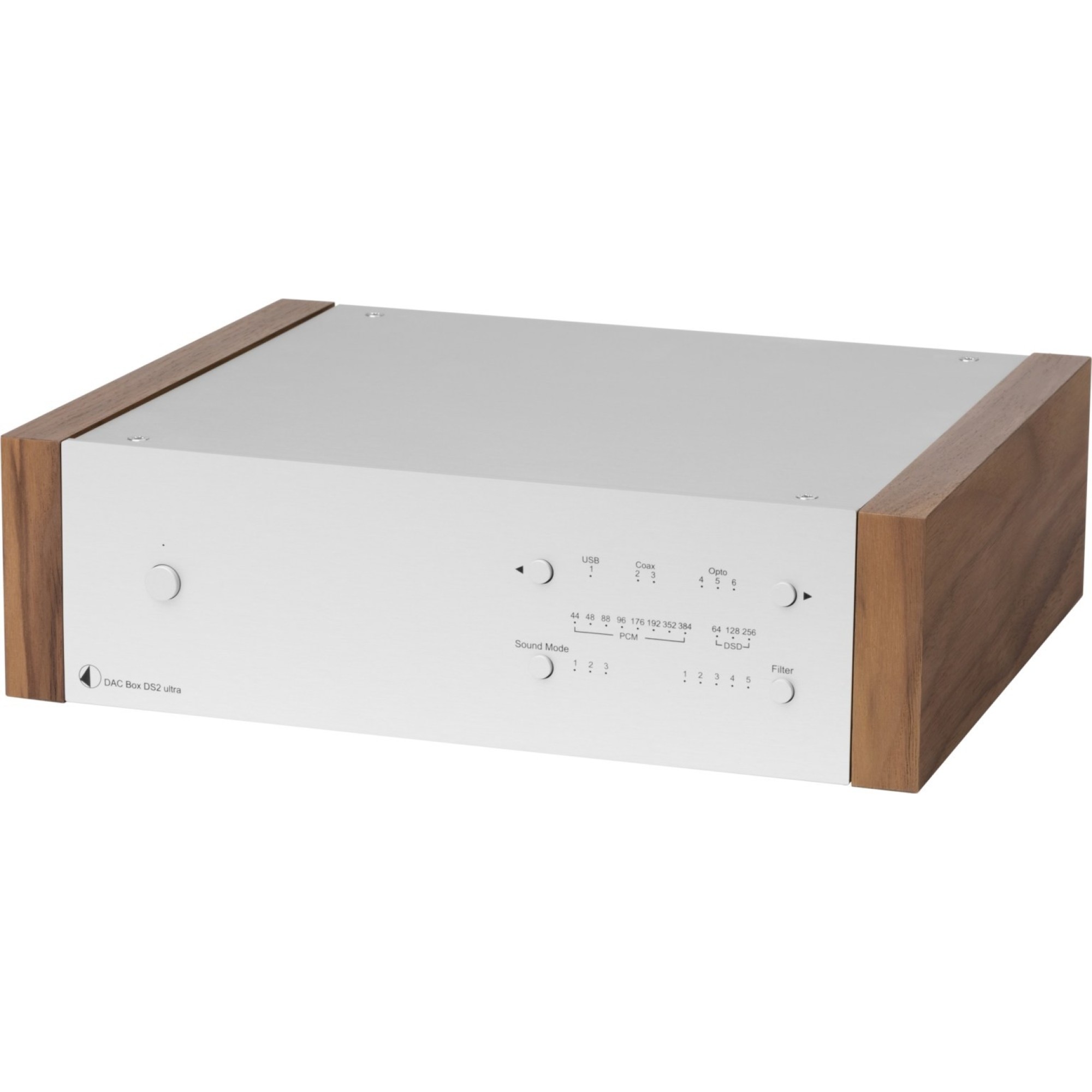

PROJECT DAC BOX DS2 ULTRA
- Gamintojas: PRO-JECT
- Kategorijos: GARSO KONVERTERIAI (DAC) NAMŲ TECHNIKA
699.00€
- Kaina be PVM: 577.69€
High end Digital/Analogue Converter with DSD & USB 2.0
DAC Box DS2 ultra – state-of-the-art audio converter!
The advanced DAC Box DS2 ultra is an universal and very flexible D/A converter of the highest class. It offers full DSD256 support and upsampling of all input signals to 768kHz from USB, coaxial and optical inputs. This realizes high-resolution sound playback with a rich sound field and bass representation with less distortion.
Due to its class-leading audio performance DAC Box DS2 ultra is an ultimate high end bargain!
Technical Specifications
| D/A-converter | AK4490 32-bit PCM 768kHz / DSD256 |
| Sampling rate converter | AK4137EQ upsampling to 768kHz |
| Samplingrates | USB: up to 32bit/768kHz, DSD256 (DoP) |
| Coaxial: up to 24bit/192kHz | |
| Optical: up to 24bit/192kHz | |
| DSD-support | DSD64, DSD128 and DSD256 |
| Filter settings | 5 different selectable on front |
| Digital inputs | USB B |
| 3 x Optical (TOSlink®) | |
| 2 x Coaxial (S/PDIF) | |
| Frequency response | 20Hz – 50kHz (+0/-1dB) |
| Analogue output | RCA/Cinch (Line) |
| Output voltage | 2.2 Veff (switchable +6 dB gain gives 4.4 Veff ) |
| Digital output | Optical (TOSlink®) |
| THD | 0.00085% |
| Crosstalk | -117 dB (10kHz@0dB) |
| Signal to Noise Ratio | 113 dB (20Hz – 20kHz) |
| Power consumption | <1 Watt standby, 600mA max |
| Power supply | 18V/1000mA DC (included) |
| Dimensions W x H x D | 206 x 71 x 220 mm (Alu), incl. sockets |
| 240 x 72 x 220 mm (Wood), incl. sockets | |
| Weight | 1410 g (Alu), without power supply |
| 1880 g (Wood), without power supply |
