PROJECT PRE BOX RS DIGITAL SILVER
PROJECT PRE BOX RS DIGITAL SILVER

PROJECT PRE BOX RS DIGITAL SILVER

  • 1,199.00€

  • Kaina be PVM: 990.91€
Kiekis

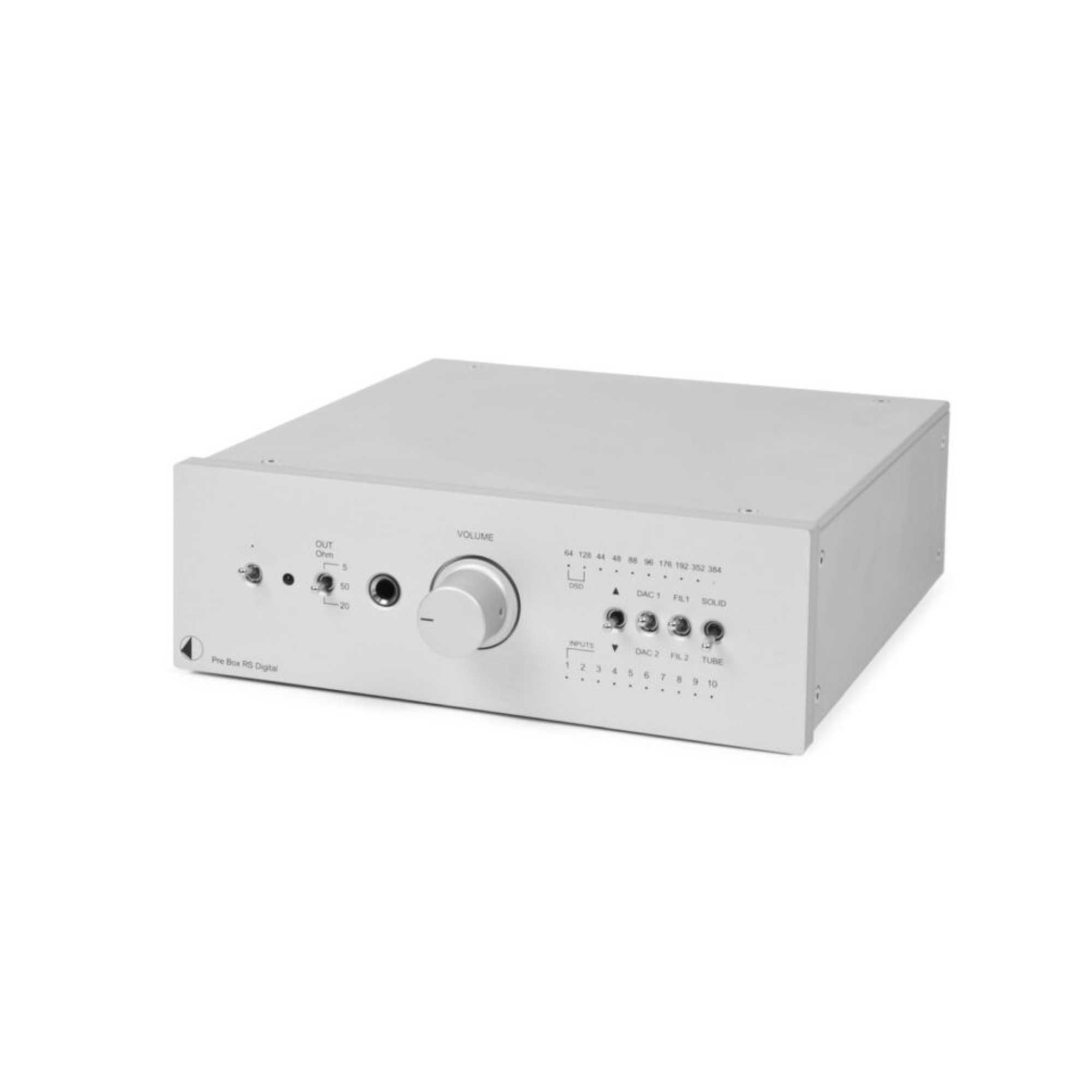

High-end pre-amplifier, DAC, Headphone amp

The most universal & future-proof high-end pre-amplifier, DAC, headphone amp!

Pre Box RS Digital combines all features of DAC Box RS plus a very linear pre-amplifier with both solid-state and tube output stages, that can be selected alternatively. As in all our top-class digital products, we use PCM1792 DAC chips from Texas Instruments, but here we use 2 pieces in a dual differential mode to achieve ultimate fidelity. As a selectable feature, a second DAC chip from Texas Instruments is on board, that can handle 32bit/384kHz. A high-class headphone output with selectable impedance for a perfect match to your headphones is also provided. Pre Box Digital RS offers 3-dimensional sound-staging, perfect micro dynamics and ultimate resolution combined with flexibility to use a wide range of digital and 1 analogue sound sources. Perfectly combined with Pro-Ject CD Box RS disc drive, Pre Box RS Digital will give outstanding sound experience, because of a I²S connection provided via RJ45, that is able to give jitter-free disc playback.



Technical Specifications

DAC DAC1 – 2 x PCM1792 24bits/192k Hz;
DAC2 – PCM5102 32bits/384k Hz
Tubes 2 x 6922 EH
Digital inputs 1 x USB 2.0 Audio 32/384 + DoP-DSD 64/128
1 x RJ45 Sonic I2S for CD Box RS in Sonic Mode
2 x S/PDIF 24/192
4 x S/PDIF Optical 24/96
1 x AES/EBU balanced 24/192
Line-level input 1 RCA/phono sockets
Input impedance 33 kohms

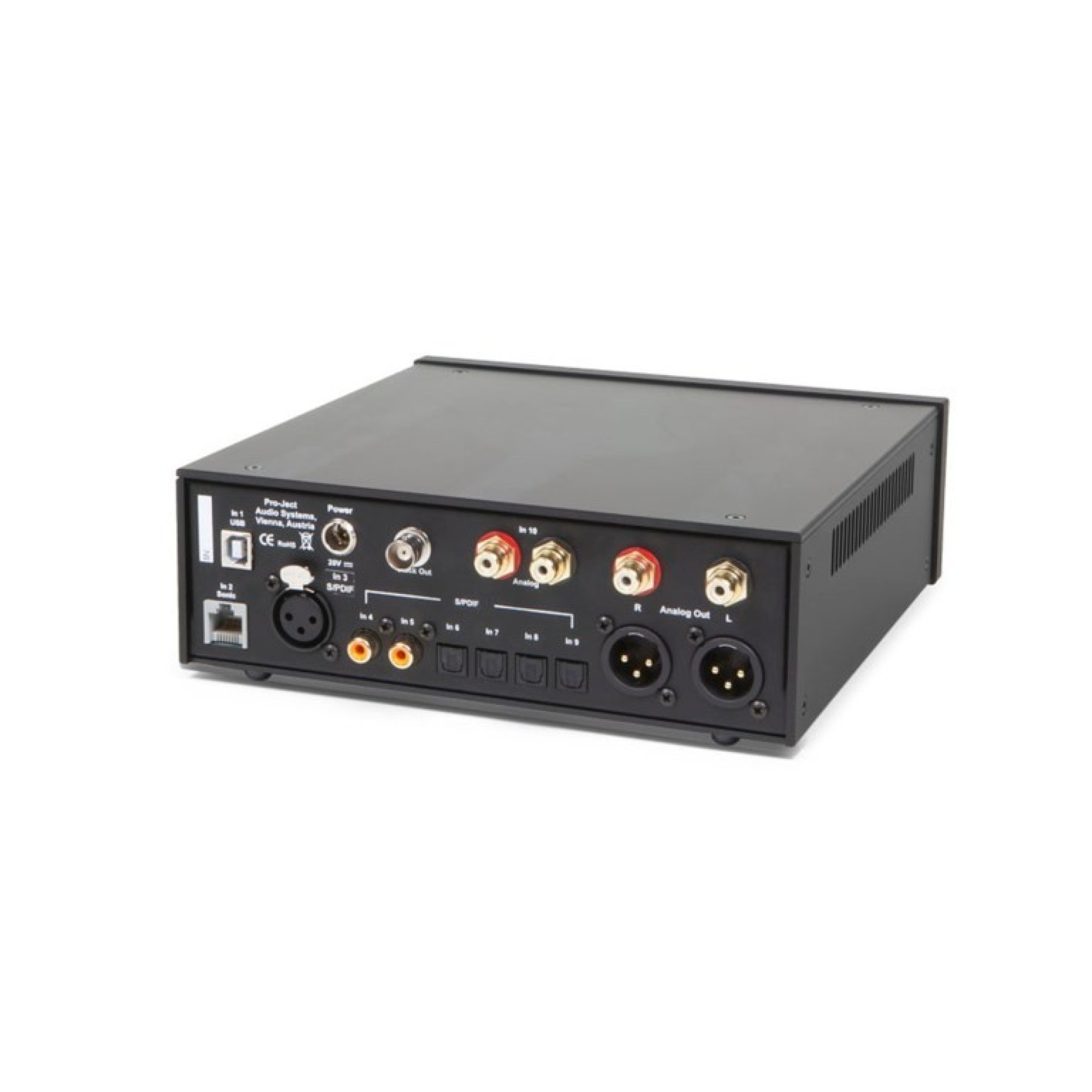

Analog outputs Pre-out (XLR & RCA), Headphone (6,35mm jack)
Headphone impedance 5 / 20 / 50 Ohms switchable
Analog input sensitivity 1.6V RMS for full headphone output
Frequency response 20 Hz – 50 kHz (+ 0dB/- 0.1 dB)
Signal to noise ratio -100 dB (IEC-A)
THD 0.005% solid state output/ 0.25% tube output
Master clock output 16.9344 MHz for CD Box RS in Sonic Mode
Outboard power supply 20 V/3 A DC suitable for your country’s mains supply
Power consumption 300 mA solid / 850 mA tube / 90 mA standby
Dimensions W x H x D 206 x 72 x 210 mm with sockets
Weight 1950 g without power supply
