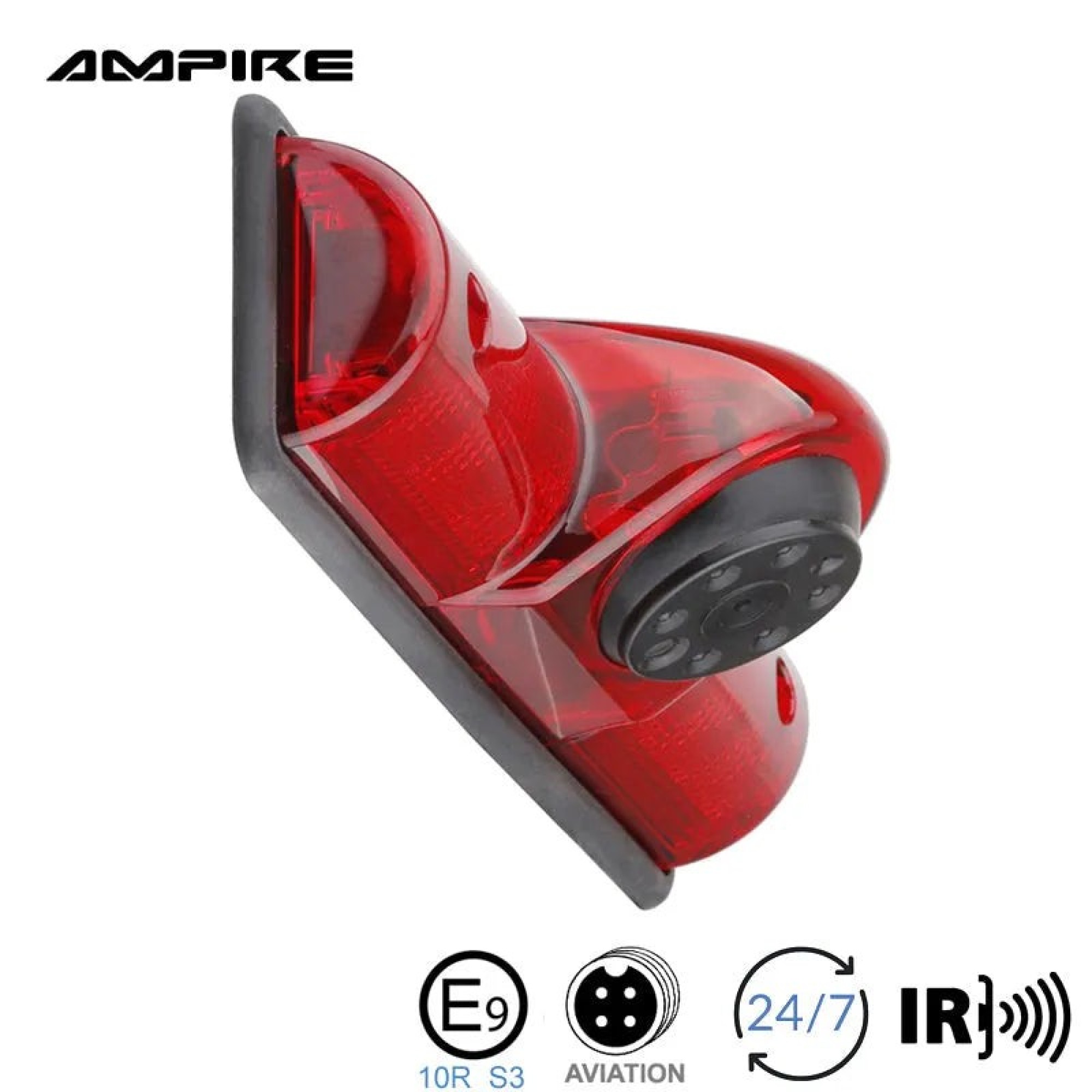

AMPIRE KV-UNIVERSAL, GALINIO VAIZDO KAMERA AUTOMOBILIUI

Universali stabdžių žibintų atbulinės eigos kamera su mikrofonu. Kameros korpuse integruotas infraraudonųjų spindulių apšvietimas, kuris užtikrina pakankamą apšvietimą net tamsoje.

• Vaizdo sensorius: CMOS PC7070.

• Rezoliucija: 648x488 px.
• Vaizdo formatas: NTSC.


APRAŠYMAS

Universal brake light reversing camera with microphone. In the camera housing is integrated infrared lighting which ensures sufficient illumination even in the dark.

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

- Mounting screws accessible from the front
- Mirrored image display
- Auxiliary lines: factory switched on (can be switched off by disconnecting cable loop)
- image sensor: " CMOS PC7070
- resolution 648x488 pixels
- Viewing angle 170° diagonal
- viewing angle 120° horizontal

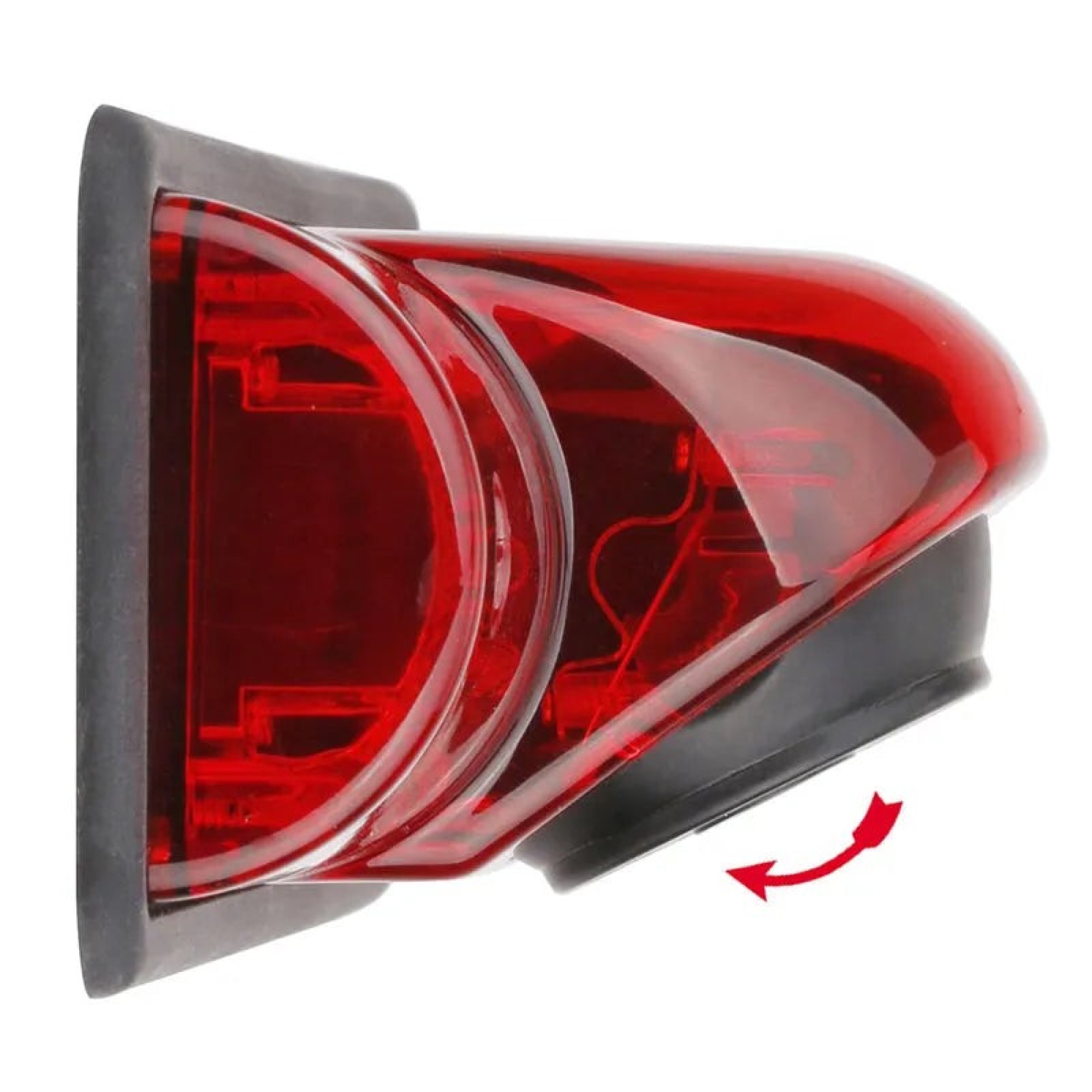

- vertical adjustability of the camera 20°
- Image format: NTSC
- 580 lines resolution
- IP68 waterproof
- Integrated infrared illumination
- Integrated microphone
- Operating voltage: 9-16 Volt DC
- Power consumption: max. 150mA
- Operating temperature: -30° to 70°C
- Minimum illumination: 0 Lux
- Color: black
- Cable length: 10 meters with 4-pin AVIATION connector
- E approval E9*10R06/00*22328*00
- CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
- FCC approval ANSI C63.4-2003

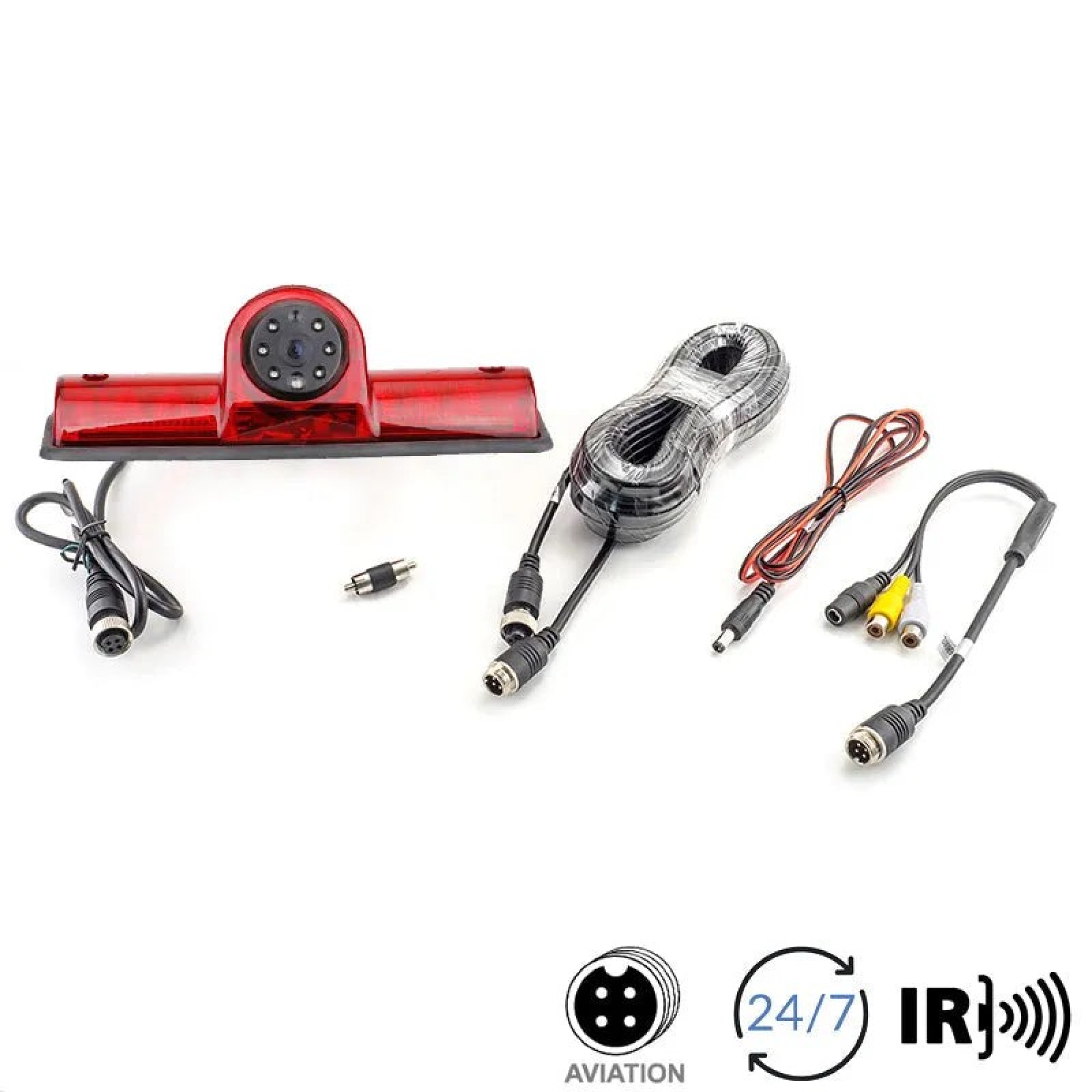

SCOPE OF DELIVERY
Brake light rear view camera
AK1000
AK1001
AK1002

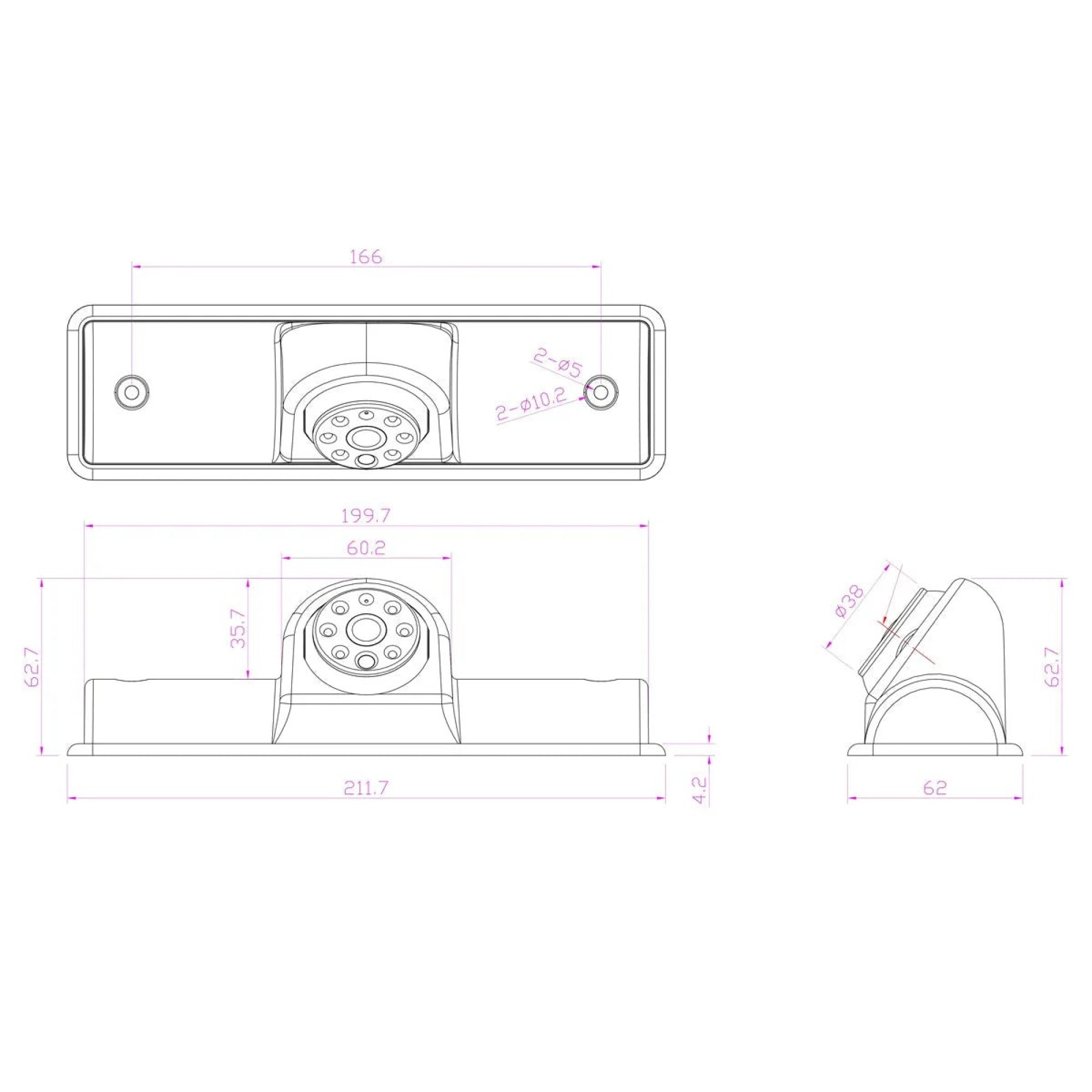

DIMENSIONS
- Total width: 211,7mm
- Width brake light: 199,7mm
- Length: 62mm
- Height: 62,7mm
- hole spacing: 166mm
