AUDISON AV DUE, AUTOMOBILINIS GARSO STIPRINTUVAS
- Gamintojas: AUDISON CONNECTION
- Kategorijos: STIPRINTUVAI AUTOMOBILIAMS
-
800.00€
- Kaina be PVM: 661.16€
"AV due" yra galingas stereofoninis stiprintuvas, kurio maitinimo šaltinio sekcija ir galinė pakopa sukurta taip, kad galėtų veikti ir mono bei trimis režimais, užtikrina labai didelę išėjimo srovę ir galią iki 900 W (RMS).
- Galia: 2 x 260W @ 4Ω.
- Iškraipymai - THD (1kHz @ 4Ω): 0,04 %.
- Pralaidumas: (-3 dB): 4 ÷ 60k Hz.
APRAŠYMAS

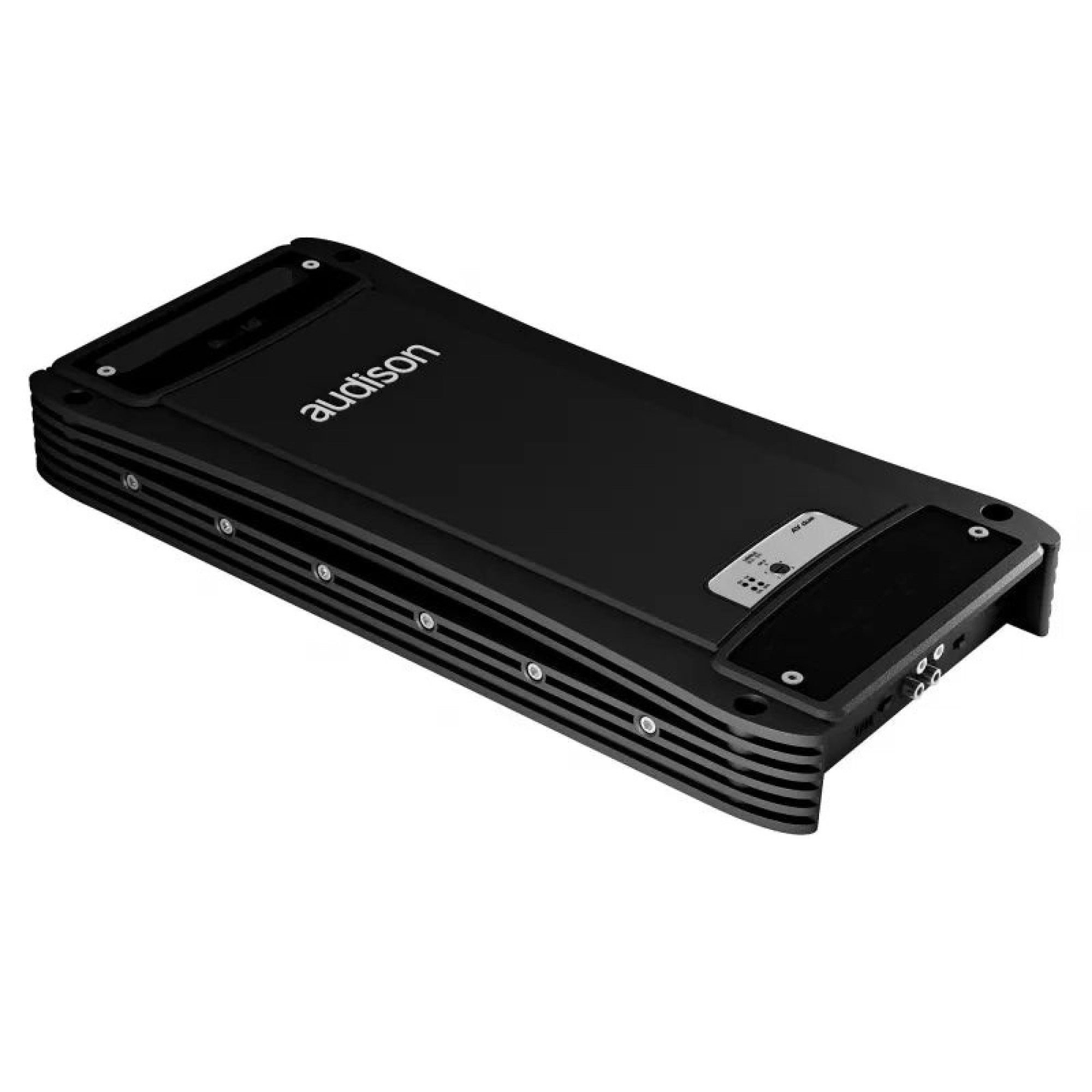

AV due is a powerful stereo amplifier with the power supply section and final stage designed to work also in mono and tri-mode, ensure very high output current, with powers up to 900 W (RMS).

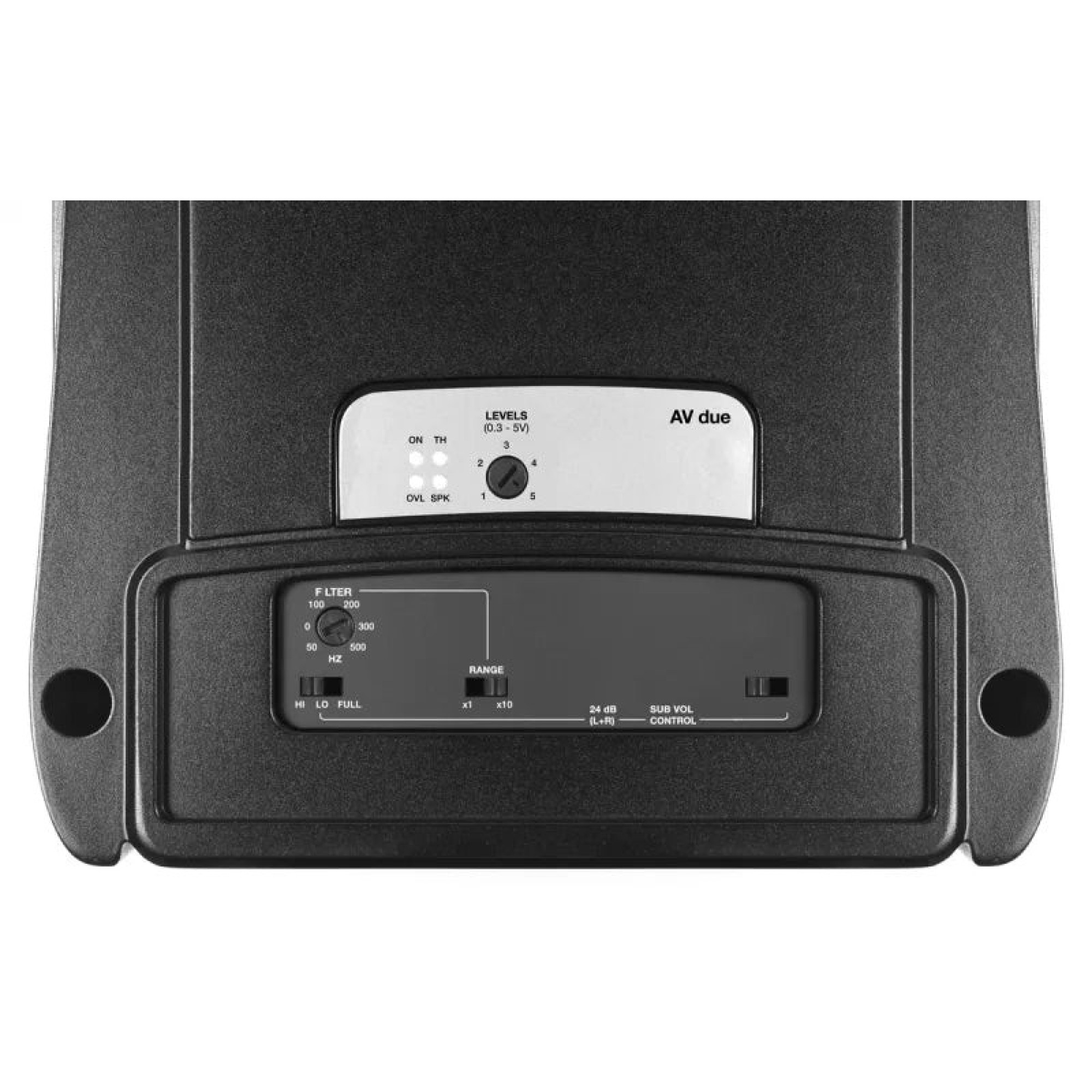

AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source.
According to the definition of HiRes audio provided by JAS (Japan Audio Society - jas-audio.or.jp), Voce amplifiers exceed the above 40 kHz bandwith analog requirement, providing an astonishing 4 ÷ 60k Hz (@ -3 dB, 2 VRMS, 4 Ω).
Specifikacijos
TECHNINIAI DUOMENYS
SPECIFIKACIJOS
- Power supply voltage: 11 ÷ 15 VDC
- Idling current: 1.7 A
- Idling current when off: 0.02 mA
- Consumption @ 14.4 VDC (Max Musical Power): 65 A
- Distortion - THD (1kHz @ 4Ω): 0.04 %
- Bandwidth (-3 dB): 4 ÷ 60k Hz
- S/N ratio (A weighted @ 1V): 100 dBA
- Damping factor (1k Hz @ 4Ω): 120
- Input sensitivity: 0.3 ÷ 5 V RMS
- Input impedance: 15k Ω
- Speaker-In sensitivity: 1.4 ÷ 24 V RMS
- Speaker-In impedance: 5k Ω
- Minimum load impedance: 2Ω
- NOMINAL POWER (RMS) @ 12 VDC, THD 0.3%, 4Ω:
- 210 W x 2
- OUTPUT POWER (RMS) @ 14.4 VDC,THD 1%:
- 2 Ch: 260 W x 2 (4Ω)
- 2 Ch: 450 W x 2 (2Ω)
- 1 Ch: 900 W x 1 (4Ω)

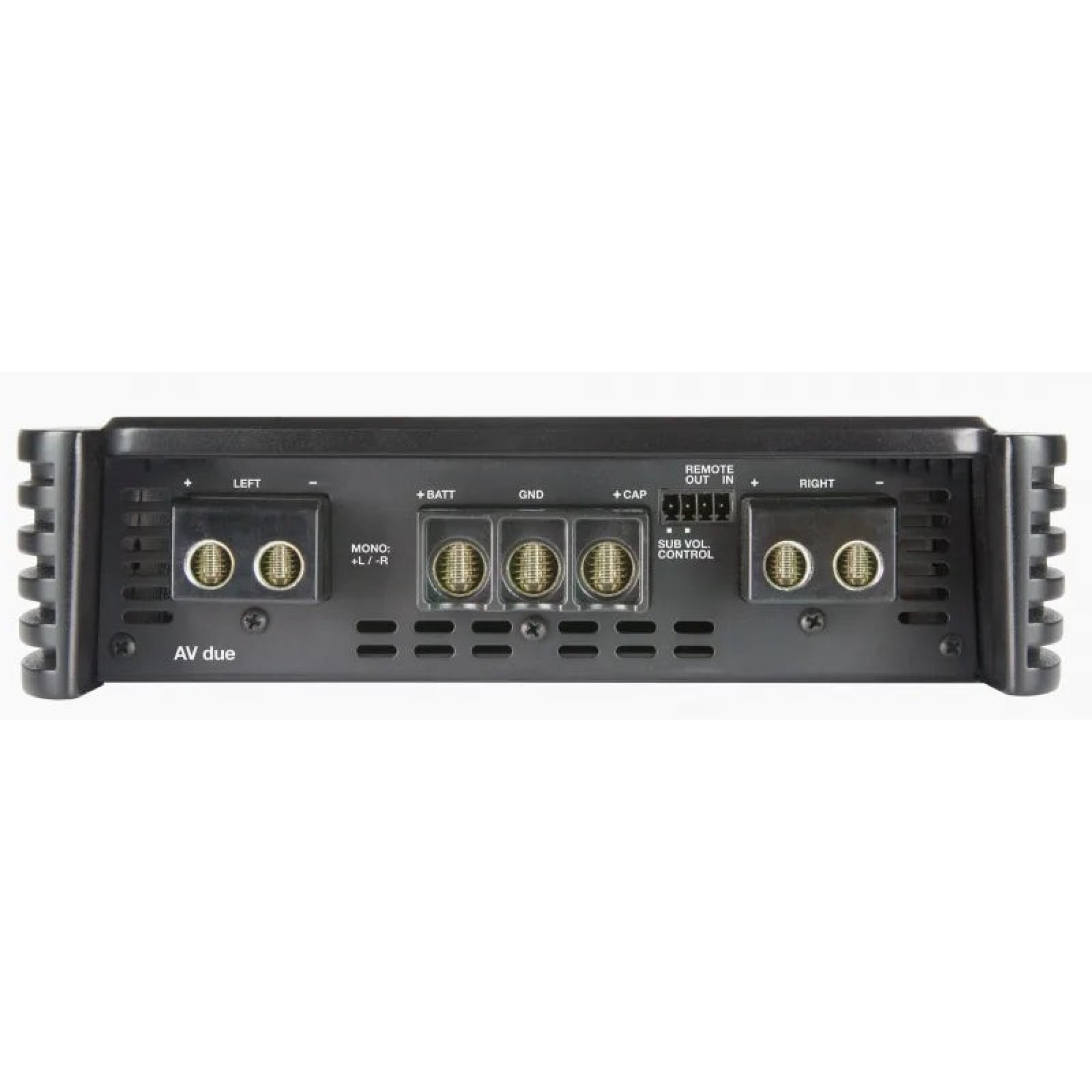

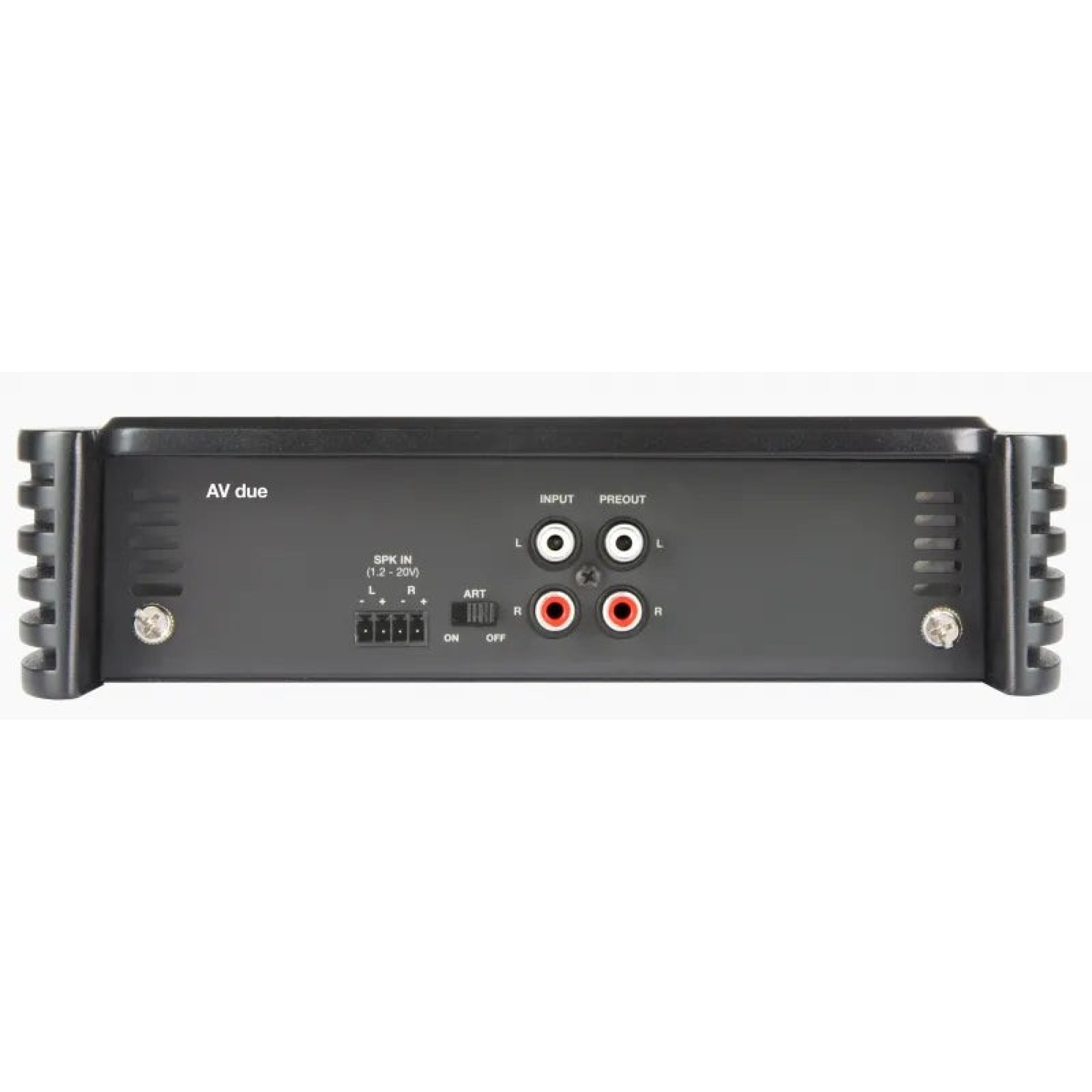

- Inputs: Pre IN / Speakers IN
- Outputs: Pre OUT Full Range
- Filters (Full / Hi-Pass / Lo-Pass):
- 50 ÷ 5k Hz (2 range) @ 12 dB/Oct.
- Filter (Lo-Pass 24 dB mono):
- 50 ÷ 500 Hz @ 24 dB/Oct.
- Remote IN: 7 ÷ 15 VDC - 1mA
- Remote OUT: 12 VDC - 50mA
- Fuse (Strip type): 60 A
- Remote SUB volume adj. (with Lo-Pass 24 dB):
- (-50 ÷ 6) dB
- Speakers IN Turn-on (ART): Selectable
- Max size (mm/inches): 220 x 470 x 58 / 8,66” x 18,50” x 2,28”
