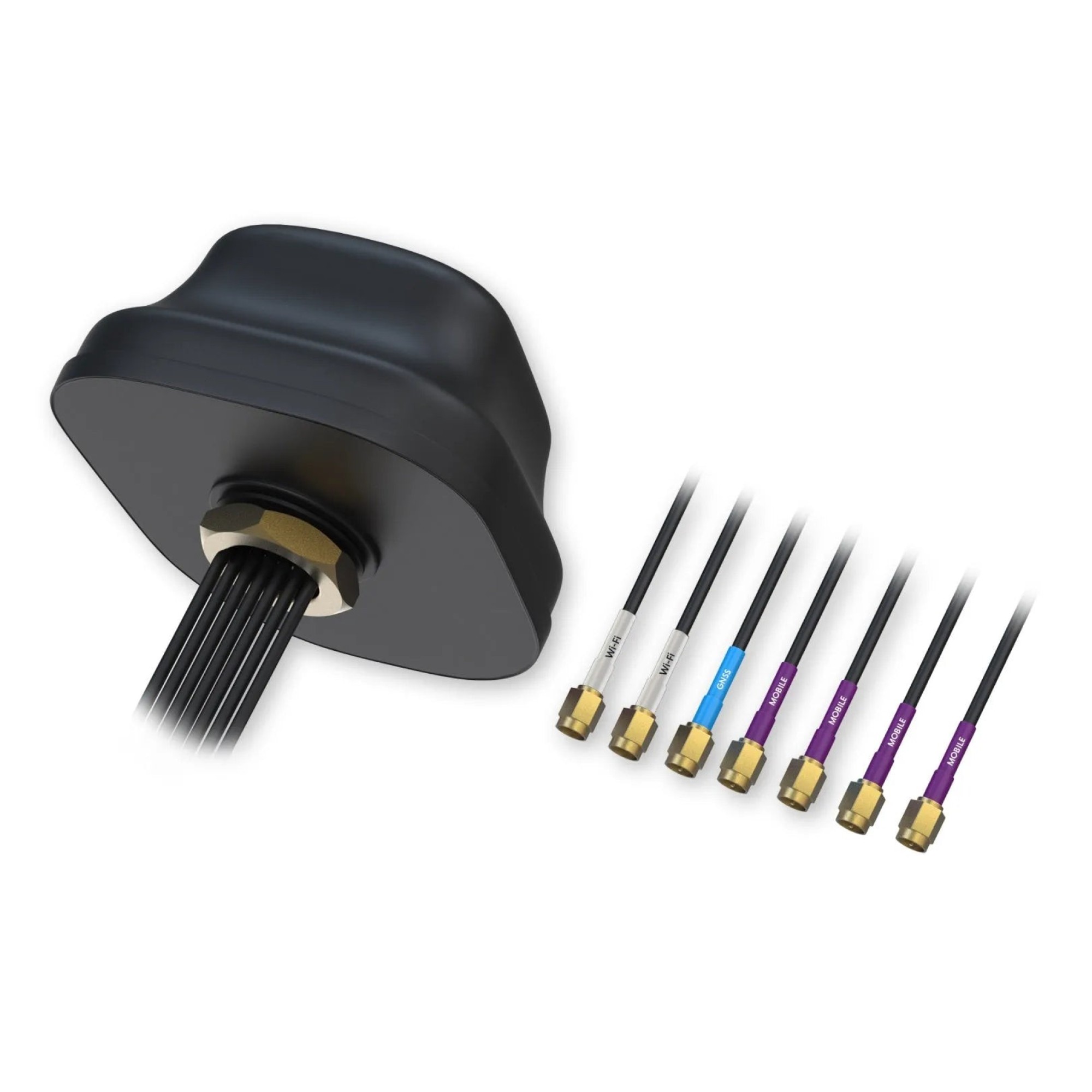

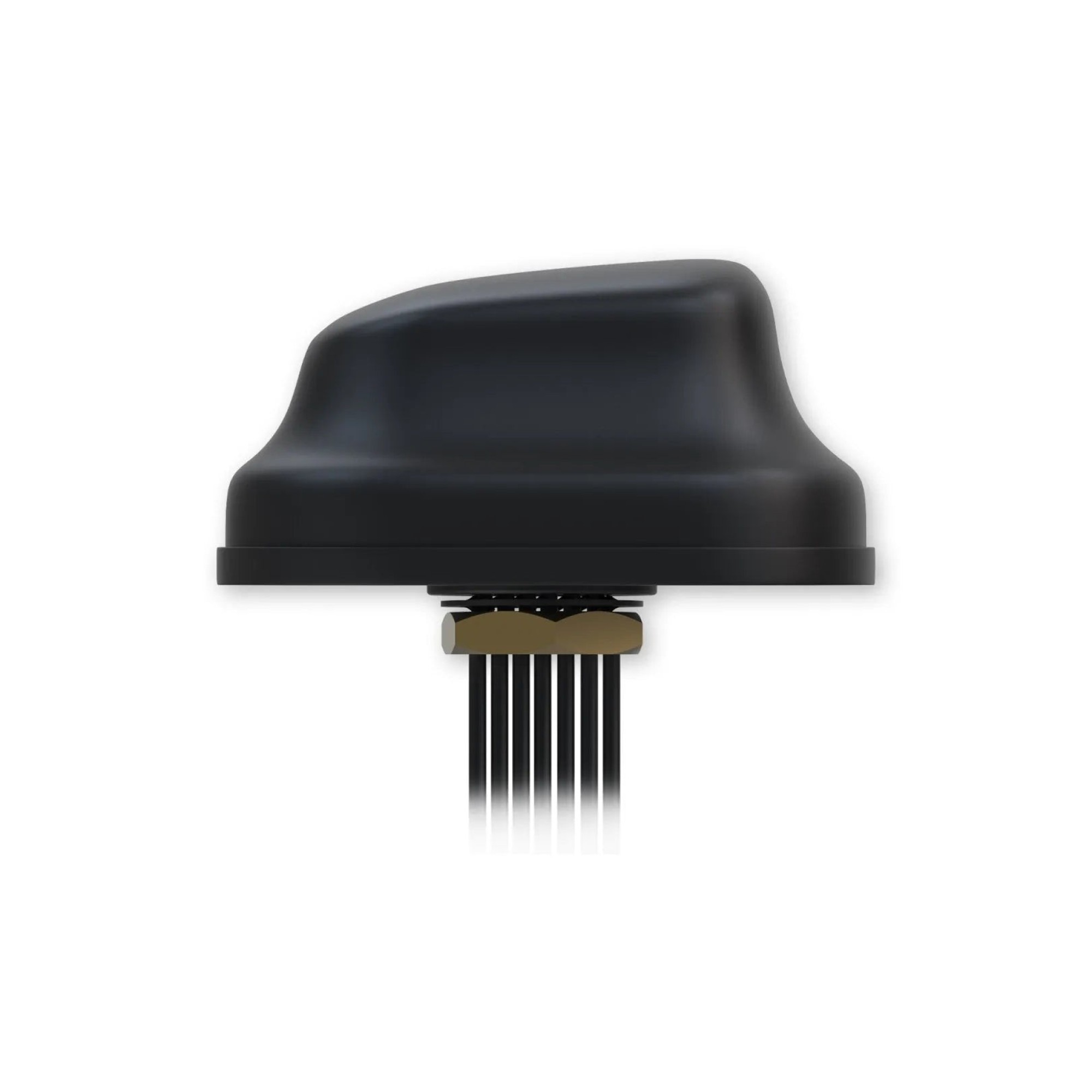

TELTONIKA PR1KC640, 5G MIMO MOBILE/GNSS/WIFI STOGO ANTENA

Teltonika PR1KC640 - tai universali išorinė MIMO stogo antena, sukurta užtikrinti patikimą 5G, 4G, GNSS (GPS) ir Wi-Fi ryšį vienu metu. Ji idealiai tinka naudoti transporto, pramonės ar fiksuotose instaliacijose kartu su Teltonika RUTX50 ar TRB500 įrenginiais.

Stiprinimas (Gain): 4 dBi
Dažnių aprėptis (Mobile): 617 – 960 / 1710 – 2690 / 2900 – 4200 MHz

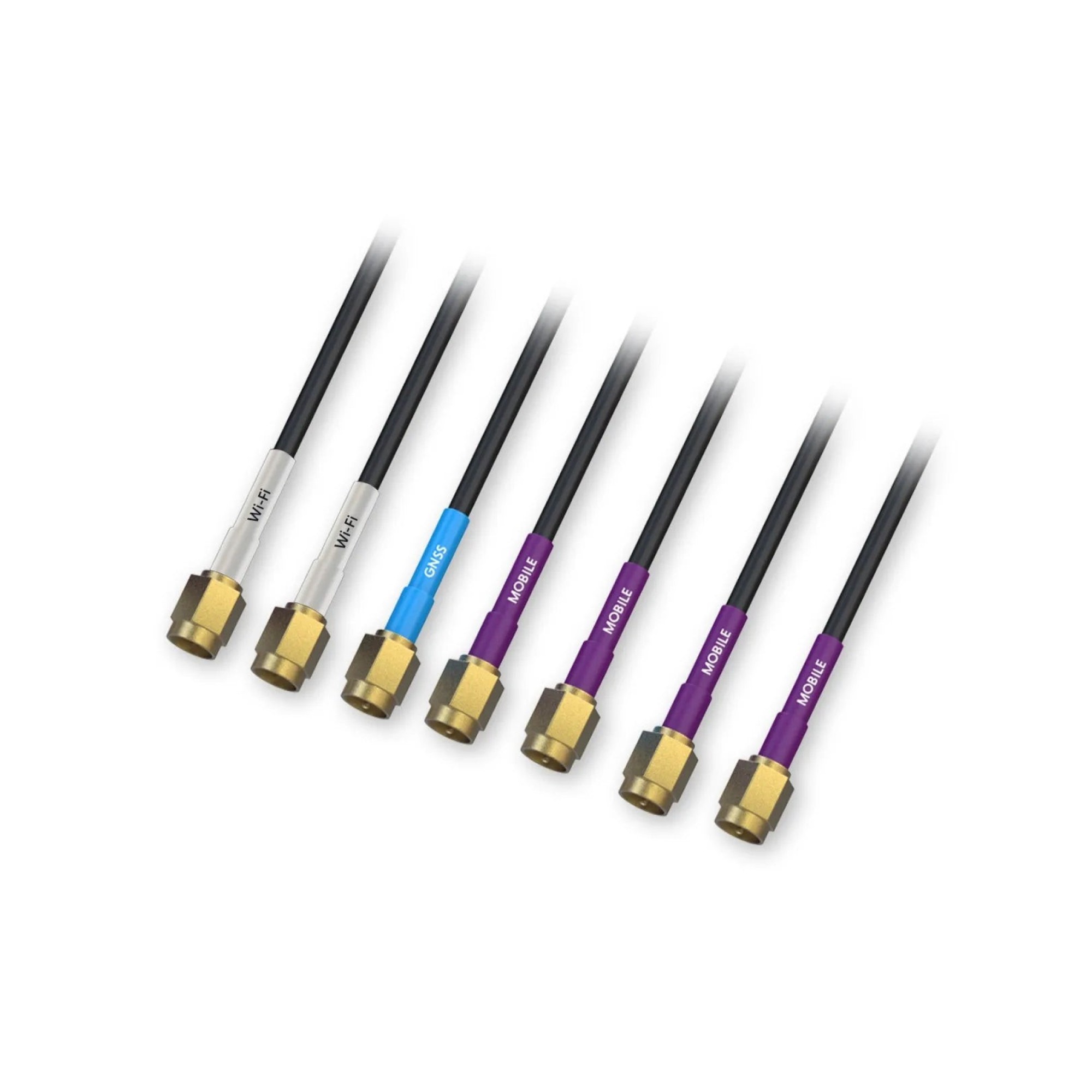

Jungtys: 4× SMA (mobile), 2× RP-SMA (Wi-Fi), 1× SMA (GNSS)
Apsaugos klasė: IP67 (atspari lauko sąlygoms) (išskyrus kabelio išėjimą)

TECHNINIAI DUOMENYS

Compatible with RUTX50, TRB500

Produkto specifikacijos:

5G MOBILE MIMO ANTENNA
Frequency Range: 617 - 960 / 1710 - 2690 / 2900 - 4200 MHz
Polarization: Linear
Gain: 4.0 dBi
V.S.W.R: ≤3.0
Impedance: 50 Ω
Connector type and count: 4x SMA Male

GNSS ANTENNA
Frequency range: 1164 - 1300 / 1559 - 1610 MHz
Polarization: RHCP
Supply voltage: 3 - 12 VDC
LNA Gain: 40 ± 2 dB
V.S.W.R: ≤2.0
Impedance: 50 Ω
Current Consumption: ≤60 mA
Connector type and count: SMA Male

WIFI MIMO ANTENNA
Frequency range: 2400 - 2483.5 / 4900 - 5925 MHz
Polarization: Linear
Gain: 4.0 dBi
V.S.W.R: ≤2.5
Impedance: 50 Ω
Connector type and count: 2x RP SMA Male

MECHANICAL/ENVIRONMENTAL
Mounting method: Screw
Radome ingress projection rating: IP67 (exclude cable outlet)
Radome material: UV-Resistant ABS/PC
Weight: 960 ± 30 g
Housing dimensions: 189 x 182 x 85 mm
Cable: 7 x LMR100, 3000 mm
Recomended mounting dimensions: Hole ø28 mm, panel thickness MAX 8 mm
Operating temperature: -40 °C - +85 °C
RoHS Compliant: Yes
