GROUND ZERO GZPC 16.3SQ-ACT KOMPONENTINIAI GARSIAKALBIAI
- Gamintojas: GROUND ZERO
- Kategorijos: 16.5CM GARSIAKALBIAI GARSO KOLONĖLĖS AUTOMOBILIŲ GARSO APARATŪRA
-
1,349.00€
- Kaina be PVM: 1,114.88€

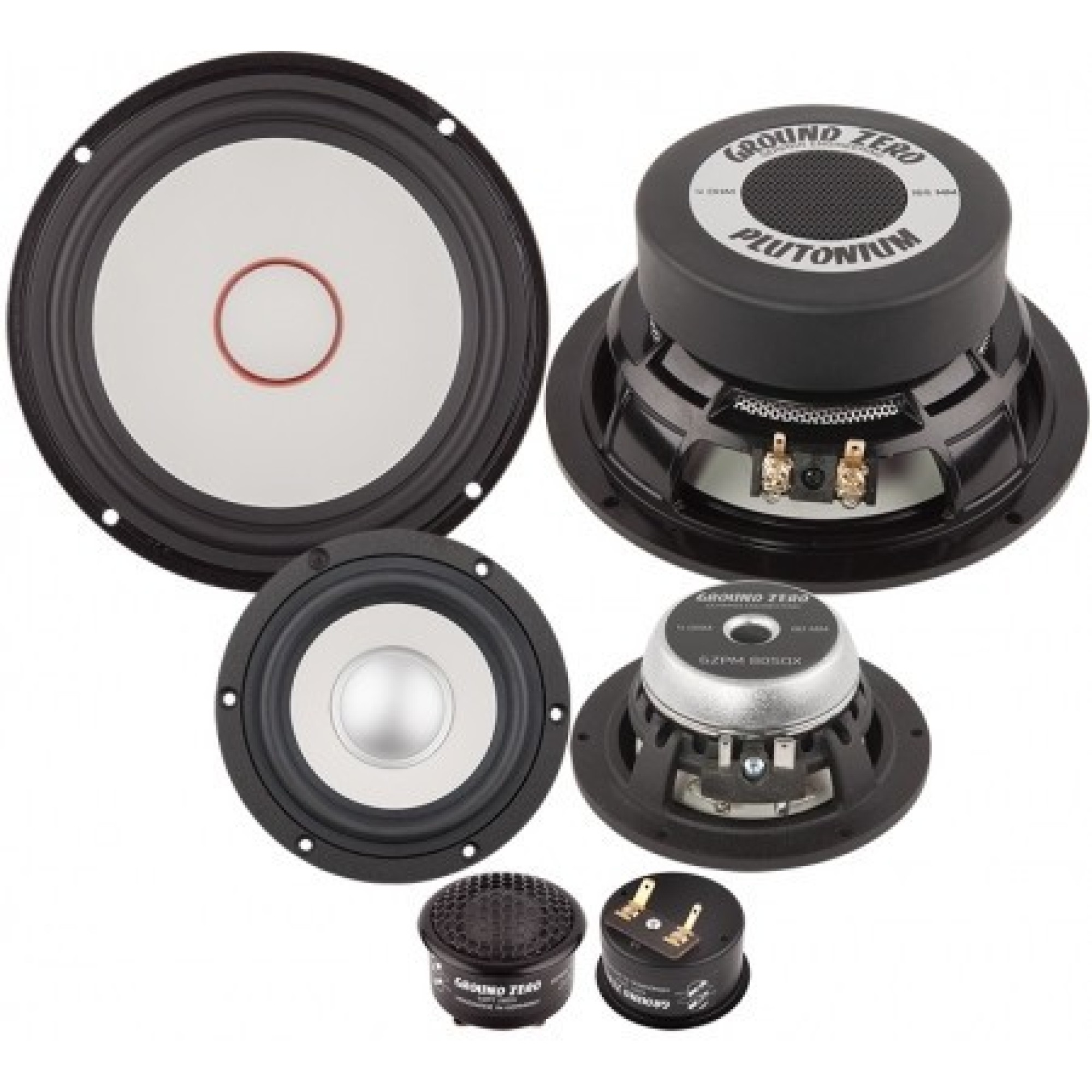

Ground Zero GZPC 16.3SQ-ACT Komponentiniai garsiakalbiai
Features
- 6.5” Woofer with alu-ceramic cone and linearised ferrit motor (GZPK 16SQ)
- 3.15” Midrange with magnesium cone and compact neodym motor (GZPM 80SQX)
- Resonance free cast basket
- Rubber surrounds and connex spiders
- 1.1” tweeter with coupled chamber and 2-layer coated silk dome (GZPT 28SX)
- Speakers verified with the Ground Zero owned Klippel system
| Technical data |
Model
GZPC 16.3SQ-ACT
Type
3 Wege Komposystem / 3 Way compo
Diameter of midwoofer or midrange
165 mm / 6.5" (Woofer) - 80 mm / 3.15" (Mid)
Mounting diameter of midwoofer or midrange
143,5 mm / 5.65" (Woofer) - 94 mm / 3.7" (Mid)
Mounting depth of midwoofer or midrange
68 mm / 2.68” (Woofer) - 34 mm / 1.34" (Mid)
Voice coil of midwoofer or midrange
36 mm / 1.42" (Woofer) - 25 mm / 1" (Mid)
Cone of midwoofer or midrange
Alu-Keramik / Alu-ceramic (Woofer) - Magnesium (Mid)
Dustcap / Phaseplug of midwoofer or midrange
Alu-Keramik / Alu-ceramic (Woofer) - IMPP (Mid)
Basket of midwoofer or midrange
Aluminium Guß / Aluminum cast
Magnet of midwoofer or midrange
Ferrit (Woofer) - Neodym (Mid)
Diameter of tweeter
54 mm / 2.1”
Mounting diameter of tweeter
48 mm / 1.89"
Mounting depth of tweeter
48 mm / 1.89”
Voice coil of tweeter
28 mm / 1.1"
Cone of tweeter
Handbeschichtete Seide / Hand coated silk
Housing of tweeter
Matt schwarz eloxiert / Black matt anodized
Magnet of tweeter
Dual Neodym
Power handling WRMS
130 (Woofer) / 70 (Mid) / 100 (TW)
Power handling W peak
210 (Woofer) / 110 (Mid) / 150 (TW)
Impedance
4 Ohm
SPL
90 (Woofer) / 87 (Mid) / 90 (TW)
Frequency response
30 - 30000 Hz
