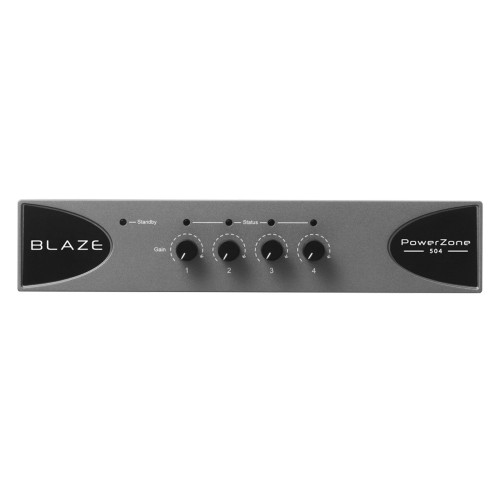

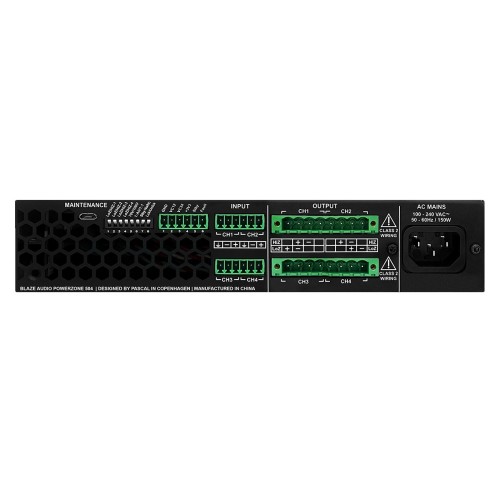

BLAZE POWERZONE 504, 4 KANALŲ STIPRINTUVAS 500 W
- Gamintojas: BLAZE
- Kategorijos: 100V STIPRINTUVAI STIPRINTUVAI NAMAMS
-
729.00€
- Kaina be PVM: 602.48€
Blaze PowerZone 504 - tai 500 W galingas, 4 kanalų, netaškinis (non-networked) D klasės stiprintuvas, sukurtas profesionaliems audio sistemų naudotojams. Jo kompaktiškas „1U half-rack form factor“ dizainas suteikia aukštos kokybės garso sprendimą net ir ribotose erdvėse.
Kompaktiškas 1U dydis – tinka profesionalioms instaliacijoms.
Hibridinis galios paskirstymas – palaiko tiek Lo-Z, tiek Hi-Z garsiakalbius.
Lankstus galios paskirstymas – efektyvus energijos valdymas tarp kanalų.
Pascal UMAC™ technologija – užtikrina aukštą garso kokybę ir efektyvumą.
DIP jungikliai – leidžia greitai konfigūruoti veikimo nustatymus.
GPIO sąsaja – nuotolinis garsumo ir budėjimo režimo valdymas.
Ekonomiškas energijos naudojimas – atitinka ErP ir Energy Star standartus.
Patikimumas ir ilgaamžiškumas – UL sertifikatas.
APRAŠYMAS
PowerZone™ series
PowerZone™ is a series of non-networked Class-D installation amplifiers engineered for professionals who demand affordable, reliable, high-performance audio power.
Key features include flexible configuration options that allow each output channel to be independently set to drive either Lo-Z or Hi-Z loads, enabling you to tailor your system to drive both types of loudspeakers from a single unit. Additionally, the PowerZone™ series’ power-sharing technology (exclusive to the 252 and 504 models) intelligently distributes the total available power across channels, ensuring optimal performance and reliability.
With full rack support and adaptable desk and wall mount brackets, the PowerZone™ series offers unparalleled installation versatility in a compact form factor that seamlessly fits into spaces where other amplifiers may fall short.
TECHNINIAI DUOMENYS
Total System Power
500 W
Output Power @ 4/8Ω
4 x 125 W
Output Power @ 70/100V*
4 x 125 W
Powershare (up to) Across all channels**
2 x 250 W
Power Consumption
150W
Dimensions
44.5 x 220 x 337 mm
(1.75 x 8.66 x 13.27 in)
Weight
2.4 kg (5.3 lbs)
Output Circuitry
UMAC™ Class D – full bandwidth PWM modulator with ultra-low distortion
Output Voltage
45Vrms (S.E) – 70/100V (Hi-Z)
Signal To Noise-Ratio
> 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load)
THD+N (typical)
< 0.05 % (20 Hz – 20 kHz, 8 Ω load, 3 dB below rated power)
Frequency Response
20 Hz – 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power)
Protection Circuits
Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection
Power Supply
UREC™ universal mains switch mode power supply with Power Factor Correction (PFC)
and integral standby converter
Operating Voltage/Frequency.
Universal Mains, 100-240V, 50-60Hz
Standby Consumption
< 0.5 W (Energy Star & ErP 1275/2008/EC compliant)
Power Ratings
1% THD @ 120VAC and 230VAC
