CLICKTRONIC CASUAL 3.5 MM AUX MP3 SIGNALINIS 1M KABELIS
- Gamintojas: CLICKTRONIC
- Kategorijos: AUX LAIDAI LAIDAI IR MONTAVIMAS NAMAMS
-
9.99€
- Kaina be PVM: 8.26€
Clicktronic Casual 3.5 mm MP3 signalinis kabelis skirtas MP3 grotuvui, iPod'ui ar telefonui.
- Kabelis dengtas PVC danga.
- 24 karatų auksu dengti kontaktai.
- AWG 23.
- OFC varis.
- Varža: 50 Ω.
- Ilgis: 1 m.
APRAŠYMAS

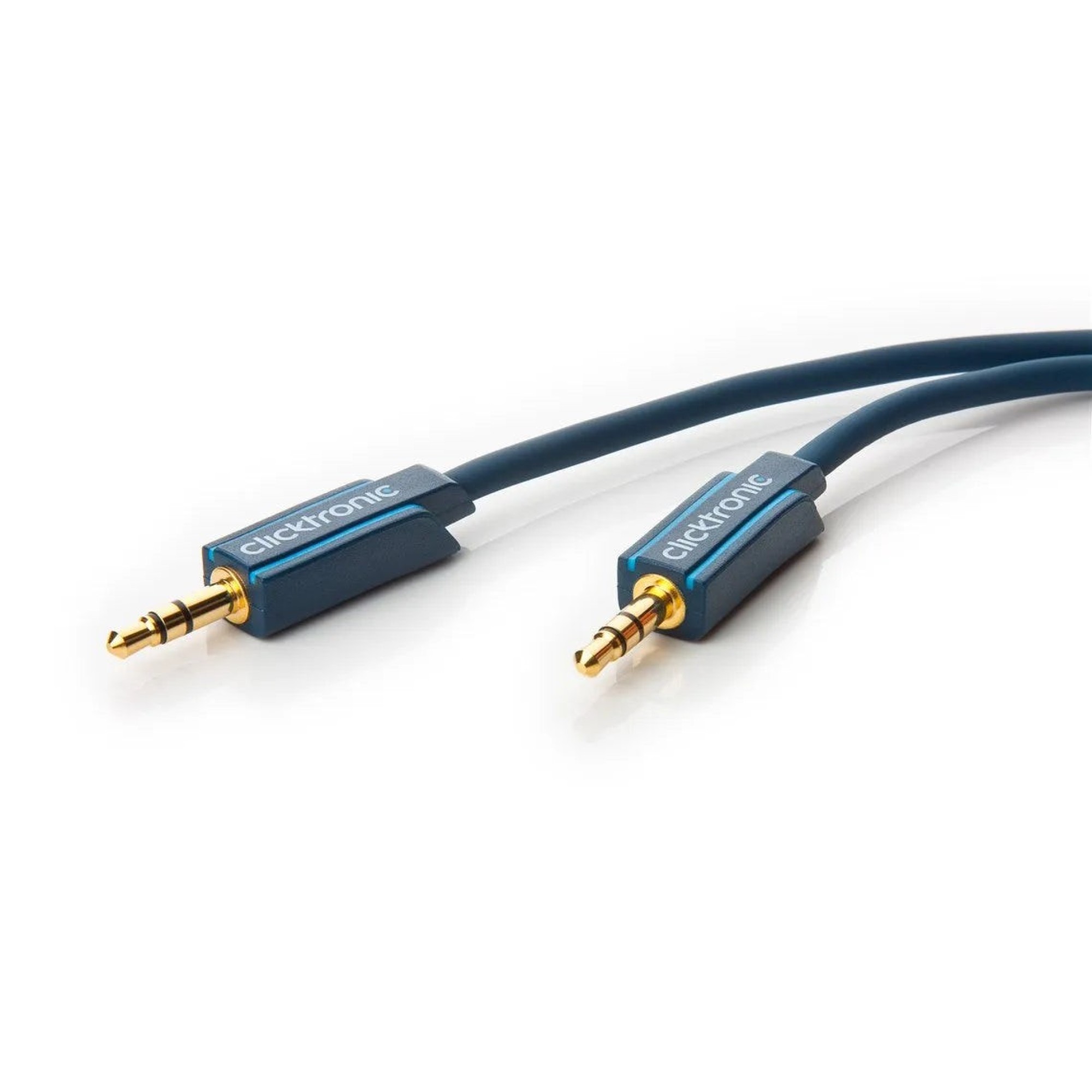

3.5 mm jack cable for MP3 Player, iPod, and Smartphone
The 3.5 mm jack cable provides a convenient option to connect portable audio devices to a HiFi system, mobile speakers, or the car radio. Due to multiple signal shielding, pure materials, and precise workmanship the 3.5 mm audio connection is established in an instant.
- 3.5 mm jack extension for portable audio devices via AUX-In
- pure copper conductor and 2-way shielding for clear signal quality
- 24 carat gold-plated contacts for minimum transmission resistance
TECHNINIAI DUOMENYS
SPECIFIKACIJOS
Connections
- Connection, shielding yes
- Latch protection no
- Connection, type 3.5 mm male (3-pin, stereo)
- Connection 2, type 3.5 mm male (3-pin, stereo)
- Connection, length 30.3 mm
- Connection, width 9.8 mm
- Connection, height 8 mm
- Connection 2, length 30.3 mm
- Connection 2, width 9.8 mm
- Connection 2, height 8 mm
- Connection, housing material PVC
- Connection, contact material gold (24 kt)
Cable
- Cable length 1 m
- Cable type round cable
- Inner conductor material OFC (99,9% oxygen-free copper)
- AWG 23
- Number of shieldings 2 x
- Type 2, shielding braid (copper) 42x
- Cable sheath diameter (approx.) 3.9 mm
- inner conductor, core diameter 0.12
- Inner Conductor number 25 pieces
- Ferrite core no
Signal transmission
- max. bandwidth 10 MHz
- Impedance 50 Ω
- Signal amplification no
- Capacity 155 pF
General
- Packaging type Retail Box
- Consumption Unit 1 pc. in cardboard box
- Markings WEEE, CE
- Operating temperature from -10 °C
- Operating temperature up to 80 °C
- Warranty 10 years
