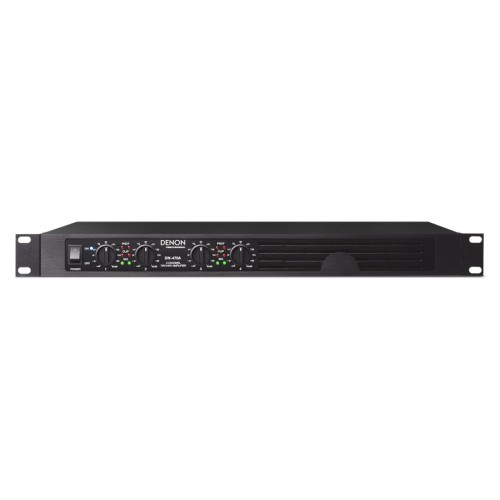

DENON PRO DN-470A 4-TURIŲ KANALŲ GARSO STIPRINTUVAS DAŽNIŲ JUOSTA 100 HZ - 15 KHZ (0 +/-1 DBV), JAUTRUMAS 0.9 - 1.1 V (0 +/-1 DBV)

Profesionalus stiprintuvas skirtas įmontuotiems garsiakalbiams!

The DN-470A 4-Channel 70V/100V Amplifier is designed for contractor/install applications, and only for installed speaker systems requiring 70V/100V inputs.  This very versatile, one rack space, 120W per channel amplifier has built-in short-circuit protection, and LED indicators for signal present, clipping status and thermal interruption on the front panel.  Engineered strictly for the distibution of multiple 70V/100V speaker systems over long cable runs, such as in-ceiling speakers, surface-mount speakers and paging horns.

Savybės

• 4-Channel Class-D amplifier designed for 70V/100V applications
• 120W per channel
• High-current switching power design
• Euroblock inputs and outputs
• Separate gain controls for each channel

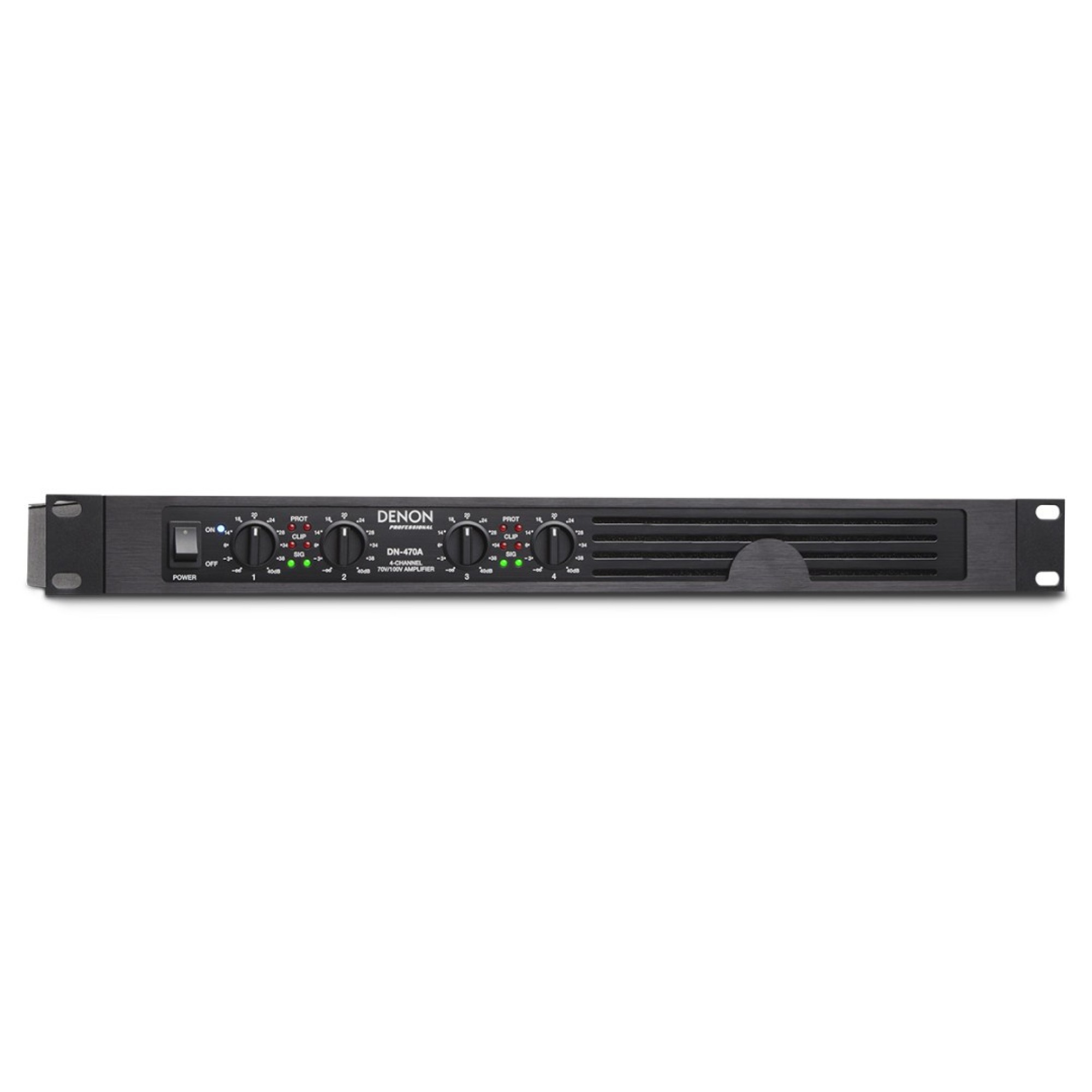

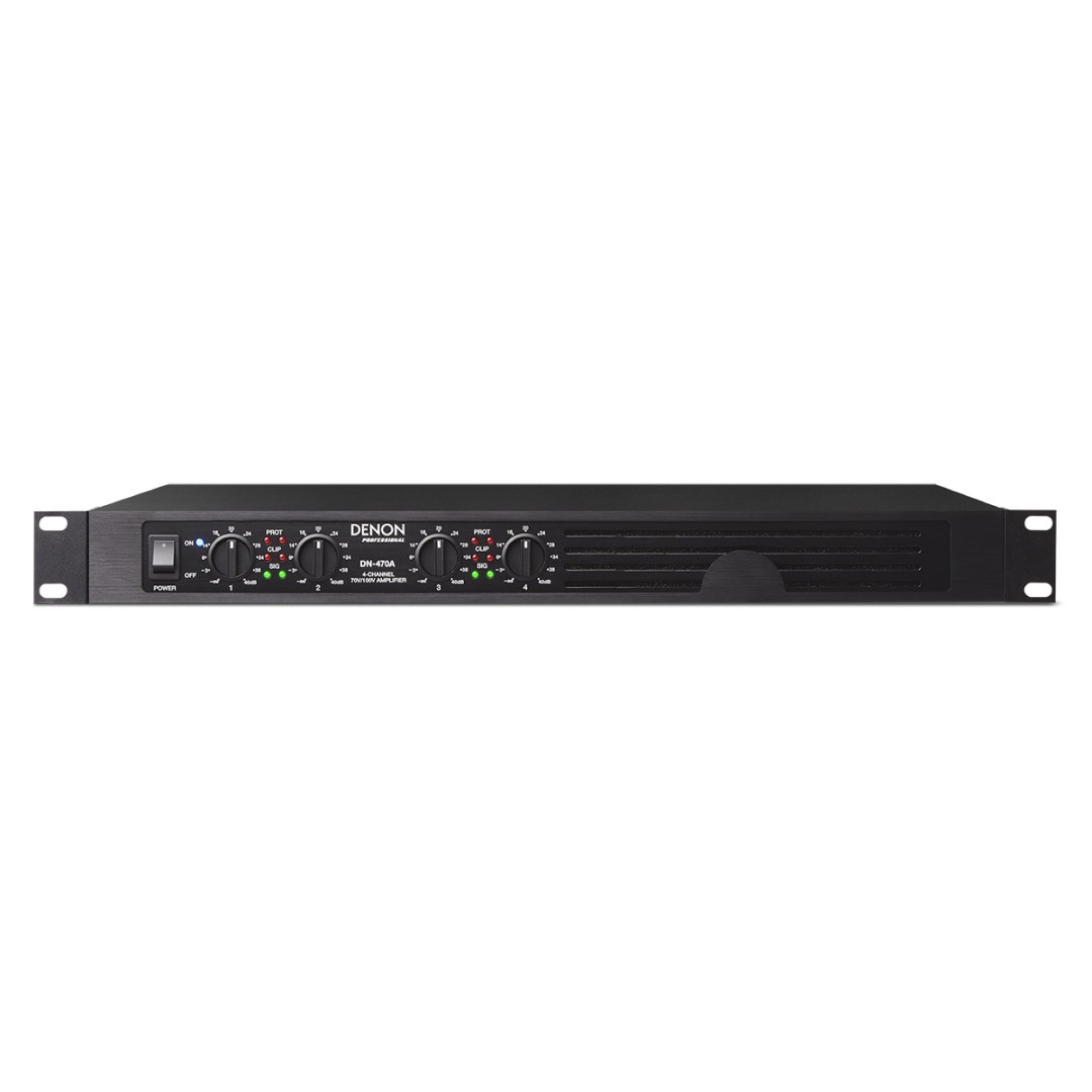

• Signal, clipping and thermal interruption indicators
• Short-circuit and open-circuit protection

Specifikacijos

• Total Harmonic Distortion: < 0.1%
• Frequency Response: 100 Hz - 15 kHz (0 +/-1 dBv)
• Signal to Noise Ratio: > 95 dB
• Channel Separation: > 70 dB
• Input Sensitivity: 0.9 - 1.1 V (0 +/-1 dBv)
• Input Impedance: 20 kΩ balanced or 10 kΩ unbalanced

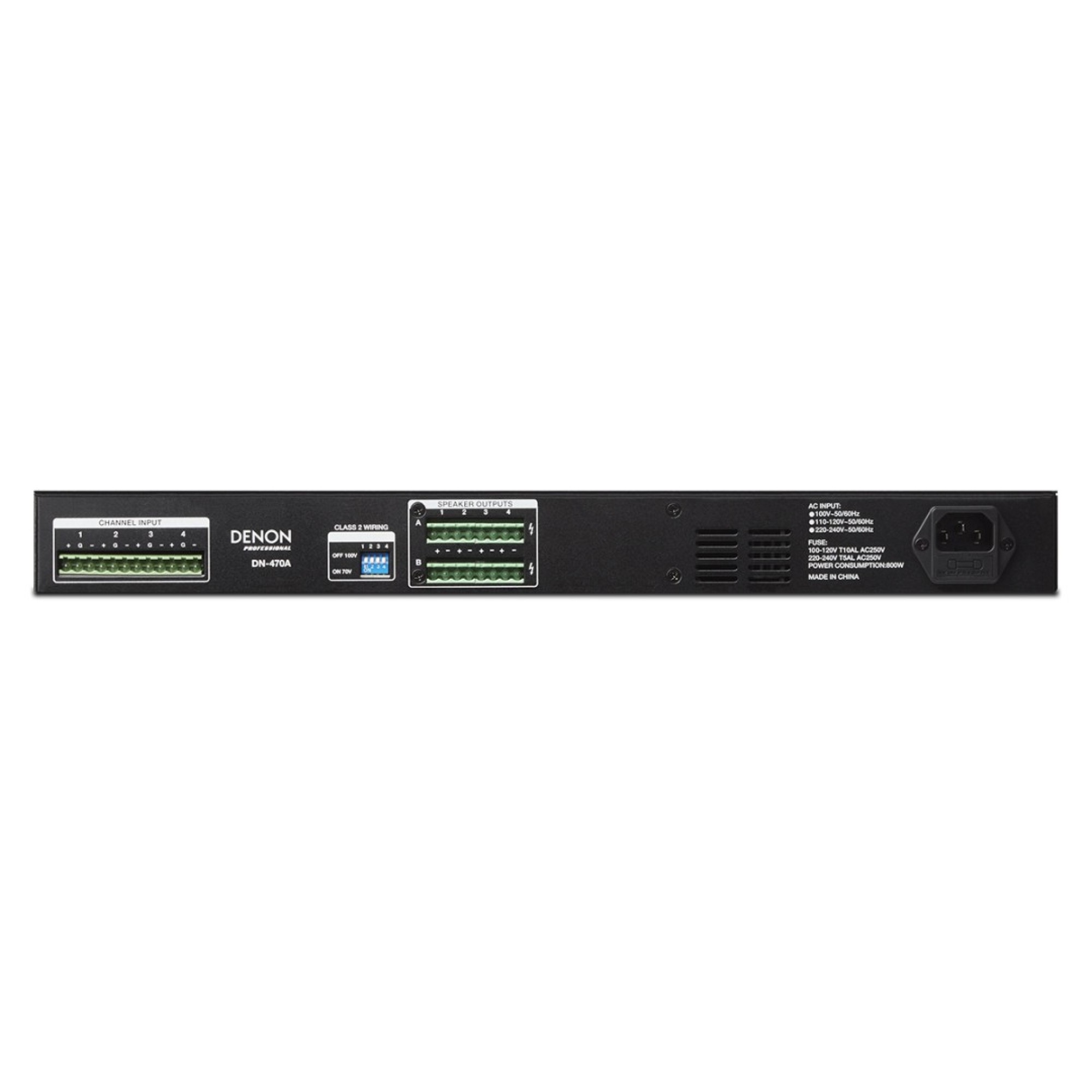

• Connectors

  • (8) Euroblock channel outputs - (2) per channel (70V, 100V)
  • (4) Euroblock channel inputs (ground, -, +)
  • (1) IEC AC power inlet

• Power

  • Connection: IEC
  • Input Voltage: 100 - 240 VAC, 50/60 Hz
• Dimensions: 19.0"w x 11.1"d x 1.7"h (483 x 281 x 44
