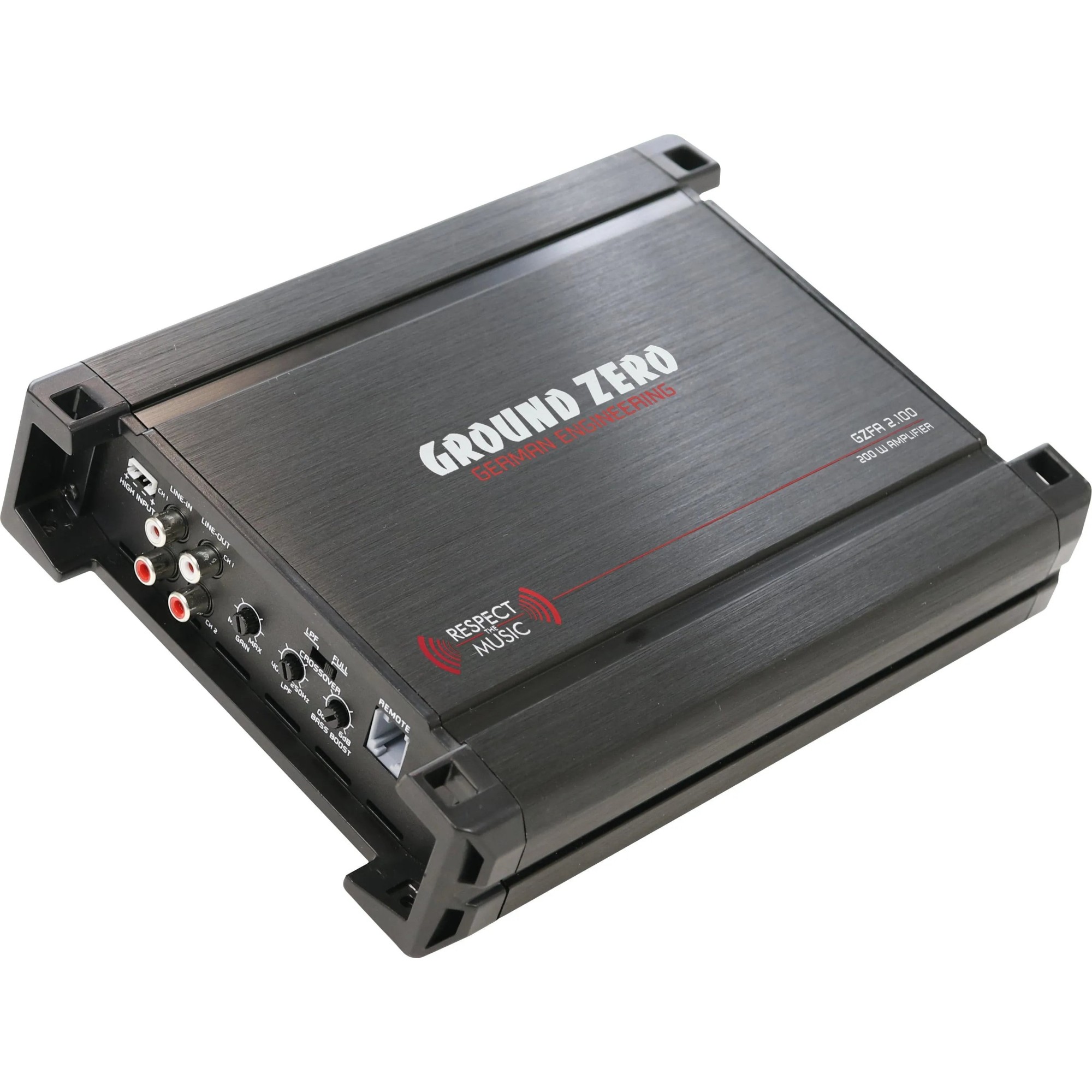

GROUND ZERO GZFA 2.100, AUTOMOBILINIS GARSO STIPRINTUVAS

GZFA 2.100 yra kompaktiškas 2 kanalų AB klasės pradinio lygio stiprintuvas.

• Galia (RMS) @ 2 Ω: 2x 85 W (1% THD+N).

• Maksimali jungiamoji galia @ 4 Ω: (10 % THD+N): 1x 200 W (10 % THD+N).

• Žemųjų dažnių filtras: 40 Hz - 250 Hz (12 dB/oct).

• Aukštųjų dažnių filtras (ikigarsinis): nėra.

• Dažnių diapazonas: 15 Hz - 22 kHz.

• Signalo ir triukšmo santykis (SNR): 93 dB.

APRAŠYMAS

The GZFA 2.100 is a compact 2-channel AB class
entry-level amplifier.

The physical size of these amplifiers is small, making installation painless in almost any car.

The amplifiers also have speaker-level inputs, so they can also be connected to the rear of the car's original player.

Despite their small size, these amplifiers pack a lot of useful features and plenty of power without compromising on sound quality!

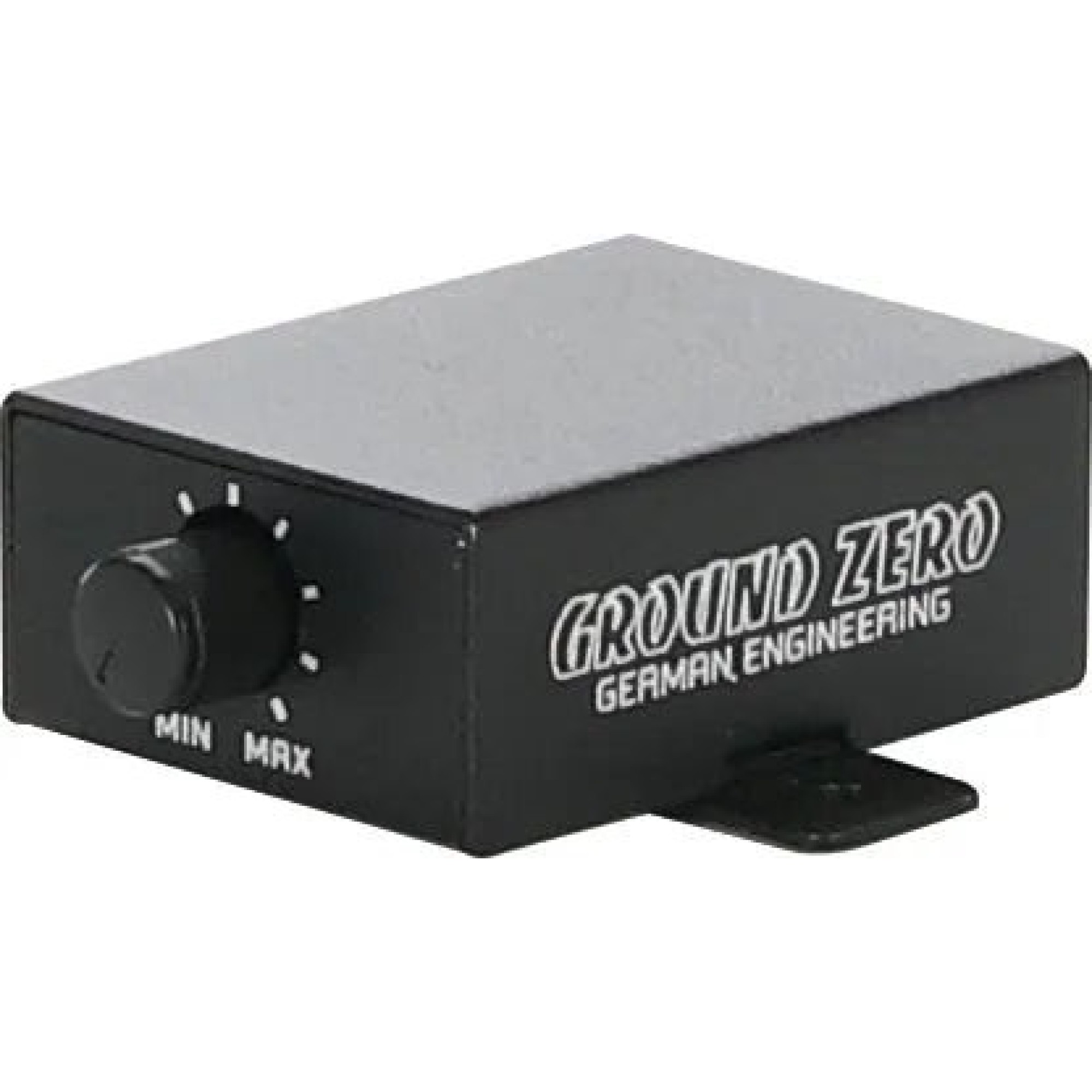

A wired level control ( GZCS REMOTE ) is also included, making it easy to adjust the level of the amplifier.

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

• Amplifier type: 2-channel

• Output power (RMS) @ 4 Ω: 2x 65 W (1% THD+N)

• Output power (RMS) @ 2 Ω: 2x 85 W (1% THD+N)

• Max. bridged power @ 4 Ω: 1x 200 W (10% THD+N)

• Low pass filter: 40 Hz – 250 Hz (12 dB/oct)

• High pass filter (subsonic): n/a

• Frequency range: 15 Hz – 22 kHz

• Signal-to-Noise ratio (SNR): 93 dB

• Overall distortion (THD+N): 0.1%

• Input sensitivity: 200 mV – 4 V

• Rec. speaker wiring: ≥1.5 mm2 / 16 AWG

• Recommended power wiring: ≥10 mm2 / 8 AWG

• Fuse(s): 30A

• Dimensions: 180 x 53 x 237 mm.
