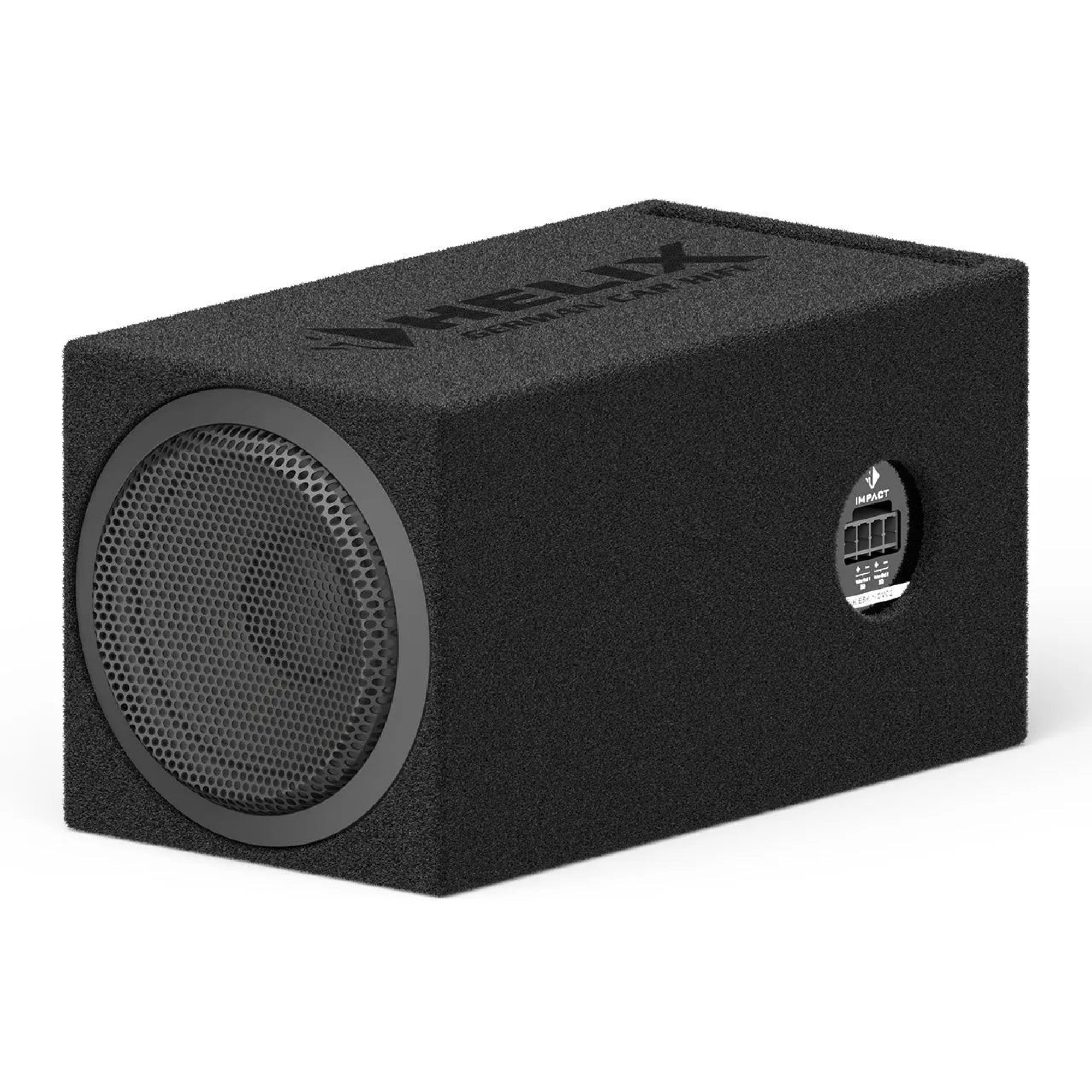

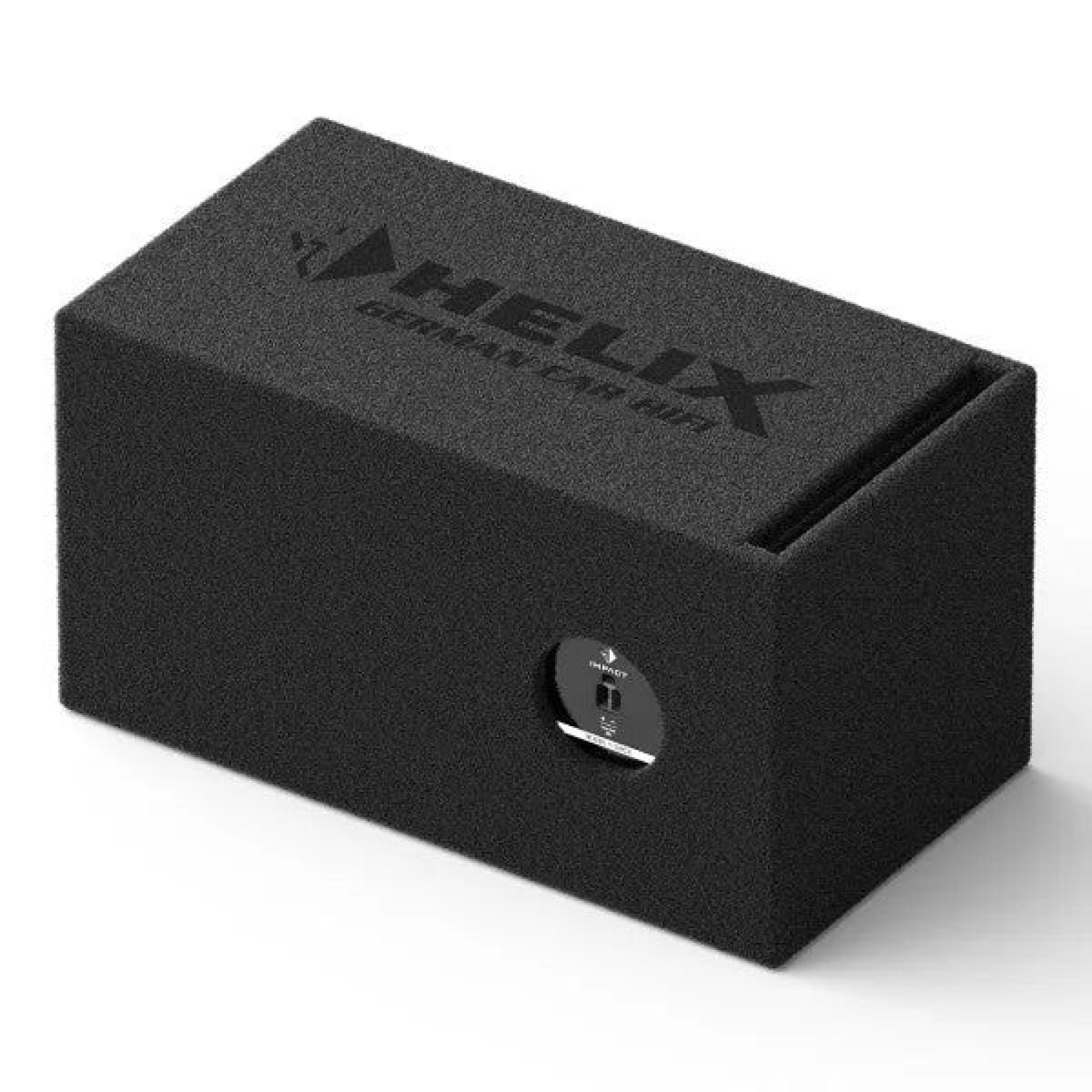

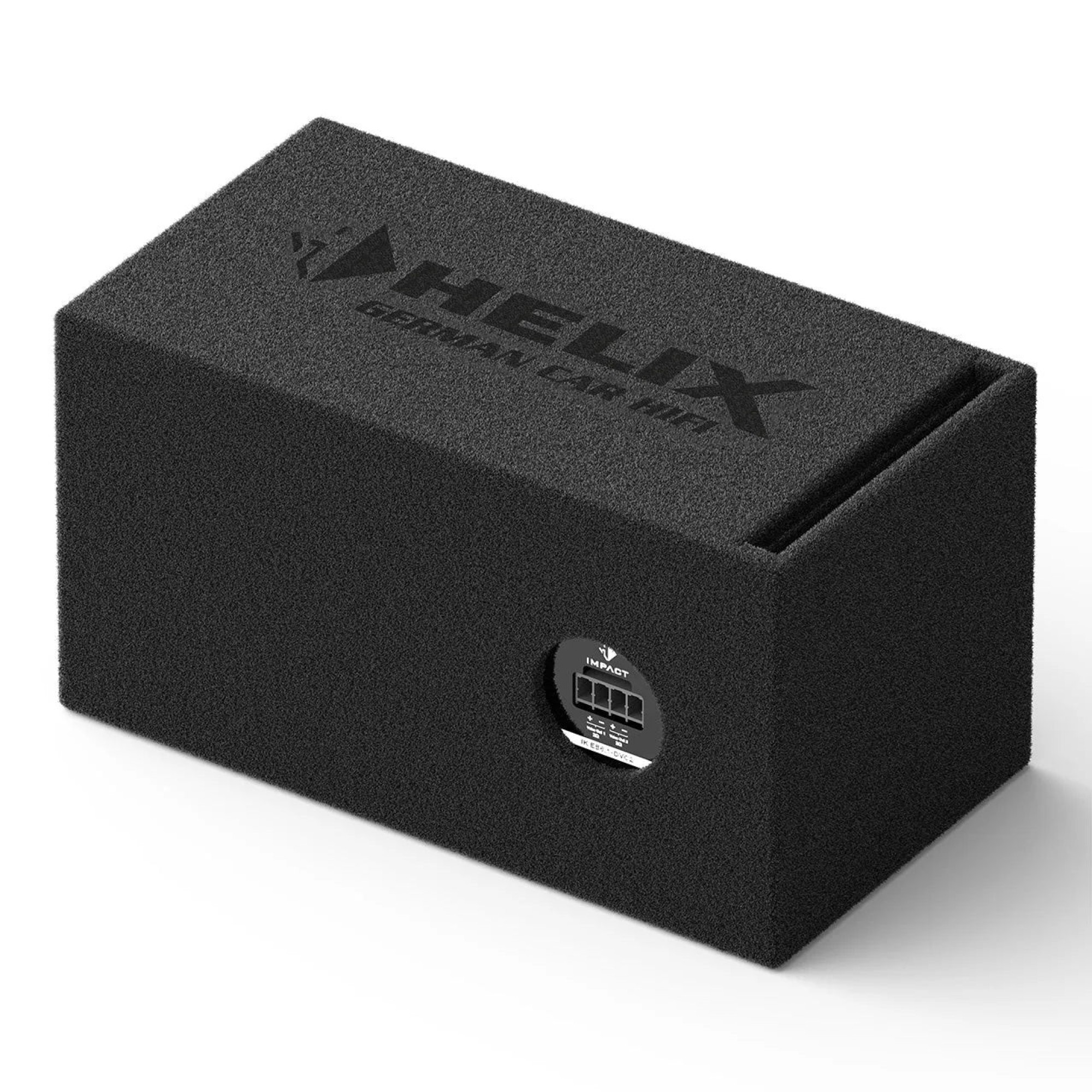

HELIX IK EB6.1, KOMPAKTIŠKA ŽEMŲ DAŽNIŲ KOLONĖLĖ AUTOMOBILIUI, 150W

HELIX IK EB6.1 - įrodo, kad išskirtinį žemųjų dažnių atkūrimą galima pasiekti itin kompaktiškoje konstrukcijoje. Nepaisant nedidelių matmenų, IK EB6.1 sukuria stulbinantį garso slėgį ir kokybę, prilygstančią daug didesniems žemų dažnių garsiakalbiams. Galimos versijos: 1 × 2 Ω (SVC2) arba 2 × 2 Ω (DVC2), lengvai pritaikysite prie savo stiprintuvo ir išgausite didžiausią galią.

Nominali galia (RMS): 150 W
Rekomenduojama stiprintuvo galia: 75–150 W RMS
Varža: 2 × 2 Ω / 1 × 4 Ω / 1 × 1 Ω; 1 × 2 Ω
Jautrumas: 89 dB (2,83 V/1 m), 86 dB (1 W/1 m);  92 dB (2,83 V/1 m), 86 dB (1 W/1 m)

APRAŠYMAS

The IK EB6.1 proves that outstanding bass performance can come in a remarkably compact package. Thanks to its diminutive design, this subwoofer is the ideal problem solver for particularly space-saving installations, with its form factor making it perfect for integration into unused battery compartments in vehicle interiors.

Compact design, impressive performance
Despite its small dimensions, the IK EB6.1 delivers incredible sound pressure and audio performance comparable to much larger subwoofers. Equipped with a powerful 6” (160 mm) high-excursion woofer featuring an ultra-stiff, hand-scooped paper cone, this subwoofer provides rich, deep bass with impressive dynamics.

Optimized bass reflex enclosure
The sophisticated bass reflex enclosure maximizes sound pressure and low-frequency performance, ensuring a full-bodied bass experience inside the vehicle.

Flexible connection
With the option of a 1 x 2 Ohms (SVC2) or 2 x 2 Ohms (DVC2) configuration, there is a perfect deep bass specialist for every amplifier setup to maximize power output.

Easy installation and robust build
Thanks to the pluggable screw terminal, installation and removal are quick and secure. The sturdy carpet surface with the embroidered HELIX logo adds a touch of style, while the solid metal grille protects the woofer cone from damage, ensuring long-lasting reliability.

Features
Impressive sound pressure and audio performance comparable to larger subwoofers
Ultra-compact subwoofer in car battery format allows installation in unused battery compartments in vehicle interiors
Bass reflex enclosure technology for maximum sound pressure
Powerful 6” / 160 mm high excursion woofer with extremely stiff, hand-scooped paper cone and single voice coil ensures rich, deep bass
1 x 2 Ohms impedance for maximum power output of the amplifier

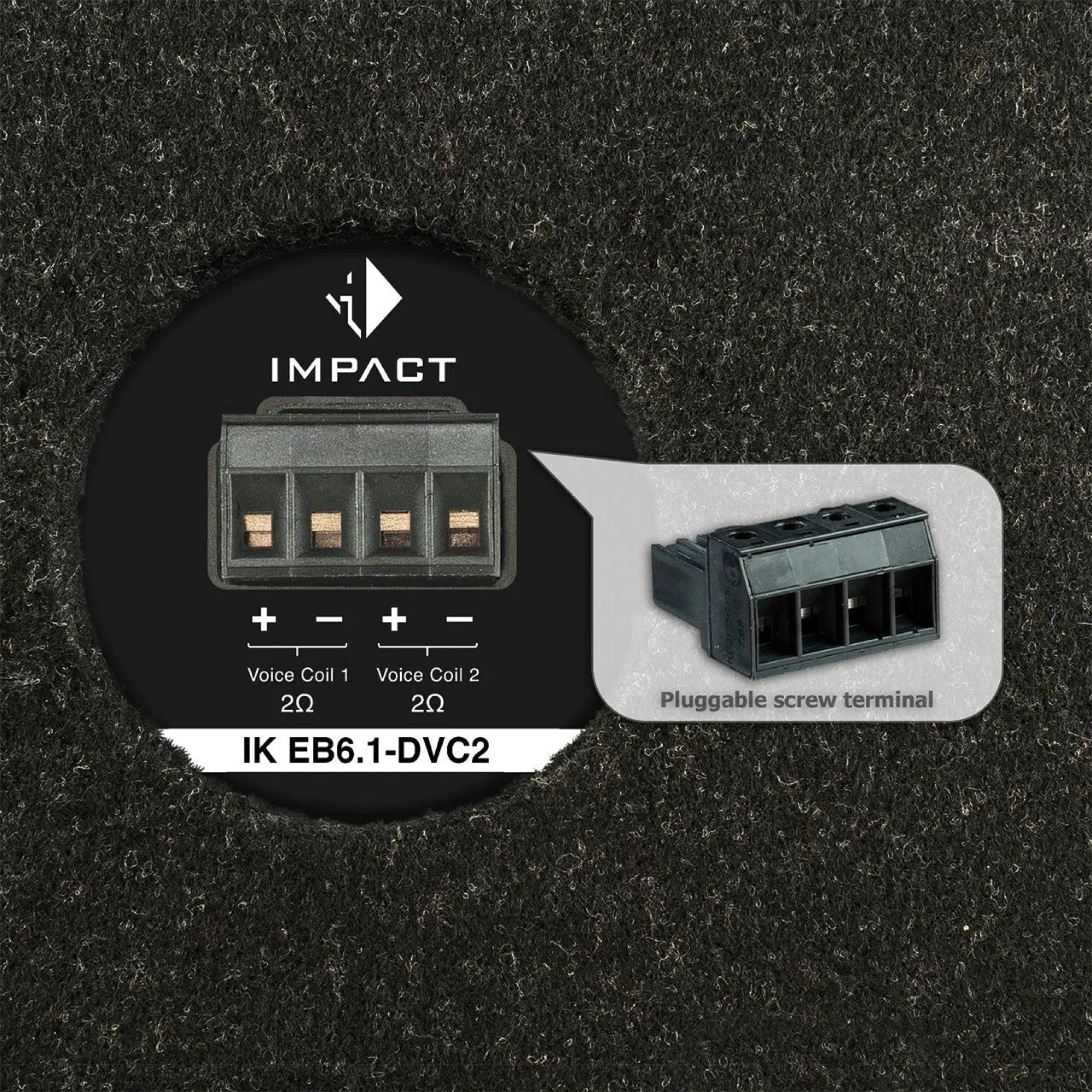

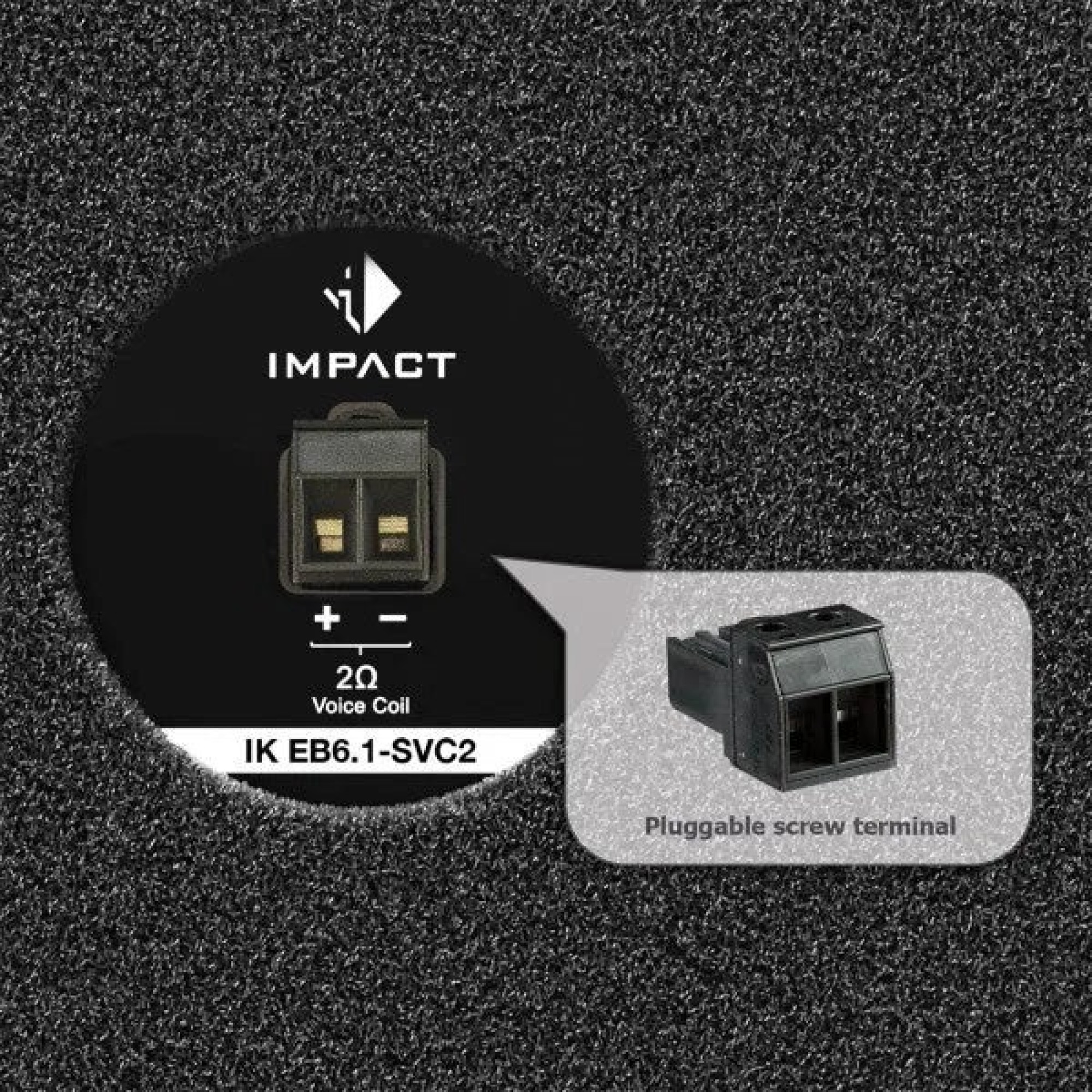

Pluggable screw terminal for quick and safe installation and removal
Sturdy carpet surface with embroidered HELIX logo
Solid metal grille for perfect protection of the woofer cone

TECHNINIAI DUOMENYS

IK EB6.1-SVC2 – 1 x 2 Ohms

Power handling RMS    P    150 Watts
Recommended amplifier power    RMS    75 - 150 Watts
Impedance     z    1 x 2 Ω
Max. linear excursion    Xmax    +/- 6.0 mm
Port tuning frequency    Fb    48 Hz
Sensitivity    SPL    92 dB @ 2.83V / 1m
86 dB @ 1W / 1m
Dimensions (H x W x D)         175 x 175 x 340 mm /
6.9 x 6.9 x 13.4“
Integrated subwoofer chassis         HELIX IK W6-SVC2
Recommended DSP settings         "Self-define" highpass 40 Hz / Q = 1.0;
EQ filter: 55 Hz / Q = 2.0 / -2 dB

IK EB6.1-DVC2 – 2 x 2 Ohms

Power handling RMS    P    150 Watts
Recommended amplifier power    RMS    75 - 150 Watts
Impedance     z    2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
Max. linear excursion    Xmax    +/- 6.0 mm
Port tuning frequency    Fb    48 Hz
Sensitivity    SPL    89 dB @ 2.83V / 1m
86 dB @ 1W / 1m
Dimensions (H x W x D)         175 x 175 x 340 mm /
6.9 x 6.9 x 13.4“
Integrated subwoofer chassis         HELIX IK W6-DVC2
Recommended DSP settings         "Self-define" highpass 40 Hz / Q = 1.0;
EQ filter: 55 Hz / Q = 2.0 / -2 dB
