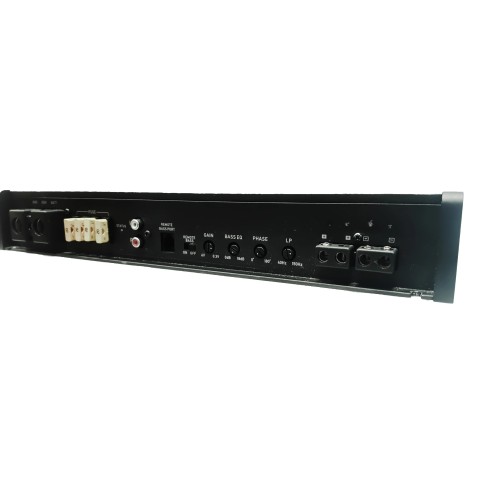

SKAITMENINIS 1 KANALO GARSO STIPRINTUVAS HELIX ESPRIT E10

• Galia RMS / MAX:
  @ prie 4 omų  / 13,8V - 1 x 350W
  @ prie 2 omų  / 13,8V - 1 x 550W
  @ prie 1 omų  / 13,8V - 1 x 700W
• Dažnių diapazonas: 27 Hz - 150 kHz
• Damping faktorius: > 150
• Įėjimo jautrumas: 0.3 - 6 Volts
• Matmenys: 58 x 395 x 217 mm  /  Svoris: 4.5 kg

FUNKCIJOS

• RMI - Real Mixed Input, the system for forming an optimized input signal from the left and right channels;
• Built-in electronic crossover;
• Input 4 V / 6 V for connection of various signal sources;
• Power source for the production of powerful sound within a small space;
• Silent "smart" on / off prevents transients, even if there are other connected devices;
• The system protects against overloads in temperature and current, as well as from voltage drops;
• Separate loudspeaker protection system with current limiter to protect against short circuit to the car body, reduce impedance and improper connection;
• PCB with double-sided copper coating for improved transmission of powerful and weak signals and protection from vibrations;
• ADC - Anti Distortion Choke. System of distortion suppression;
• Precision components with 1% tolerance for high sound quality and maximum power;
• Connectors with gold coating 24 carats to reduce signal loss and supply voltage;
• CPS (Color Protection System) - color indication of protection systems;
• Optimized heatsink for increased efficiency;
• LPF 40 - 150 Hz;

TECHNINIAI DUOMENYS

• Total harmonic distortion (THD) < 0.02 %
• Signal-to-noise ratio > 90 dB
