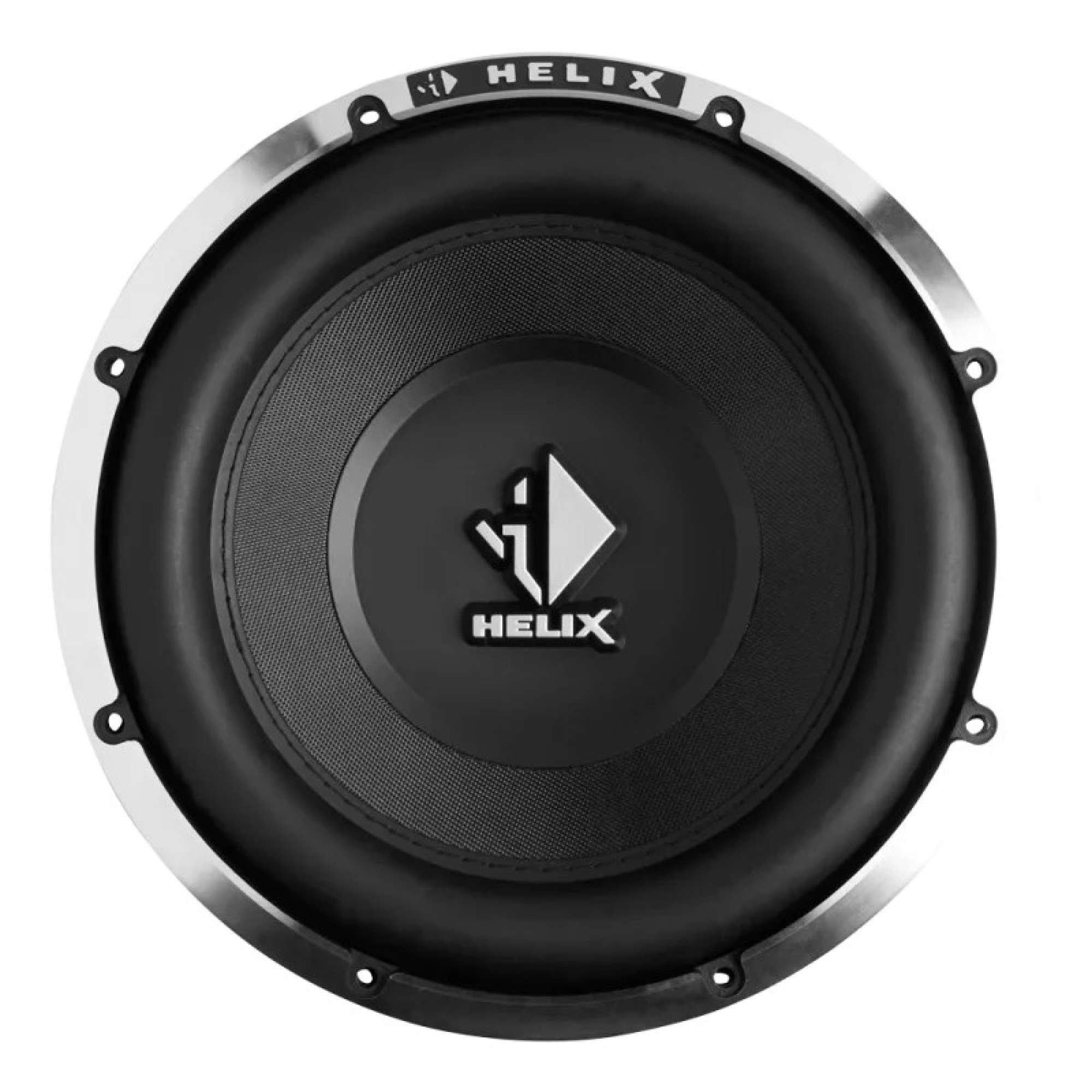

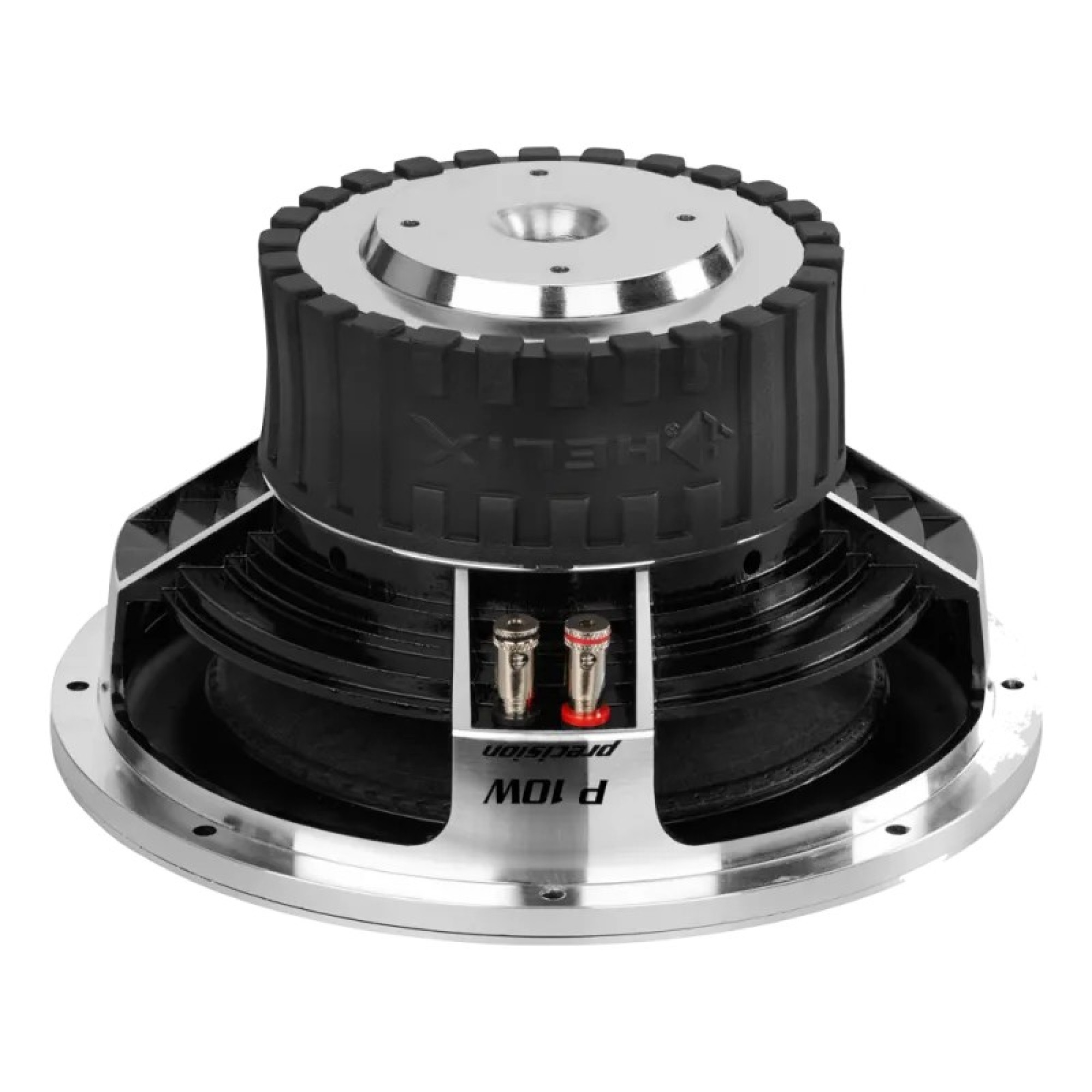

ŽEMŲ DAŽNIŲ GARSIAKALBIS HELIX P 10W, 25CM, 700W

• Galia: RMS 350W  /  MAX 700W
• Varža: 4 omai
• Jautrumas: 86 dB
• Rezonanso dažnis: 25 Hz
• Jėgos faktorius: 13.4 Tm
• Montavimo gylis: 130 mm
• Garso ritės skersmuo: 63.5 mm
• Voice coil winding height: 23 mm

FEATURES

• Concave PP dustcap with embossed HELIX logo
• Long-excursion rubber surround with stitching for highest mechanical rating
• Extremely stiff Kevlar / paper sandwich cone
• Machined aluminum mounting ring to fix the rubber surround
• Double-vented voice coil for minimized compression effects
• Large magnet system for low Qts
• Torsion-free aluminum diecast basket with diamond cut
• Oversized voice coil for maximum electrical power handling and high linear excursion
• Rugged butyl magnet cover with HELIX lettering for perfect magnet protection
• Solid push terminals

TECHNINIAI DUOMENYS

• Max. linear excursion +/- 6.5 mm
• Cone area 346 cm²
• Moving mass 123 g
• DC resistance 2.8 Ohms
• Mechanical Q factor 3.26
• Electrical Q factor 0.30
• Total Q factor 0.28
• Equivalent air volume 50 L
• Voice coil inductance 1.31 mH
• Outer diameter 260 mm / 10.2“
• Cutout diameter 234 mm / 9.2“
• Vented net volume 25 L
• Port diameter 8 cm
• Port area: 50 cm²
• Port length 26 cm
• Port tuning frequency 40 Hz
