MCINTOSH XR50, LENTYNINĖ GARSO KOLONĖLĖ

McIntosh XR50 - tai sumaniai sukonstruota kompaktiška trijų juostų (3-way) lentyninė kolonėlė, kurios skambesys stebina savo pilnavertiškumu ir gilumu, įprastai būdingu kur kas didesniems modeliams. Ši kolonėlė puikiai tinka tiek stereo sistemoms, tiek namų kino teatrui. Rekomenduojama naudoti stiprintuvus, kurių galia – nuo 75 iki 300 W. Papildomas lizdas leidžia perduoti apšvietimo valdymo signalą (Meter Illumination Control) suderinamiems galios stiprintuvams.

Nominali varža: 8 omai
Galingumo diapazonas: 75 – 300 W
Dažnių diapazonas: 40 Hz – 45 kHz
Jautrumas (2,8 V / 1 m): 81 dB

APRAŠYMAS

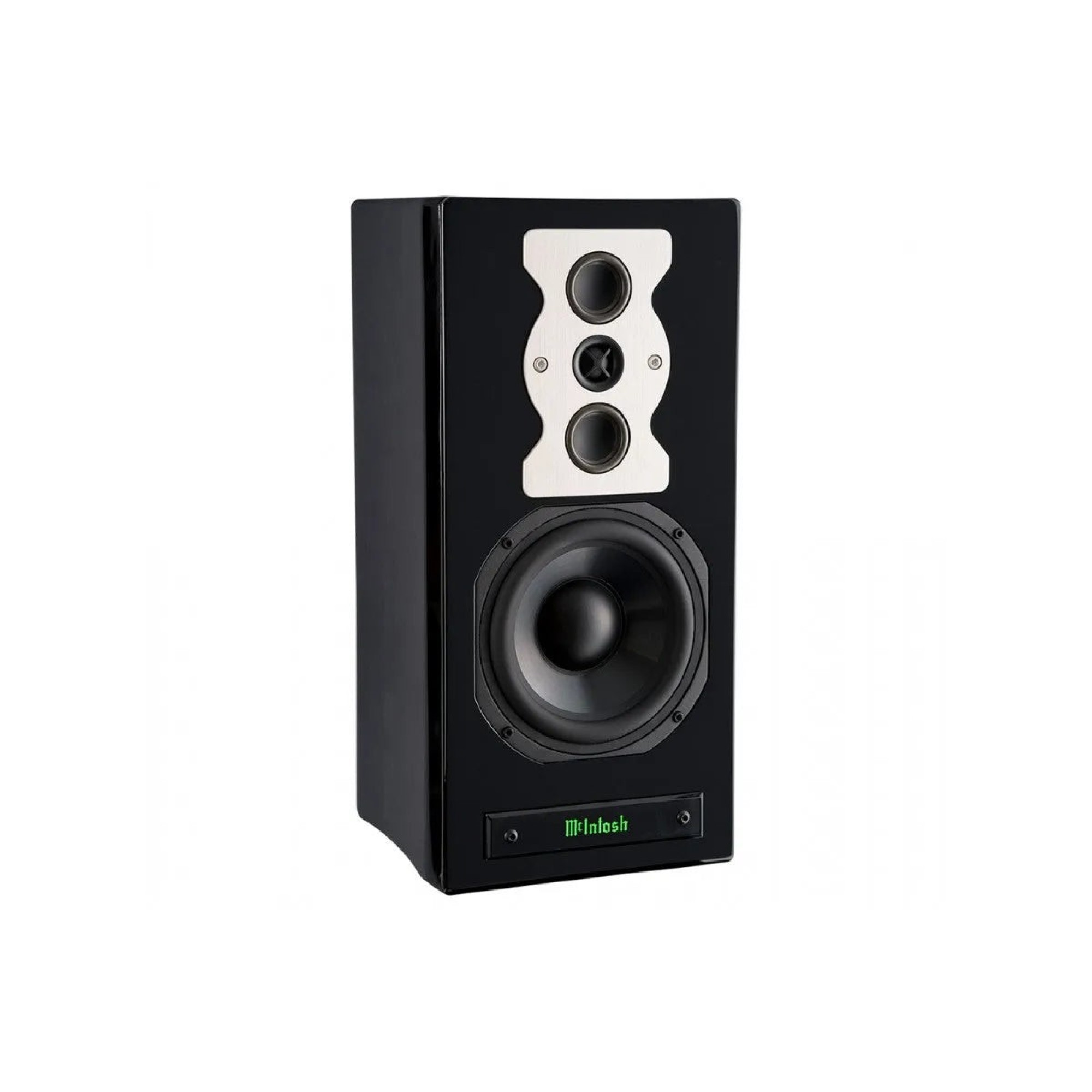

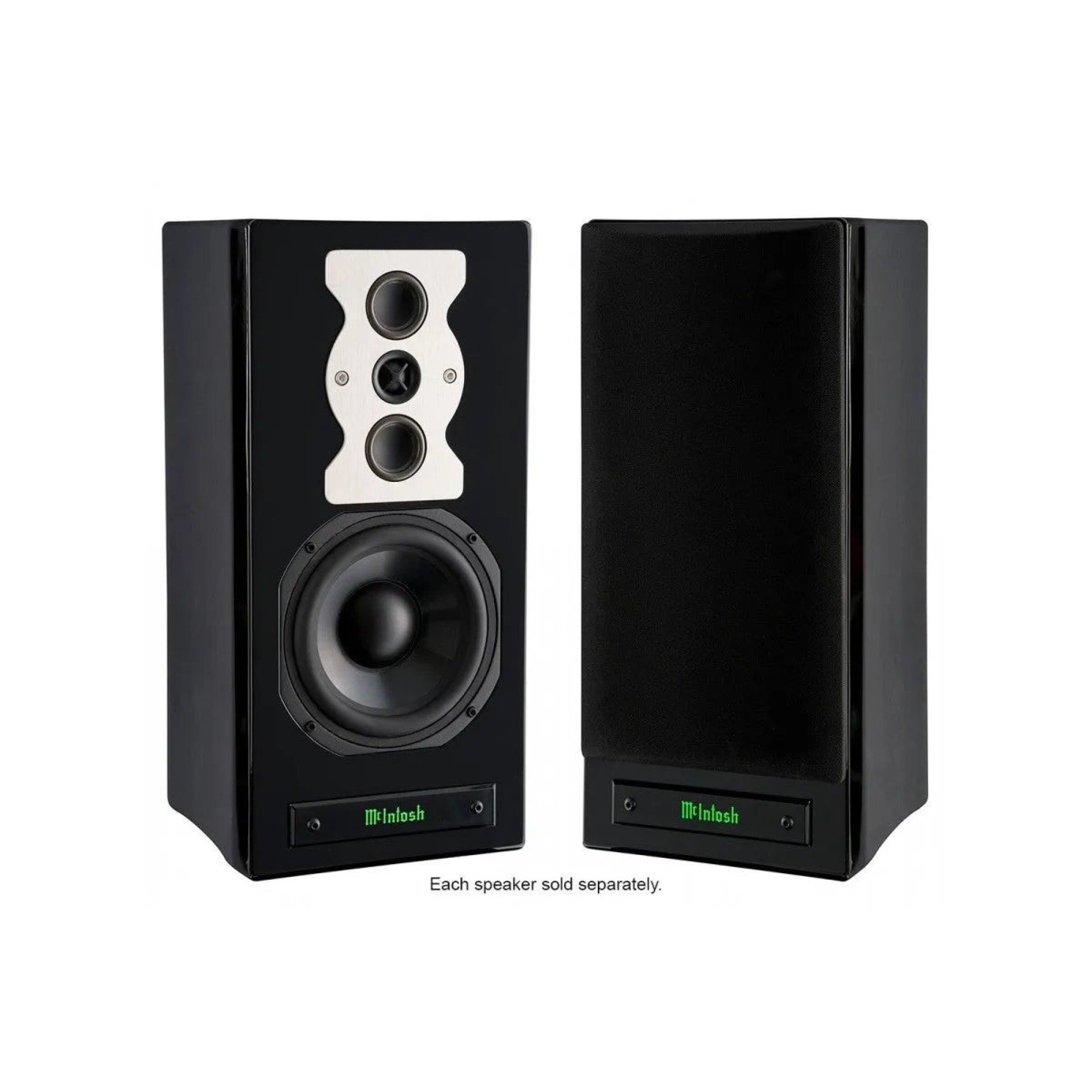

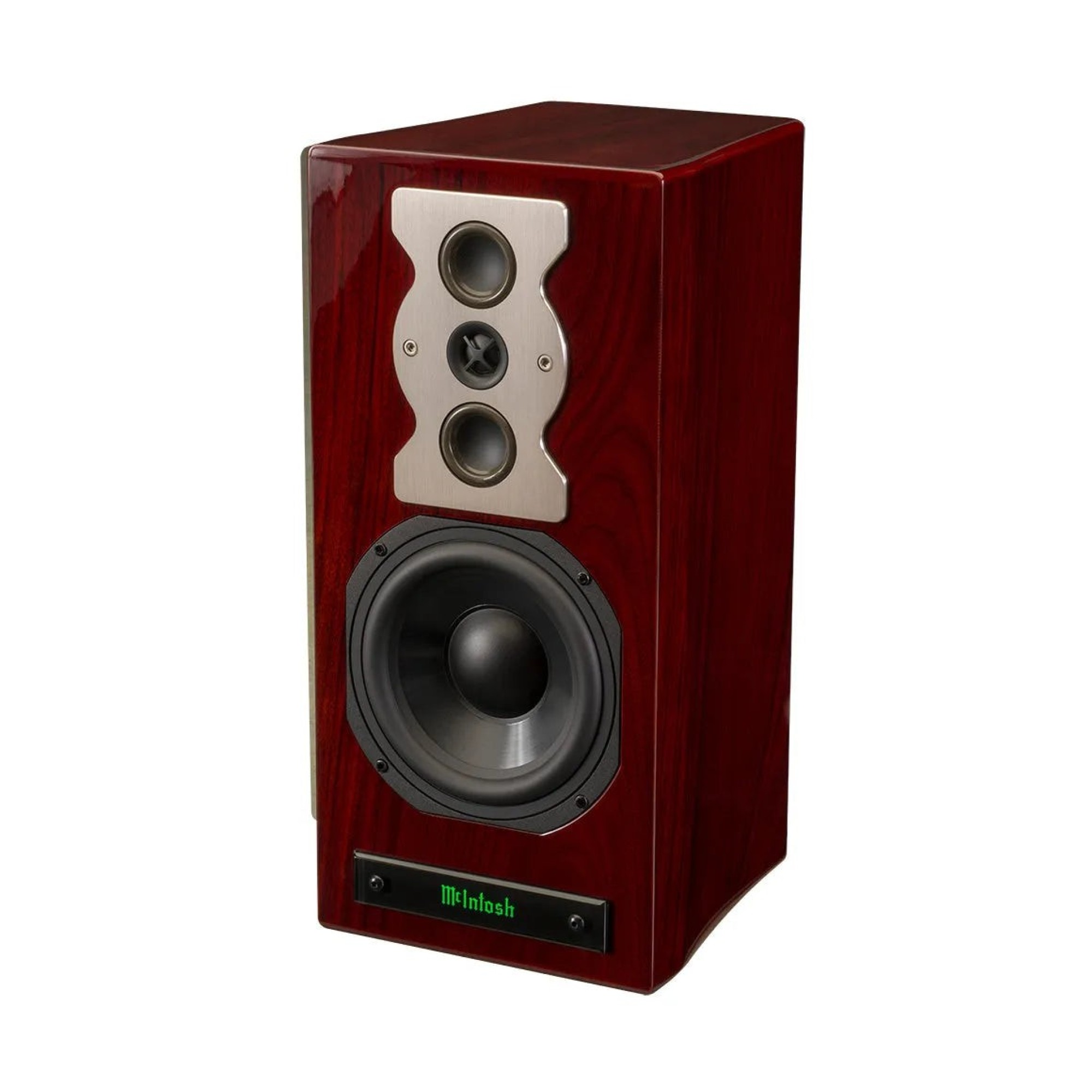

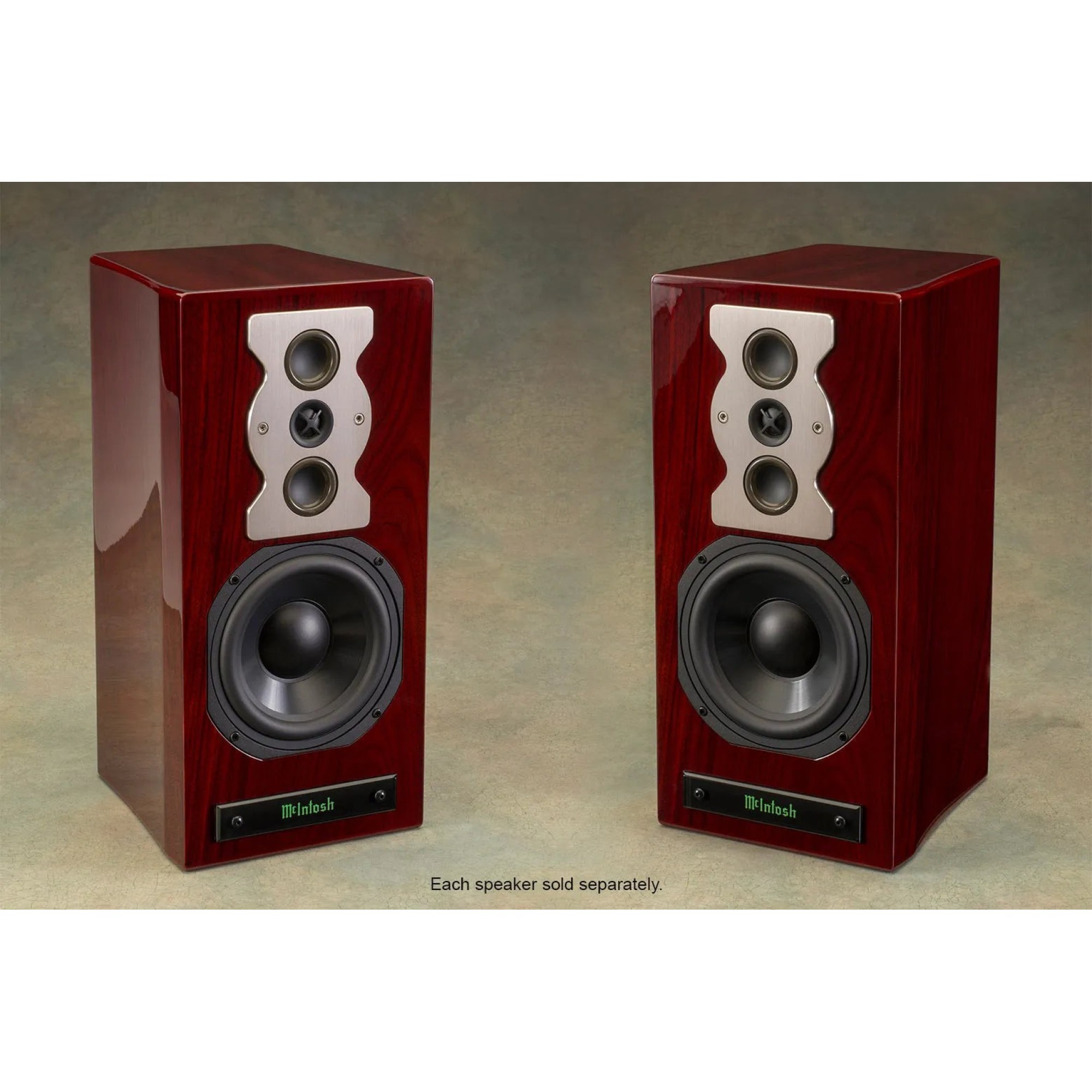

XR50 is a cleverly engineered compact bookshelf speaker that produces the rich, full sound one would expect from much larger speakers. Available with a Red Walnut fine gloss wood finish. The magnetically attached grill is acoustically transparent and covered with a neutral black cloth. Unique front panel McIntosh logo may be illuminated when used with McIntosh components.

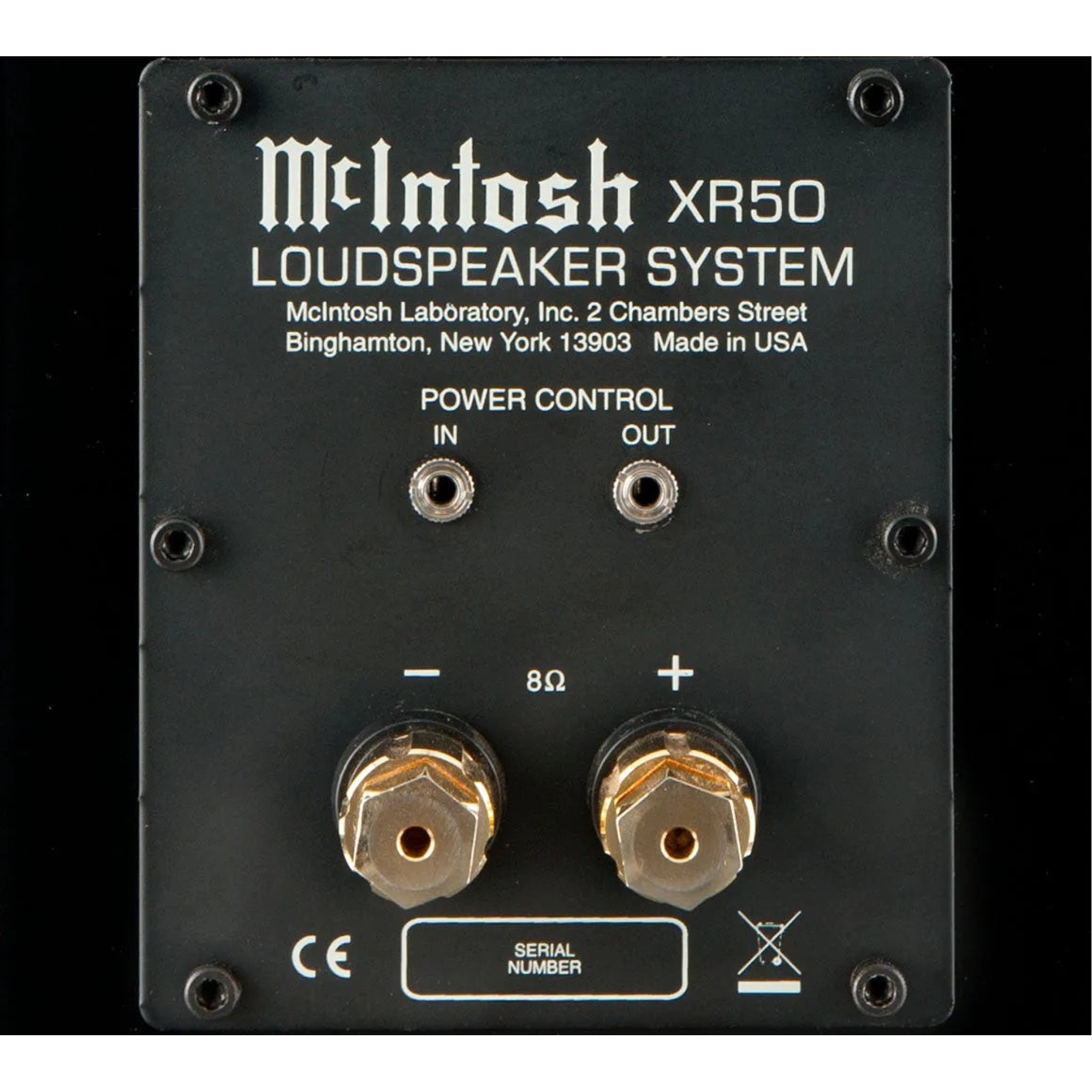

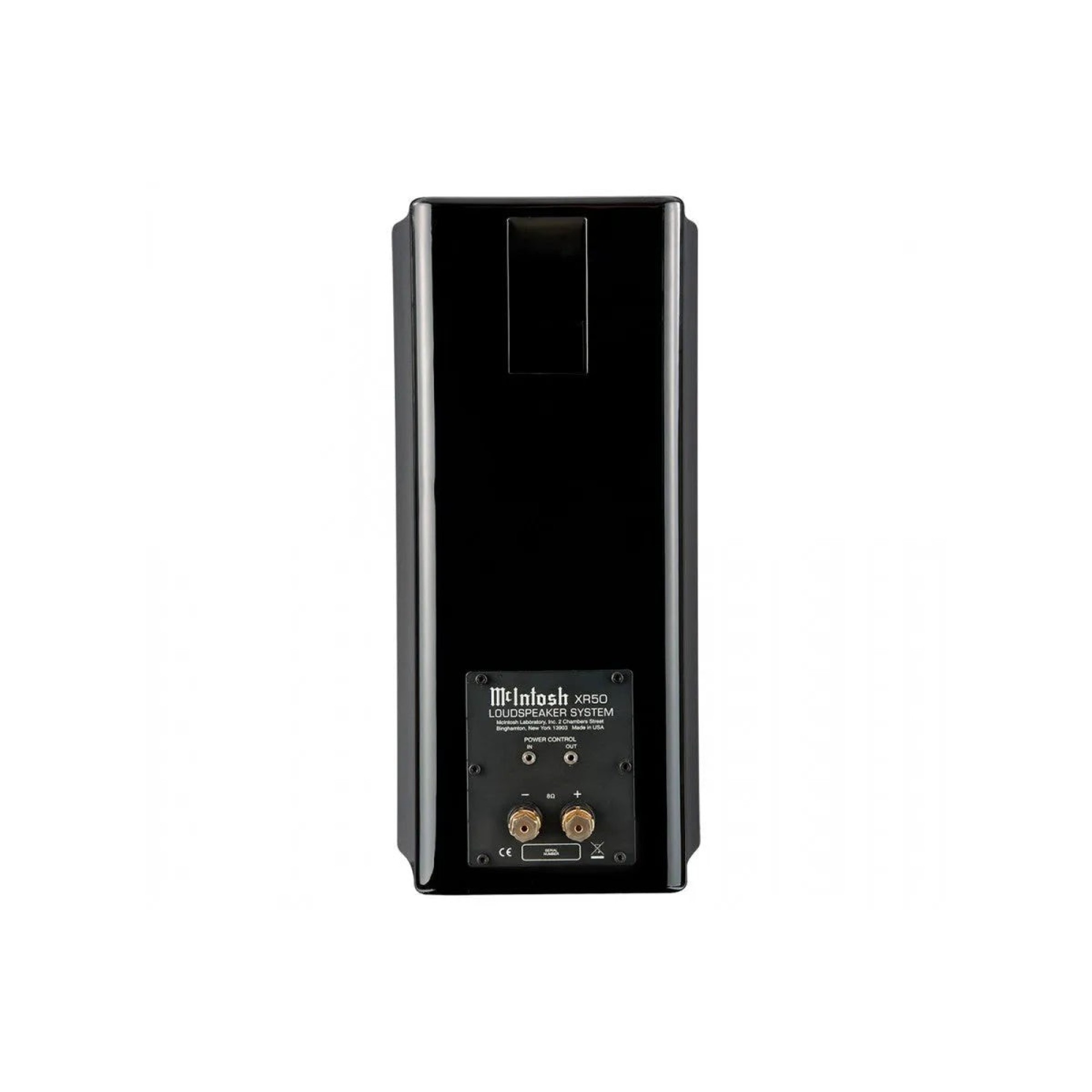

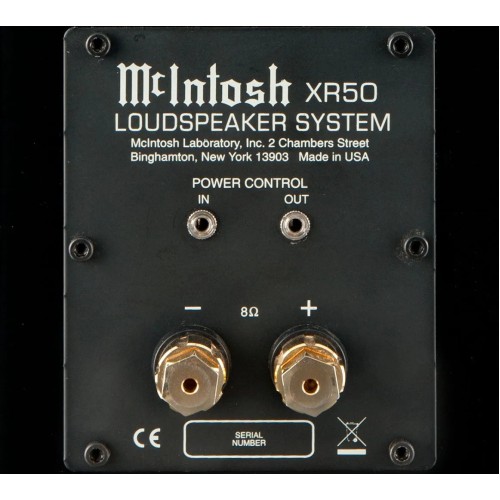

Our patented Solid Cinch^™ speaker binding posts easily but securely attach the speaker cables to prevent them from coming loose and possibly causing a short; they are gold-plated to prevent corrosion and ensure a quality signal is delivered to the XR50.

Amplifiers from 75 to 300 Watts are appropriate power for XR50. An additional connection passes on Meter Illumination Control for compatible power amplifiers. When connecting the XR50 3-way bookshelf speaker to an amplifier, it is important to use cables of adequate size so that there is no signal loss. This bookshelf speaker can be used in both stereo music and home theater systems.

TECHNINIAI DUOMENYS

Electronic Specifications
Impedance Nominal
8 Ohms
Power Rating
75 to 300 Watts
Frequency Response
40Hz to 45kHz
Sound Pressure Level, 2.8V/1m
81dB
Crossover
500Hz, 8kHz
Driver Specifications
Number of Woofers
1
Woofer Size
6"
Woofer Type
Cast Frame, LD/HP®, Poly Cone

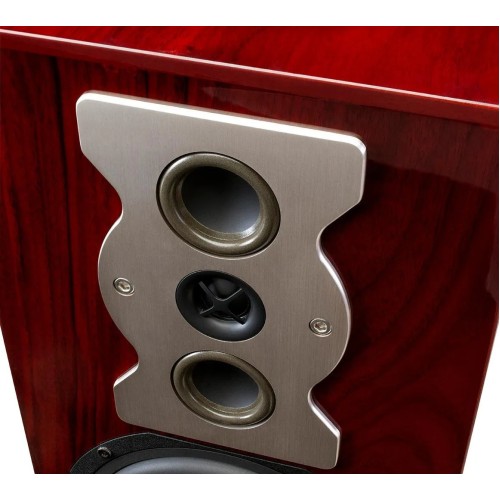

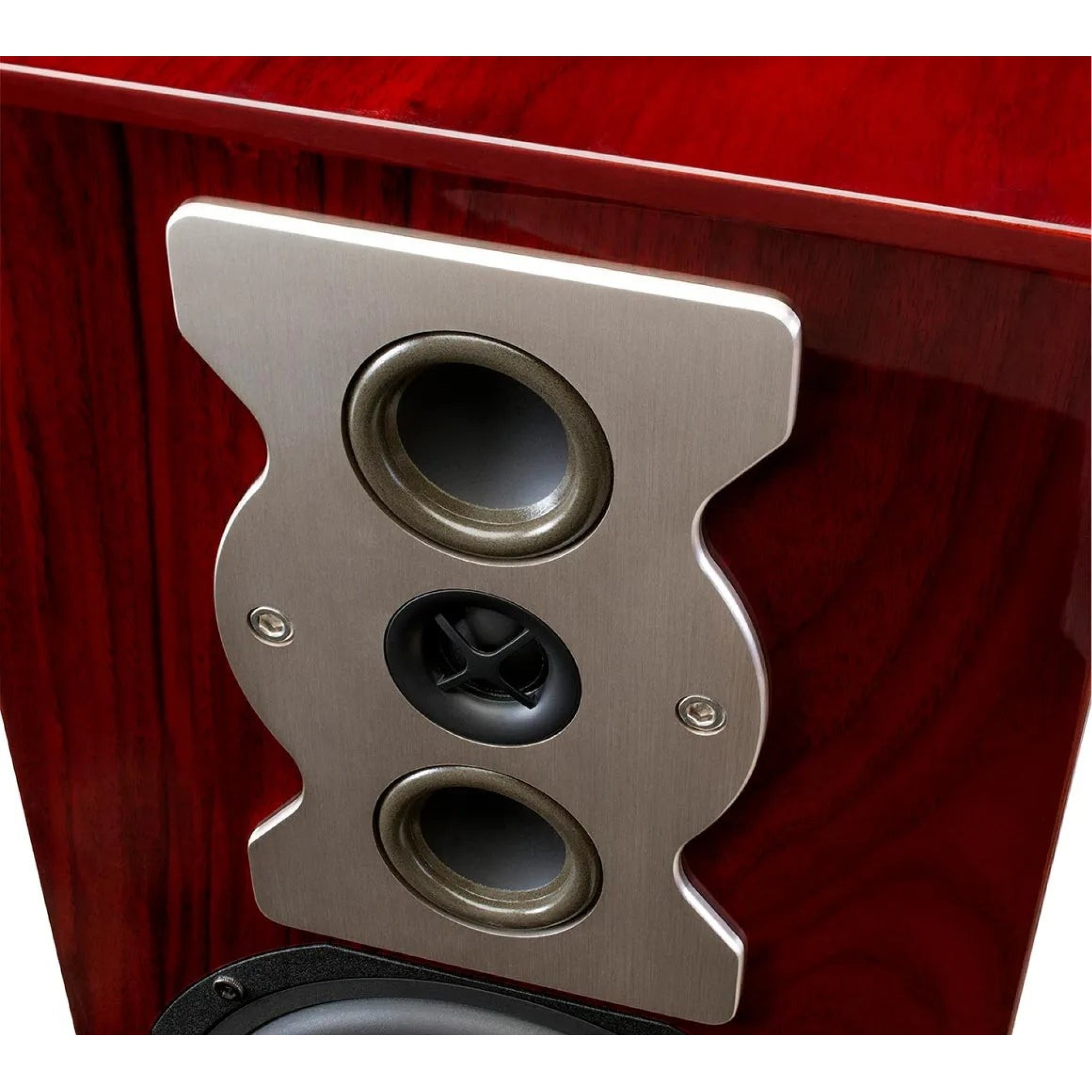

Number of Midranges
2
Midrange Size
2"
Midrange Type
Inverted Titanium Dome
Number of Tweeters
1
Tweeter Size
3/4"
Tweeter Type
Titanium Dome
General Specifications
System Type
Ported 3-Way Bookshelf
Grille
Black knit cloth, magnetically attached
Available Finishes

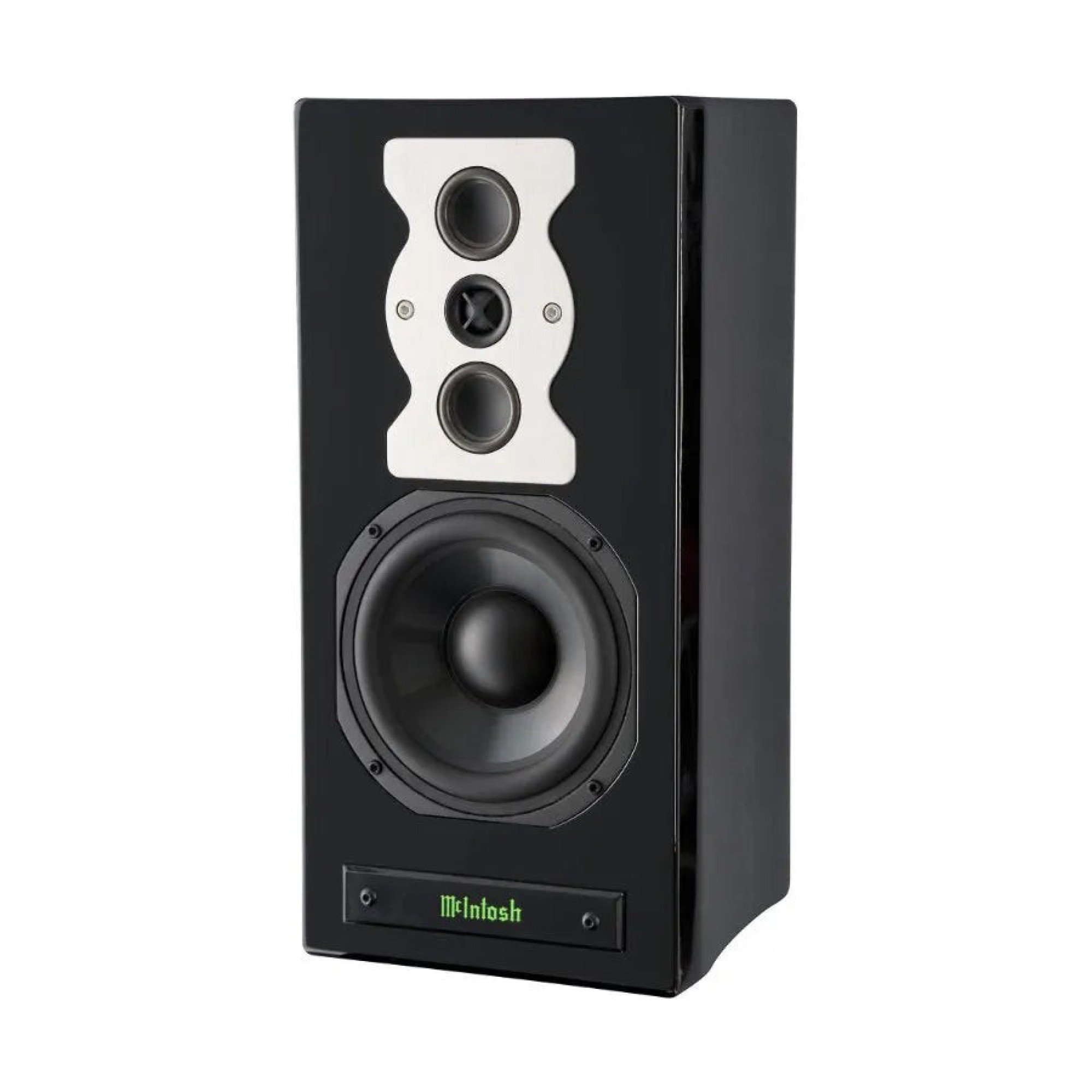

Red Walnut, Black
Weights & Dimensions
Unit Dimensions (W x H x D)
8" (20.3cm) x 17" (43cm) x 11-3/4" (29.85cm)
Unit Weight
19.5 lbs (8.9 kg)
Shipping Weight
25 lbs (11 kg)

DOKUMENTAI

Vartotojo vadovas (EN)
