ĮMONTUOJAMA GARSO KOLONĖLĖ MONITOR AUDIO SLIM CSS230, 60W, 2-JŲ JUOSTŲ

• Rekomenduojama stiprintuvo galia: 10-60W
• Dviejų juostų (1.9 cm aukštų ir 7.6 cm žemų dažnių garsiakalbiai)
• Jautrumas: 86 dB/W/m
• Varža: 8Ω
• Dažnių diapazonas: 100 Hz – 30 KHz sealed ‘CP’ (85 Hz – 30 KHz - open back)
• Kolonėlės skersmuo - 25cm
• Montavimui reikalingas gylis - 5cm
• Montavimo skylės skersmuo – 21.1cm
• Komplekte apvalios ir kvadratinės grotelės
• Apdaila: balta, dažoma

APRAŠYMAS

Between 2" stud frames or where pipework or cabling reduces mounting depth, the hybrid back-box construction and proprietary full-range driver array combine to deliver consistent audio quality with exceptional installation versatility.

The hybrid back-box provides the best of all worlds for installer and customer. Combined, the three proprietary 3" mid-bass units achieve the bass output of a 6 1/2" driver, all from a super-stealthy flush-fitted profile.

In keeping with Monitor Audio’s renowned design rigour, the crossover comprises high quality film capacitors and low loss inductors - selected for signal integrity - ensuring peerless audio detail and dynamics from a speaker of its size and application. When the CSS230 is in ‘ported’ mode, a fine gauze protects the acoustic system from dust ingress.

TECHNOLOGIJA

• Super-slim mounting depth 50mm (2”) designed to fit within 2” stud walls or where space is restricted

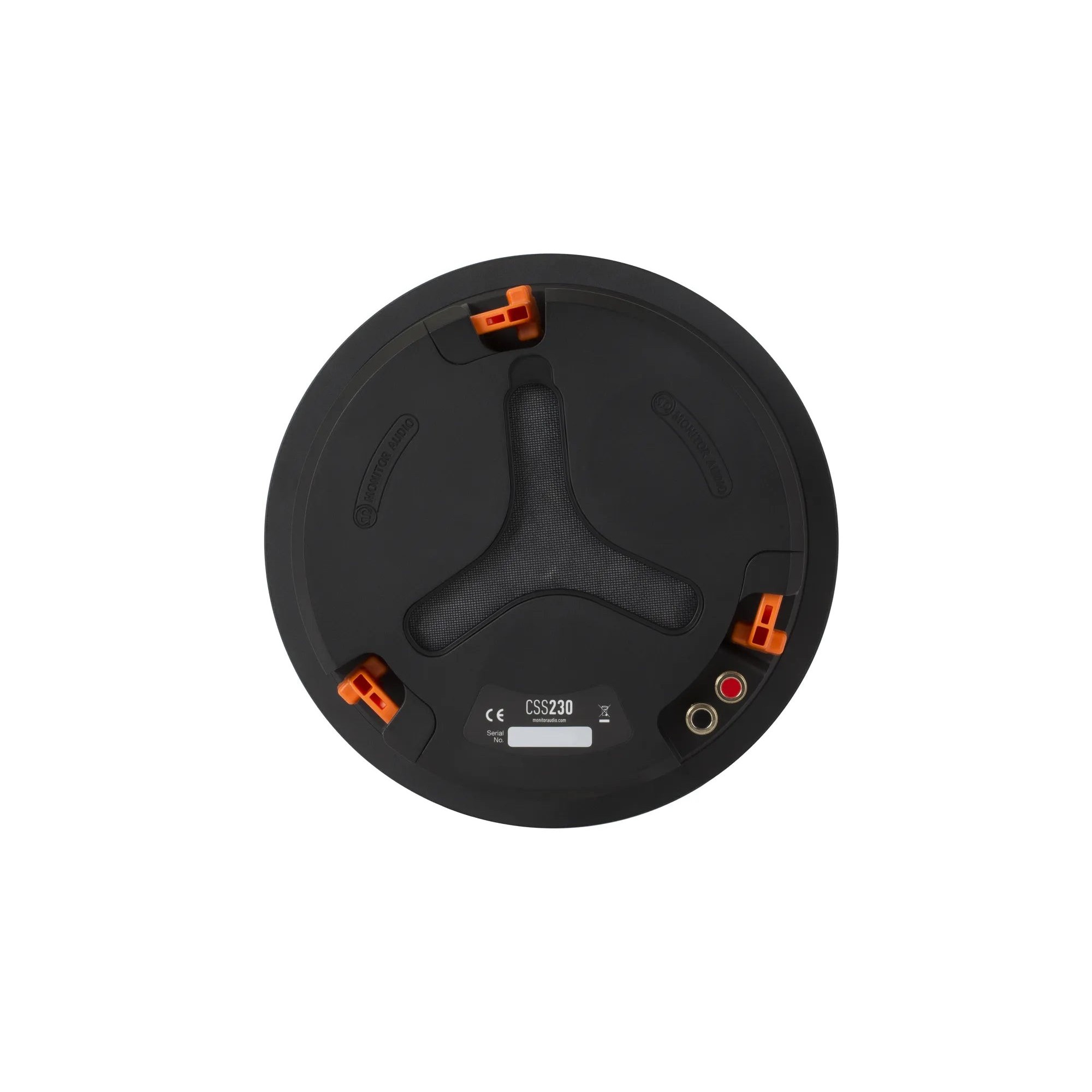

• Hybrid CP ‘Controlled Performance’ style, enclosed or open back-box option provides flexible high performance options and sound isolation in one (pictured right)

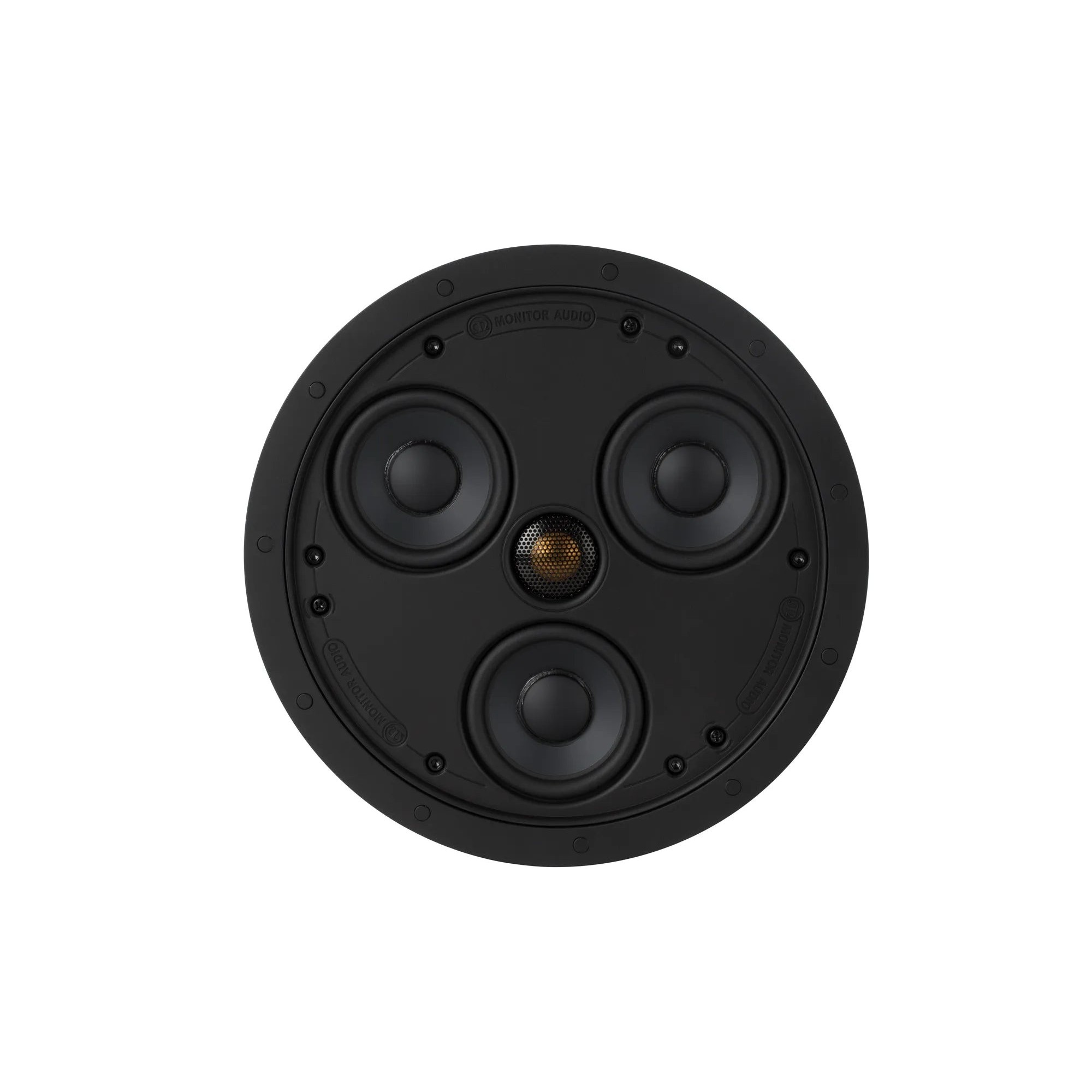

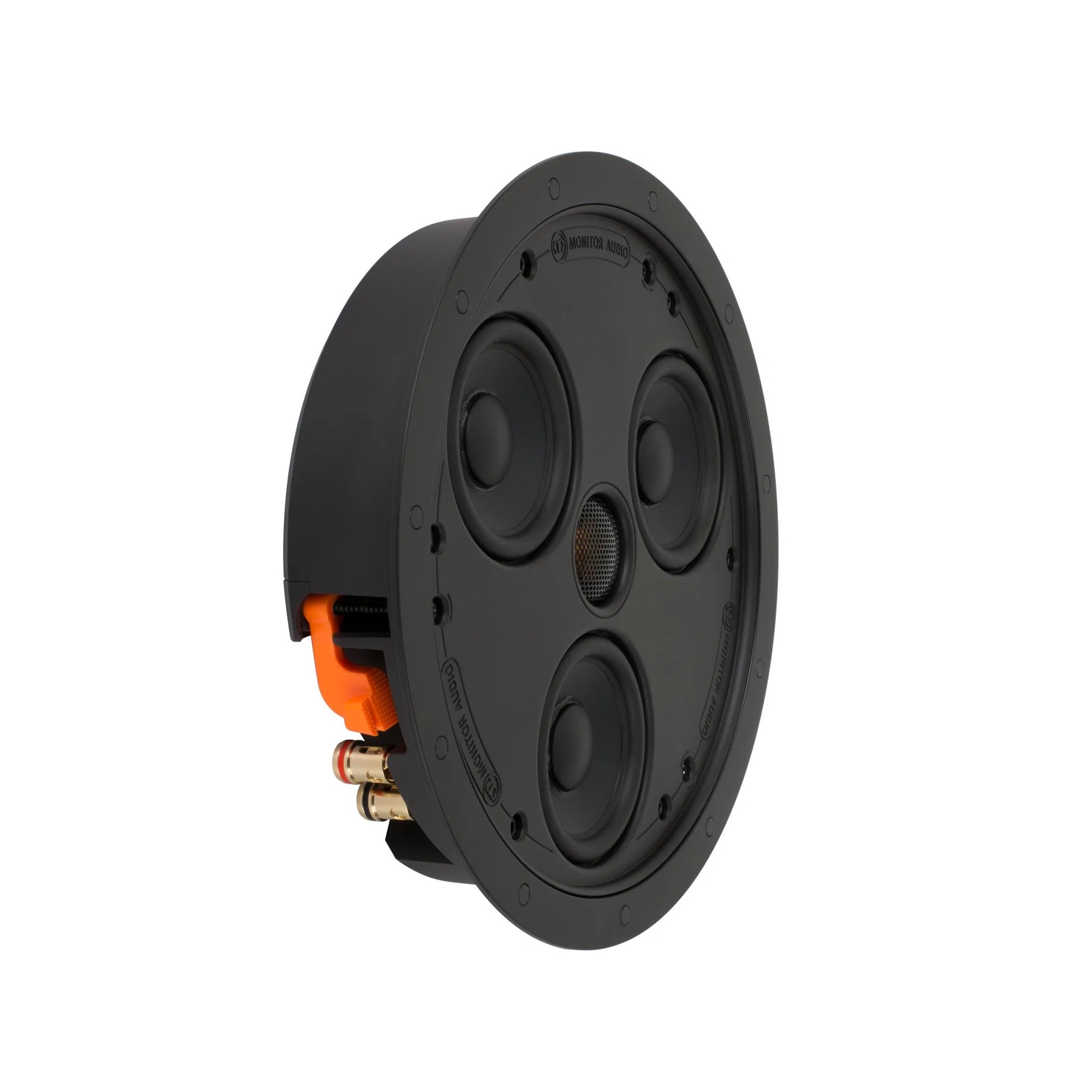

• Driver configuration of three 3” C-CAM bass/mid-range drivers in a radial array around a 19mm C-CAM gold dome tweeter (fixed position) and high quality crossover design offers Monitor Audio’s award-winning signature sound quality

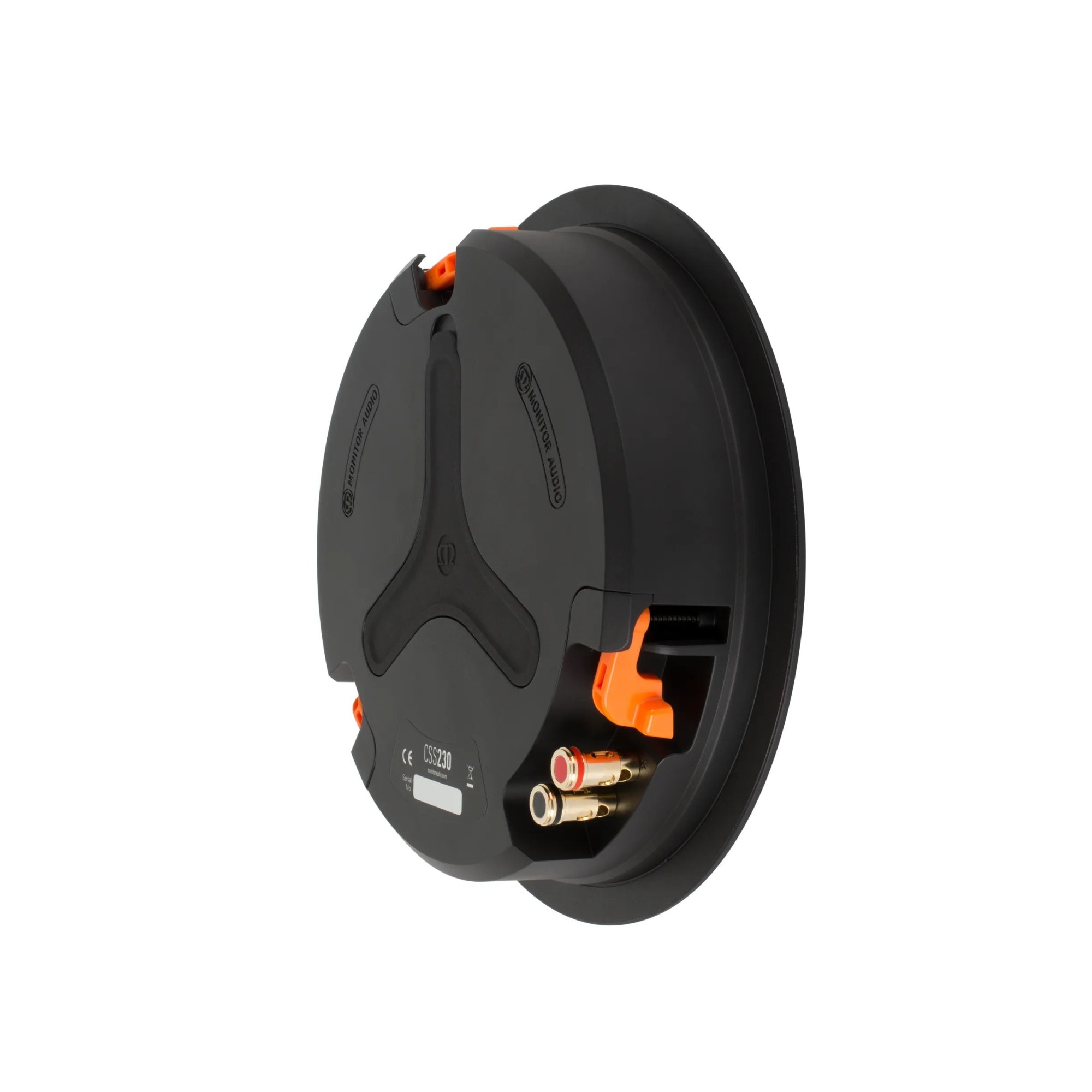

• Gold plated sprung push terminals are reliable and easy to connect

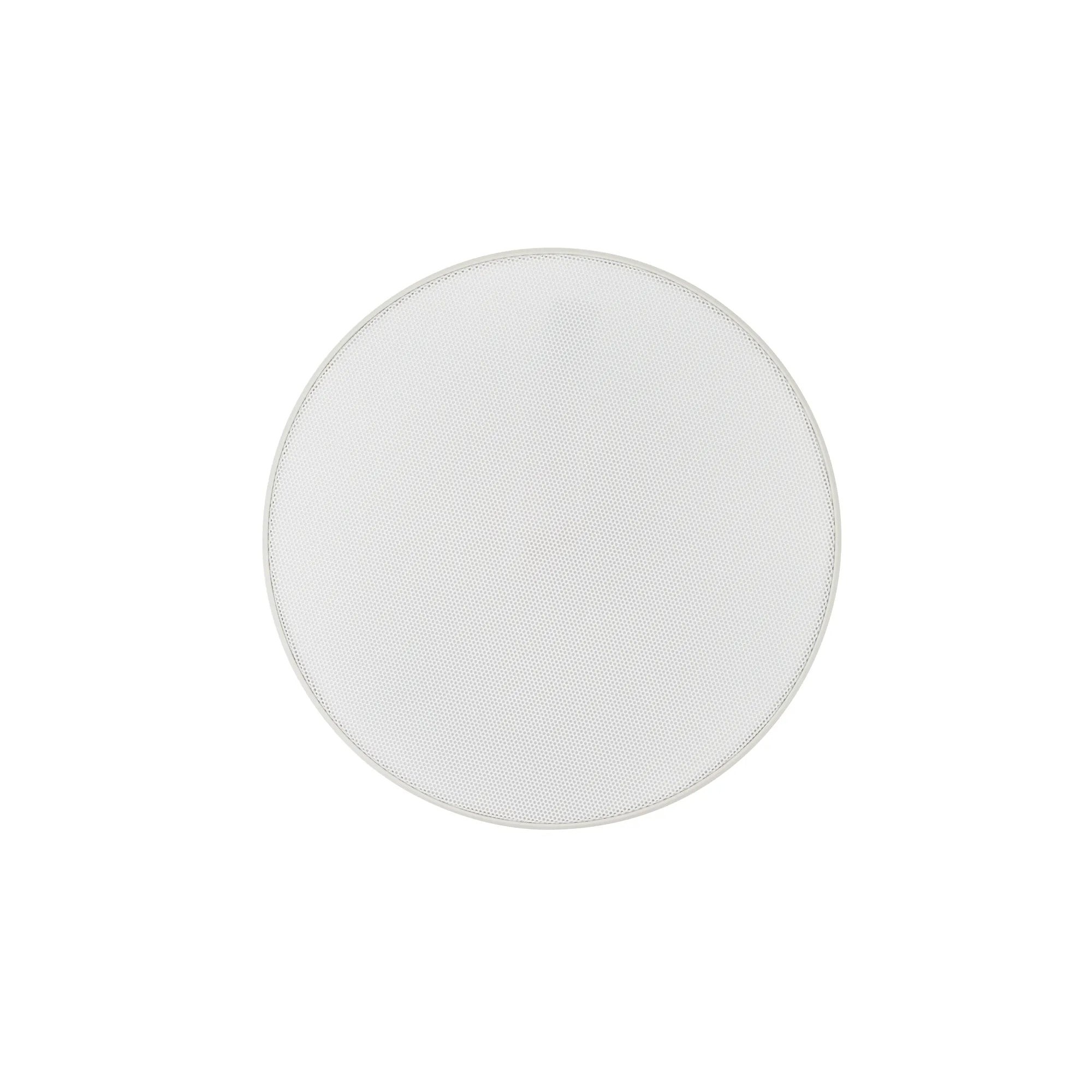

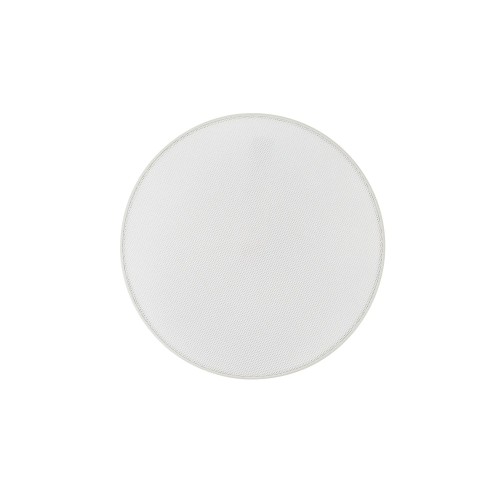

• Magnetically attached ‘Trim-less’ round and square grille options for discreet, reliable and easy servicing, flexible in-wall/ceiling installation, paintable to blend with décor
• Patented Tri-Grip dog leg fixings – Reliable, robust and quick to install
• Existing pre-construction bracket for easier system design and planning
