CLEARAUDIO INNOVATION BASIC, PATEFONAS (ĮVAIRIŲ SPALVŲ)

Clearaudio Innovation Basic -  tai aukštos kokybės patefonas, kuriame naudojamos pagrindinės „Innovation“ serijos technologijos. Sukurtas iš tvirtų, rezonansus slopinančių medžiagų, jis pasižymi puikiu tikslumu, stabilumu ir ilgaamžiškumu.

Greičio parinktys: 33 ⅓, 45, 78 aps/min.
Greičio tikslumas (išmatuotas): ± 0.08%
Optinė greičio kontrolė (OSC):  realiu laiku per infraraudonųjų spindulių jutiklį
Rezonansams atsparus korpusas: iš panzerholz (kulkoms atspari mediena) ir aliuminio
CNC: apdirbtas paviršius
Visi kojelės: reguliuojamos
Galima montuoti: du tonarminius

APRAŠYMAS

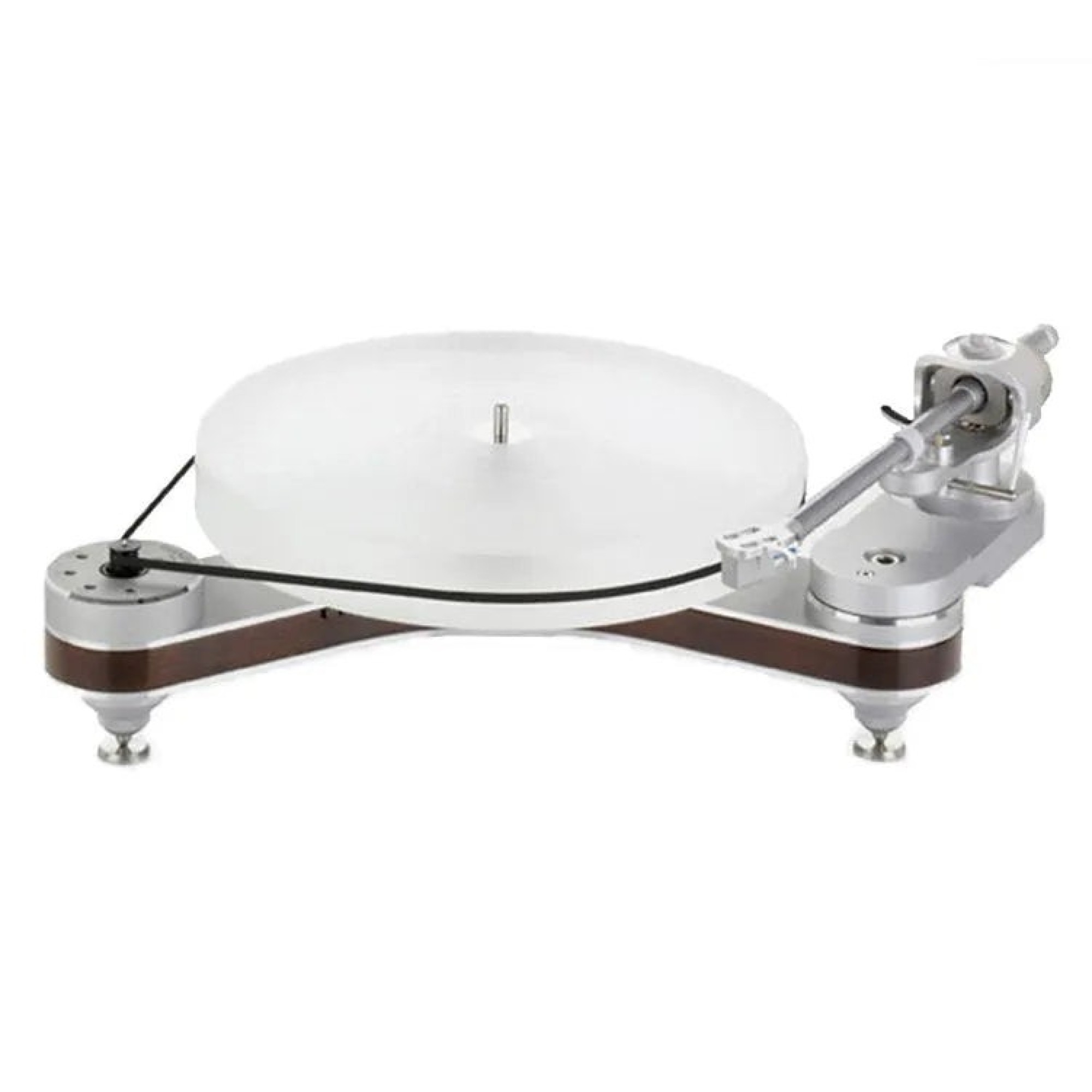

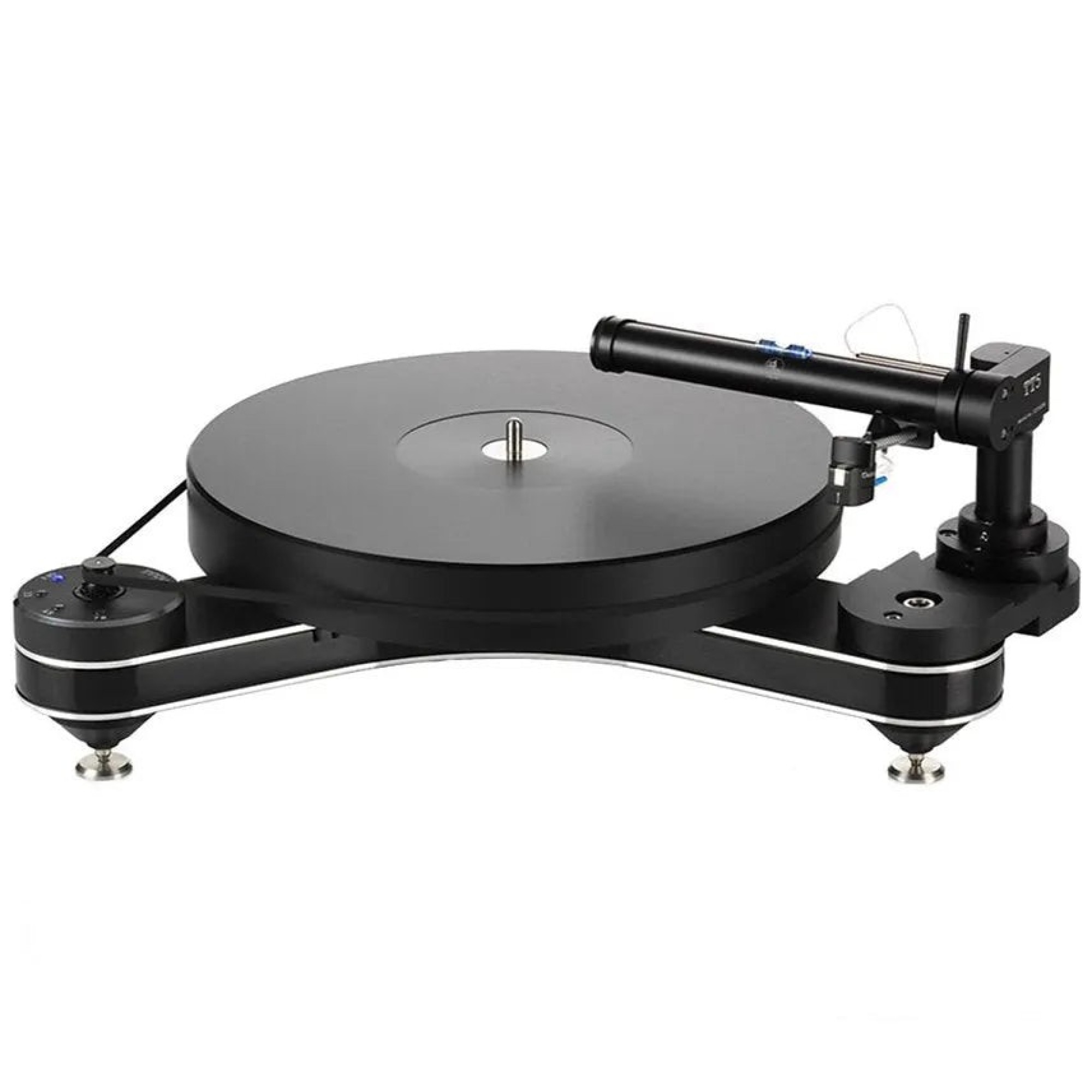

The Innovation Basic provides the main technical characteristics of our Innovation, in a reduced "Basic" design that rivals it's larger siblings.

Perfectly matched materials meet patented Clearaudio technology. The 38mm-thick platter of the Innovation Compact consists of dynamically balanced polyoxymethylene (POM) and is powered by a high-torque DC motor with precision bearings, developed exclusively for Clearaudio.

The optimally designed chassis keeps resonances out of the audible range and guarantees maximum stability in a housing made of a massive panzerholz (bulletproof wood) and aluminum sandwich. Timeless design with quality built to last for decades. The option to mount a second tonearm makes it possible to play a rich variety of music from across the decades.

TECHNINIAI DUOMENYS

Construction details:
Resonance-optimised chassis shape
Made of bullet proof wood and aluminium with precision CNC machined surface
All turntable feet are finely adjustable
Playback with two tonearms possible
Speed options:    33 ⅓, 45, 78rpm
Drive unit:

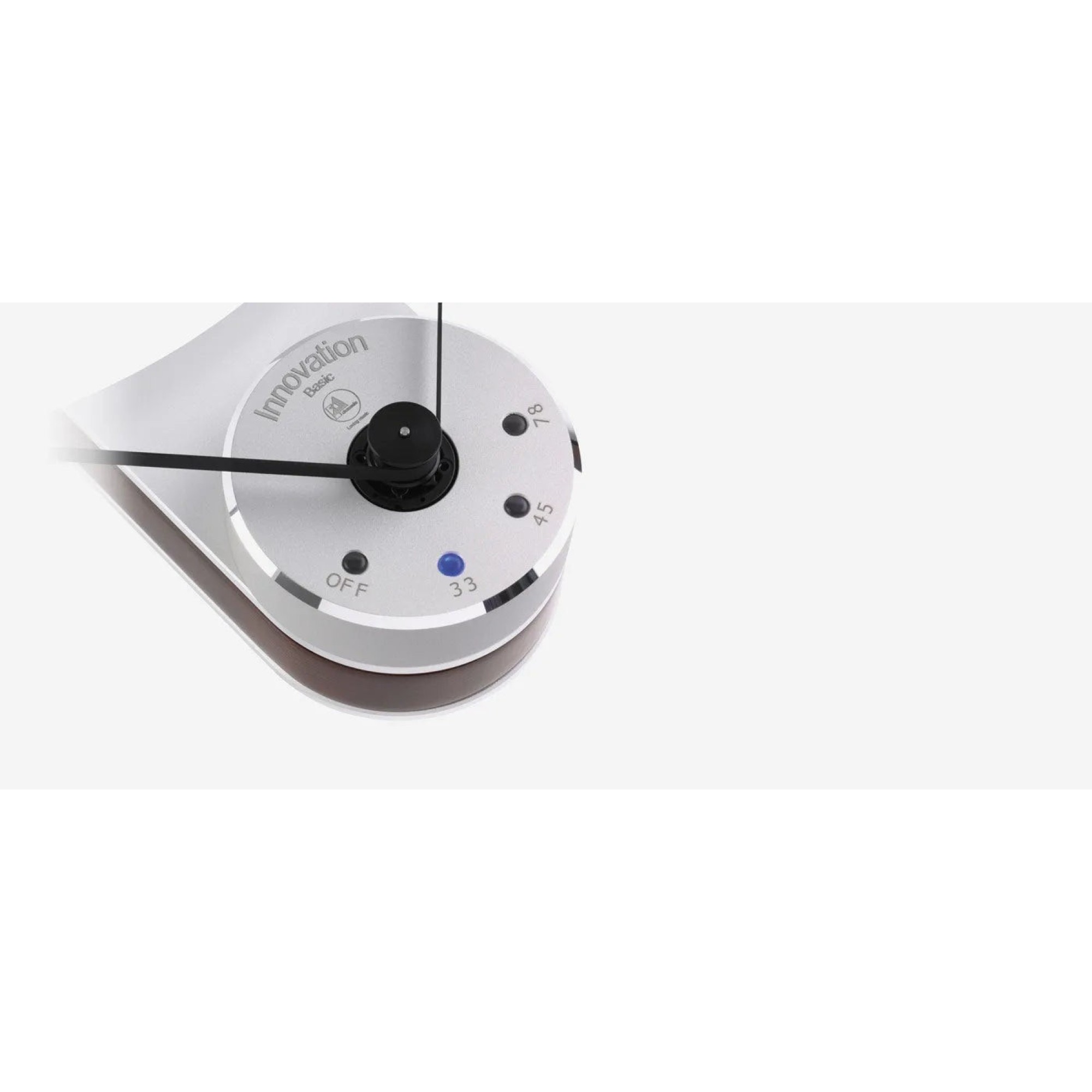

High torque 24V DC motor exclusively made for Clearaudio; Optical Speed Control (OSC) in real time through infrared sensor
Decoupled DC motor in chassis; resonance damping device; belt-drive
Bearing:    Clearaudio CMB ceramic magnetic bearing in main platter / upper drive platter assembly. Inverted bearing in lower drive platter.
Platter:    40mm / 1.57 inch main platter, made out of synthetic material with high-density and excellent dimension stability, precision CNC machined surface, solid stainless steel sub-platter, dynamically balanced
Speed accuracy (measured):    < ± 0.08%
Power consumption:    Max. consumption: 9.3 watts
Consumption in operation: 2.5 watts
Standby mode: 2.5 watts
Off mode: 0.0 watts
Total weight:    Approx. 8kg (without tonearm and power supply)
Dimensions (W/D/H):    Approx. 18.11 × 19.09 × 4.92 inches (with tonearm base, without tonearm)
Dimensions (W/D/H):    Approx. 460 × 485 × 125mm (with tonearm base, without tonearm)

DOKUMENTAI

Vartotojo vadovas (EN)
