ORTOFON LH-8000, HEADSHELL LAIKIKLIS PATEFONŲ GALVUTĖMS
- Gamintojas: ORTOFON
- Kategorijos: PATEFONŲ PRIEDAI PATEFONAI NAMAMS
-
169.00€
- Kaina be PVM: 139.67€

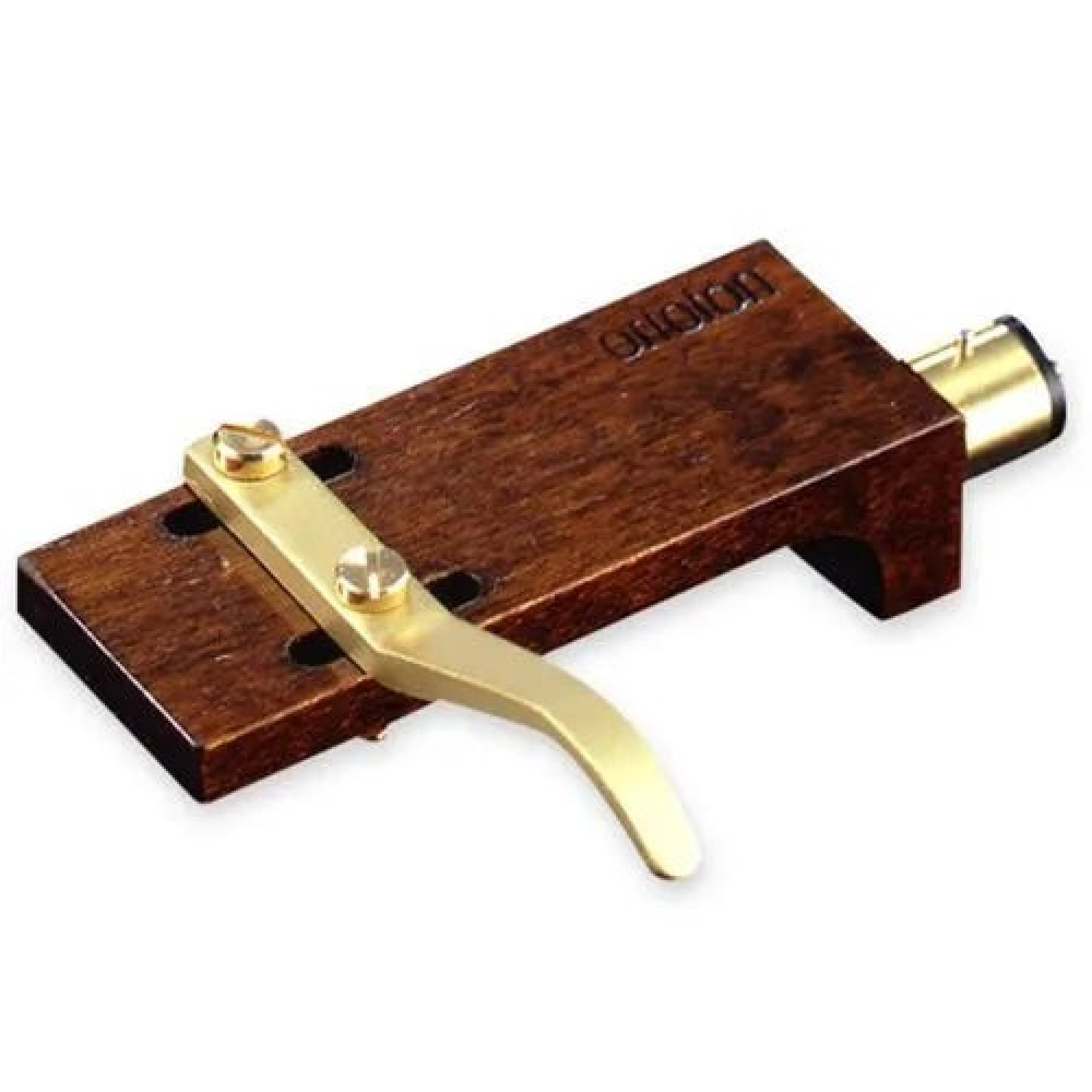

LH-8000 yra aukštos kokybės rankų darbo medinė galvutė su poliruoto žalvario pirštų pakėlimu.
APRAŠYMAS
The LH-8000 comes with leadwires for easy and convenient connection
All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.
We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell.
Please remember correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is only 1.0 mm.
TECHNINIAI DUOMENYS
SPECIFIKACIJOS
Features and technical data
- Universal mount
- Japanese oaktree with Urushi lacquer finish
- Weight without screws - 8.5 grams
- Mounting distance min. - 33.0 mm
- Mounting distance max. - 42.2 mm
- Headshell length - 50.3 mm
- Headshell width - 18.8 mm
A - Headshell length
B - Headshell width
C - Mounting distance max.
D - Mounting distance min.
E - Screw diameter max.
| HEADSHELL MODEL | A Headshell length |
B Headshell width |
C Mounting distance max. |
D Mounting distance min. |
E Screw diameter max. |
| SH-4 | 51.5 mm | 20.0 mm | 45.4 mm | 36.4 mm | 3.0 mm |
| LH-2000 | 50.3 mm | 20.0 mm | 43.4 mm | 35.3 mm | N/S |
| LH-4000 | 51.9 mm | 19.1 mm | 45.6 mm | 39.5 mm | N/S |
| LH-6000 | 47.5 mm | 19.1 mm | 42.4 mm | 36.6 mm | N/S |
| LH-8000 | 50.3 mm | 18.8 mm | 42.2 mm | 33.0 mm | N/S |
| LH-9000 | 52.0 mm | 20.0 mm | 44.9 mm | 38.1 mm | N/S |
| LH-10000 | 50.0 mm | 19.4 mm | 42.4 mm | 42.4 mm | 2.7 mm |
