AUDIOPHONY MI3, MIKŠERINIS PULTAS 3-JŲ KANALŲ

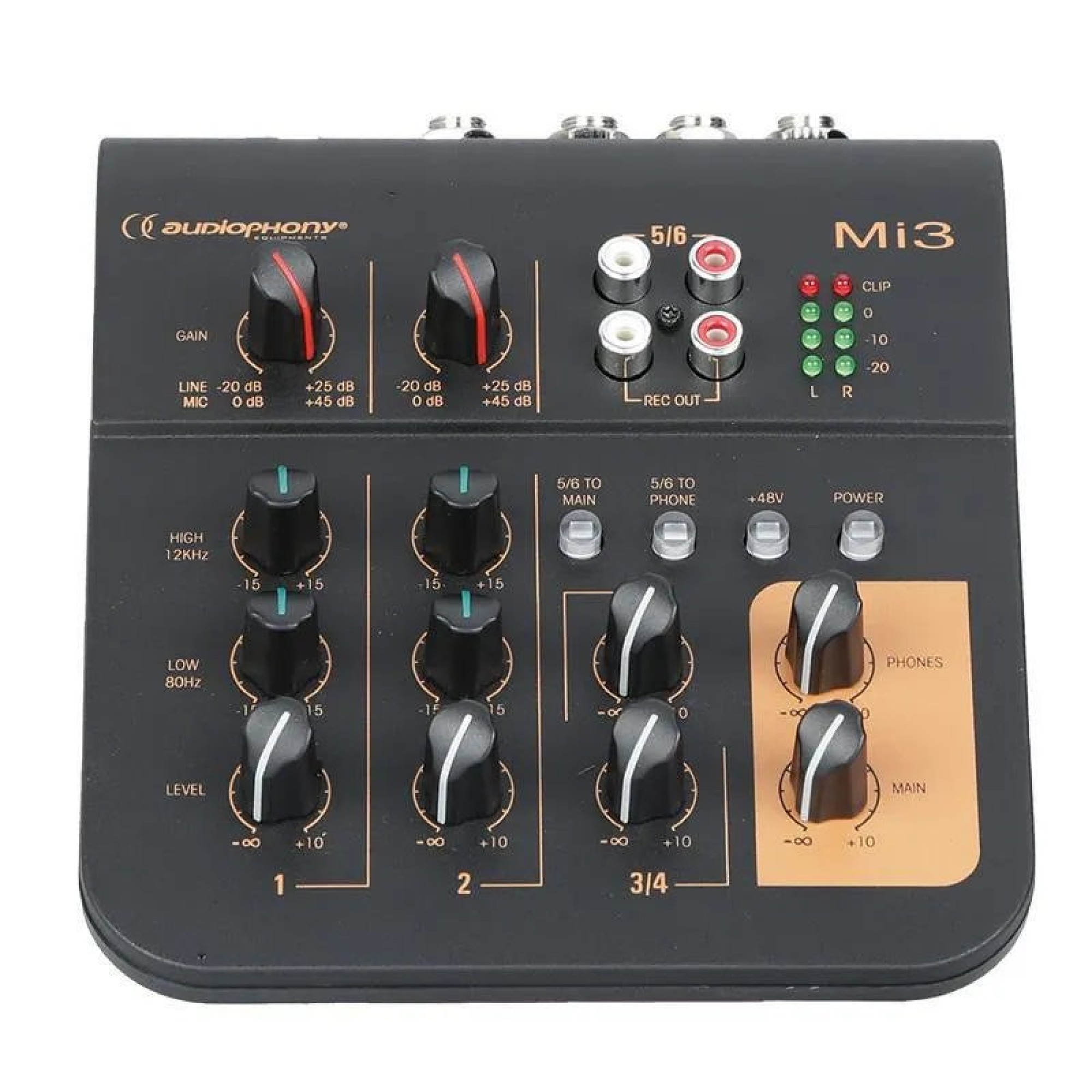

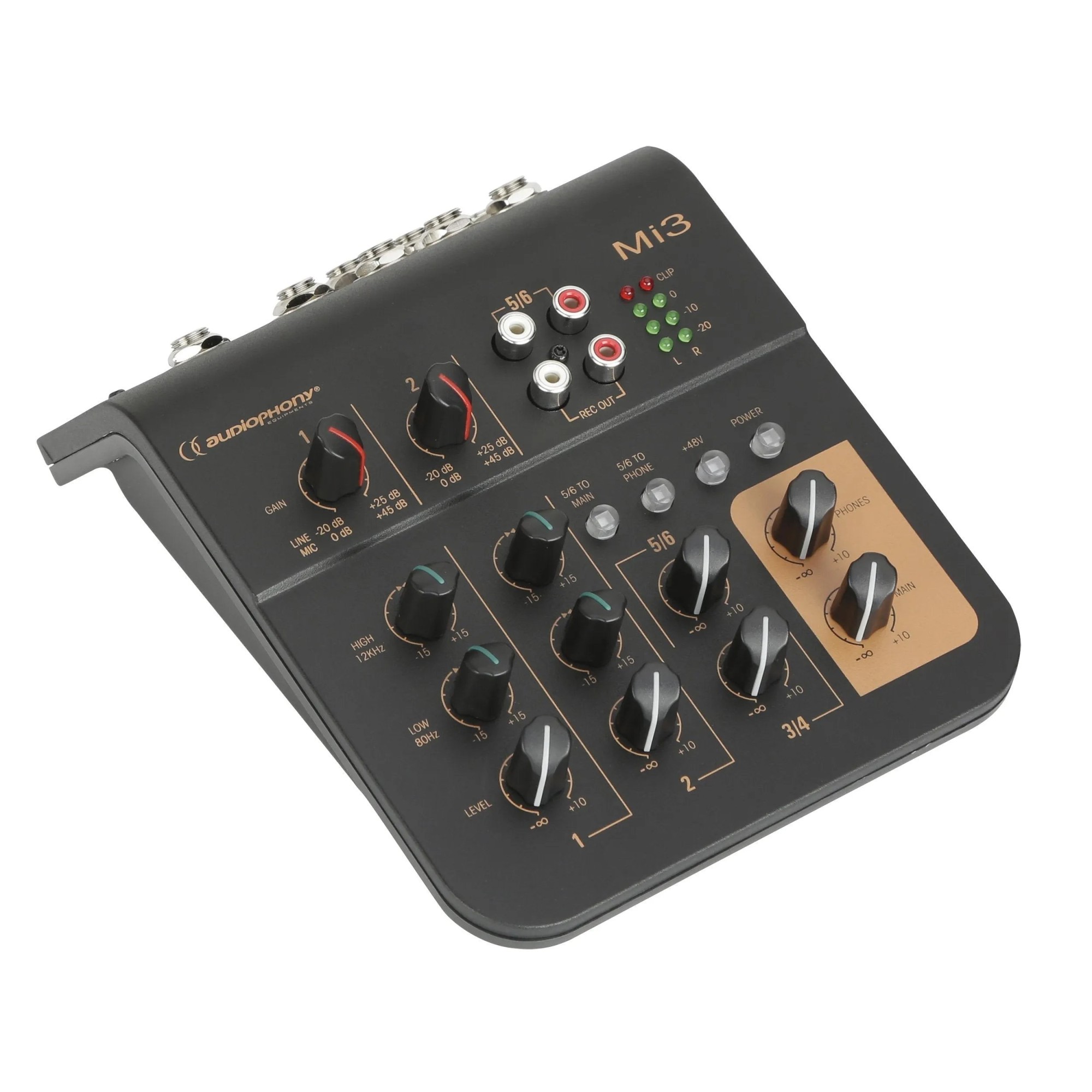

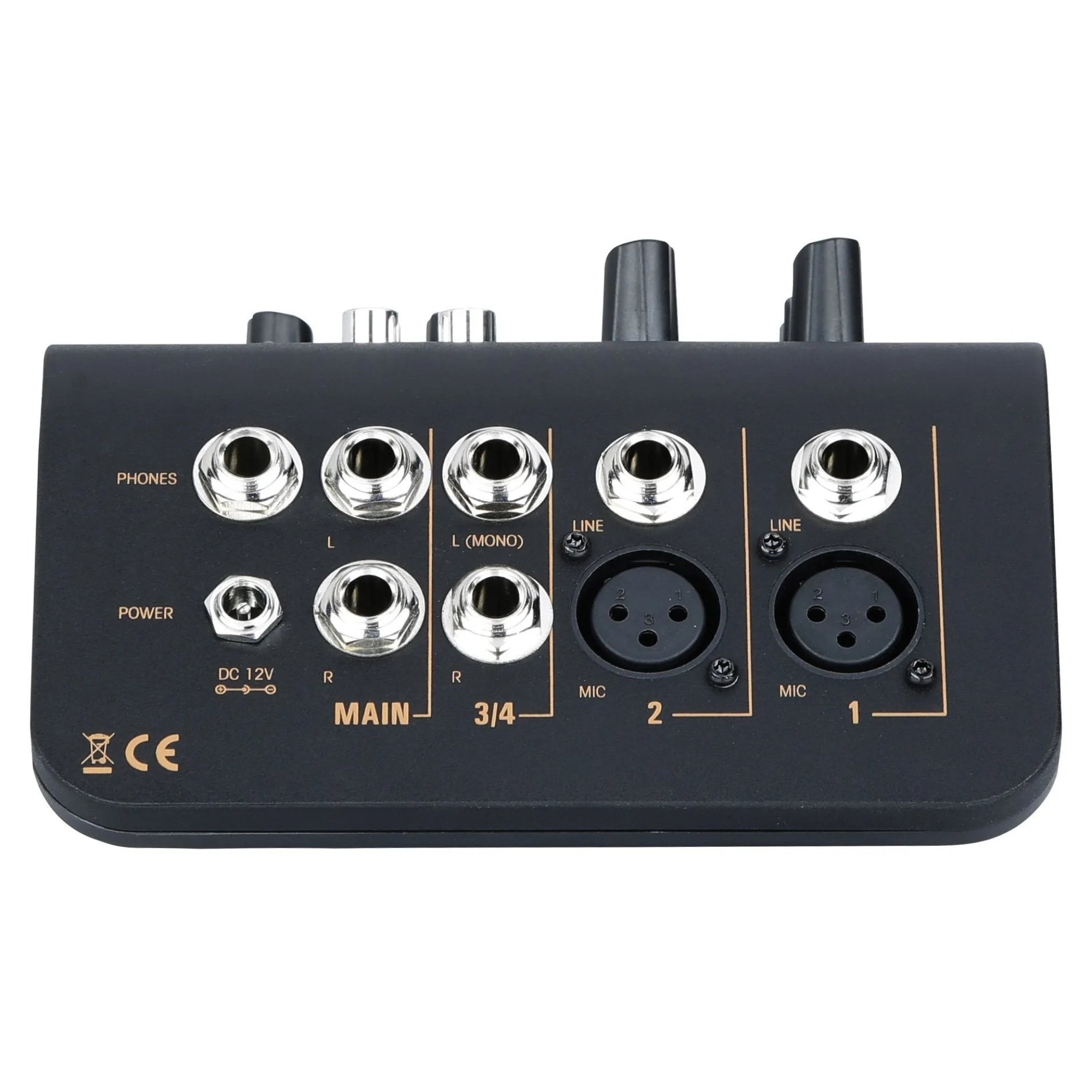

3-jų kanalų mikšerinis pultas Audiophony MI3

Frequency response: 20Hz - 20KHz
THD @ +10dBu: < 0.008%
Residual noise: MAIN output: -103dB / AUX SEND output : -90dB (only for Mi4U and Mi6U)
Input gain: Microphone: from 0dB to +45dB / Line : -20dB - +25dB
Phantom: +48V DC
EQ: HIGH: +/- 15dB @ 12KHz / LOW : +/- 15dB @ 80Hz
Max output level: MAIN/AUX SEND: +21 dBu / Headphone output : +18 dBu
Input inpedance: Microphone: 2,3 K Ohms balanced / Ligne : 20 K Ohms balanced / Aux/RCA : 24 K Ohms unbalanced
Output inpedance: MAIN / AUX SEND: 120 Ohms / REC OUT : 1 K Ohms / PHONES: 25 Ohms
Vu-meter: -20 dB, -10 dB, 0dB , clip
Power supply: AC100~240V 50/60 Hz > DC12V 1A switch power adapter
Power consumption: 11W
Size (H x L x E): 165 x 120 x 68 mm
Weight: 0,68 Kg
