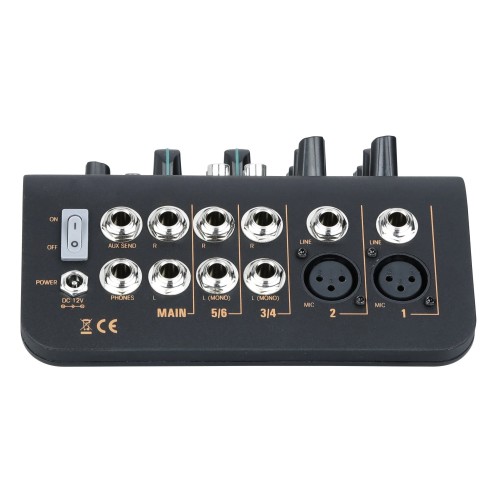

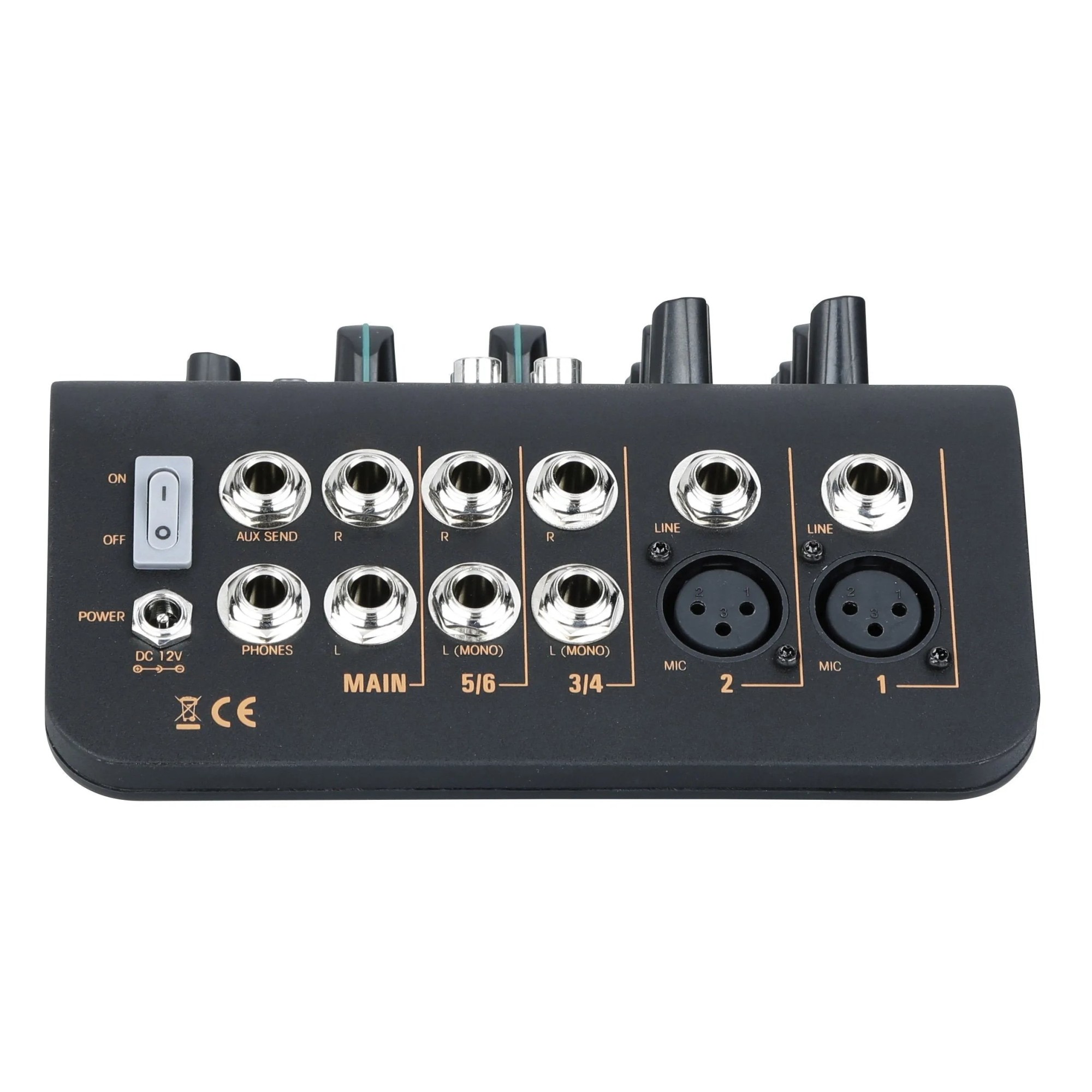

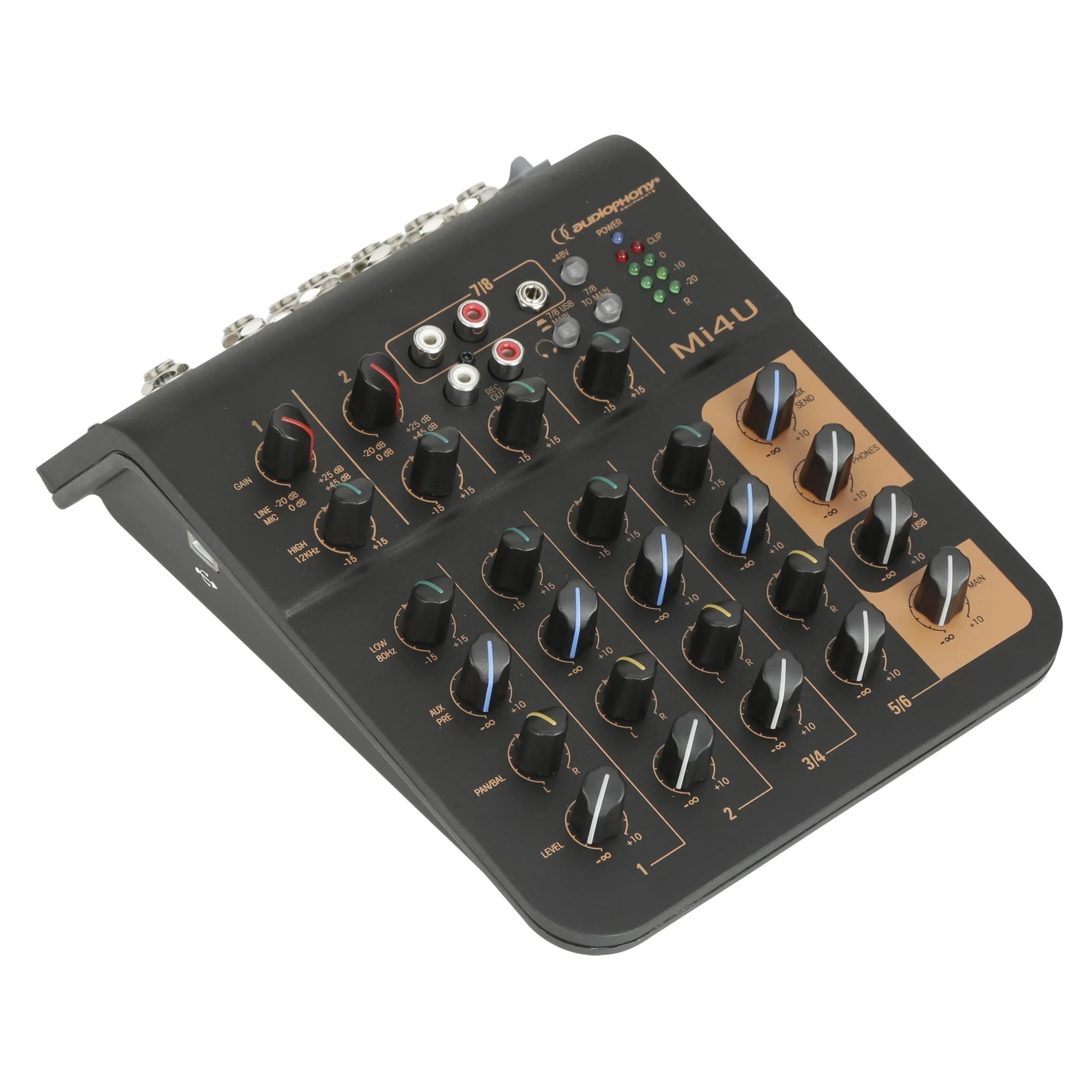

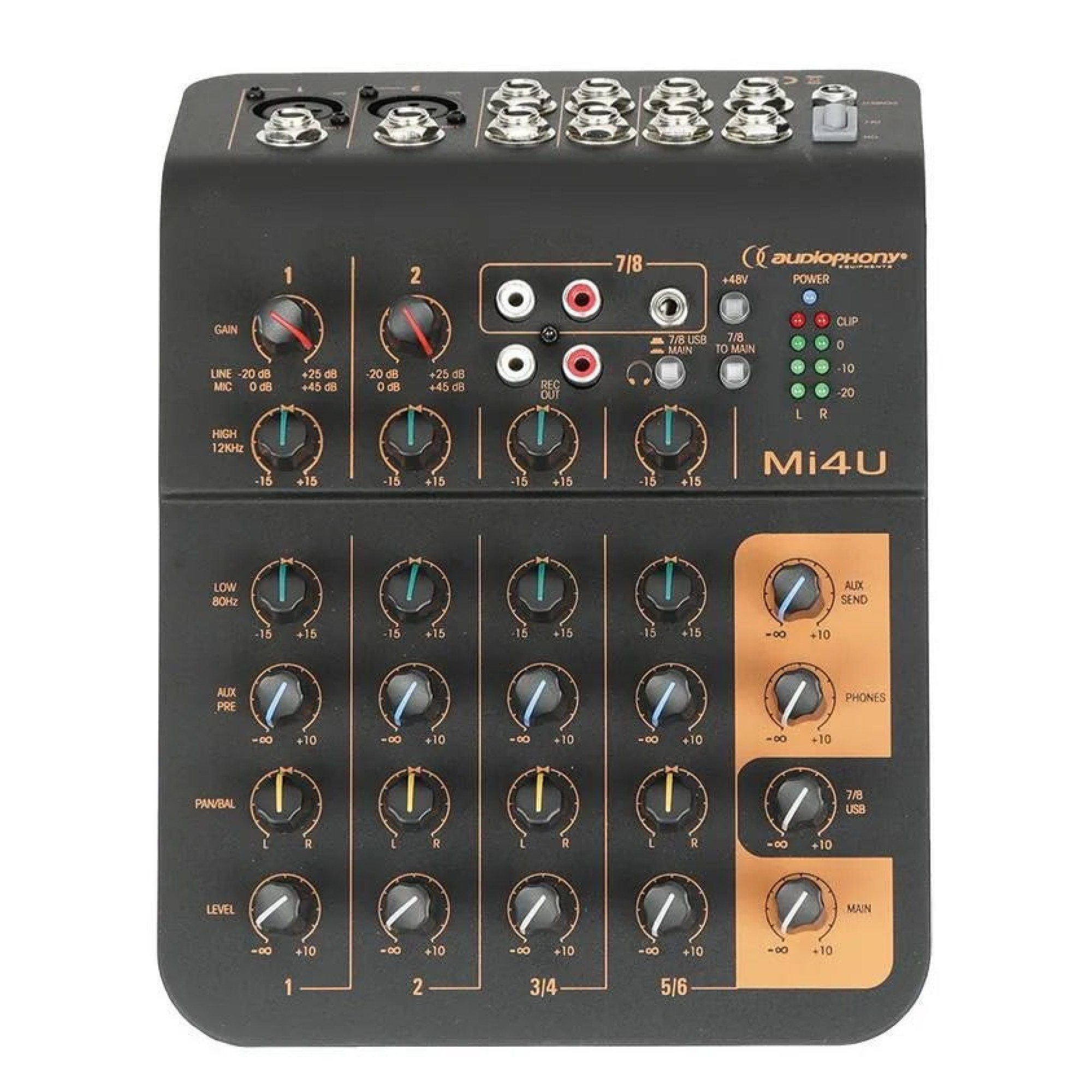

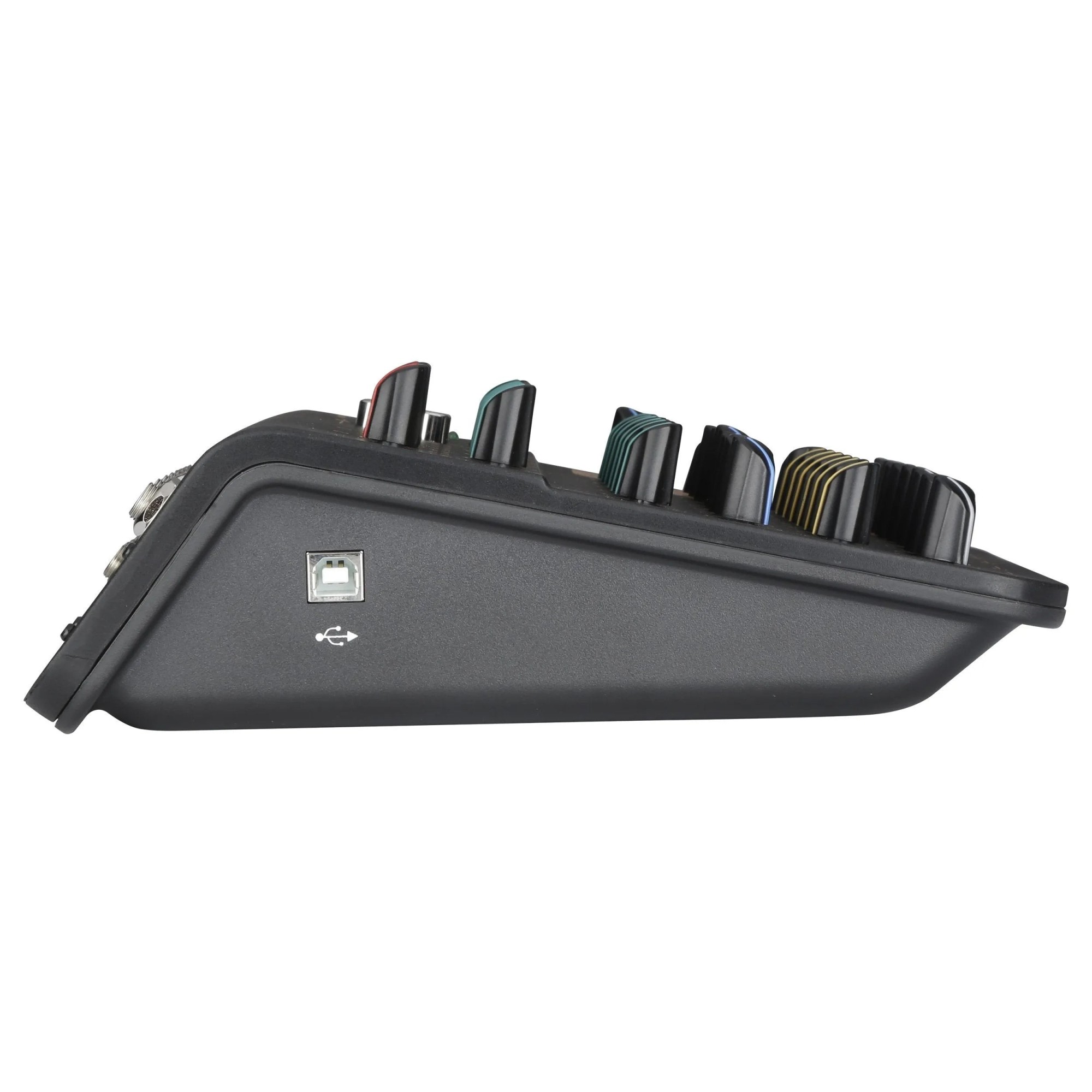

AUDIOPHONY MI4U, MIKŠERINIS PULTAS 4-RIŲ KANALŲ

4-rių kanalų mikšerinis pultas Audiophony MI4U

Frequency response: 20Hz - 20KHz
THD @ +10dBu: < 0.008%
Residual noise: MAIN output: -103dB / AUX SEND output : -90dB (only for Mi4U and Mi6U)
Input gain: Microphone: de 0dB à +45dB / Line : -20dB à +25dB
Phantom: +48V DC
EQ: HIGH : +/- 15dB @ 12KHz / LOW : +/- 15dB @ 80Hz
Max output level: MAIN/AUX SEND : +21 dBu / Headphone output : +18 dBu
Input inpedance: Microphone : 2,3 K Ohms balanced / Ligne : 20 K Ohms balanced / Aux / RCA : 24 K Ohms unbalanced
Output inpedance: MAIN / AUX SEND : 120 Ohms / REC OUT : 1 K Ohms / PHONES : 25 Ohms
Vu-meter: -20 dB, -10 dB, 0dB , clip
Power supply: AC100~240V 50/60 Hz > DC12V 1A switch power adapter
Power consumption: 11W
Size (H x L x E): 220 x 160 x 68 mm
Weight: 0,78 kg
