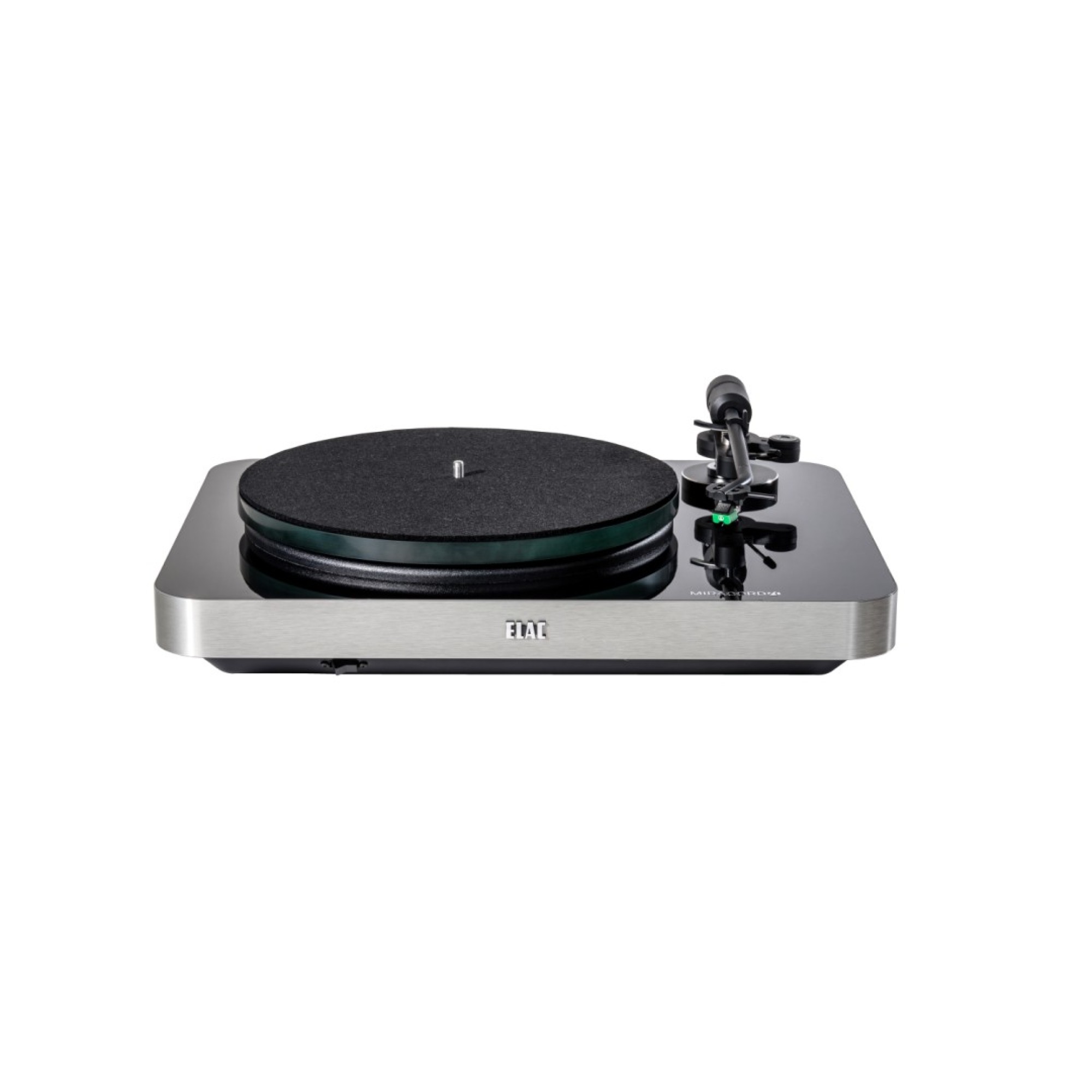

ELAC Miracord 70 - kitas etapas. Su naujuoju„Miracord 70“ Elac grįžta į vinilinės garso technikos pasaulį!

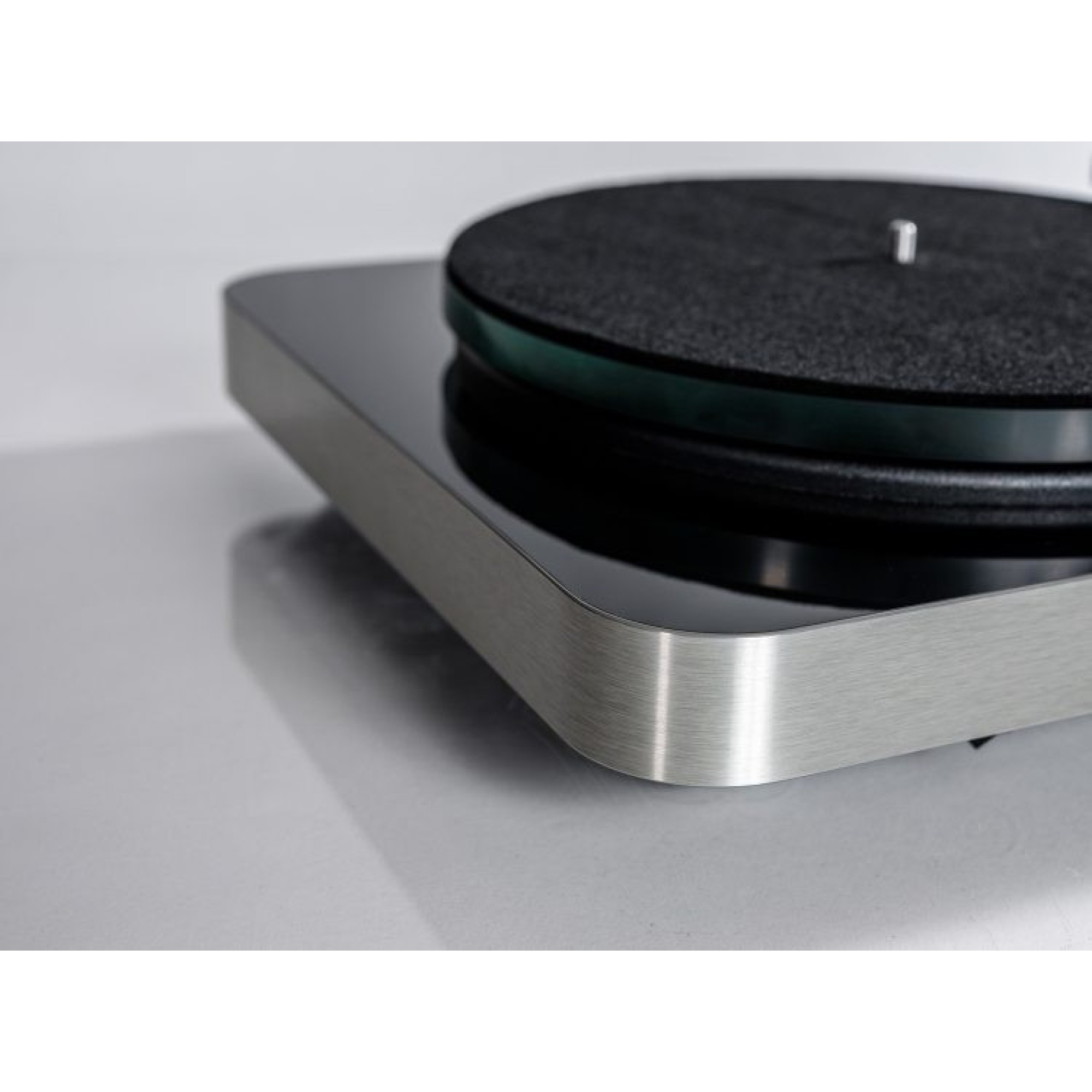

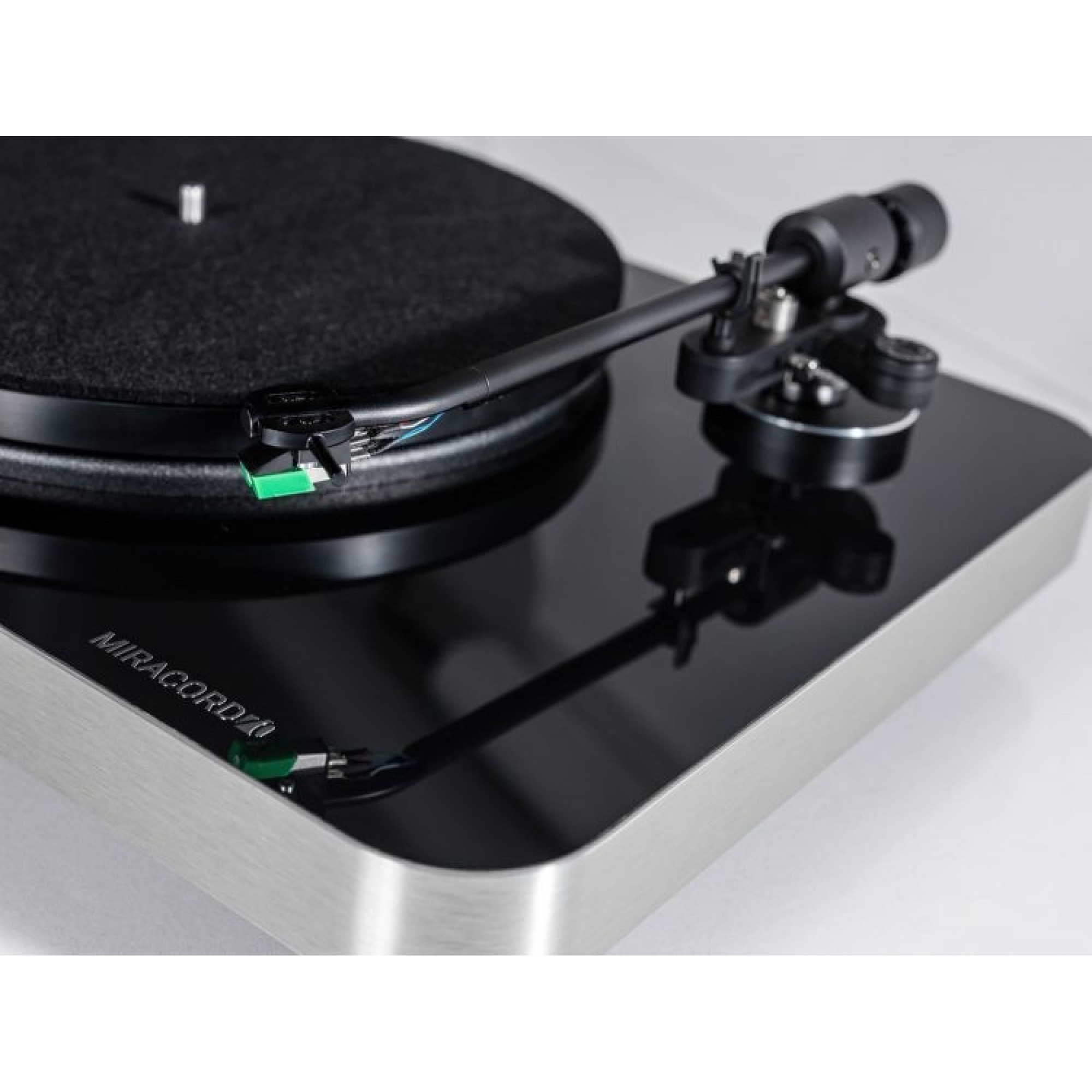

The solid MDF plinth with a high-gloss black finish provides a strong foundation. A belt-driven sub-platter, powered by an extremely smooth synchronous motor by Premotec, supports the 2.6 kg platter made of glass. A black ceramic coating on the underside of the platter gives it a dark translucent appearance that accentuates its three-dimensional form. Combined with a point mounting system that uses a ceramic ball
as a central element, like the one on the Miracord 90, the overall structure ensures exceptionally smooth running and outstanding immunity
to external influences.

SPECIFIKACIJOS

• Height x Width x Depth: 140 x 465 x 365 mm
• Weight: 11 Kg
• Cartridge: AT95E by audio-technica®
• Frequency range: 20 Hz – 20 kHz
• Tracking force: 2,0 ± 0,5 g, 20 ± 5 mN
• DC resistance: 400 ohms ± 20 %
• Coil impendance: 1 kohms ± 20 % at 1 kHz
• Recommended Load: 47 kohms
• Output voltage: 3,5 mV
• Channel separation: > 20 dB
• Selectable speeds: 33 – 45 U/min
• Outputs: 2 goldplated RCA connectors, gold-plated ground connector
• Power supply: 24 V AC, 6 VA
• Finishes: Black High Gloss Decor
