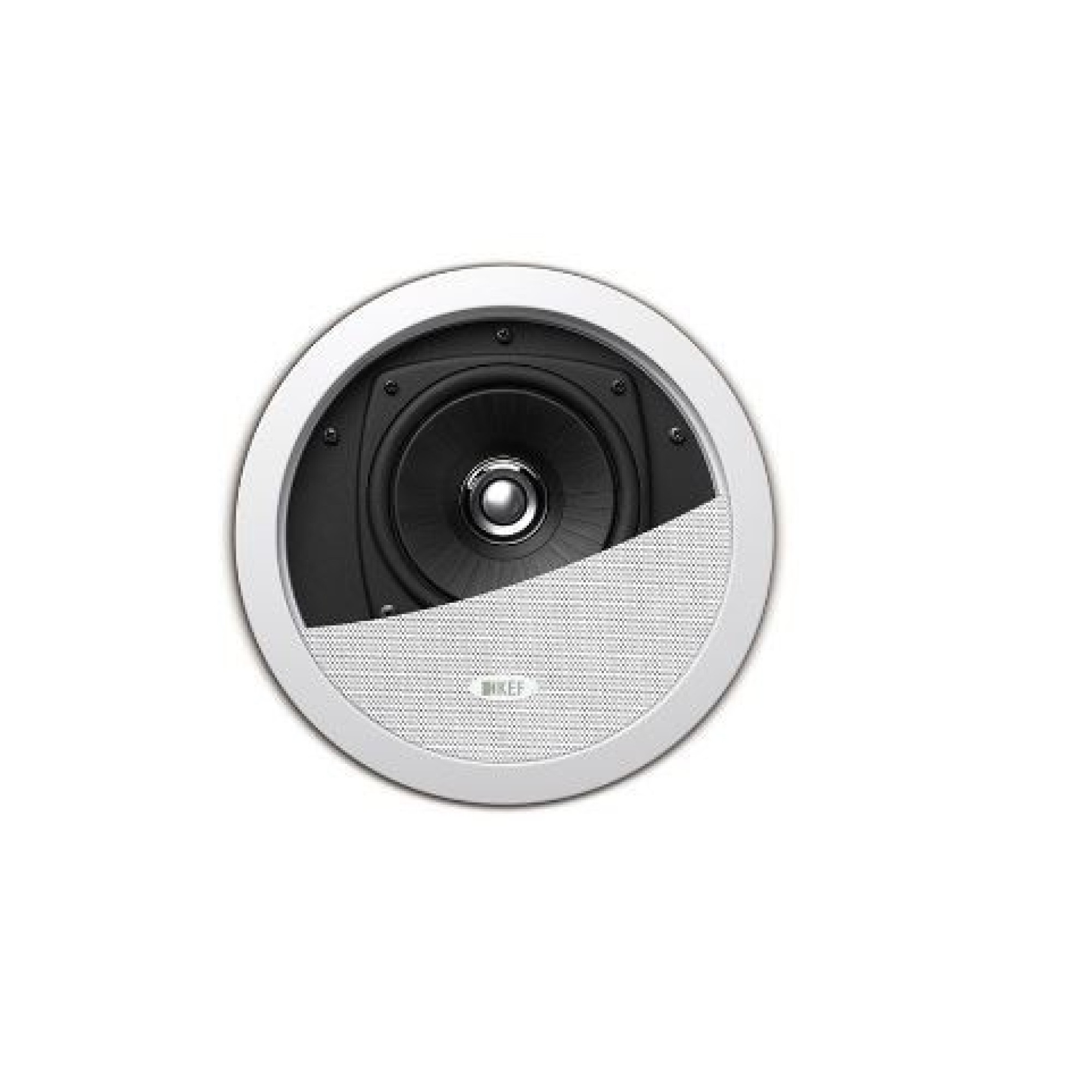

KEF CI115QCT GARSIAKALBIS JAUTRUMAS 86DB (2.83V/ 1M) DAŽNIŲ JUOSTA 70 - 20KHZ (+/-6DB REKOMENDUOJAMA STIPRINTUVO GALIA 15 - 80W
- Gamintojas: KEF
- Kategorijos: ĮMONTUOJAMOS KOLONĖLĖS GARSO KOLONĖLĖS NAMŲ GARSO APARATŪRA
-
230.00€
- Kaina be PVM: 190.08€
Ci115QCT Key Features
- Integral fire-rated metal rear enclosure
- UL2043-approved for use in air handling spaces
- UL1480-5-approved for use in fire protection signalling systems
- Front-mounted switch for selecting 8 ohm or 70/100 volt operation
- Includes the hardware for mounting above a suspended ceiling or in a hard ceiling
Applications
The Ci Commercial Series Ci115QCT is best suited where high quality music and speech reinforcement applications require hi-fi performance such as:
- Multi Room systems
- Home Theatre systems
- Lounges, Bars, Boutiques
- Boardrooms & Offices
- Airports, Convention Centres, Hotels
- Live Theatre/Concert Hall fill-in
- Houses of Worship
- Sports Arena
Specifikacijos
| NOMINAL IMPEDANCE | 8 Ω |
|---|---|
| SENSITIVITY | 86dB (2.83V/ 1m) |
| FREQUENCY RESPONSE | 70 - 20kHz (+/-6dB) With back can/rear enclosure |
| CROSSOVER FREQUENCIES | 2.3kHz |
| DRIVE UNITS | LF: 115mm / HF: 19mm |
| RECOMMENDED AMPLIFIER POWER | 15 - 80W |
| FEATURES | Uni-Q Array, UL2043 & UL1480-5 approved, 70V: 4W, 8W, 15W, 30W / 100V: 8W, 15W, 30W |
| PRODUCT EXTERNAL DIMENSIONS | Diameter / Depth : 220mm (8.66in.) / 160mm (6.30in.) |
| CUT-OUT DIMENSIONS | Diameter : 196mm (7.71in.) |
| MOUNTING DEPTH FROM SURFACE | With back can : 157mm (6.18in.) |
| UNIT MEASUREMENT | Piece |
| DOCUMENT DOWNLOAD | EASE GLL DATA Ci Series Pamphlet Ci Series Specification Sheet Product drawing |
| INSTALLATIONS |  |
| NOMINAL IMPEDANCE | 8 Ω |
|---|---|
| SENSITIVITY | 86dB (2.83V/ 1m) |
| FREQUENCY RESPONSE | 70 - 20kHz (+/-6dB) With back can/rear enclosure |
| CROSSOVER FREQUENCIES | 2.3kHz |
| DRIVE UNITS | LF: 115mm / HF: 19mm |
| RECOMMENDED AMPLIFIER POWER | 15 - 80W |
| FEATURES | Uni-Q Array, UL2043 & UL1480-5 approved, 70V: 4W, 8W, 15W, 30W / 100V: 8W, 15W, 30W |
| PRODUCT EXTERNAL DIMENSIONS | Diameter / Depth : 220mm (8.66in.) / 160mm (6.30in.) |
| CUT-OUT DIMENSIONS | Diameter : 196mm (7.71in.) |
| MOUNTING DEPTH FROM SURFACE | With back can : 157mm (6.18in.) |
| UNIT MEASUREMENT | Piece |
| DOCUMENT DOWNLOAD | EASE GLL DATA Ci Series Pamphlet Ci Series Specification Sheet Product drawing |
| INSTALLATIONS | |
