BLAZE AUDIO POWERZONE™ CONNECT 3004D – D-KLASĖS KETURIŲ KANALŲ GALIOS STIPRINTUVAS SU INTEGRUOTU DSP IR DANTE® AOIP (AUDIO OVER IP) PALAIKYMU. GALIA: PRIE 2 Ω: 4 X 750 W (VIENPUSIAI), PRIE 4 Ω: 4 X 750 W (VIENPUSIAI);
- Gamintojas: BLAZE AUDIO
- Kategorijos: GALIOS STIPRINTUVAI GARSO STIPRINTUVAI BEI GROTUVAI NAMAMS NAMŲ GARSO APARATŪRA
-
2,499.00€
- Kaina be PVM: 2,065.29€
- Full rack 2U form factor
- Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
- Dante™ Ultimo™ chip 4×4 (4-channels)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC™ Class-D technology
- UREC™ universal power supply with PFC
- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- 5 Year warranty
| Output Power @ 2 Ω | 4 x 750 W (SE)* |
| Output Power @ 4 Ω | 4 x 750 W (SE) 2 x 1500 W (BTL)** |
| Output Power @ 8 Ω | 4 x 400 W (SE) 2 x 1500 W (BTL) |
| Output Power @ 70 V | 2 x 1200 W (BTL) |
| Output Power @ 100 V | 2 x 1500 W (BTL) |
| Total System Power | 3000 W |
| Power Consumption | 700 W |
| Dimensions | 88 x 440 x 332 mm 3.5 x 17.3 x 13.1 in |
| Weight | 7.4 kg |

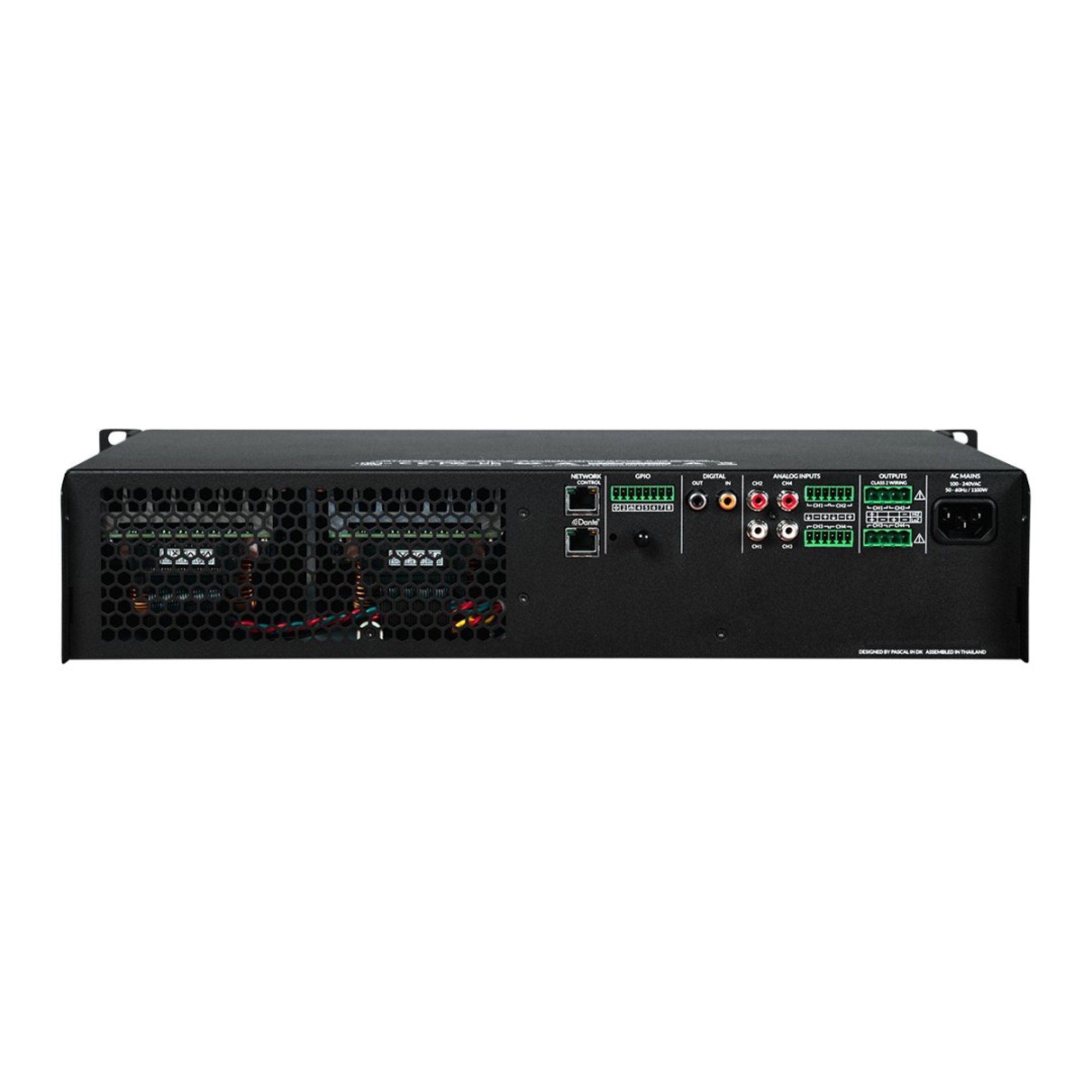

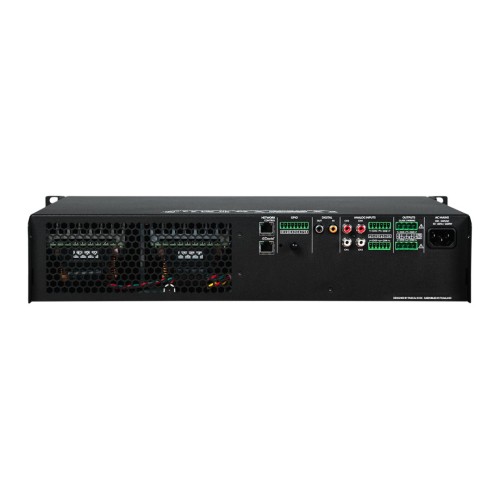

RJ45 connection Direct Network access (Ethernet)
Dante™ AoIP RJ45 port
GPIO Connections External control & monitoring
Wi-Fi antenna
S/PDIF digital input/output
4 x Unbalanced RCA input
4 x Balanced inputs
4 x Lo-Z outputs or 2 x Hi-Z outputs
Mains Power IEC 90-268 Vac input
PowerZone™ Connect 2U series
The PowerZone™ Connect 2U series is a line of ultra-reliable, full-matrix DSP-enabled Class-D amplifiers that delivers exceptional system configuration and flexible output, with a total system power ranging from 1000 W to 6000 W. The PowerZone™ Connect 2U series powers both conventional low-impedance (2 Ω to 16 Ω) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features proportional distribution in both Lo-Z and Hi-Z modes. Specific models of the PowerZone™ Connect 2U amplifiers offer compatibility with Audinate Dante™ AoIP networks and installations.
Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup. PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.
