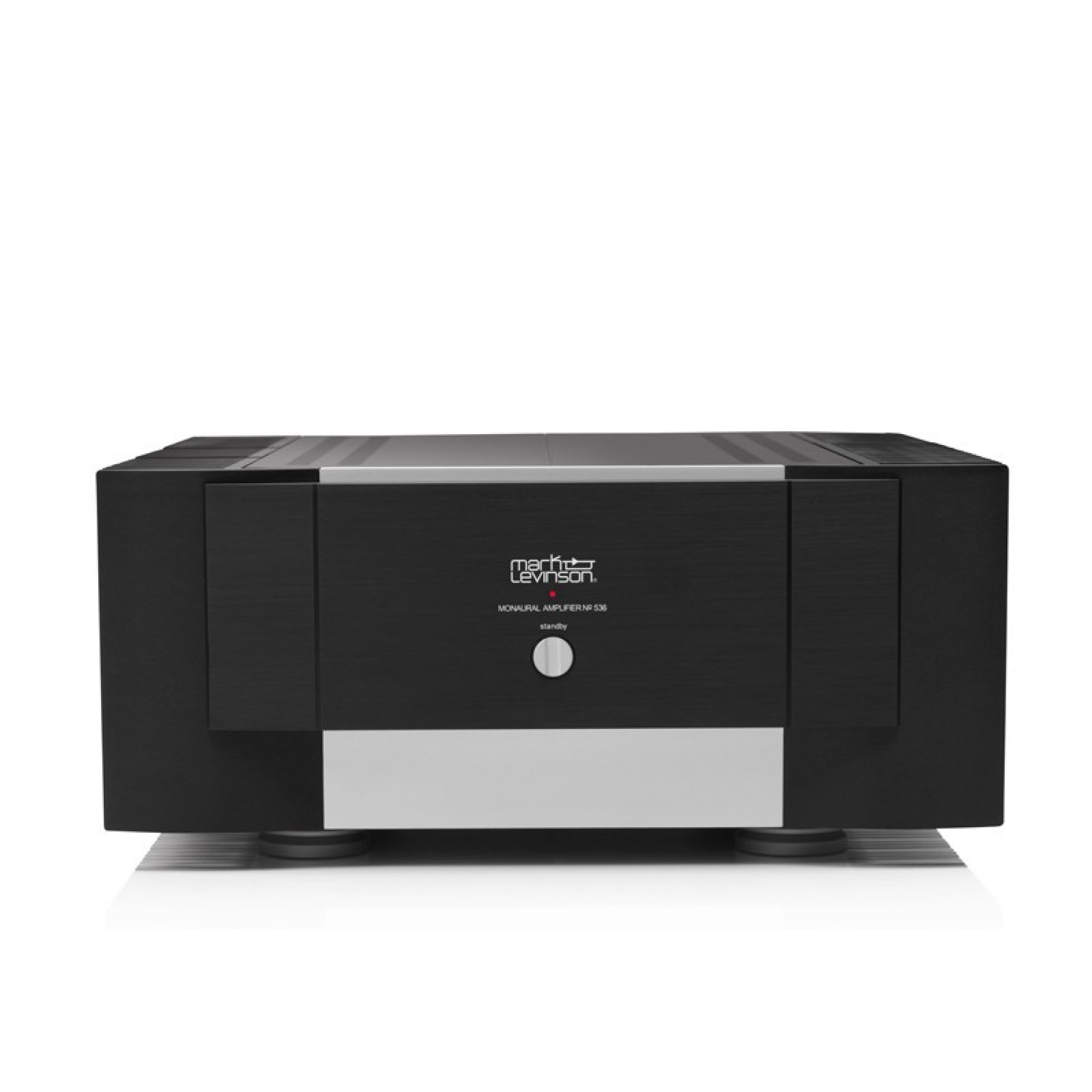

MARK LEVINSON 536 GALIOS STIPRINTUVAS AB KLASĖS STIPRINTUVAS ALIUMINĖ ŠASI JUNGTYS INTERNETAS, RS-232, USB-A MINI USB

• Pure Path discrete, direct coupled, fully balanced, monaural signal path
• Fully differential class-AB architecture, operates in class A for most listening conditions
• 6000-series aluminum chassis, extremely high precision, exceedingly low tolerances

• Expansive, fine imaging, extended low frequency response/pitch, and natural high frequencies
• Rated for 400wpc into 8 ohms, 800wpc into 4 ohms, with 2-ohm stability
• System-integration connectivity: Ethernet, IP, RS-232, triggers, web monitoring and control

• Painstakingly optimized, little negative feedback, bandwidth, slewing, and open-loop linearity
• Custom-designed, low noise toroid with separate secondary windings for each output stage
• Designed and handcrafted in the USA

INPUT CONNECTORS

one Balanced, one single-ended

SPEAKER CONNECTORS

two pairs of Hurricane loudspeaker outputs

banana-plug sockets per channel, except on 230 VAC version

CONTROL I/O

Ethernet, RS-232, Trigger In and Out, USB-A, Mini USB

RATED OUTPUT POWER

400 wpc RMS @ 8Ω, 20Hz to 20kHz @ <0.3% THD, full output from 2.83VRMS

FREQUENCY RESPONSE

10Hz to 20kHz ±0.2dB

SIGNAL-TO-NOISE RATIO

>85dB, reference level: 2.83 VRMS

INPUT IMPEDANCE

60 kΩ balanced; 30 kΩ unbalanced

VOLTAGE GAIN

26dB

INPUT SENSITIVITY

2.83VRMS output at 142mVRMS input

POWER REQUIREMENTS

100V~, 120V~, 230V~, factory set for destination country, 1500W

DIMENSIONS

Height (with feet): 7.75” (19.7cm)
Height (without feet): 7” (17.8cm)
Width: 17.75” (45.1cm)
Depth: 20” (50.8cm)

WEIGHT

Net weight: 100 lbs (45.4kg)
Shipping weight: 114 lbs (51.7kg)
