ORTOFON STYLUS STYLUS GT PAKAITINĖ PATEFONO ADATA
- Gamintojas: ORTOFON
- Kategorijos: PATEFONŲ GALVUTĖS IR JŲ PRIEDAI PATEFONAI IR JŲ PRIEDAI NAMŲ GARSO APARATŪRA
-
59.00€
- Kaina be PVM: 48.76€
Šis "Ortofon" produktas nudžiugins tikrai ne vieną DJ ir pagaliau galėsite didžėjauti visai kitu muzikos ritmu.
GT Replacement stylus for tough handling - extremely sturdy for scratching DJs

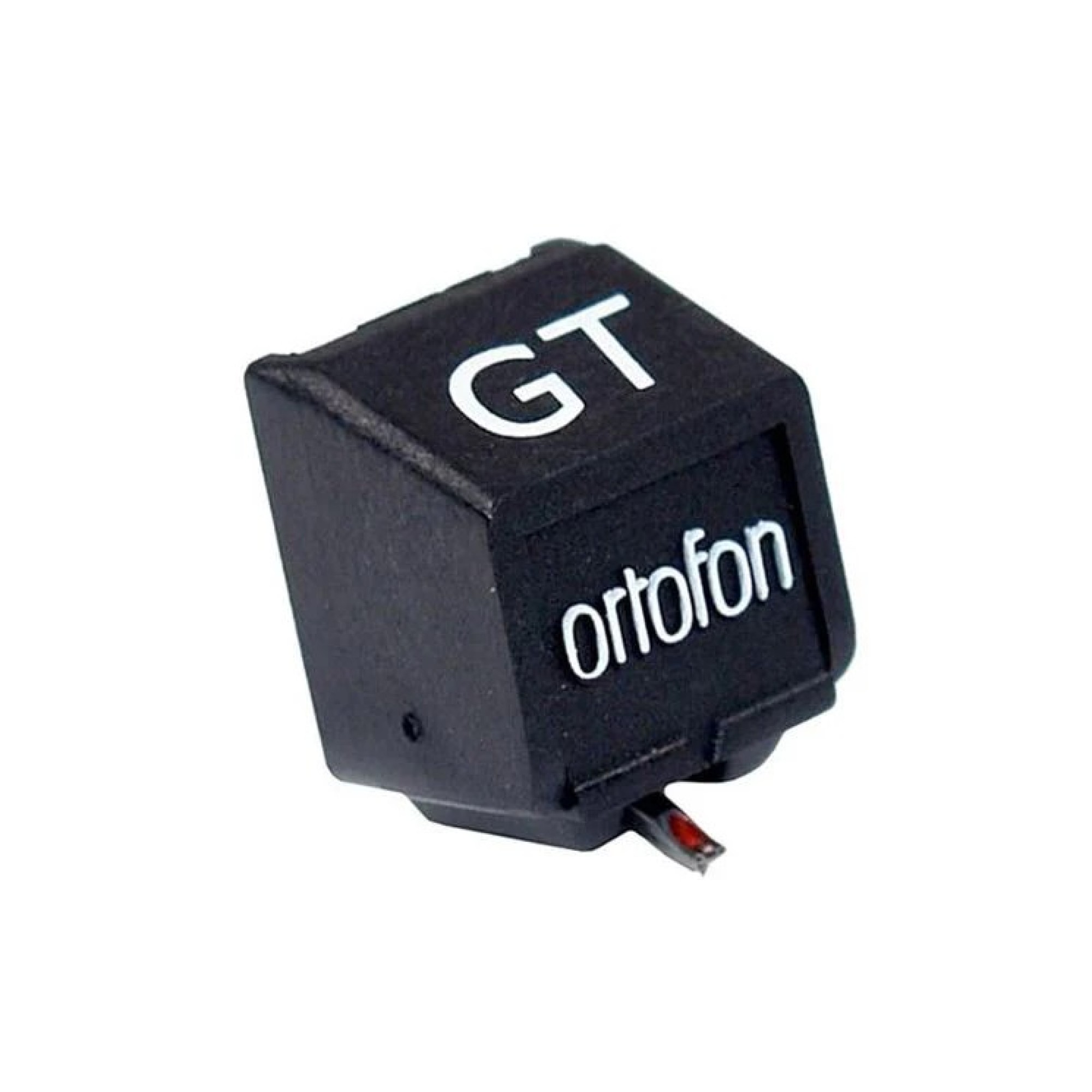

Stylus Stylus GT
Developed by Ortofon in close collaboration with SWS Audio GmbH, the GT cartridge, short for 'Great and Tough,' is built on the robust foundation of the well-known Ortofon Series 500 design. It's designed for standard half-inch mounting and features a sleek black housing with white printing.
The GT cartridge incorporates highly reliable components from the Scratch series, ensuring durability and reliability. With an impressive output of 8 mV and improved frequency response, it delivers higher resolution and enhanced sound quality.
For DJs, especially those into scratching and back-cueing, tracking ability is crucial. While increasing tracking force may seem like a quick fix, it's not always effective. Excessive antiskating adjustment can exacerbate skating issues during back-cueing. As a rule of thumb, never use more than half of the normal antiskating setting relative to the tracking force.
To enhance the GT's durability even further, we've reinforced the cantilever's rubber suspension to withstand drops and accidental finger touches.
Specifications
-
Channel balance at 1 kHz8 mV
-
Output voltage at 1 kHz, 5cm/sec1,5 dB
-
Channel separation at 1 kHz25 dB
-
Frequency response 20 Hz - 20 kHz+/- 2 dB
-
Tracking ability at 315Hz80 μm
-
Compliance, dynamic, lateral6 μm/m N
-
Stylus typeSpherical
-
Stylus tip radiusR 18 μm
-
Tracking force range3.0-5.0 g (30-50 mN)
-
Tracking force, recommended4.0 g (40 mN)
-
Tracking angle20°
-
Internal impedance, DC resistance1000 Ohm
-
Recommended load resistance47 kOhm
-
Internal inductance580 mH
-
Recommended load capacitance200-400 pF
