AUDIO-TECHNICA AT-OC9XEB STEREO KARTRIDŽAS DAŽNIŲ JUOSTA 20 - 30,000 HZ, KANALŲ ATSKIRTIS 25 DB (1 KHZ)
- Gamintojas: AUDIO TECHNICA
- Kategorijos: PATEFONŲ GALVUTĖS IR JŲ PRIEDAI PATEFONAI IR JŲ PRIEDAI NAMŲ GARSO APARATŪRA
-
279.00€
- Kaina be PVM: 230.58€

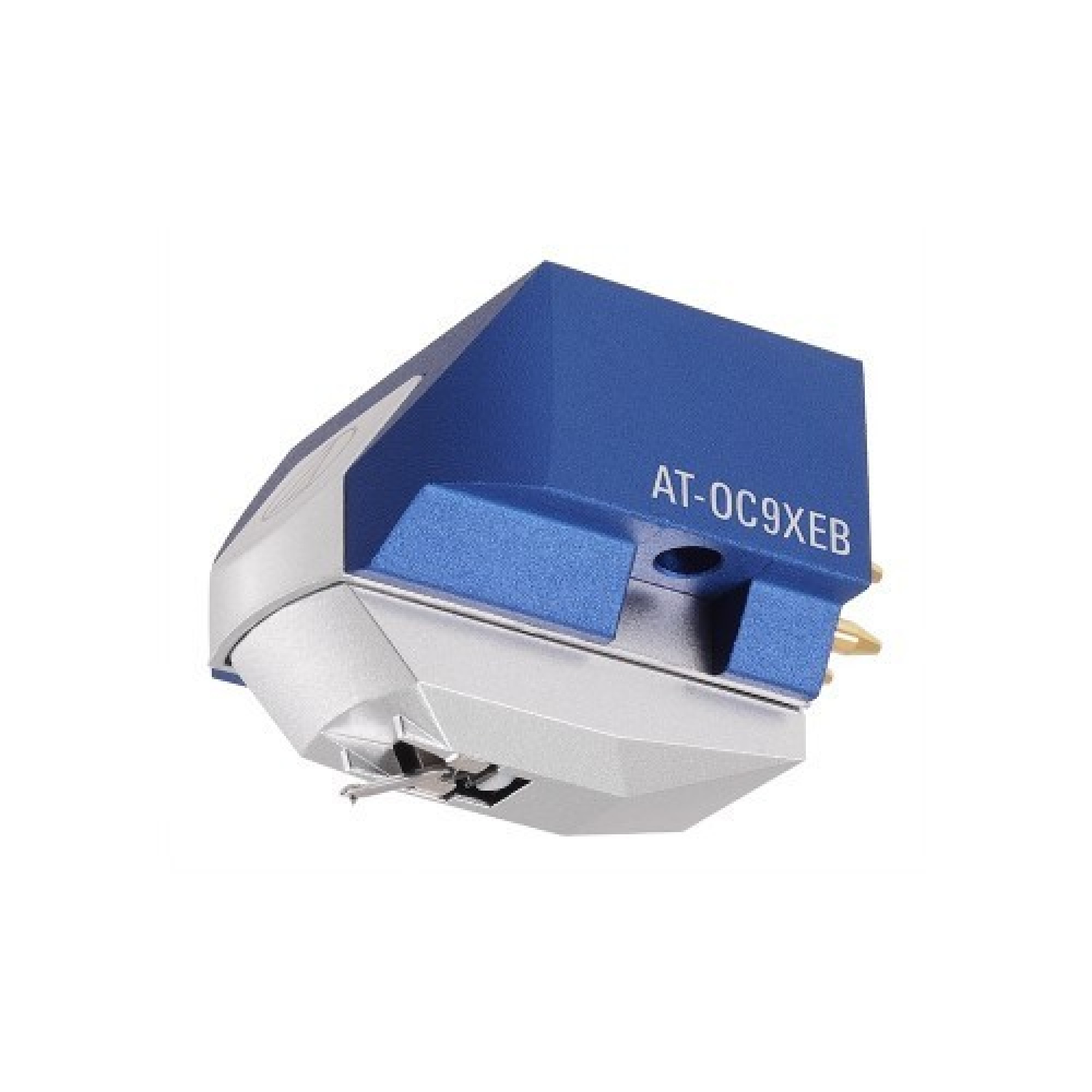

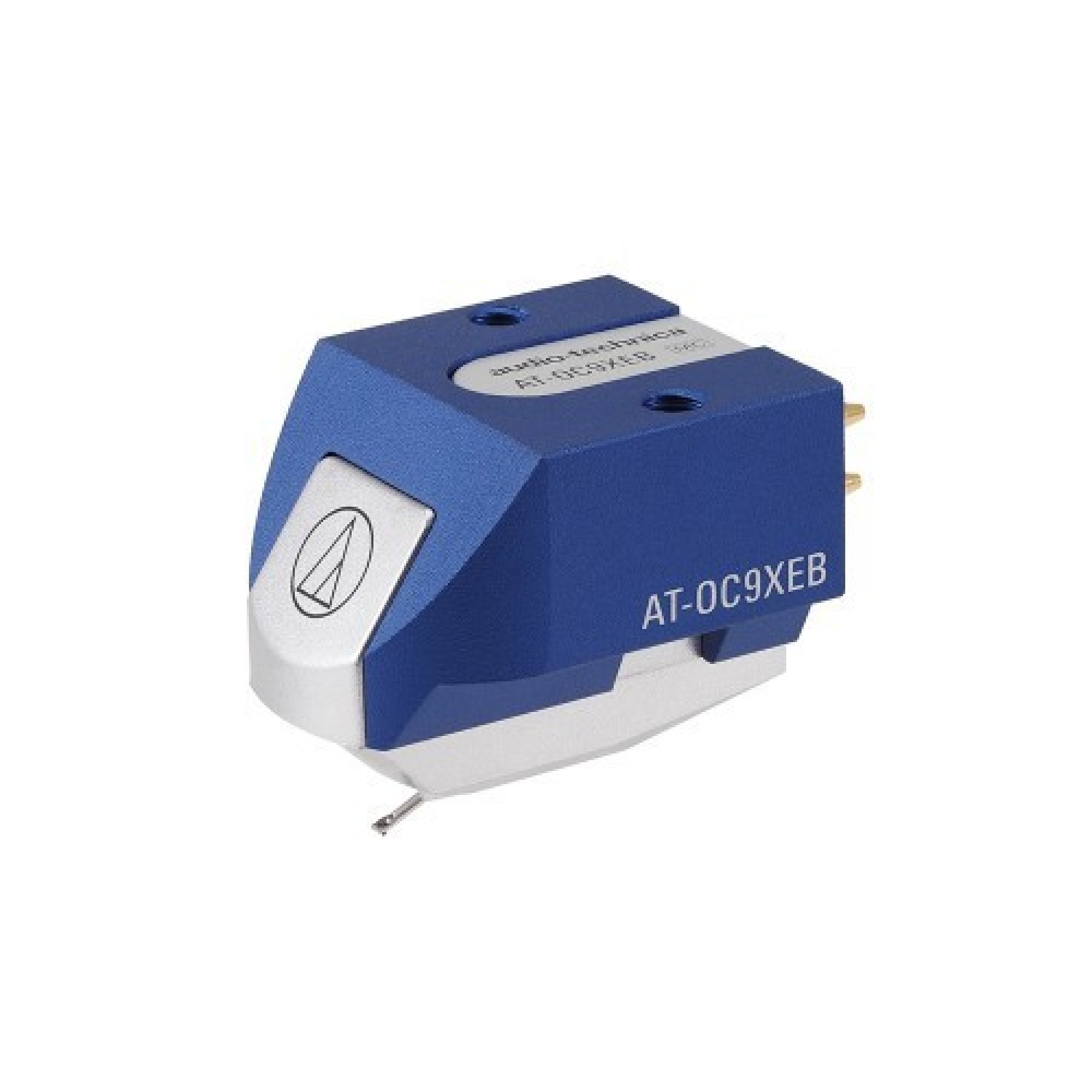

Naujos kartos legendinės OC9 serijos kartridžas
Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. An excellent affordable introduction to the characteristics that is moving coil.
- Features bonded Elliptical stylus and aluminium cantilever
- A neodymium magnet and pure iron yoke provides increased magnetic energy
- Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
- Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
- Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve the purest signal possible
Specifikacijos
| Model | AT-OC9XEB |
| Mounting | 1/2” centers / Threaded inserts |
| Frequency Response | 20 - 30,000 Hz |
| Body Material | Aluminium |
| Channel Separation | 25 dB (1 kHz) |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Output Voltage | 0.32 mV (@ 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 20 degrees |
| Vertical Tracking Force Range | 1.8 to 2.2 g (standard 2.0 g) |
| Stylus Shape | Elliptical Bonded |
| Stylus Size | 0.3 x 0.7 mil |
| Stylus Construction | Bonded round shank |
| Cantilever | Aluminium pipe |
| Coil Impedance | 12 Ohms (1 kHz) |
| Coil Inductance | 25 μH (1 kHz) |
| DC Resistance | 12 Ohms |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 9 x 10 – 6 cm / dyne (100 Hz) |
| Terminal Pins | Brass |
| Wire Used for Coil | PCOCC (Copper by Ohno Continuous Casting process.) |
| Recommended Load Impedance | Min 100 Ohms |
| Weight | 7.6 g |
| Dimensions | 17.3 (H) x 16.8 (W) x 25.7 (L) mm |

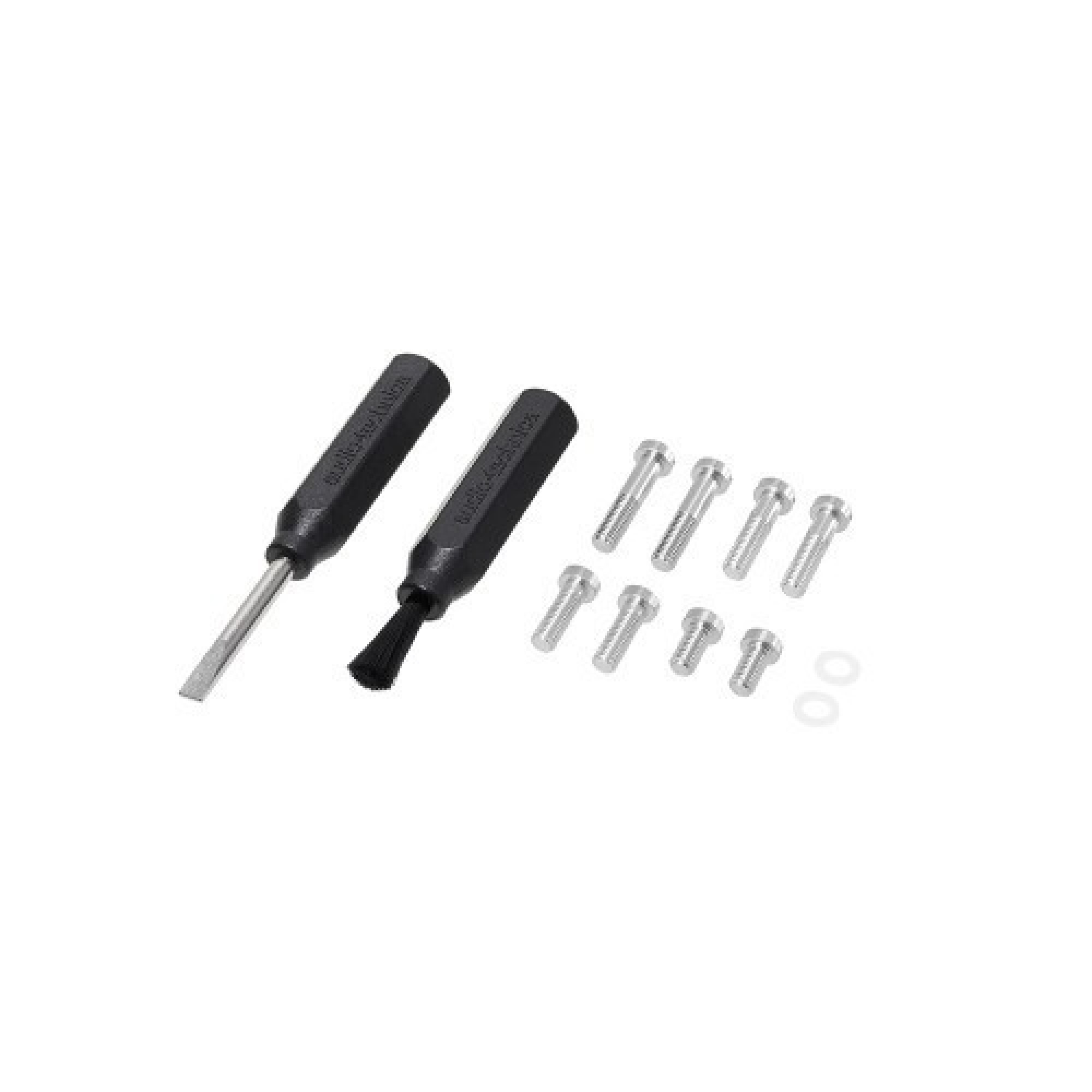

| Accessories Included | 1 non magnetic screw driver, 1 brush; 2 washers, 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm 1 plastic protector |
