AUDIO-TECHNICA VM530EN PLOKŠTELIŲ GROTUVO PATEFONO GALVUTĖ DAŽNIŲ JUOSTA 20 - 25,000HZ, KANALŲ ATSKYRIMAS 27DB (1KHZ)

Gamintojas: AUDIO TECHNICA
Kategorijos: PATEFONŲ GALVUTĖS IR JŲ PRIEDAI PATEFONAI IR JŲ PRIEDAI NAMŲ GARSO APARATŪRA

189.00€
Kaina be PVM: 156.20€

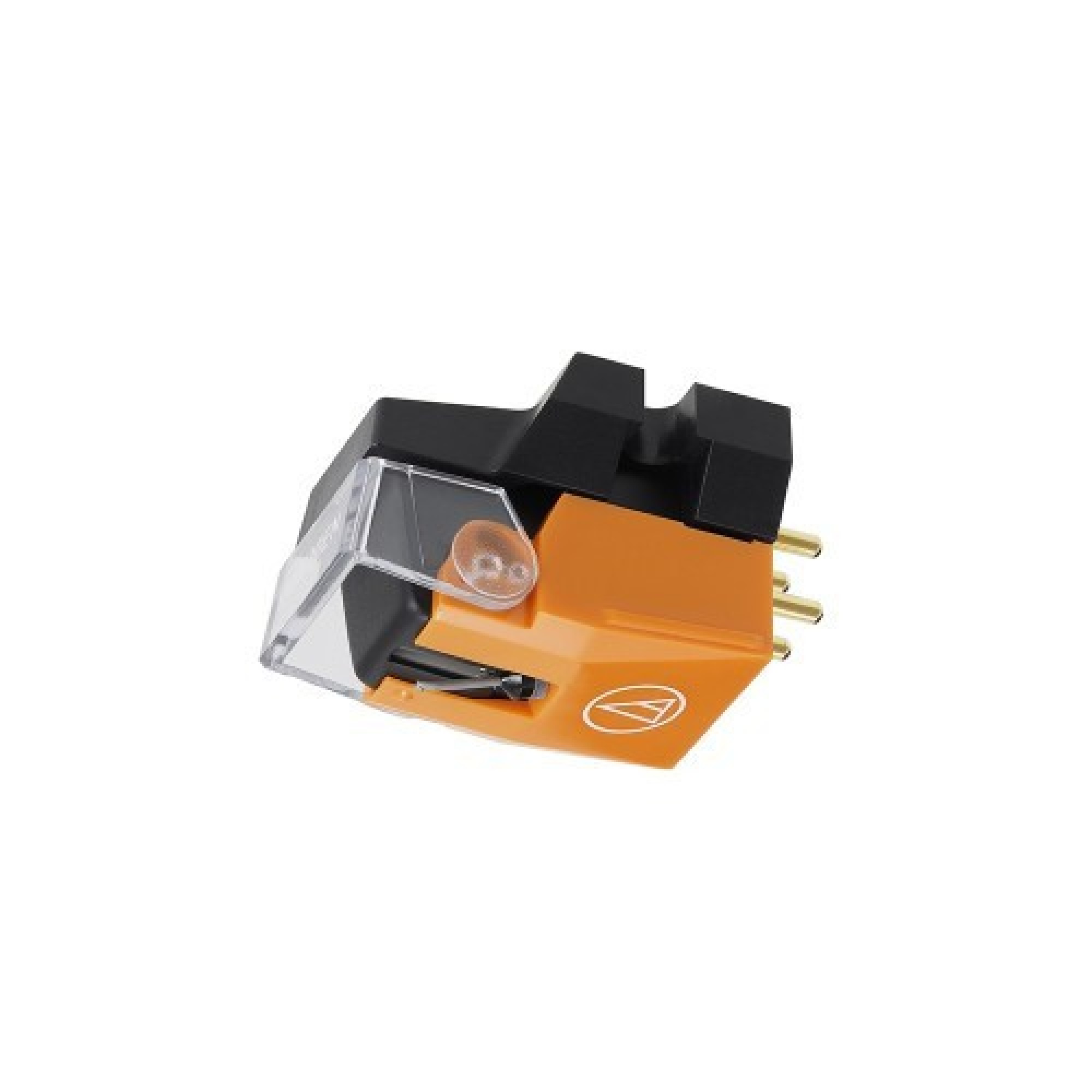

VM530EN

Magnetinis Stereo Kartridžas

High-end elliptical stylus model equipped with a light-weight nude elliptical stylus to reduce the execution mass of the vibration system. This enables fuller frequency reproduction.

Aluminium cantilever
Para-toroidal coils improve generating efficiency
Centre shield plate between the left and right channels reduces crosstalk
Durable low resonance polymer housing

Specifikacijos

Type	VM Type
Mounting	1/2” centres
Frequency Response	20 - 25,000Hz
Channel Separation	27dB (1kHz)
Output Channel Balance	1.5dB (1kHz)
Output Voltage	4.0mV (1kHz, 5cm/sec.)
Vertical Tracking Angle	23˚
Vertical Tracking Force Range	1.8 – 2.2g (2.0g standard)
Stylus Shape	Elliptical Nude
Stylus Size	0.3 x 0.7 mil
Stylus Construction	Nude Round Shank
Cantilever	Aluminium Pipe
Coil Impedance	2,700Ω (1kHz)
Static Compliance	35 x 10-6 cm/dyne
Dynamic Compliance	8 x 10-6 cm/dyne (100Hz)
Recommended Load Impedance	47,000Ω
Recommended Load Capacitance	100 – 200pF
Weight	6.4g
Dimensions	17.3 (H) x 17.0 (W) x 28.2 (L) mm
Replacement Stylus	VMN30EN
Accessories Included	Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1
