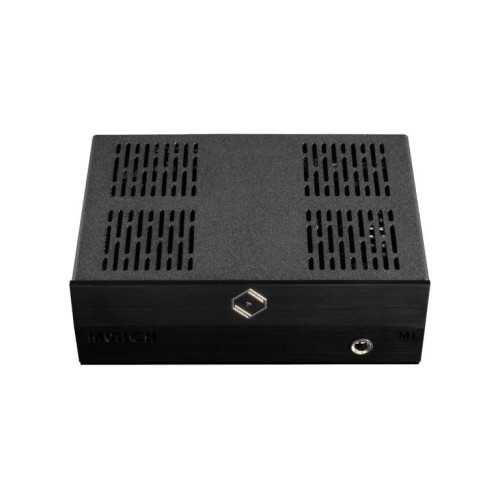

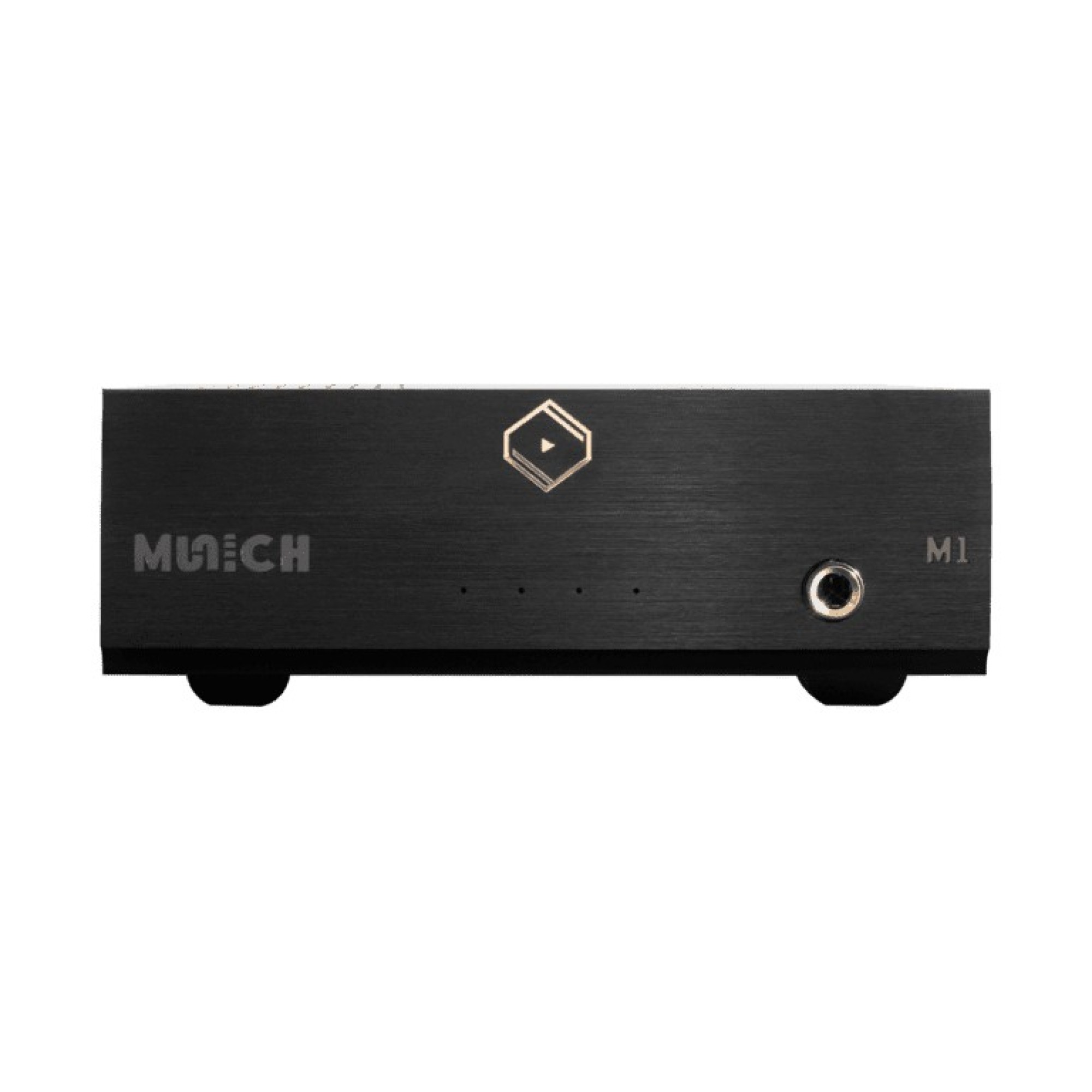

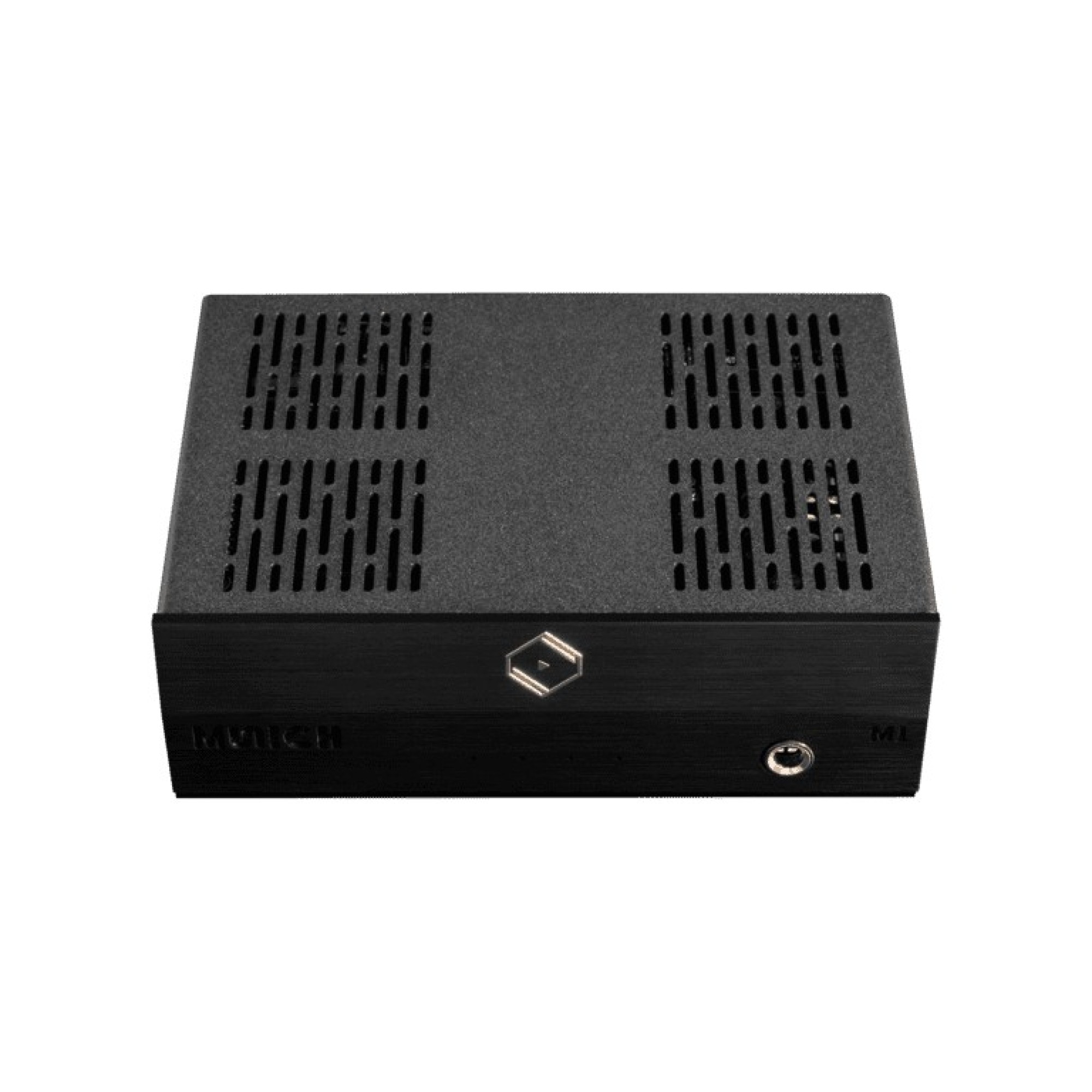

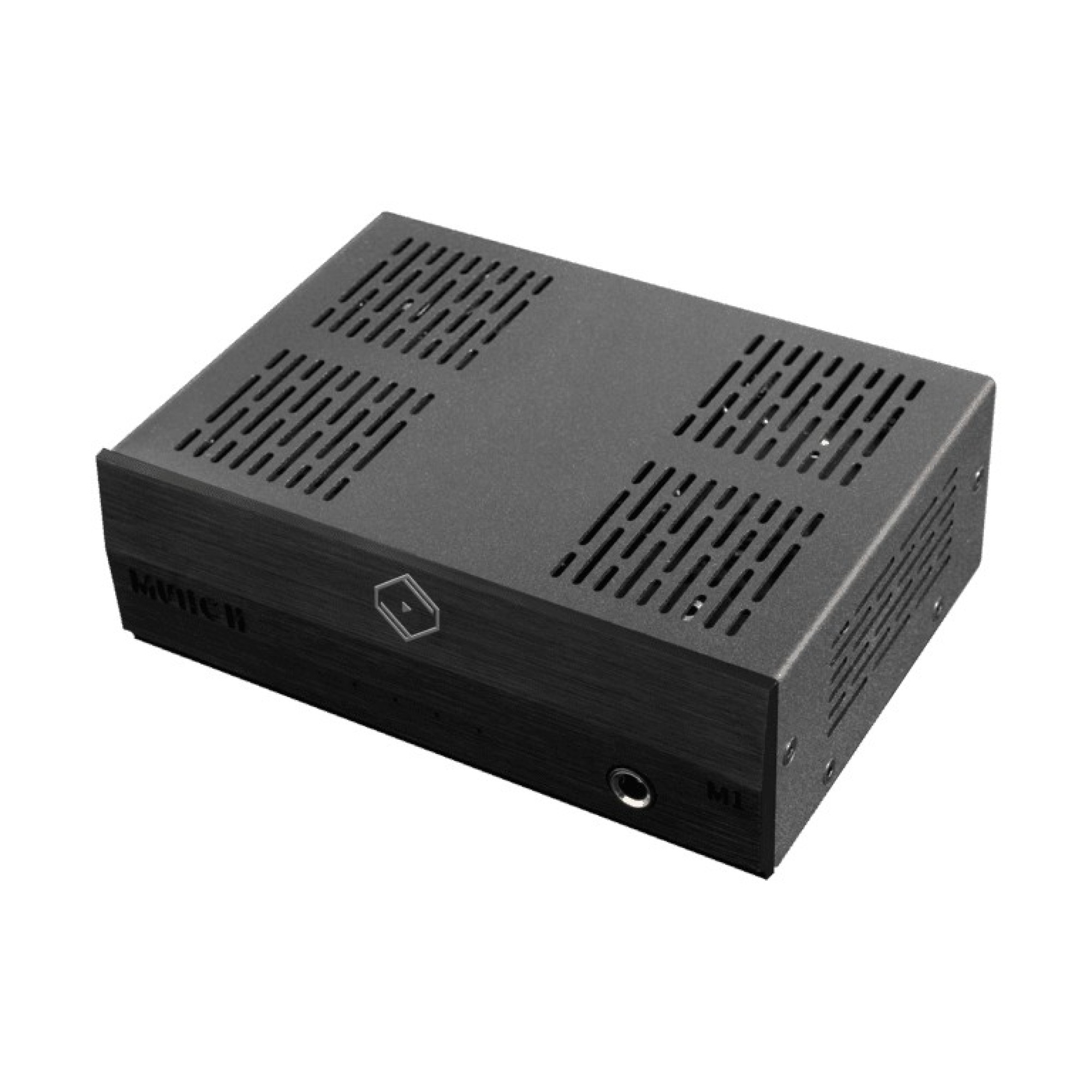

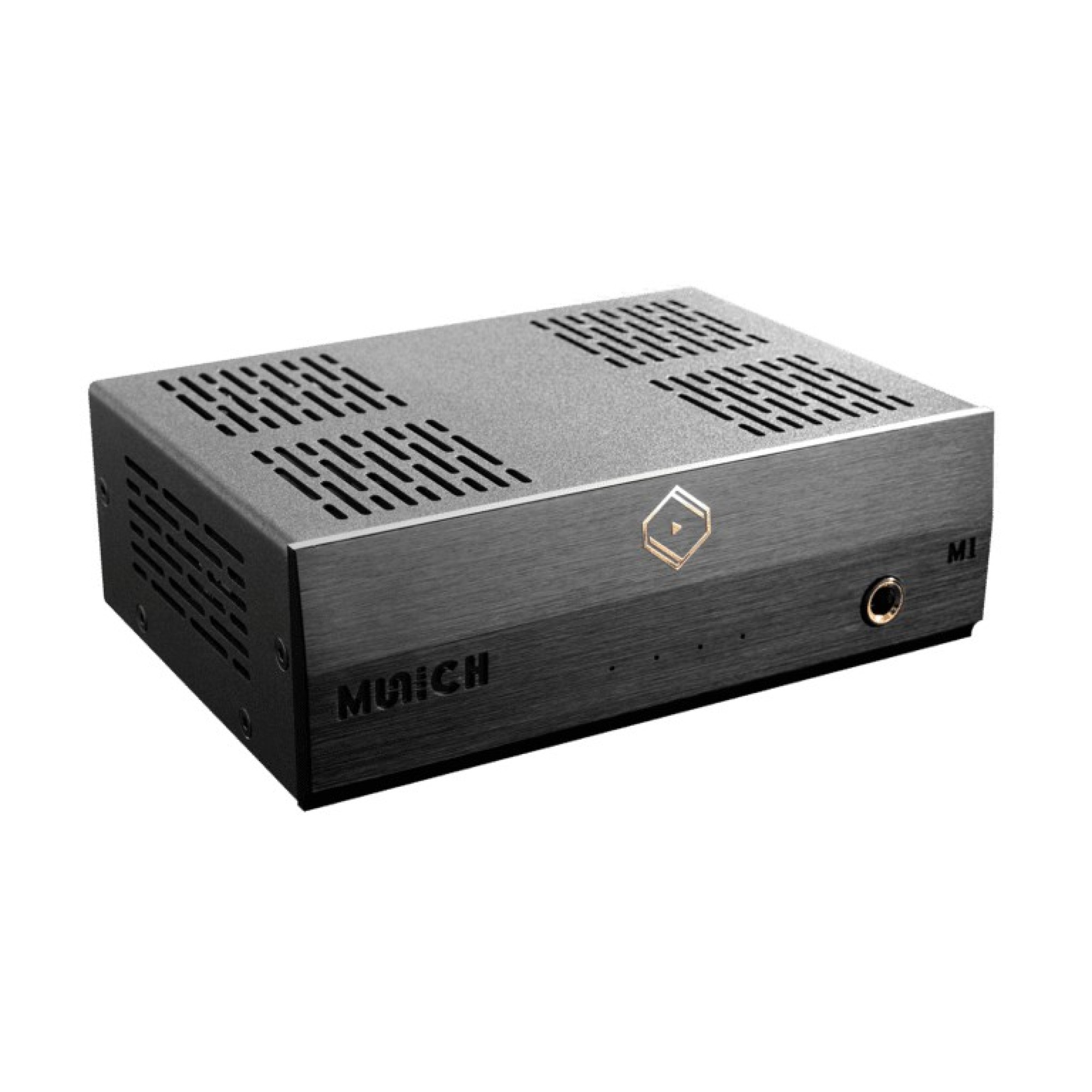

SILENT ANGEL MUNICH M1 – HI-FI TINKLO GROTUVAS SU INTEGRUOTU DAC IR AUSINIŲ STIPRINTUVU. PROCESORIUS: ARM CORTEX-A72, 4 BRANDUOLIAI, 1,5 GHZ
- Gamintojas: SILENT ANGEL
- Kategorijos: TINKLO GROTUVAI GARSO STIPRINTUVAI BEI GROTUVAI NAMAMS NAMŲ GARSO APARATŪRA
-
1,349.00€
- Kaina be PVM: 1,114.88€
Superior Hardware System
The M1 is born to pursue superior audio performance without any compromise.
- Elegant metal enclosure with a solid aluminum alloy front panel
- High-performance yet low-power CPU, 4-core 1.5GHz ARM Cortex-A72
- Substantial system memory for large streaming buffers and caches to run multiple applications simultaneously
- Advanced circuitry with high quality components
- Fan-less heat dissipation with a highly efficient heat-sink (~20˚C lower after applied)
- A highly permeable EMI absorber (>120 @1MHz) to reduce electrical interference

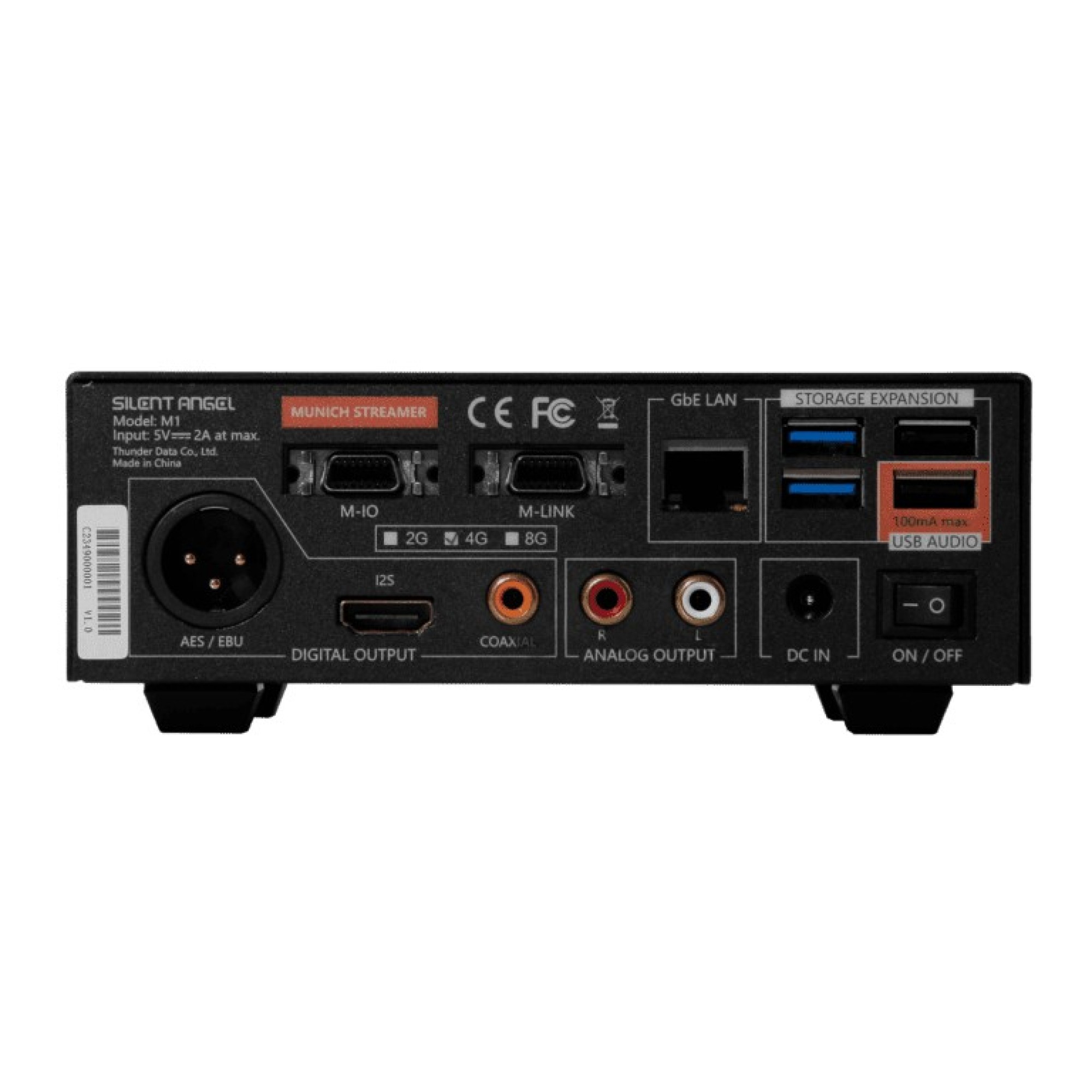

- Gold plated audio output ports (RCA L/R, 6.35mm headphone jack, and Coaxial & AES/EBU)
Obtain More Audio Sources For HiFi Systems
- High-resolution streaming services and Internet radios
- Play various music file formats and SACD files(Native DSD up to DSD256, and DoP up to DSD128).
Stream and Play in an Audio Network
- Play high-resolution streaming services and Internet radio
- Roon Ready player
- Play music from network shared storage (over SMB/CIFS)
- DLNA renderer (player)
Connect M1 to Powered Speakers
The M1 employs a built-in DAC and volume control, so that it can be connected to powered speakers. Enjoy high quality sound with no PC required.
Enjoy by Connecting a Headphone
The M1 integrates a HiFi headphone Amp with 6.35mm headphone jack on the front, and is able to deliver superior sounding digital music with no PC involved.
| Available Color | Black |
| Power Consumption | 10W at max |
| Headphone Jack | 6.35 mm headphone jack x 1 33 Ohm
|
| Digital Outputs | AES/EBU port x 1 I2S port x 1* Coaxial port x 1 - Supports up to PCM 384KHz and DSD 5.6M (DSD128) * I2S output signal is not compatible with Holo Audio's DAC |
| USB Audio | USB Audio port x 1 - Supports up to PCM 768KHz and DSD 11.2M (DSD256) |
| Analog Output | RCA (L+R) - 2Vrms THD+N : 0.00134 / 0.00164% - Frequency response : 20Hz ~20KHz+- 0.5dB - SNR : 108dB |
| USB | USB 3.0 x 2 USB 2.0 x 1 - Above USB ports are for external storage |
| M-IO | M-IO x 1* *Reserved. To be enabled by future firmware upgrade |
| M-LINK | M-LINK x 1* *Reserved. To be enabled by future firmware upgrade |
| Ethernet | 1 GbE RJ45 x 1 |
| Music Format | AAC, M4A, MP3, OGG, FLAC, WAV, ALAC, DSD(DSF, DFF), WAV64, AIFF, CUE files, WMA, APE |
| Gapless Playback | Supported |
| MQA Handling | The M1 will transmit the signal to the DAC which supports MQA decoding. MQA is supported only by connecting to the USB-audio port. |
| LED Indicator | Mute LED x 1 Power LED x 1 Digital Output LED x 2* *Yellow light on when in DSD format / Green light on when in PCM format |
| Temperature | Operating: 32 ~ 86 °F Storage: -4 ~ 158 °F |
| Humidity | Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 95% RH (non-condensing) |
| Dimensions | 6.11(W) inch x 1.99(H) inch x 4.34(D) inch |
| Weight | 2.21 lbs |
| Document Download | M1 Quick Start Guide |
