ORTOFON SPU MONO G MKII PATEFONO KARTRIDŽAS SU GALVUTE, DAŽNIŲ JUOSTA 20-25.000 HZ (+2DB / -1 DB), IŠĖJIMO LYGIS - 3 MV
- Gamintojas: ORTOFON
- Kategorijos: PATEFONŲ GALVUTĖS IR JŲ PRIEDAI PATEFONAI IR JŲ PRIEDAI NAMŲ GARSO APARATŪRA
-
999.00€
- Kaina be PVM: 825.62€
For playback of early 25µm mono recordings

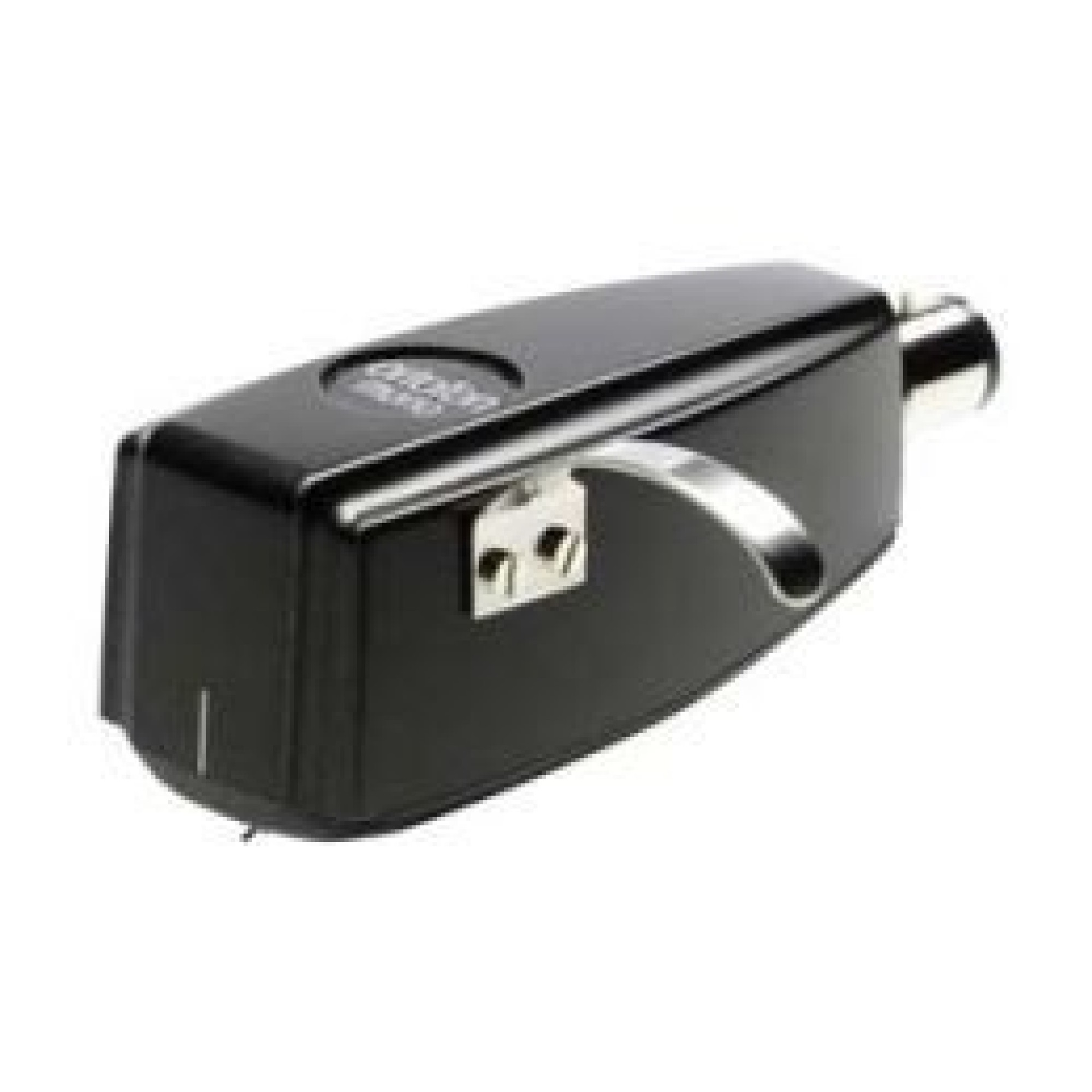

SPU Mono G MKII
The SPU Mono GM MkII is a high output Moving Coil cartridge with a spherical stylus profile for the playback of early 25µm mono recordings.
The SPU Mono GM MkII provides an authentic method of playing back these early vinyl recordings with a remarkable level of sonic accuracy, and its high output negates the need for a moving coil transformer.
The SPU Mono GM MkII is for the playback of early 25µm mono recordings
The SPU Mono GM MkII is a high output Moving Coil cartridge a with a spherical stylus profile, for the playback of early 25µm mono recordings.
The SPU Mono GM MkII provides an authentic method of playing back these early vinyl recordings with remarkable level of sonic accuracy, and its high output negates the need for a moving coil transformer.
Specifications
-
Output voltage at 1 kHz, 5cm/sec3 mV
-
Frequency response 20 Hz - 20 kHz2/- 1 dB
-
Tracking ability at 315Hz at recommended tracking force70 µm
-
Compliance, dynamic, lateral12 µm/mN
-
Stylus typeSpherical
-
Stylus tip radiusR 25 µm
-
Tracking force range3.0-5.0 g (30-50 mN)
-
Tracking force, recommended4.0 g (40 mN)
-
Tracking angle20°
-
Internal impedance, DC resistance100 ohm
-
Recommended load impedance47 kohm
-
Coil wire materialHigh Purity Copper (OFC)
-
Cartridge body materialGround wood and resin composite
-
Cartridge colourBlack matte
-
Cartridge weight28 g
